5962-9174909HXC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 5962-9174909HXC

5962-9174909HXC: DescriptionMIL-STD-1553 Data Bus Transceiver, Bipolar, DIP-24; CategoryWireless rf/communication Telecom circuit; File Size154KB，6 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

5962-9174909HXC Overview

MIL-STD-1553 Data Bus Transceiver, Bipolar, DIP-24

5962-9174909HXC Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
JESD-30 code	S-XDIP-T24
JESD-609 code	e4
length	31.75 mm
Negative supply voltage rating	-12 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-PRF-38534
Maximum seat height	4.44 mm
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	27.94 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Standard Products

ARX4404 & ARX4407 Transceiver

for MACAIR (A3818, A4905, A5232, A5690), MIL-STD-1553

& SAE-AS15531

www.aeroflex.com/Avionics

April 5, 2005

FEATURES

❑

ARX4404 Transceiver meets Macair (A3818, A4905, A5232 and A5690) & MIL-STD-1553A/B

ARX4407 Transceiver meets MIL-STD-1553 and SAE-AS15531

Bipolar supply ±15V to ±12V, Logic supply +5V

Direct replacement for CT3231 and CT3232

Variable receiver threshold capability

Monolithic construction

Voltage source output for higher bus drive power

Low receiver data level versions: ARX4440 and ARX4467

Designed for commercial, industrial and aerospace applications

MIL-PRF-38534 compliant devices available

Aeroflex-Plainview is a Class H & K MIL-PRF-38534 manufacturer

DESC SMD 5962-91749

GENERAL DESCRIPTION

The Aeroflex Plainview transceiver model ARX4404 and is a new generation monolithic transceiver which provide full compliance

with Macair and MIL-STD-1553 data bus requirements. The model ARX4404 and ARX4407 performs the front-end analog

function of inputting and outputting data through a transformer to a MIL-STD-1553 or Macair data bus.

The ARX4404 can be considered a "Universal" Transceiver in that it is compatible with Macair (A-3818, A-4905, A-5232 and

A-5690), MIL-STD-1553A/B and SAE-AS1553. The ARX4407 is compatible with MIL-STD-1553A/B and SAE-AS15531.

Design of these transceivers reflects particular attention to active filter performance. This results in low bit and word error rate with

superior waveform purity and minimal zero crossover distortion. The ARX4404 active filter design has additional high frequency

roll-off to provide the required Macair low harmonic distortion waveform without increasing the pulse delay characteristics

significantly.

Efficient transmitter electrical and thermal design provides low internal power dissipation and heat rise at high and low duty cycles.

An optional receiver input threshold adjustment can be accomplished by the use of the ''External Threshold" terminals or use of the

"Set Internal Threshold" terminals.

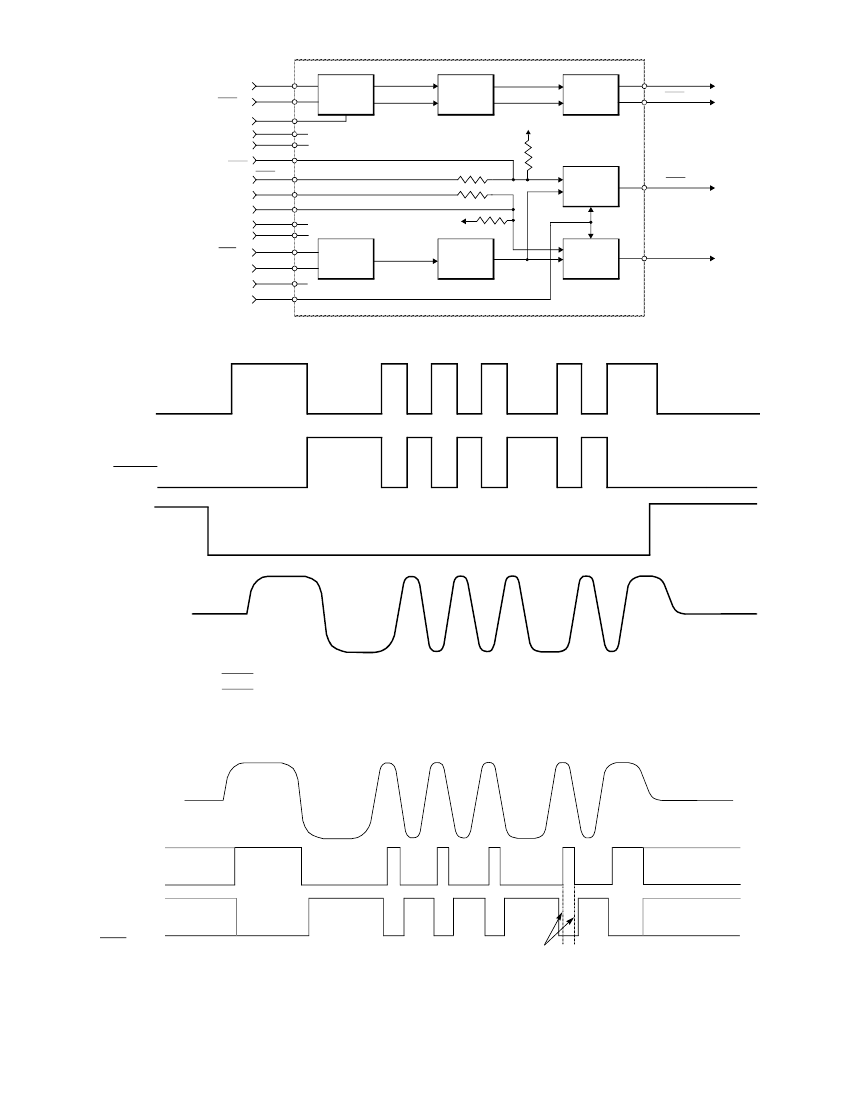

TRANSMITTER

The Transmitter section accepts bi-phase TTL data at the input and when coupled to the data bus with a 1:1 transformer the data bus

signal produced is 7.0 Volts minimum P-P at point A-A’ (See Figure 5). When both DATA and DATA inputs are held low or high,

the transmitter output becomes a high impedance and is “removed” from the line. In addition, an overriding "INHIBIT'' input

provides for the removal of the transmitter output from the line. A logic '' 1'' applied to the '' INHIBIT'' takes priority over the

condition of the data inputs and disables the transmitter (See Transmitter Logic Waveforms - Figure 1).

The transmitter utilizes an active filter to suppress harmonics above 1 MHz to meet Macair specifications A-3818, A-4905, A-5232

and A-5690. The transmitter may be safely operated for an indefinite period at 100% duty cycle into a data bus short circuit.

The transceiver utilizes an active filter to suppress harmonics above 1MHz. The Transmitter may be safely operated at 100% duty

cycle for an indefinite period into a short circuited 1553 bus.

RECEIVER

The Receiver section accepts bi-phase differential data at the input and produces two TTL signals at the output. The outputs are

DATA and DATA, and represent positive and negative excursions of the input beyond a pre-determined threshold (See Receiver

Logic Waveforms - Figure 2).

The internal threshold is nominally set to detect data bus signals exceeding 1.05 Vp-p and reject signals less than 0.6 Vp-p when

used with a 1:1 turns ratio transformer (See Figure 3 or 4 for transformer data and typical connection). This threshold setting can be

held by grounding the appropriate pins or modified with the use of external resistors.

A low level at the ''STROBE'' input inhibits the DATA and DATA outputs. If unused, a 2K Ohm pull-up to +5V

is recommended.

SCD4404 Rev F
