51720-10700000AA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 51720-10700000AA

51720-10700000AA: DescriptionBoard Connector, 7 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size640KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51720-10700000AA Overview

Board Connector, 7 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

51720-10700000AA Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51720
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

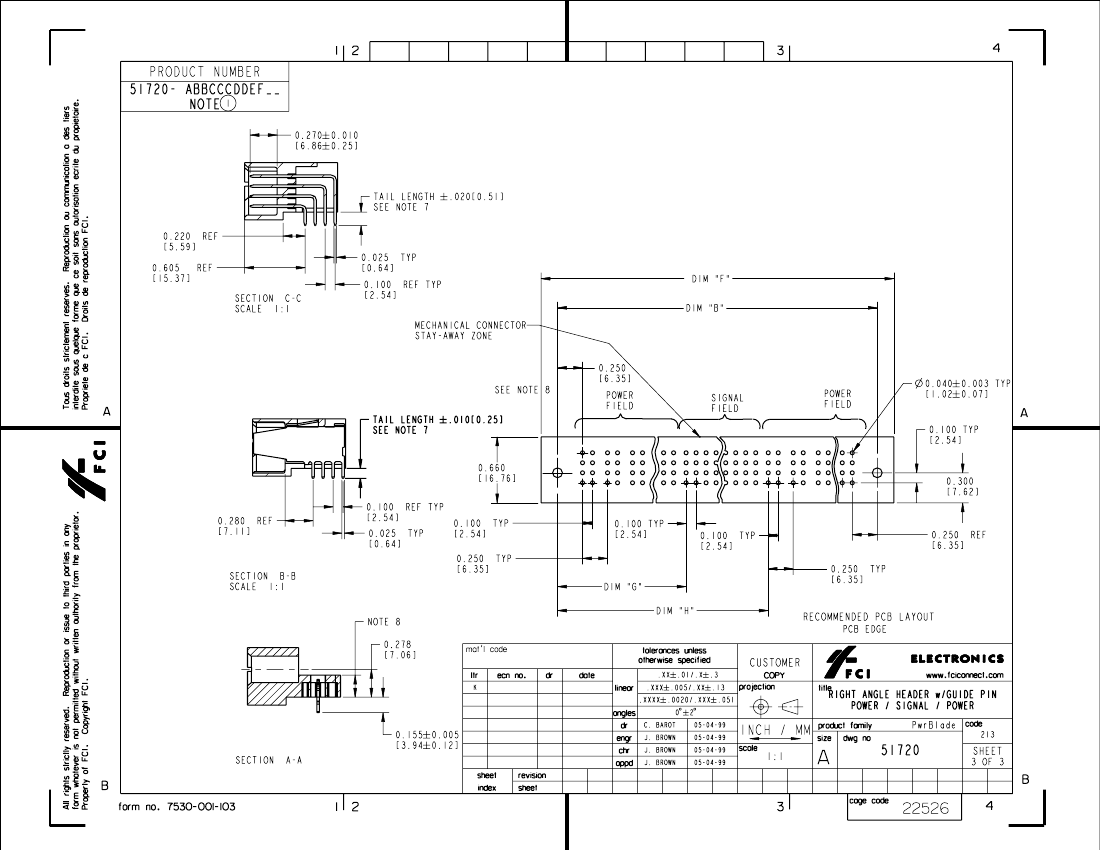

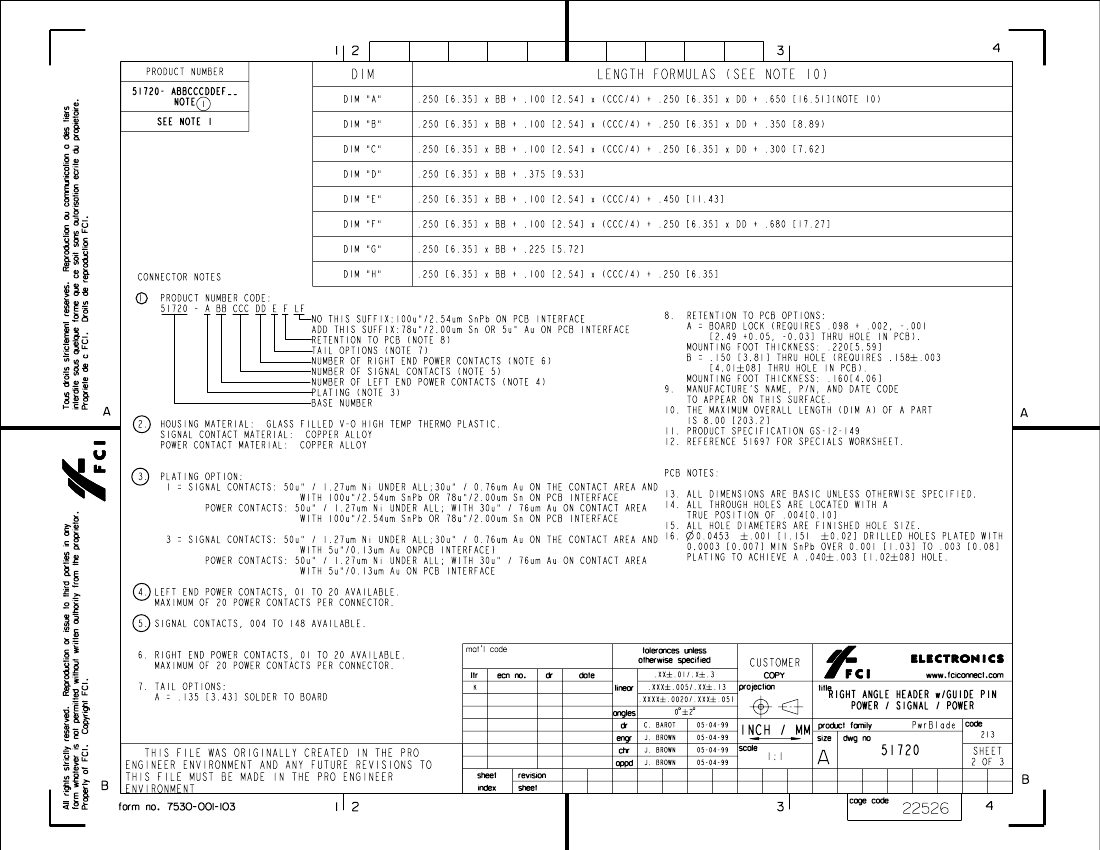

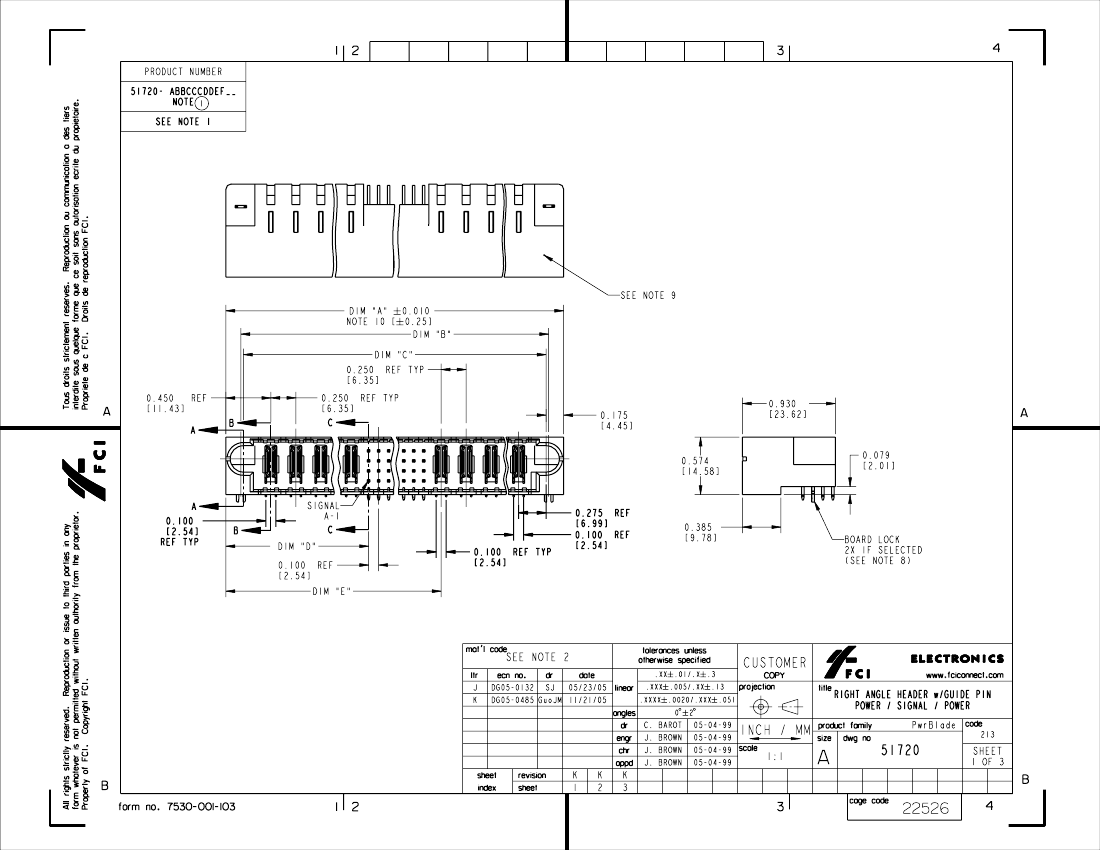

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: Oct 07, 2006

51720-10700000AA Related Products

	51720-10700000AA	51720-10001604AA	51720-10704000AA	51720-10002412AA	51720-10002806AA	51720-10004000AA	51720-10014800AB
Description	Board Connector, 7 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 20 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 47 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 36 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 34 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 40 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 148 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	51720	51720	51720	51720	51720	51720	51720
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	7	20	47	36	34	40	148
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
