52601-S10-805 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52601-S10-805

52601-S10-805: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size243KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52601-S10-805 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

52601-S10-805 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	52601
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

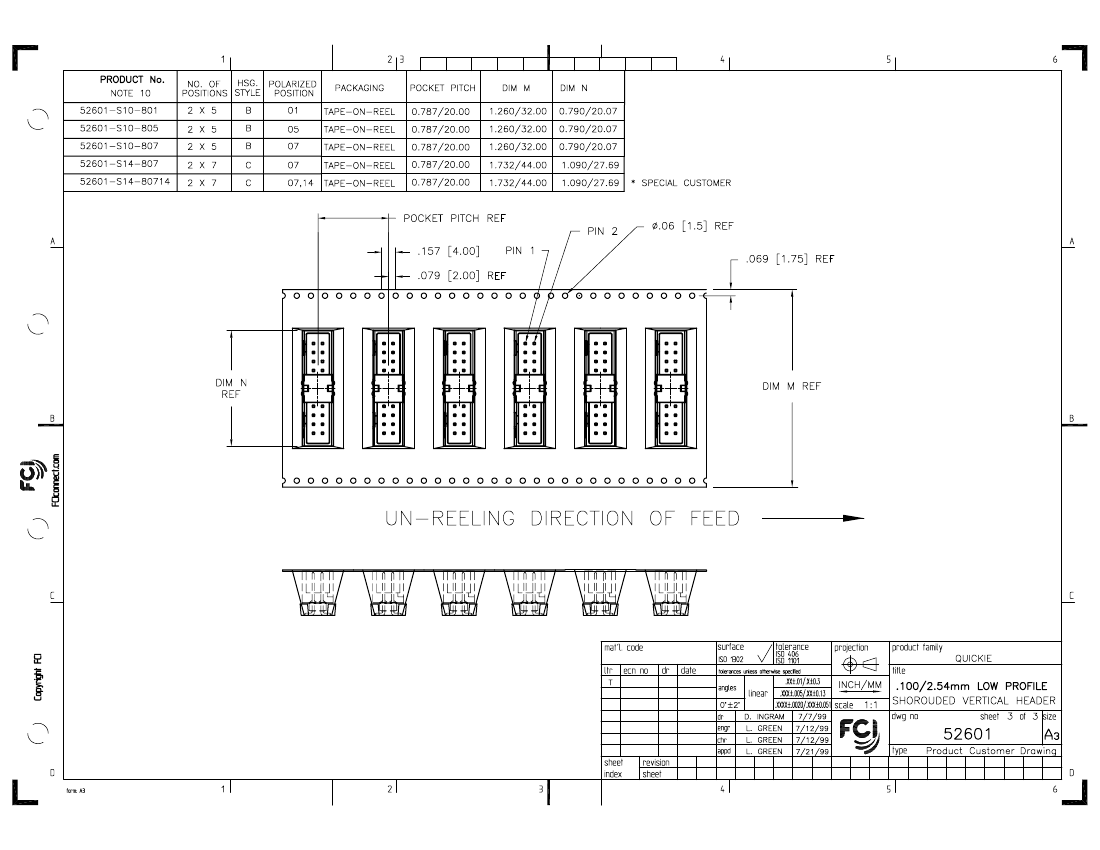

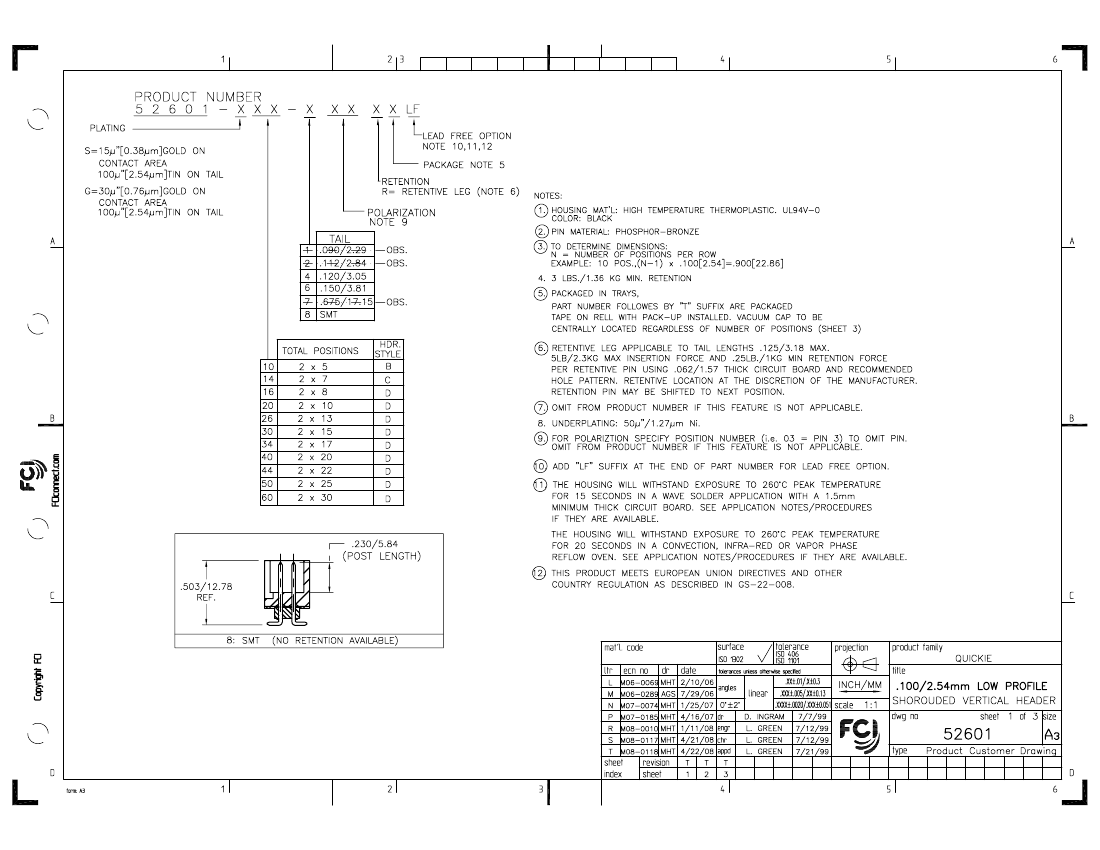

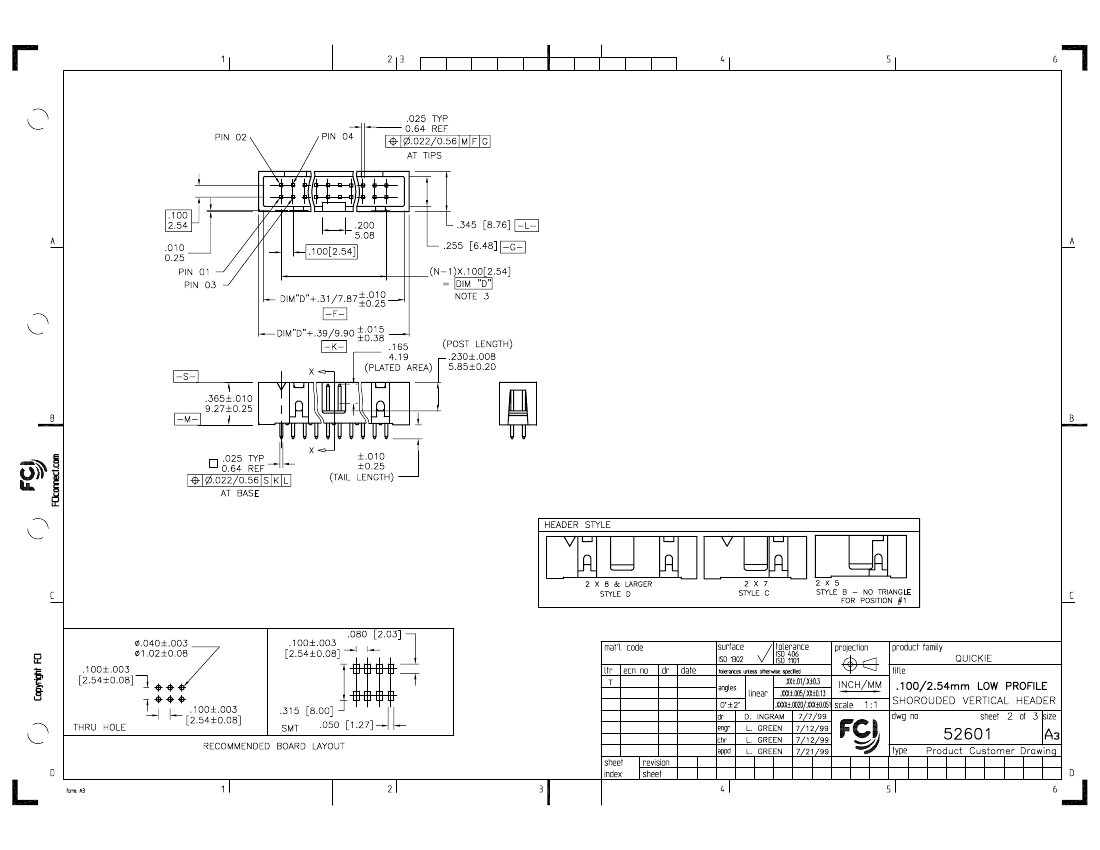

Preview

Download Datasheet

View All

PDM: Rev:T

STATUS:

Released

Printed: May 01, 2008

52601-S10-805 Related Products

	52601-S10-805	52601-S14-807	52601-S10-801	52601-S10-807
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN OVER NICKEL	TIN (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	14	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	Contains lead	Contains lead	-	Contains lead
Maker	Amphenol	Amphenol	-	Amphenol
Manufacturer's serial number	52601	52601	-	52601
Base Number Matches	1	1	-	1
