3HD22R02-01: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric View All

3HD22R02-01 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

3HD22R02-01 Parametric

Parameter Name	Attribute value
Maker	Delphi Connection Systems
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3H
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

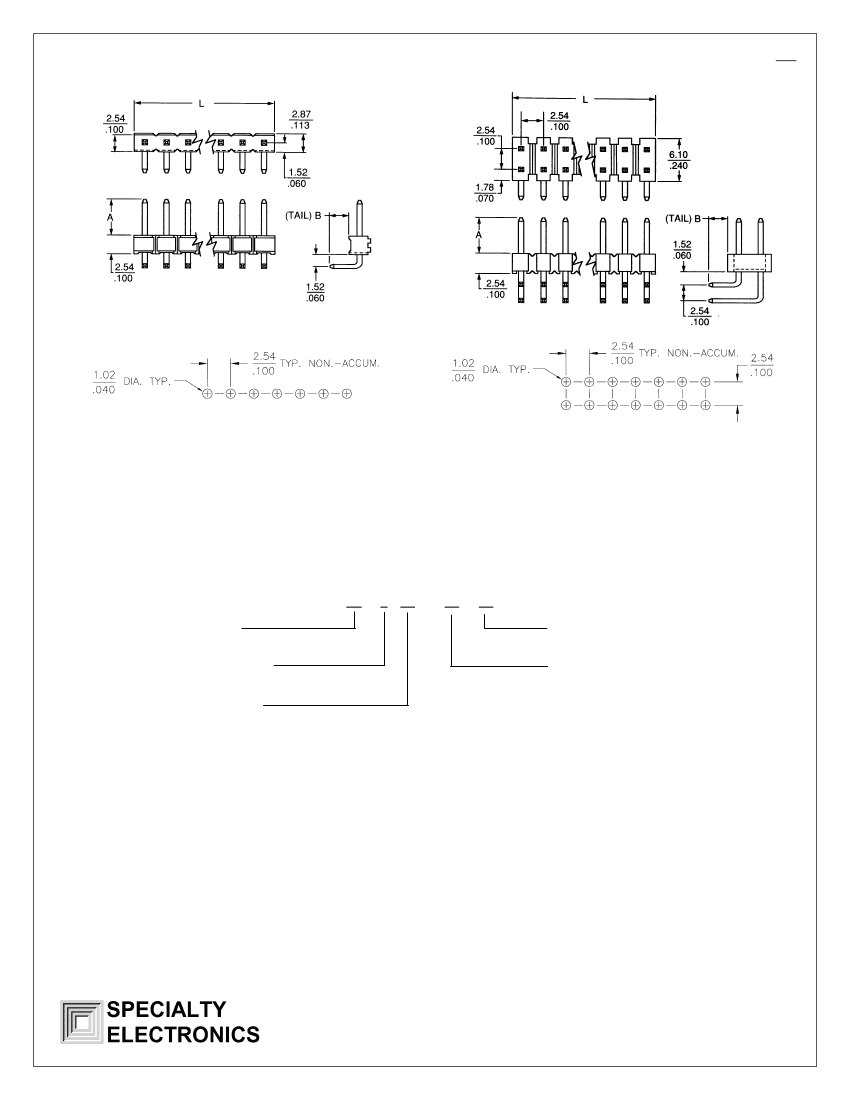

STANDARD PROFILE HEADERS

THROUGH HOLE, RIGHT ANGLE

inch

RECOMMENDED P.C. BOARD LAYOUT

2H Series “A” Dimension = 5.84 (.230”)

3H Series “A” Dimension = 8.08 (.318”)

Part Number Description

Series

No. of Rows

S = Single row

D = Dual row

Positions

No. of positions/row 01 thru 36

R XX - XX

Tail Length

01: B = 3.18 (.125”) (See note 3)

Plating

02 - tin/lead all over

15 - 15

µ”

selective gold with tin/lead plated tail

30 - 30

µ”

selective gold with tin/lead plated tail

EXAMPLE:

3HD22R02-01

DESCRIPTION:

A 3H series dual row pin header with 8.08 (.318”) post, with 22 pins/row, right angle,

tin plated overall.

SPECIFICATIONS:

•

Housing Material: High temperature thermoplastic, UL flammability rating

94 V-0. Color: black.

•

Contact Material: High performance copper alloy.

NOTES: 1.

(no. of pins/row) x 2.54 mm (.100”)

For high temperature applications, add the prefix “IR” to the part number.

Consult factory for the availability of other tail lengths.

Standard packaging is bulk.

ALL INFORMATION CONTAINED HEREIN IS BELIEVED TO BE RELIABLE AS OF THE DATE OF

PUBLICATION, BUT IS SUBJECT TO CHANGE WITHOUT NOTICE. FOR DETAILED

INFORMATION OR SAMPLES, PLEASE CONTACT SEI CUSTOMER SERVICE AT (864) 457-3824.
