74LVT16273ADGG datasheet, PDF - EEWORLD Datasheet

74LVT16273ADGG: DescriptionD Flip-Flop, 16-Func, Positive Edge Triggered, BICMOS, PDSO48,; Categorylogic logic; File Size236KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74LVT16273ADGG Overview

D Flip-Flop, 16-Func, Positive Edge Triggered, BICMOS, PDSO48,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP48,.3,20
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
MaximumI(ol)	0.032 A
Number of functions	16
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP48,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

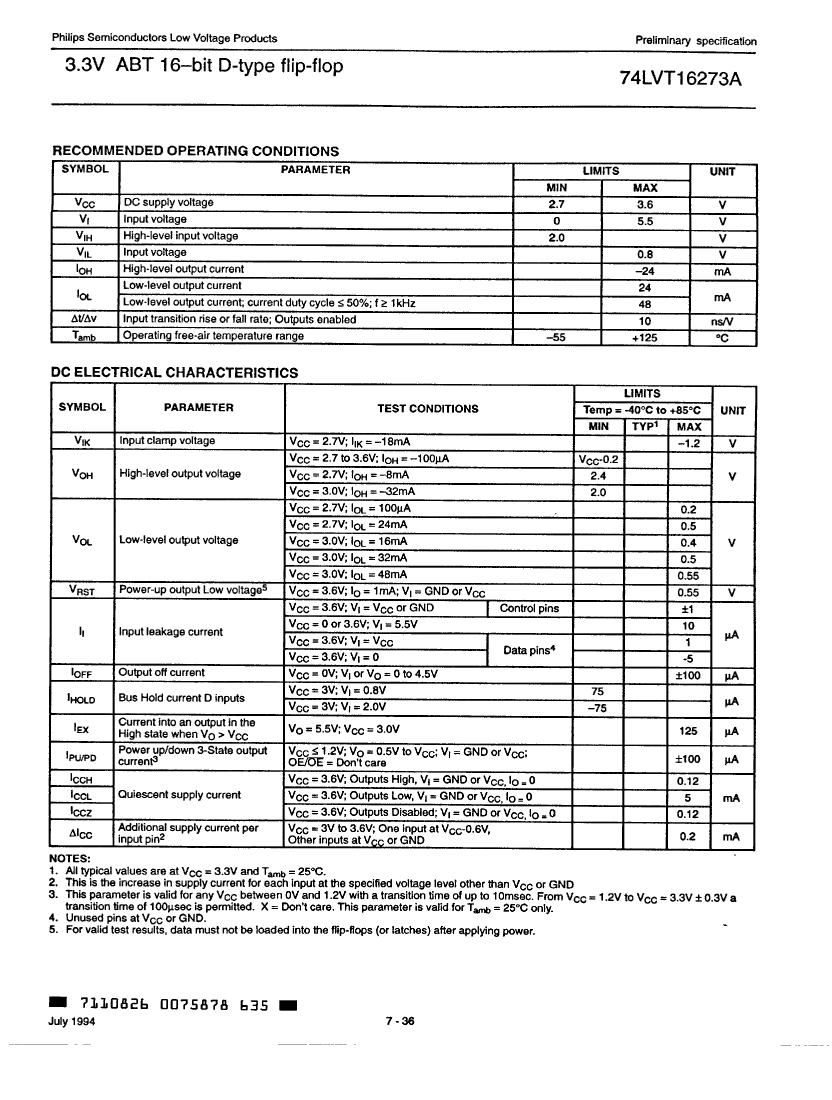

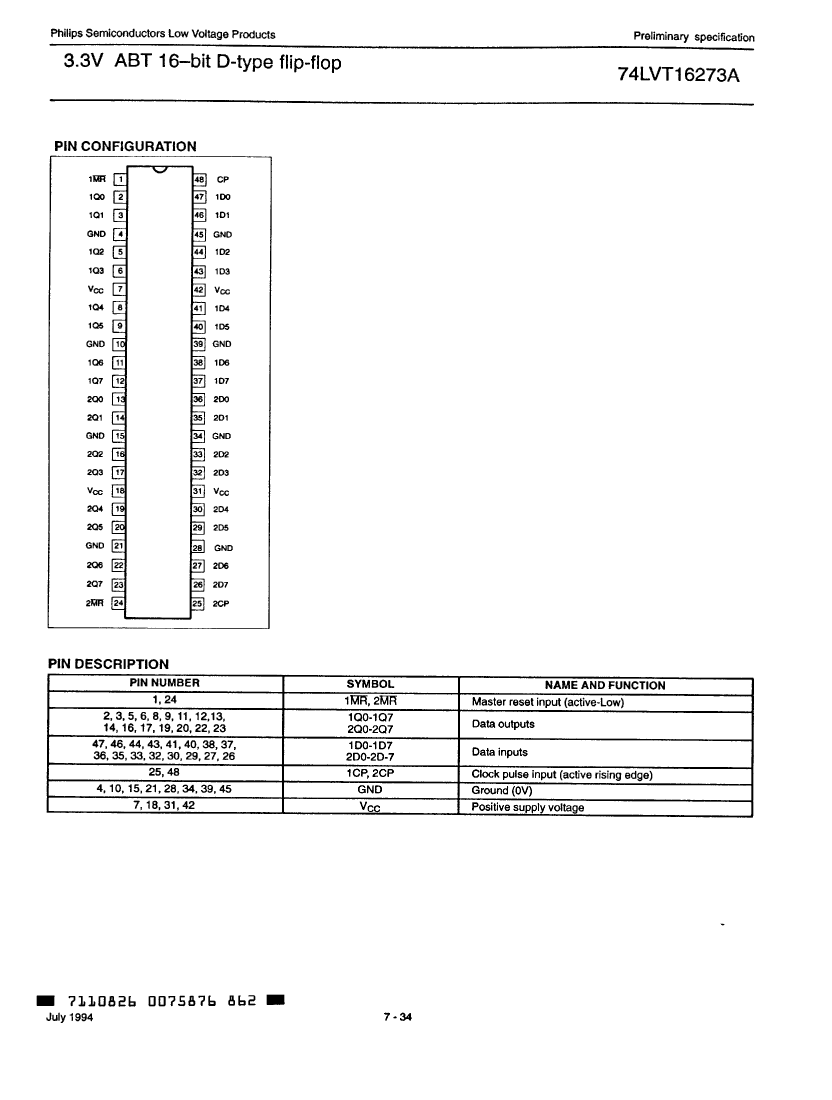

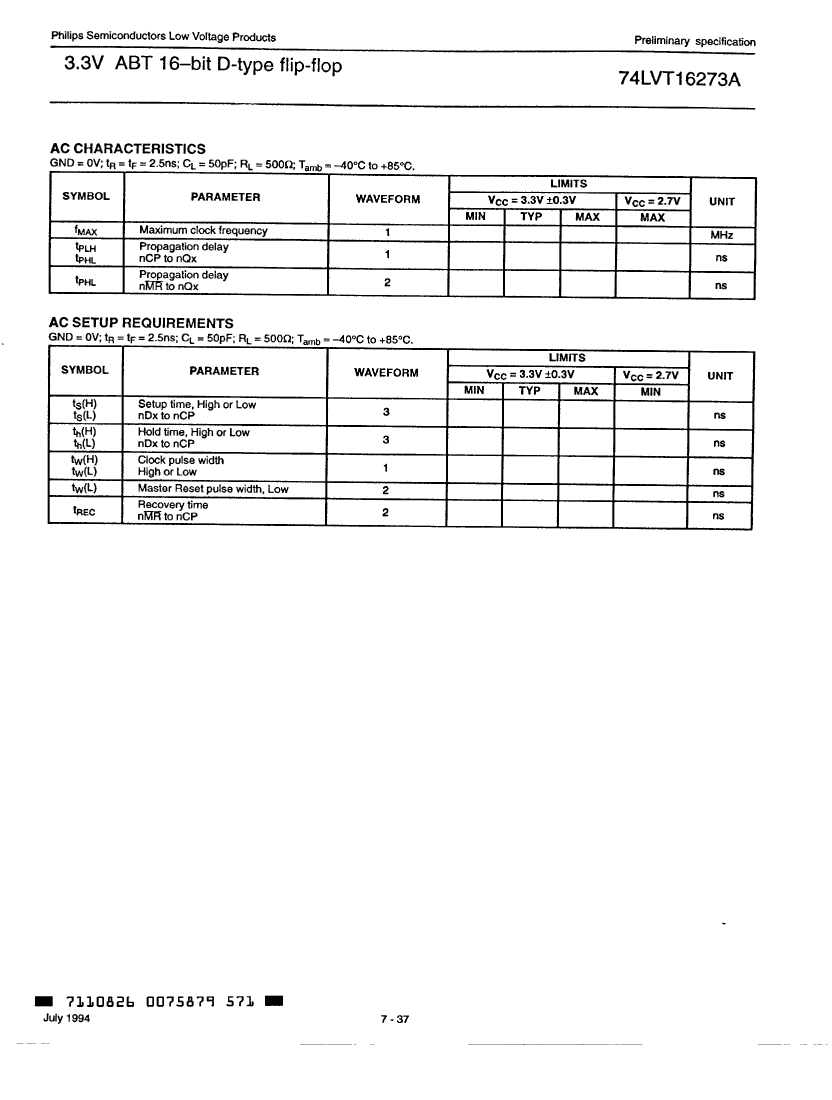

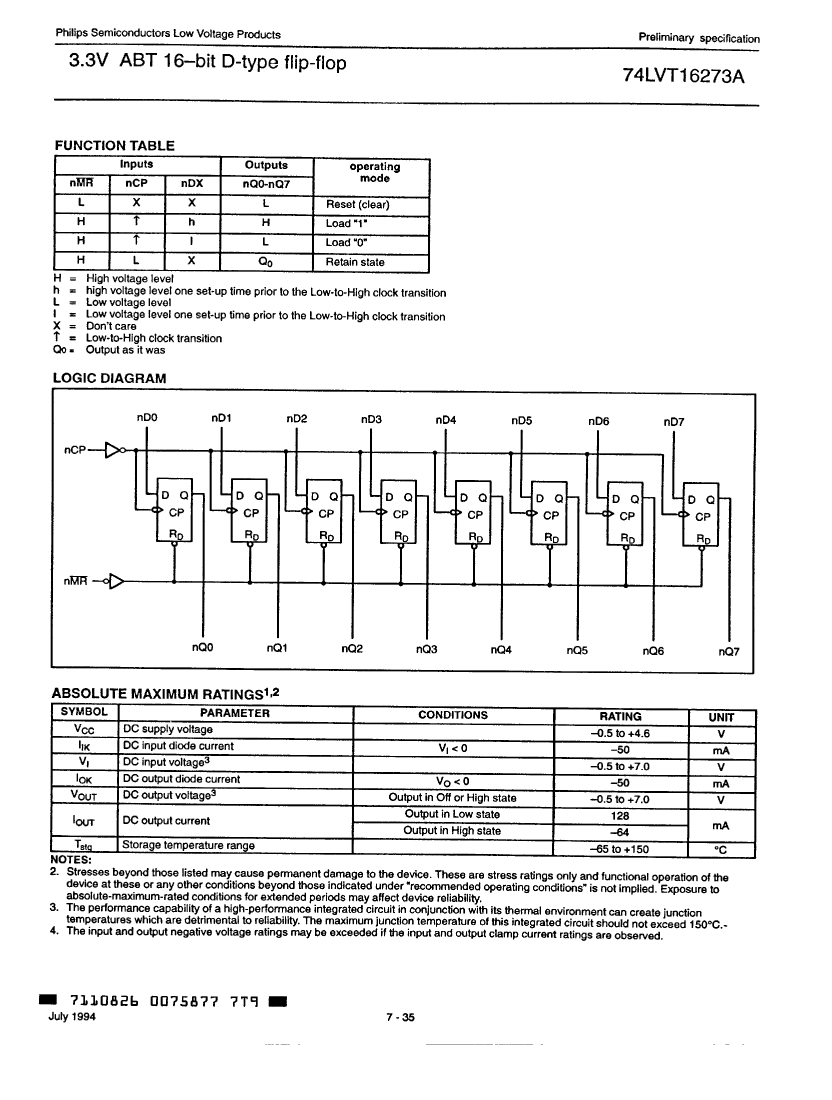

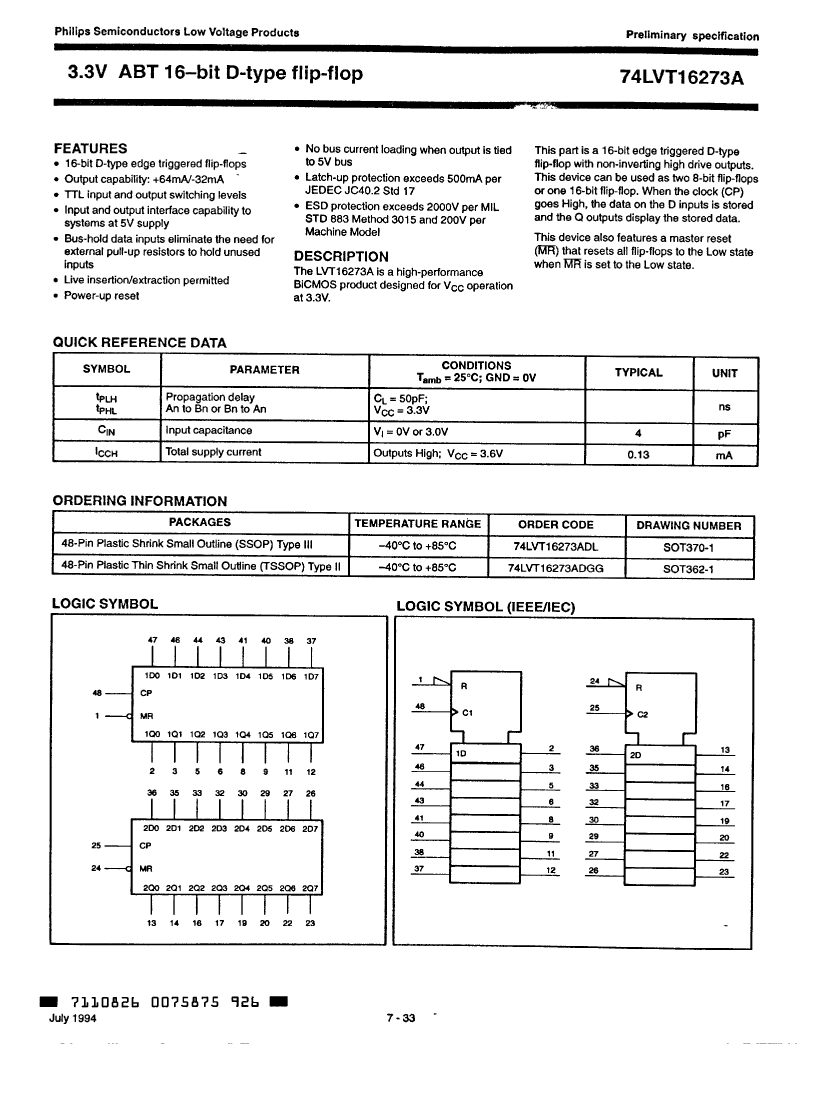

This Material Copyrighted By Its Respective Manufacturer

	74LVT16273ADGG	74LVT16273ADL
Description	D Flip-Flop, 16-Func, Positive Edge Triggered, BICMOS, PDSO48,	D Flip-Flop, 16-Func, Positive Edge Triggered, BICMOS, PDSO48,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP48,.3,20	SSOP, SSOP48,.4
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.032 A	0.032 A
Number of functions	16	16
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Encapsulate equivalent code	TSSOP48,.3,20	SSOP48,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1
