74LVC244APW-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVC244APW-T

74LVC244APW-T: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20; Categorylogic logic; File Size392KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LVC244APW-T Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20

74LVC244APW-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP20,.25
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-PDSO-G20
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.9 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

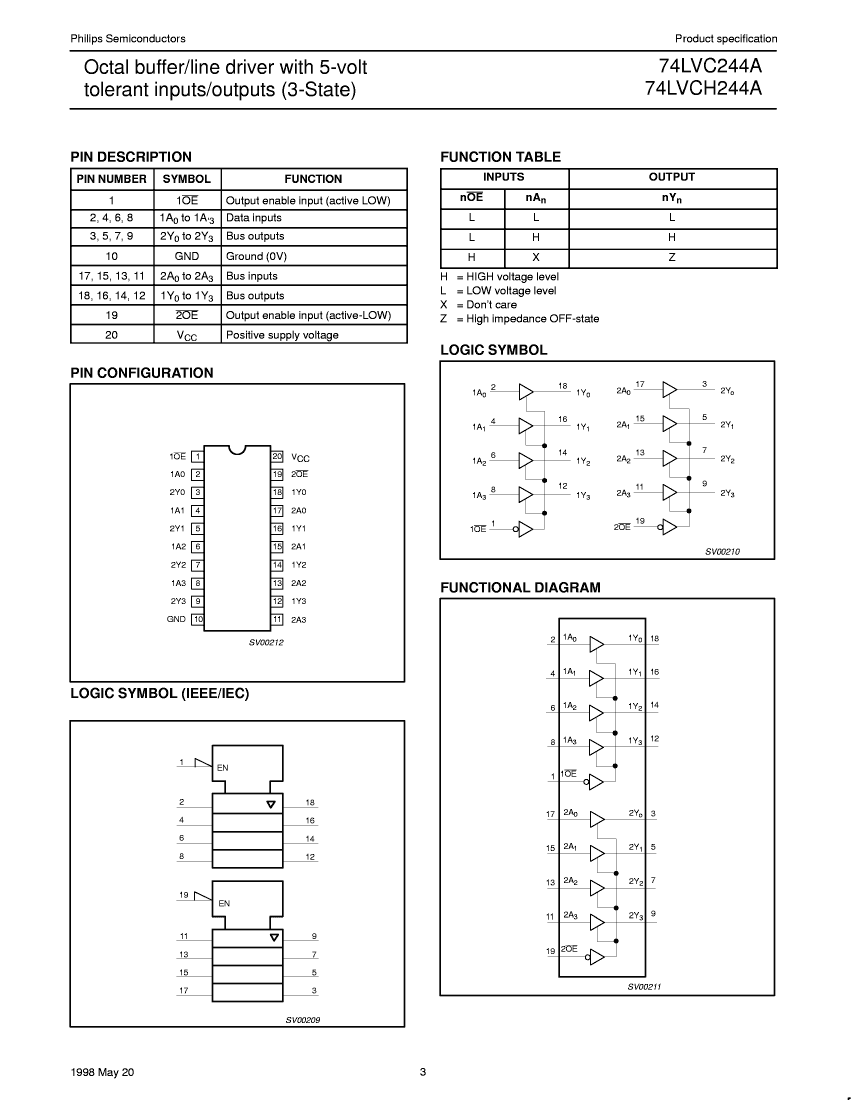

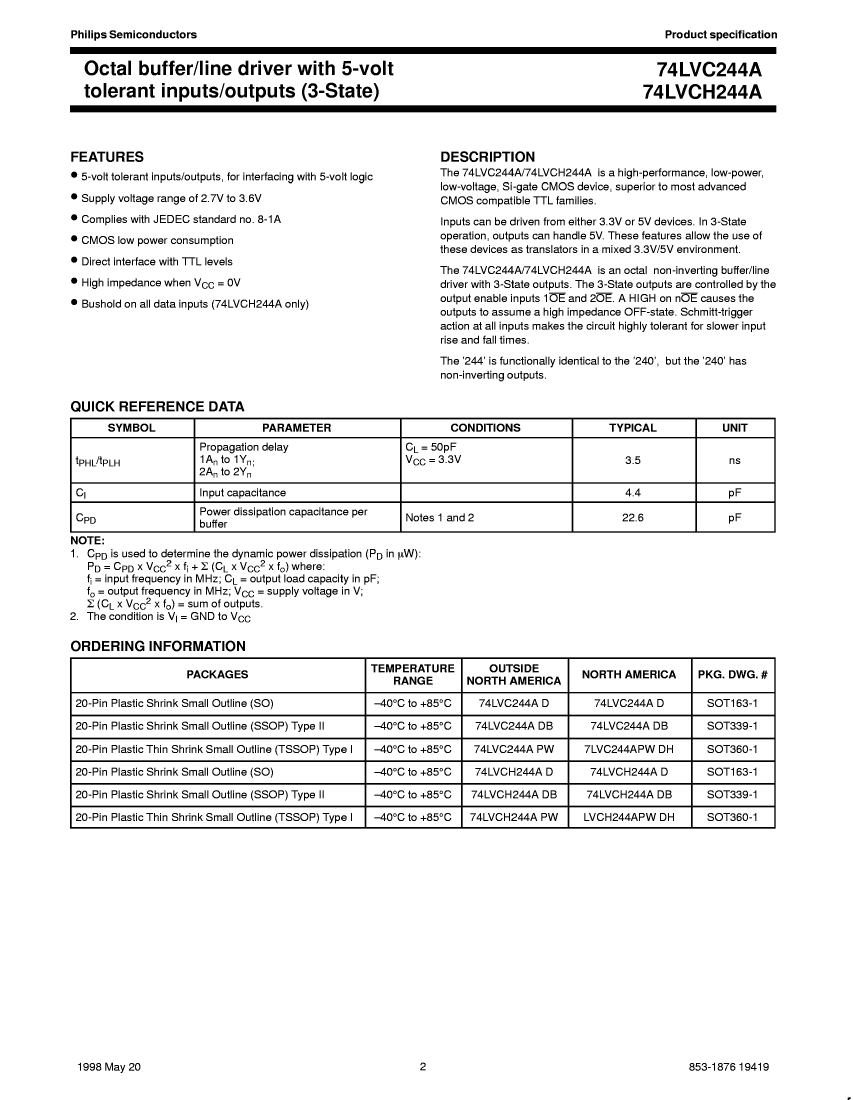

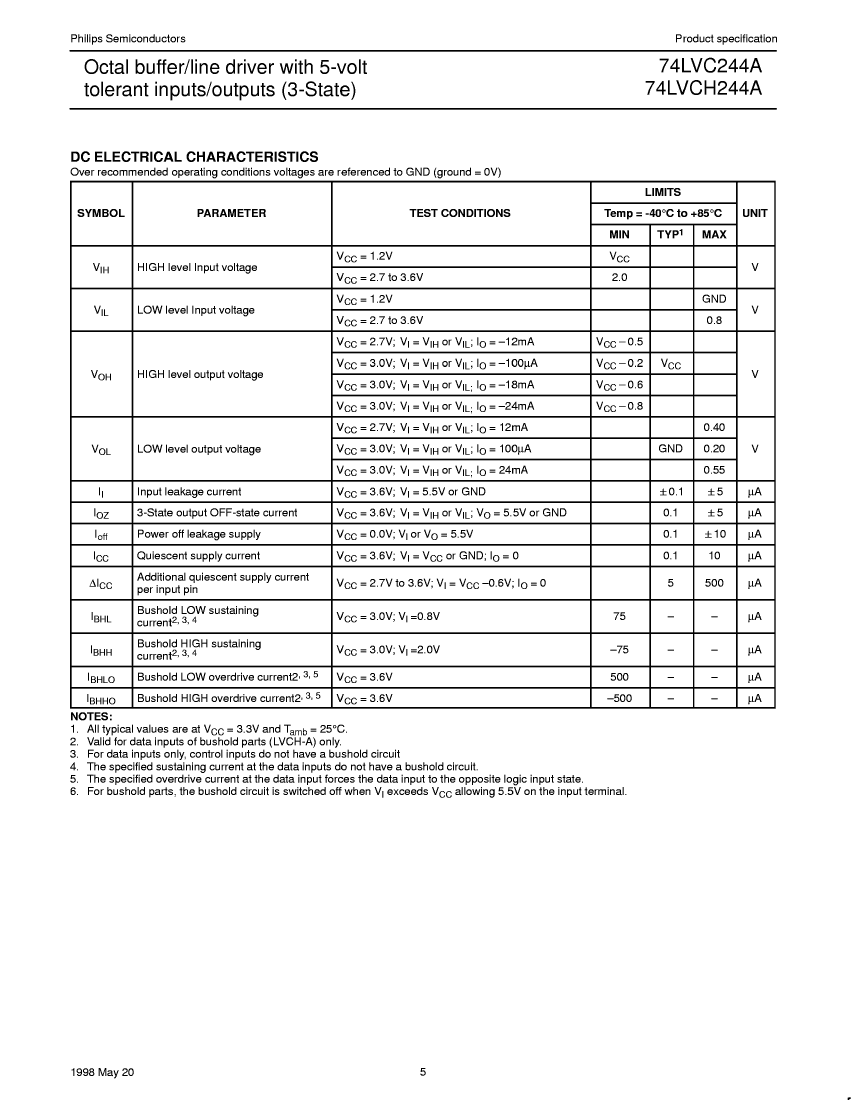

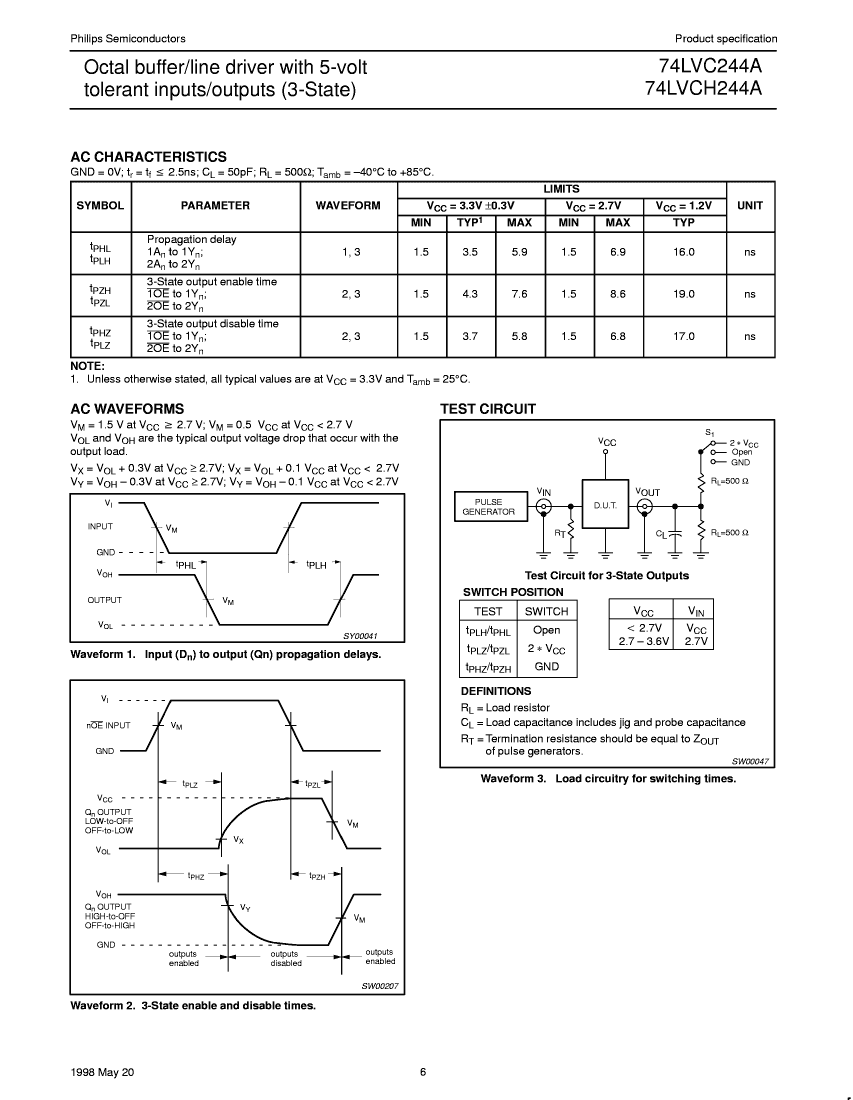

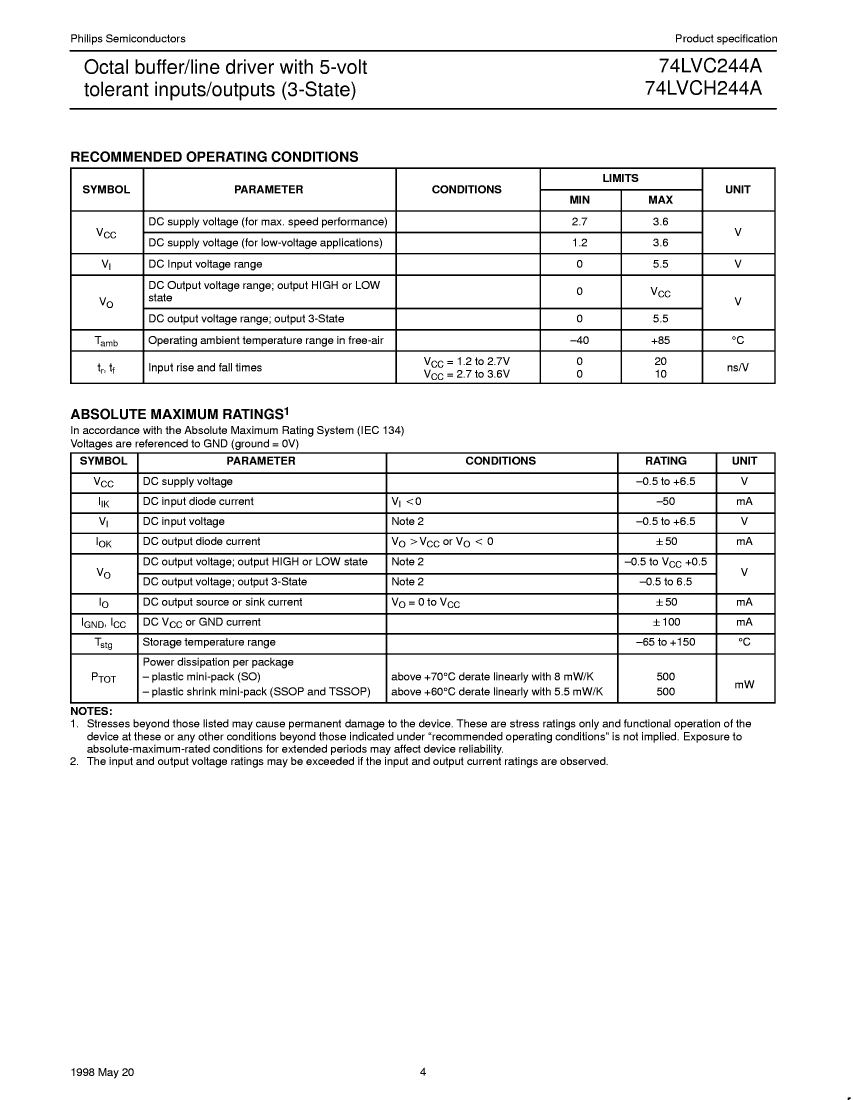

Preview

Download Datasheet

View All

74LVC244APW-T Related Products

	74LVC244APW-T	74LVCH244ADB-T	74LVCH244AD-T	74LVCH244APW-T	74LVC244AD-T
Description	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP20,.25	SSOP, SSOP20,.3	SOP, SOP20,.4	TSSOP, TSSOP20,.25	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Number of digits	4	4	4	4	4
Number of functions	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP	TSSOP	SOP
Encapsulate equivalent code	TSSOP20,.25	SSOP20,.3	SOP20,.4	TSSOP20,.25	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	5.9 ns	5.9 ns	5.9 ns	5.9 ns	5.9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Humidity sensitivity level	1	-	1	-	1
Base Number Matches	1	1	1	1	-
