52049-E01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52049-E01

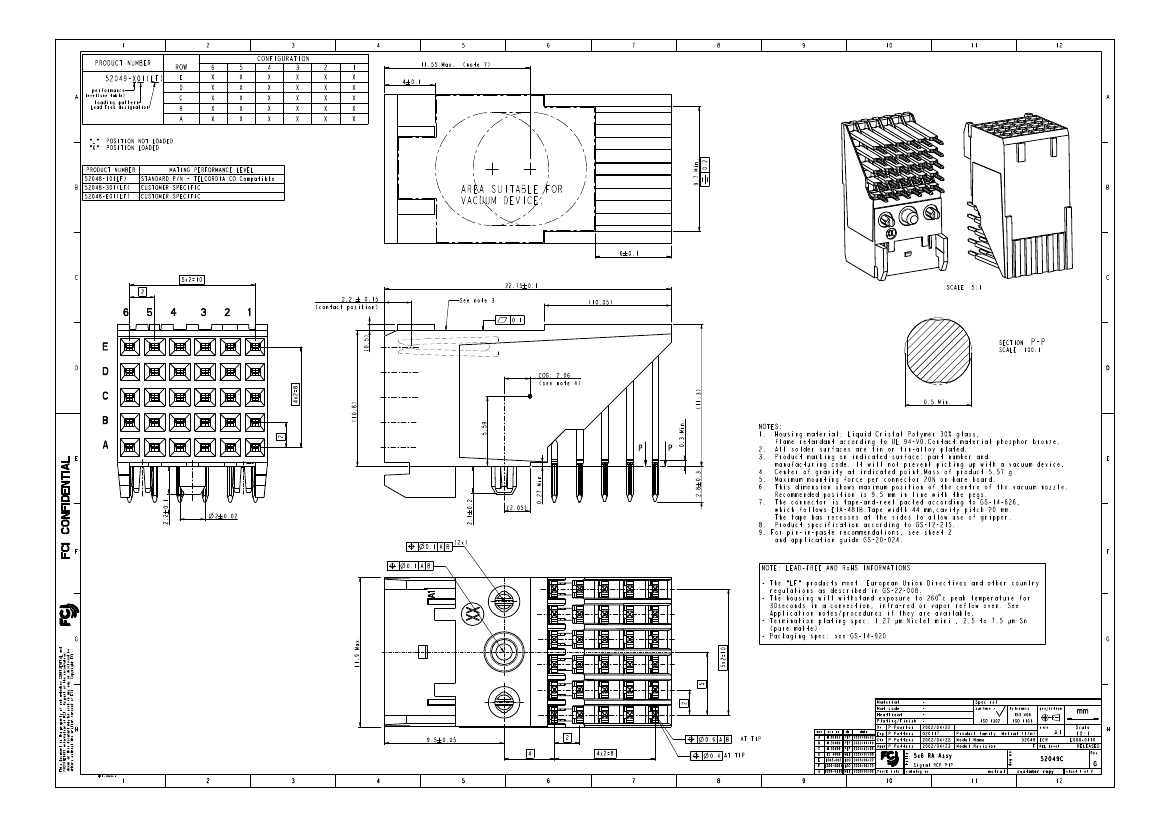

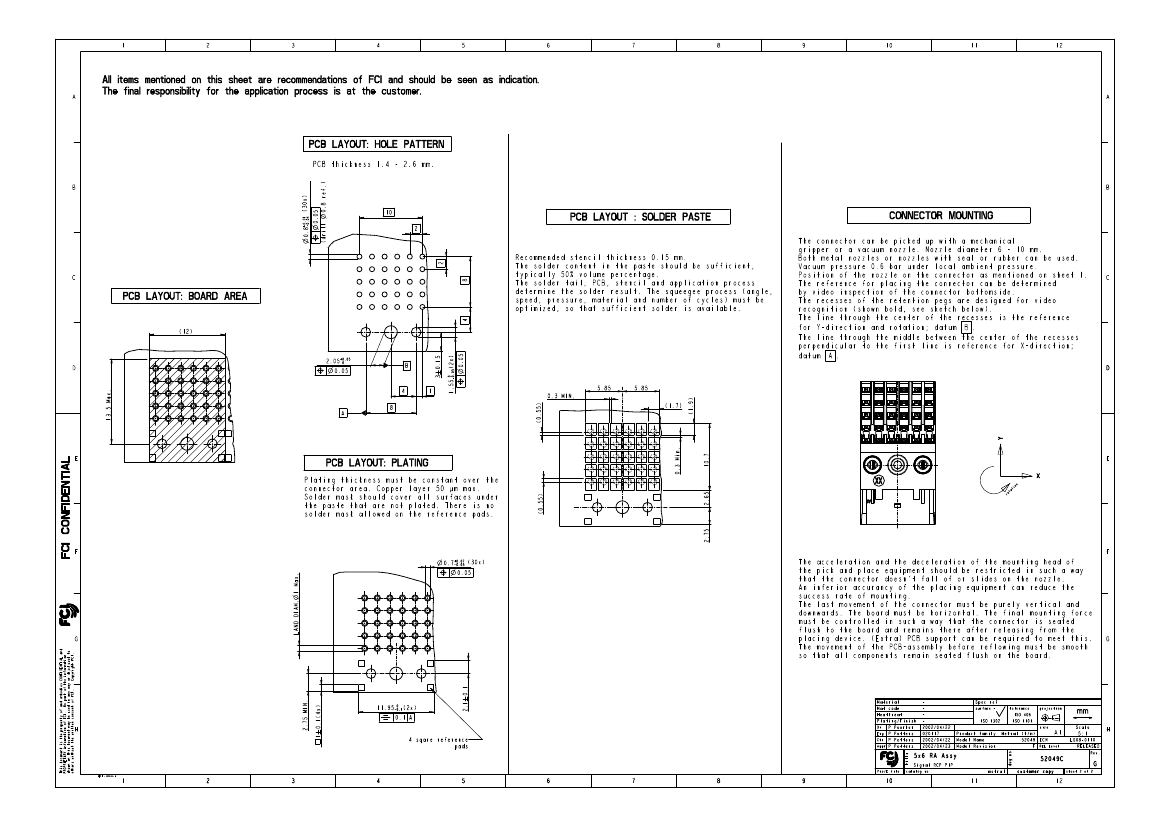

52049-E01: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size515KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

52049-E01 Overview

Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle,

52049-E01 Parametric

Parameter Name	Attribute value
Objectid	1785936610
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.7
body width	0.445 inch
subject depth	0.896 inch
body length	0.469 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	52049
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.14734 N

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Sep 28, 2009

52049-E01 Related Products

	52049-E01	52049-101LF	52049-101	52049-E01LF	52049-301LF	52049-301
Description	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle,	TINT RCT RA PIP 5X6	TINT RCT RA PIP 5X6	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch	0.445 inch
subject depth	0.896 inch	0.896 inch	0.896 inch	0.896 inch	0.896 inch	0.896 inch
body length	0.469 inch	0.469 inch	0.469 inch	0.469 inch	0.469 inch	0.469 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	MATTE TIN (295) OVER NICKEL	TIN	MATTE TIN (295) OVER NICKEL	MATTE TIN (295) OVER NICKEL	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	52049	52049	52049	52049	52049	52049
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5	5	5
Number of rows loaded	5	5	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	30	30	30	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.14734 N	.14734 N	.14734 N	.14734 N	.14734 N	.14734 N
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
