57997-21102 datasheet, PDF - EEWORLD Datasheet

57997-21102: DescriptionCard Edge Connector, 184 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size291KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

57997-21102 Overview

Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
body width	0.487 inch
body length	5.66 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	184
UL Flammability Code	94V-0
Base Number Matches	1

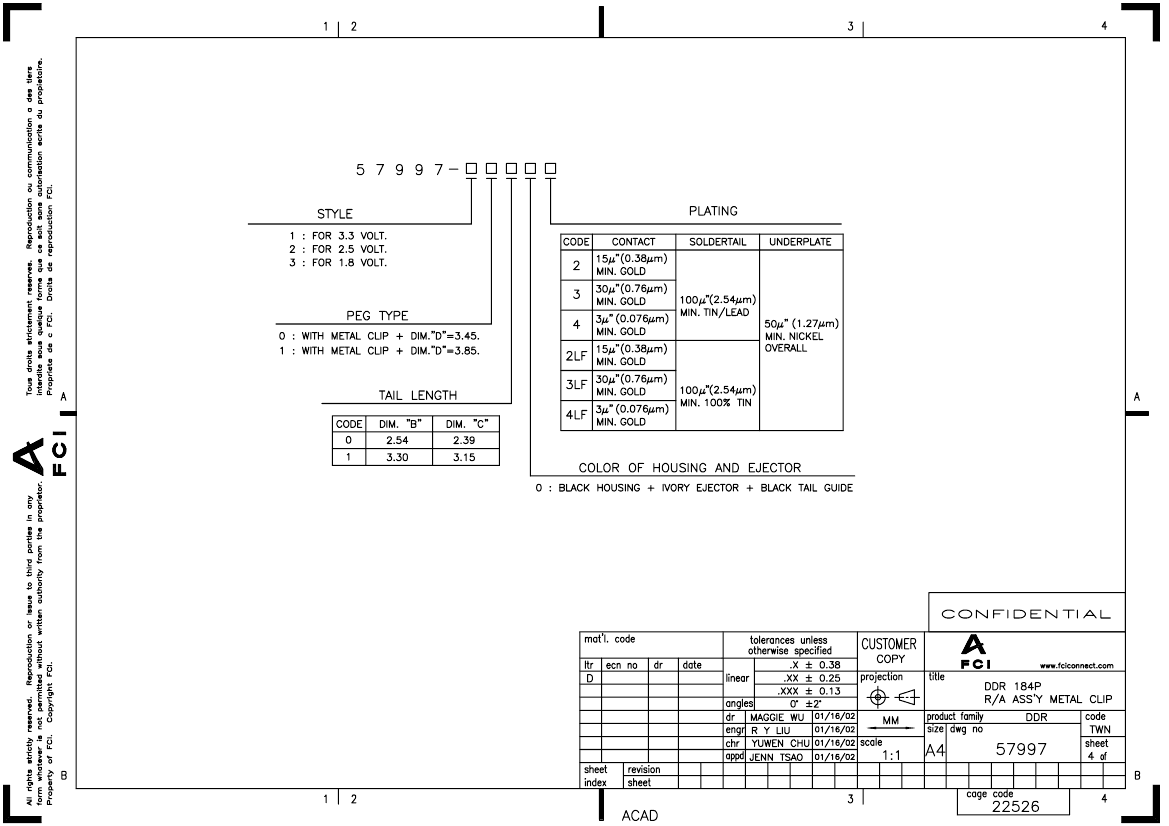

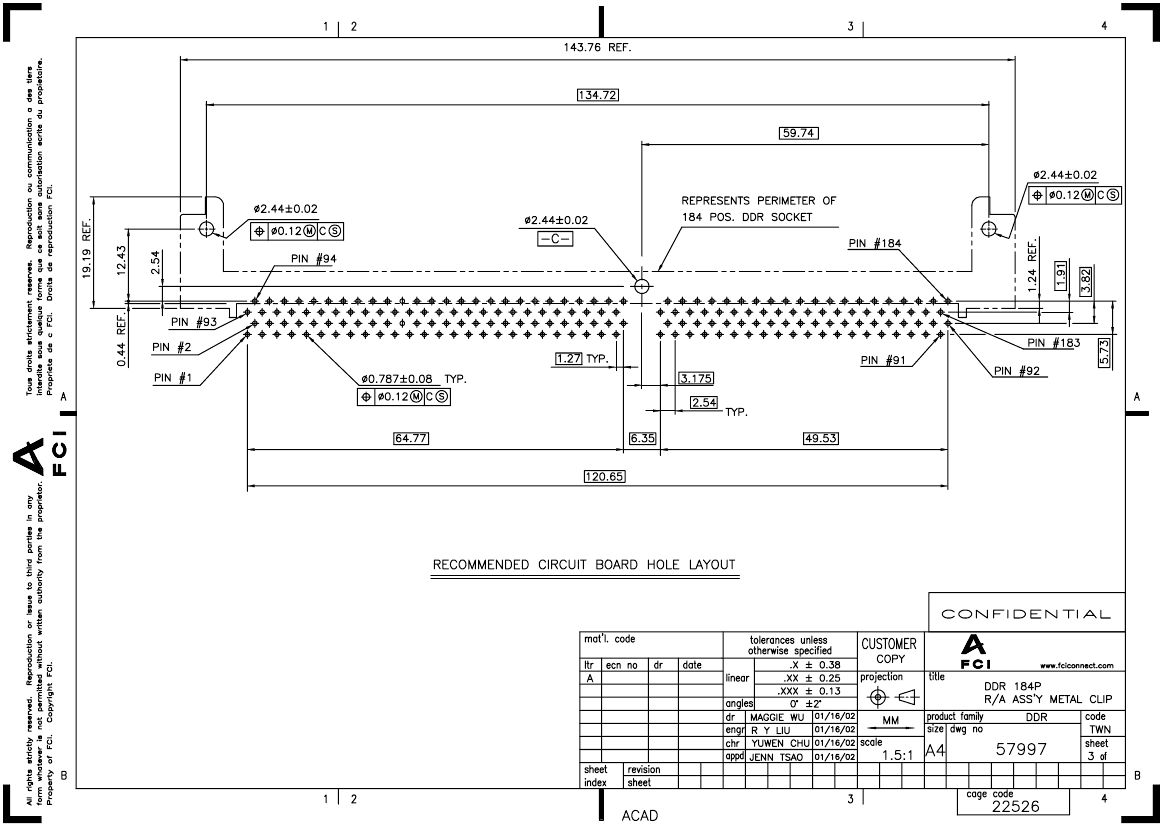

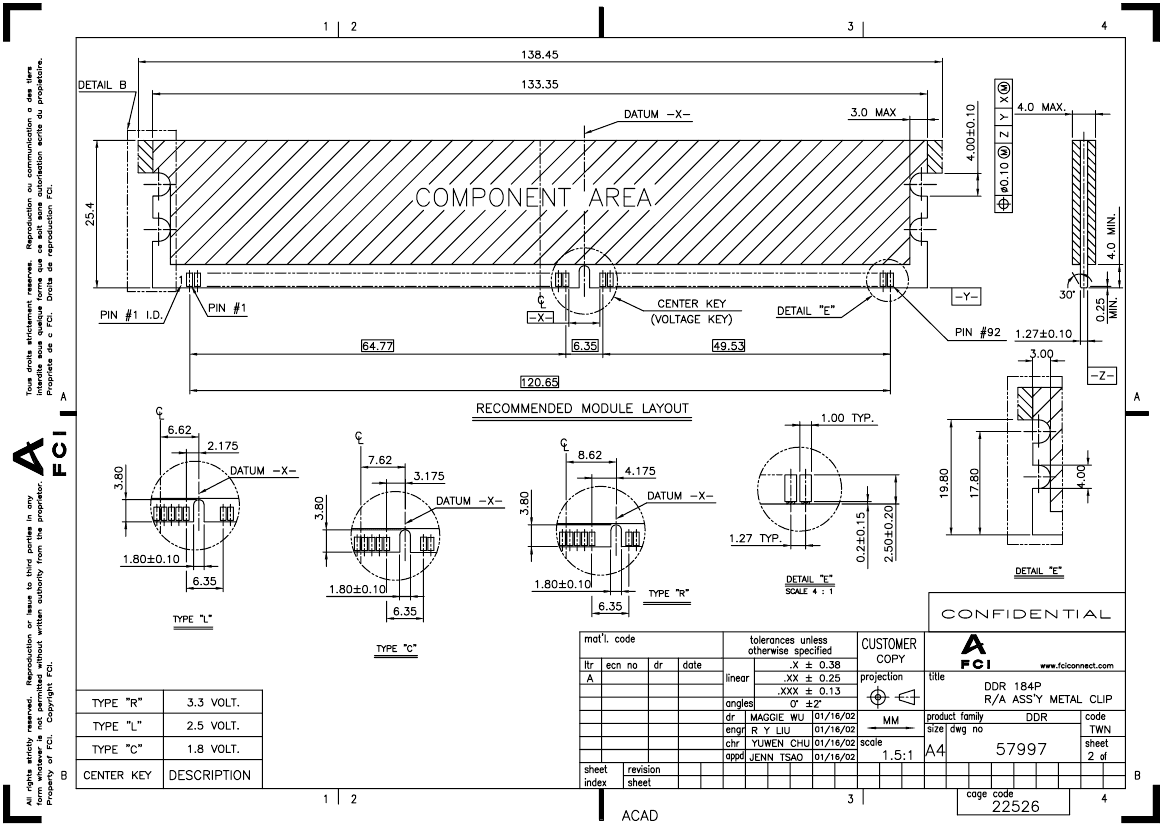

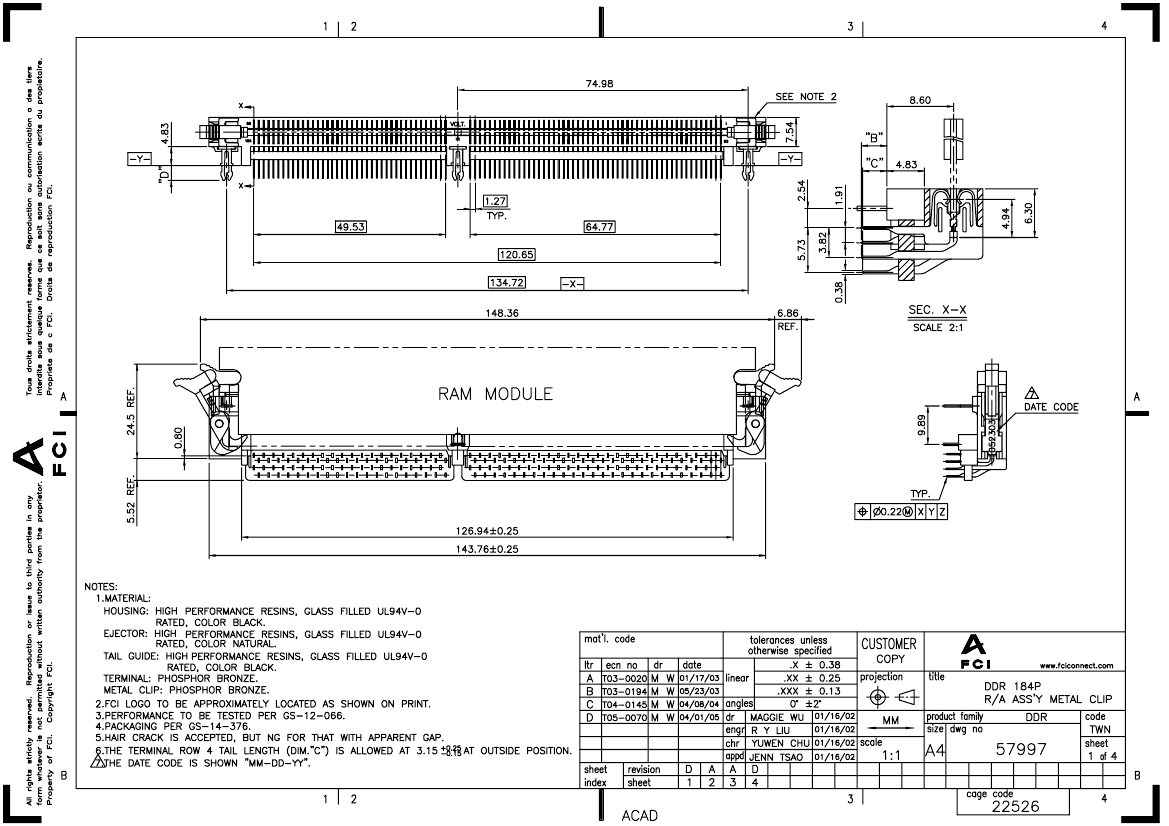

PDM: Rev:D

STATUS:

Released

Printed: Jun 02, 2008

.

	57997-21102	57997-21102LF
Description	Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal	Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER
Total number of contacts	184	184
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
