74ACT11181D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 74ACT11181D

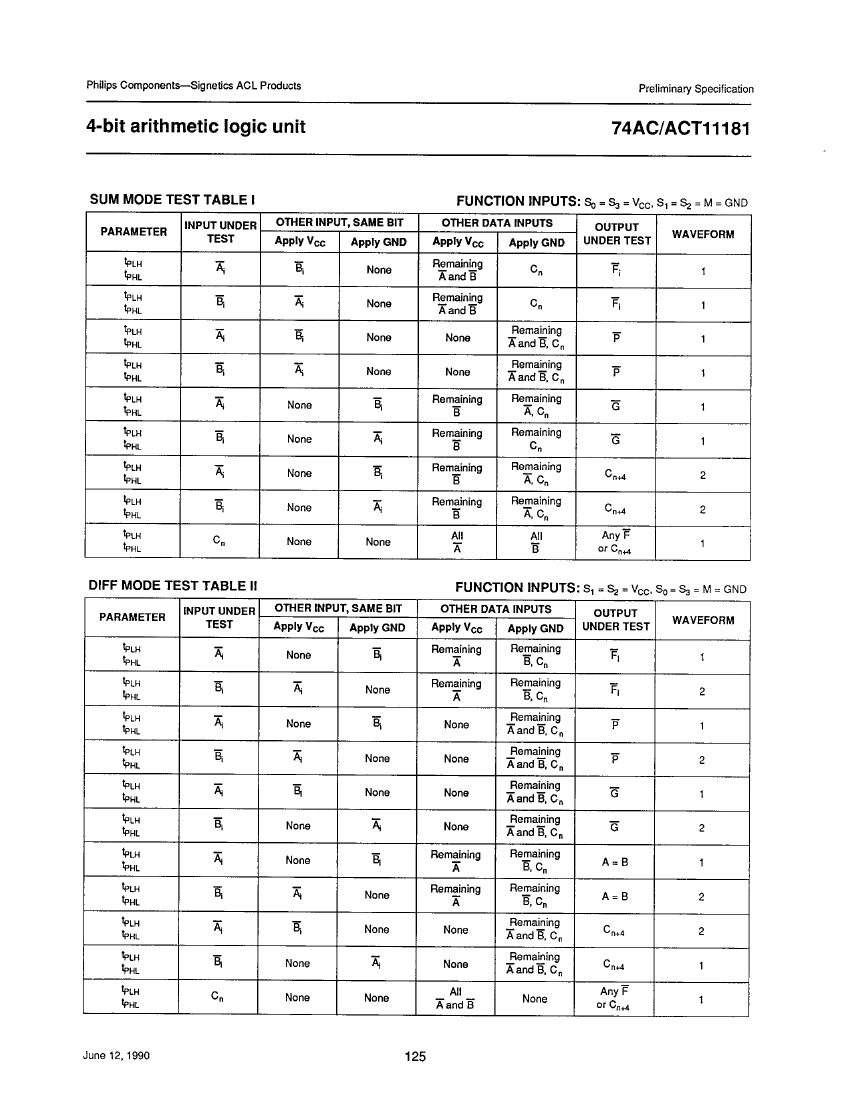

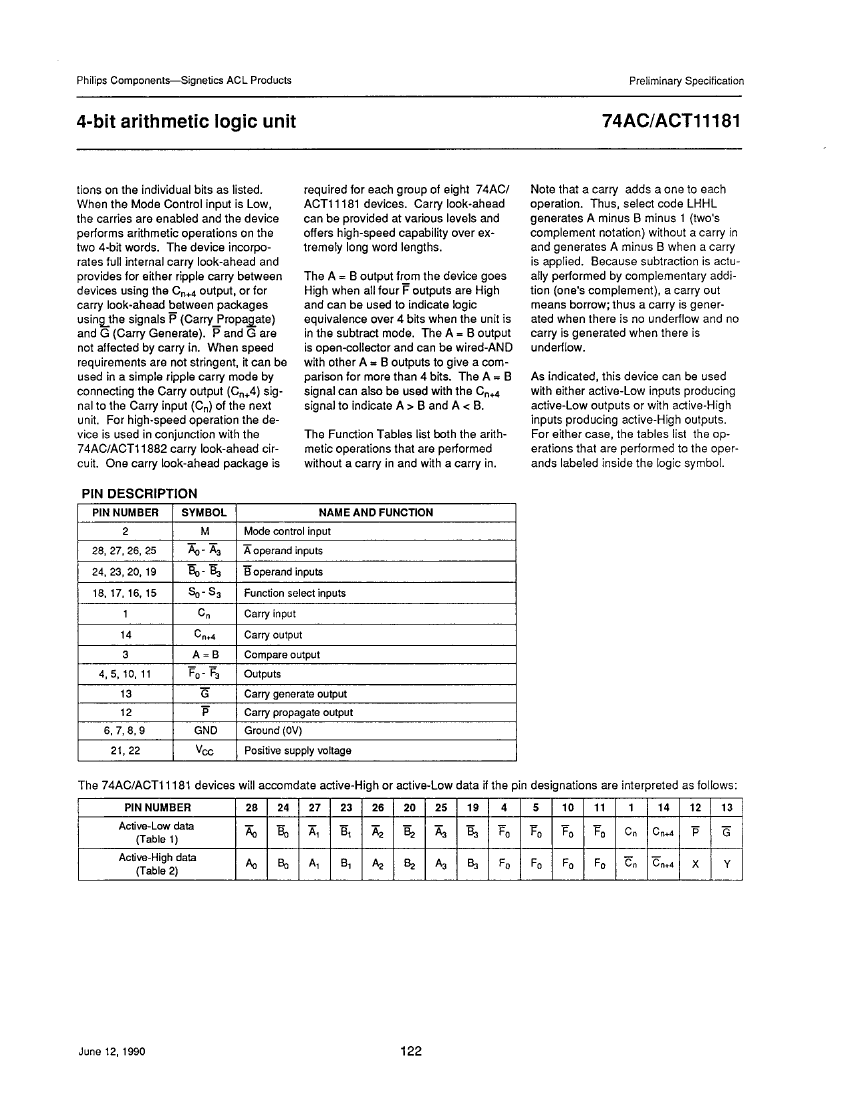

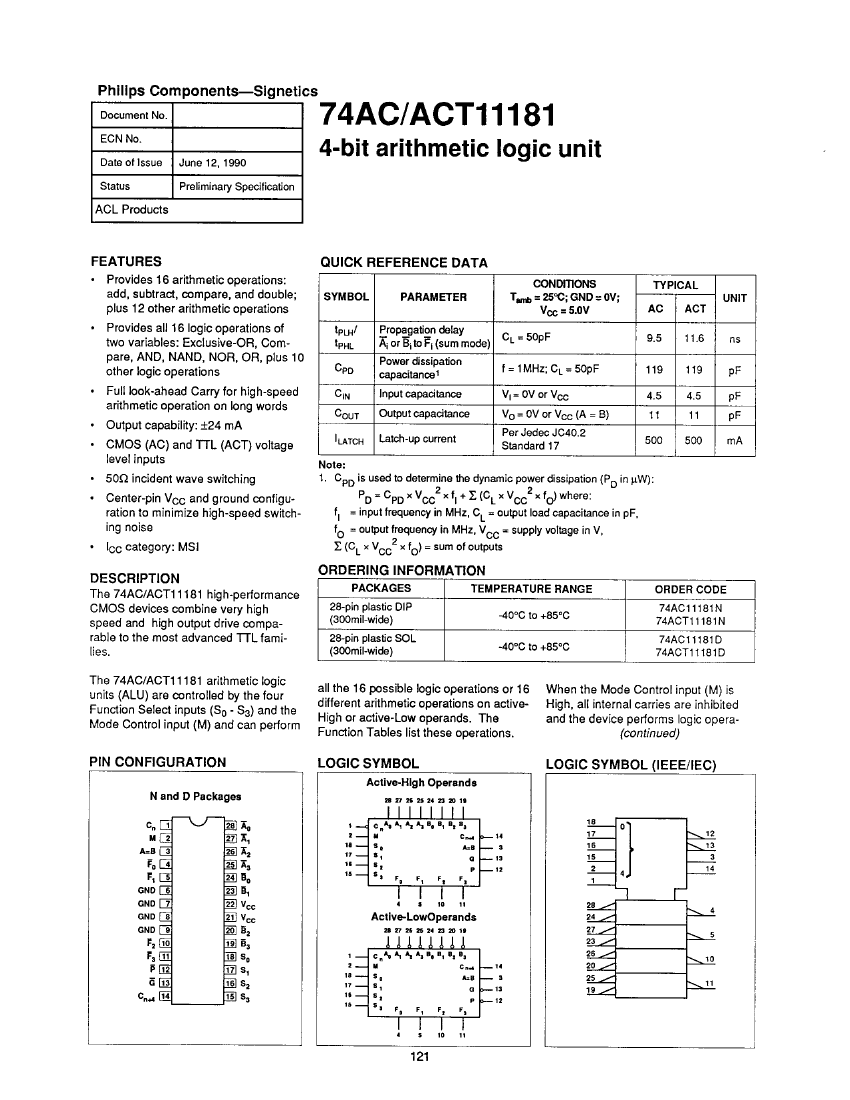

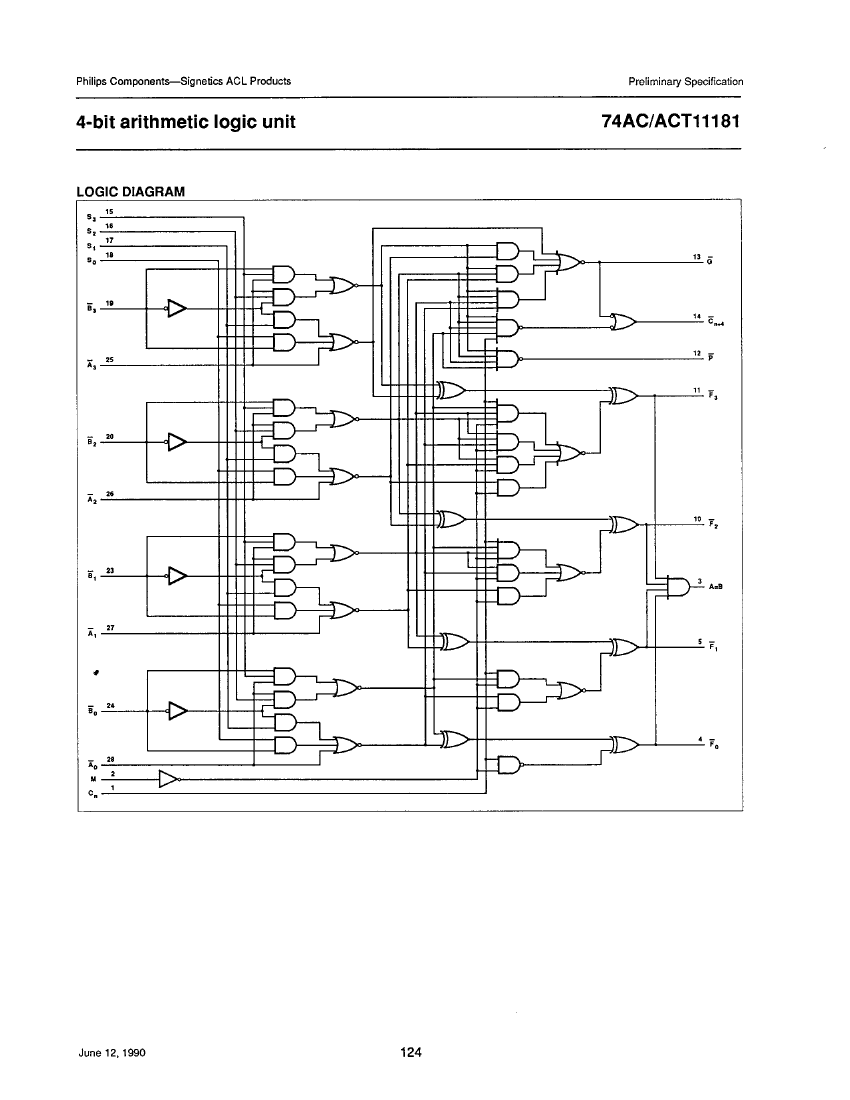

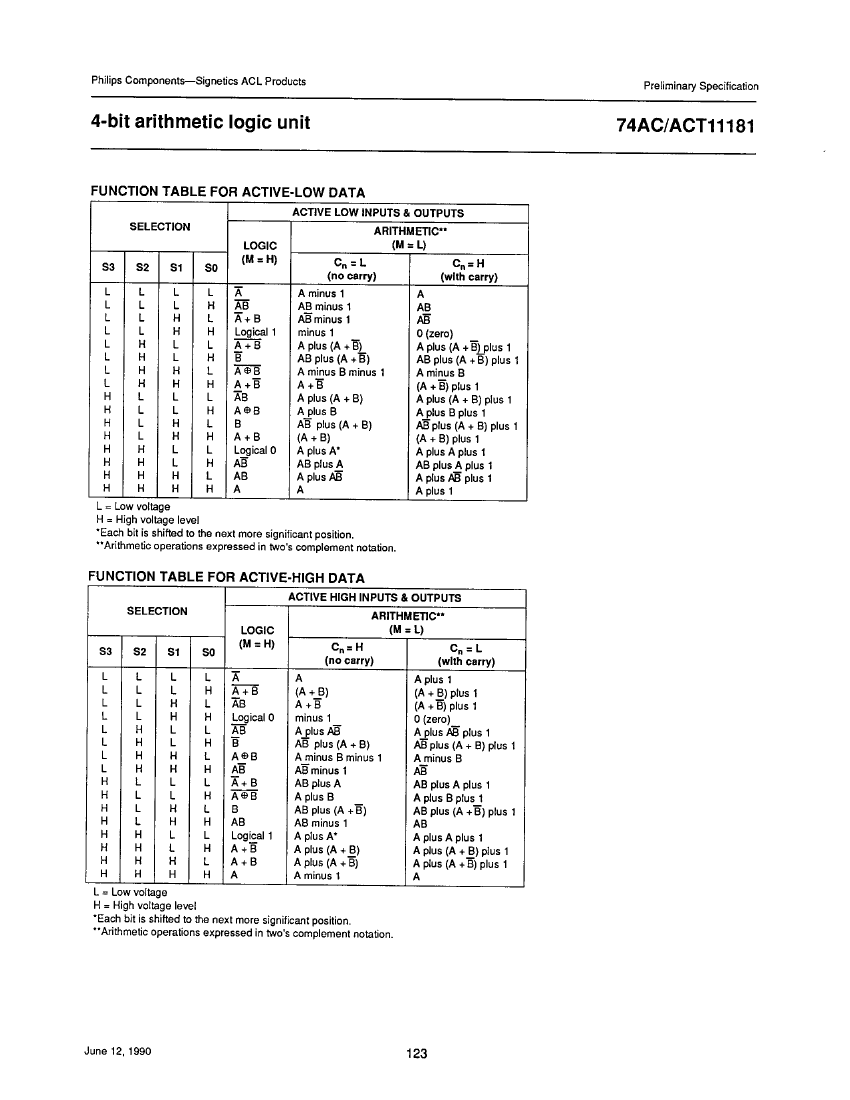

Preview

74ACT11181D: DescriptionArithmetic Logic Unit, CMOS, PDSO28; Categorylogic logic; File Size501KB，19 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74ACT11181D Overview

Arithmetic Logic Unit, CMOS, PDSO28

74ACT11181D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP28,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

74ACT11181D Related Products

	74ACT11181D	74ACT11181N	74AC11181N	74AC11181D
Description	Arithmetic Logic Unit, CMOS, PDSO28	Arithmetic Logic Unit, CMOS, PDIP28	Arithmetic Logic Unit, CMOS, PDIP28	Arithmetic Logic Unit, CMOS, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP28,.4	DIP, DIP28,.3	DIP, DIP28,.3	SOP, SOP28,.4
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of terminals	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP
Encapsulate equivalent code	SOP28,.4	DIP28,.3	DIP28,.3	SOP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
