74ACT11657D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74ACT11657D

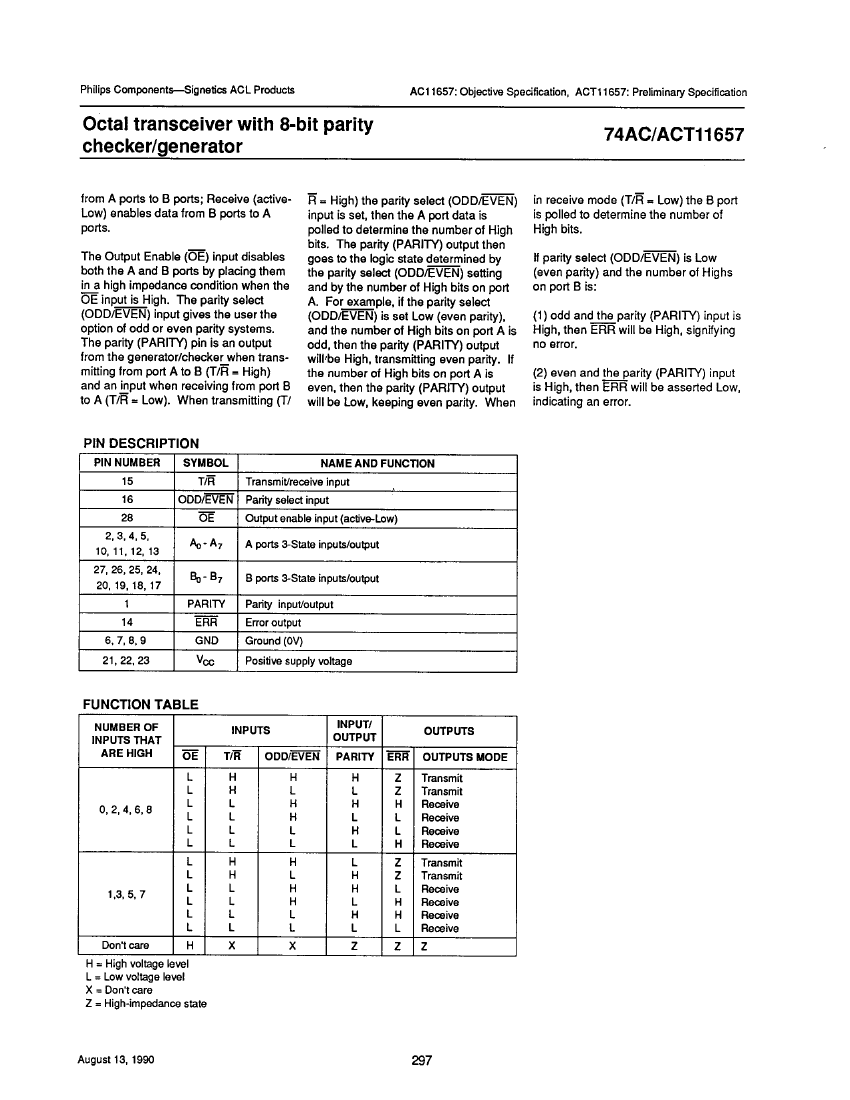

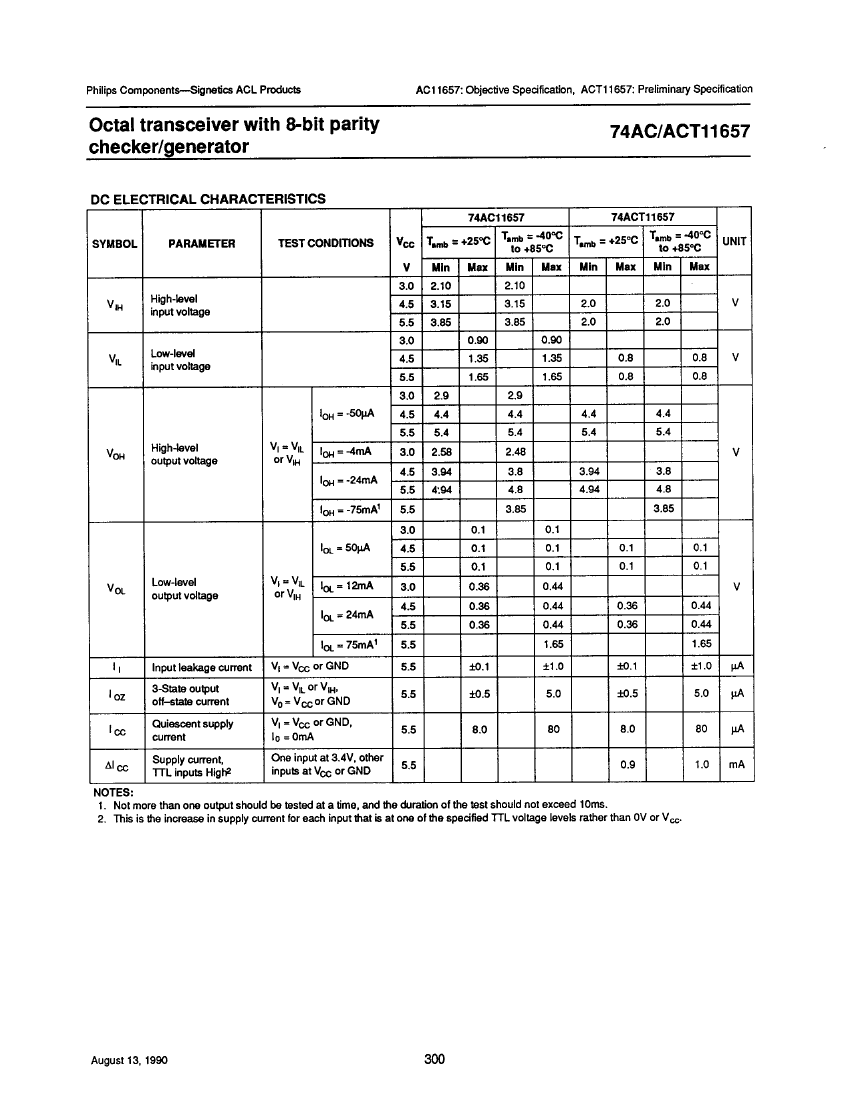

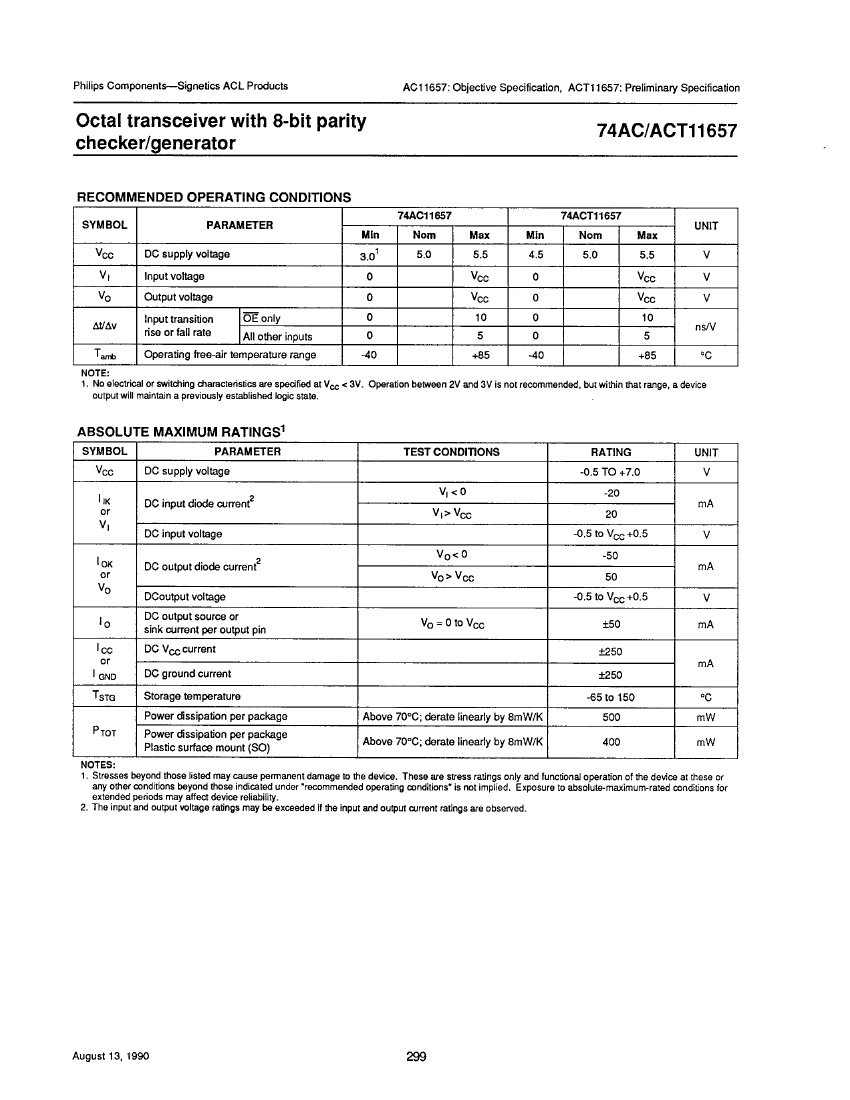

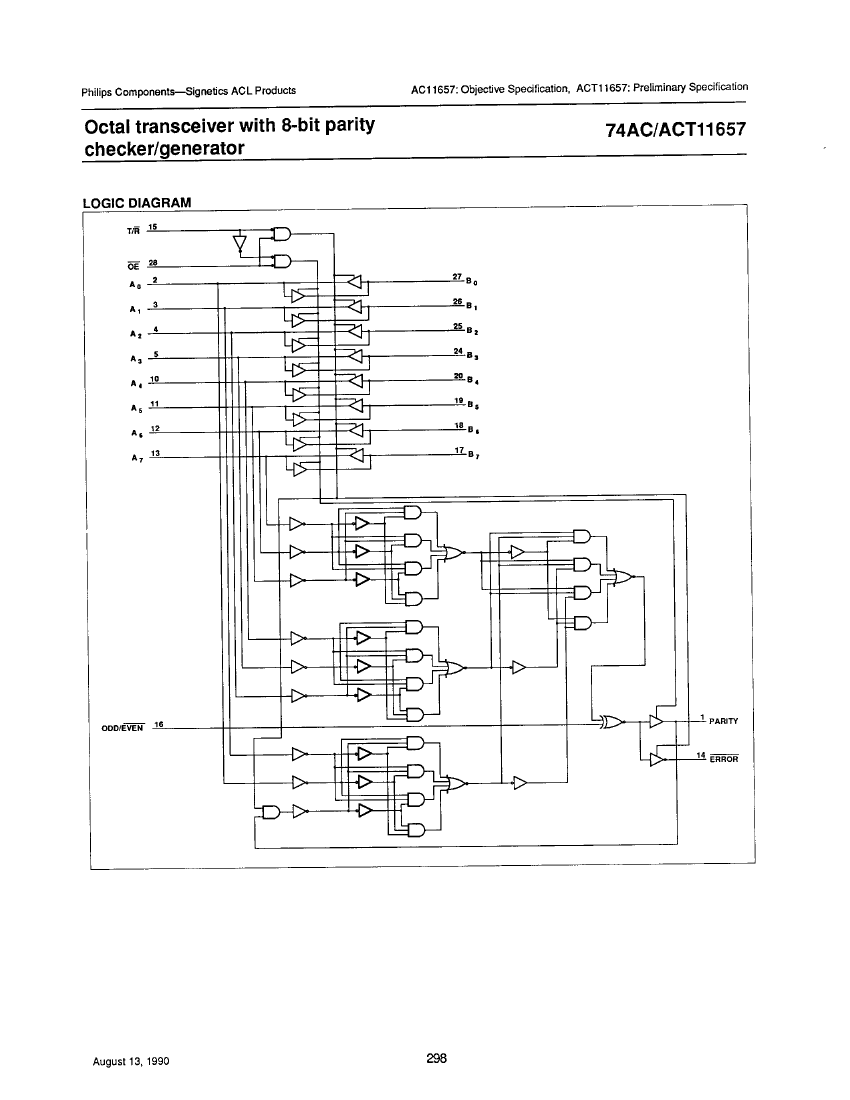

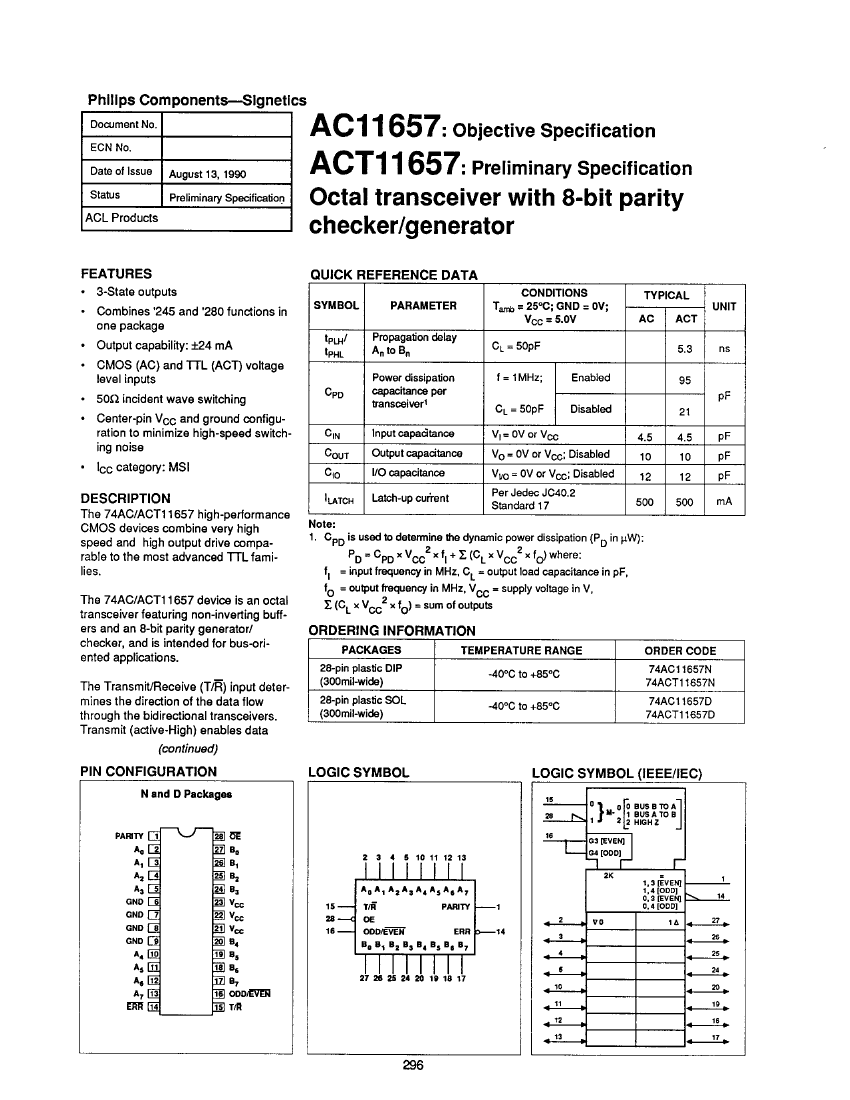

74ACT11657D: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO28; Categorylogic logic; File Size221KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74ACT11657D Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO28

74ACT11657D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP28,.4
Reach Compliance Code	unknown
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Prop。Delay @ Nom-Sup	7.8 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

74ACT11657D Related Products

	74ACT11657D	74ACT11657N	74AC11657N	74AC11657D
Description	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO28	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP28	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDIP28	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP28,.4	DIP, DIP28,.6	DIP, DIP28,.6	SOP, SOP28,.4
Reach Compliance Code	unknown	unknown	unknown	unknown
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP
Encapsulate equivalent code	SOP28,.4	DIP28,.6	DIP28,.6	SOP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)
