74AC11874D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74AC11874D

74AC11874D: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO28; Categorylogic logic; File Size201KB，7 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74AC11874D Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO28

74AC11874D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP28,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	60000000 Hz
MaximumI(ol)	0.024 A
Number of functions	8
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3/5 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

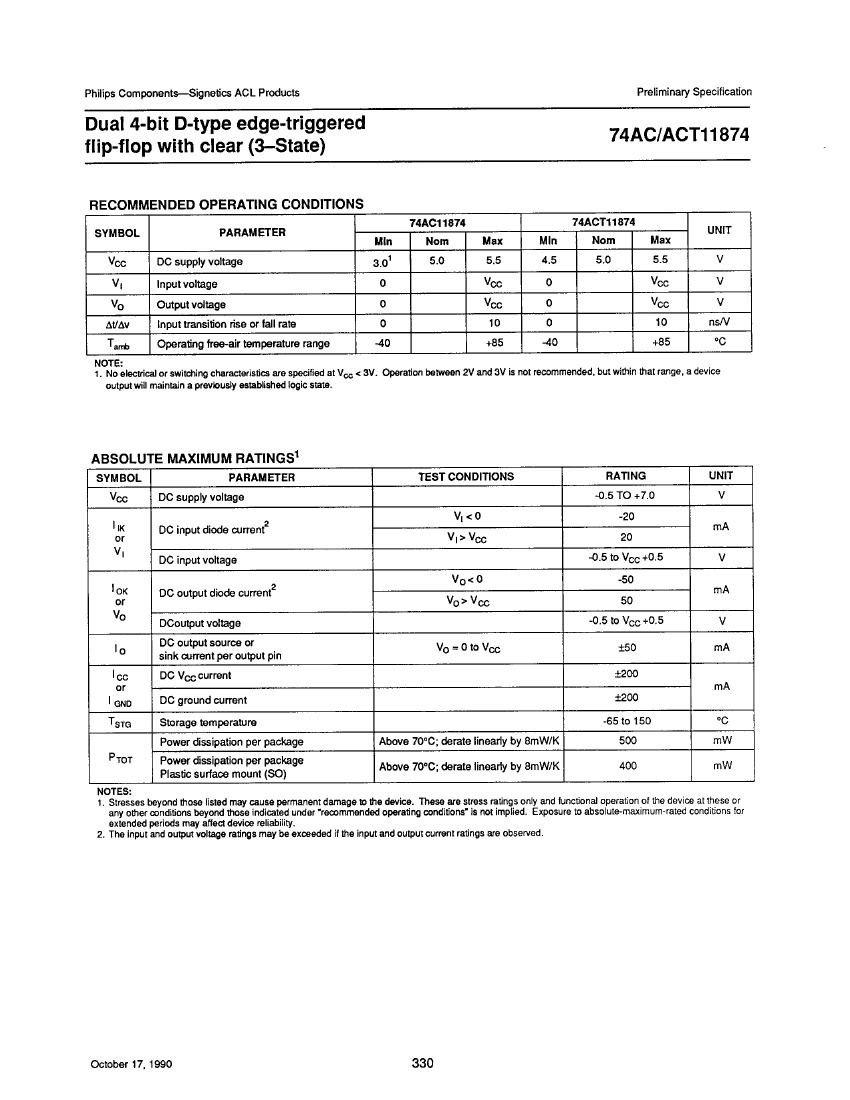

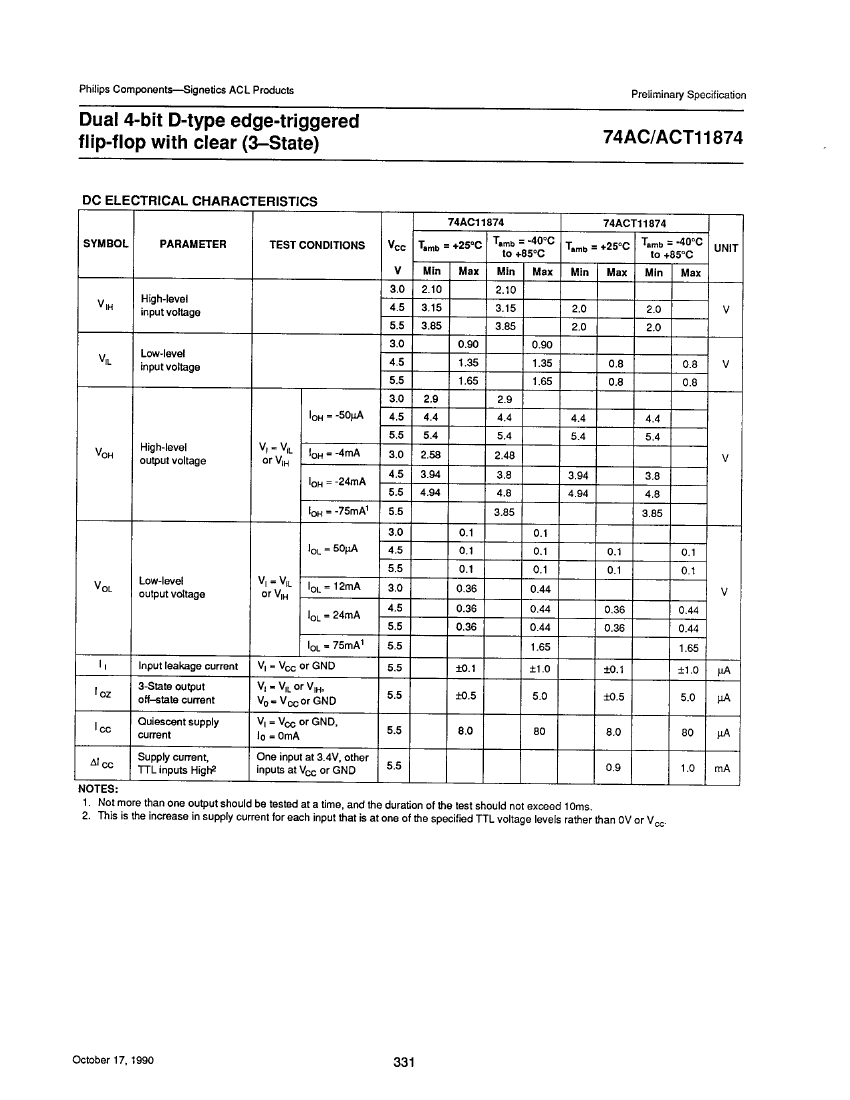

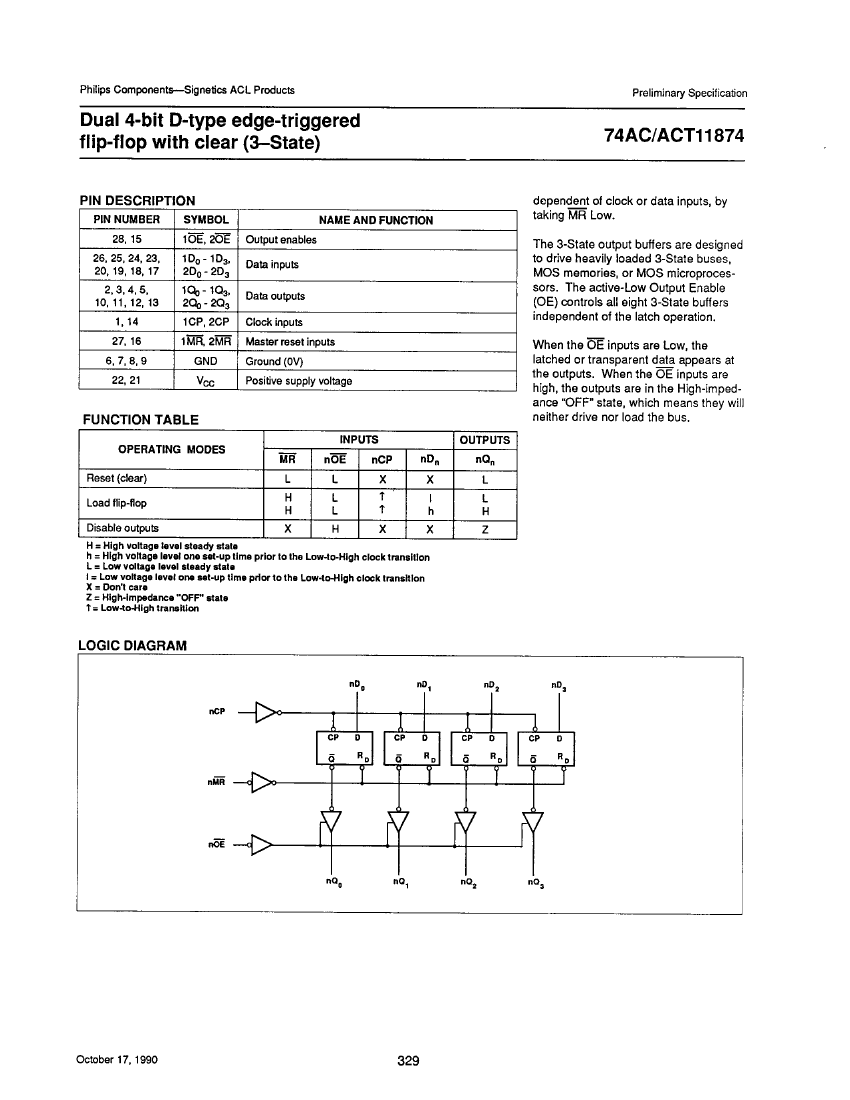

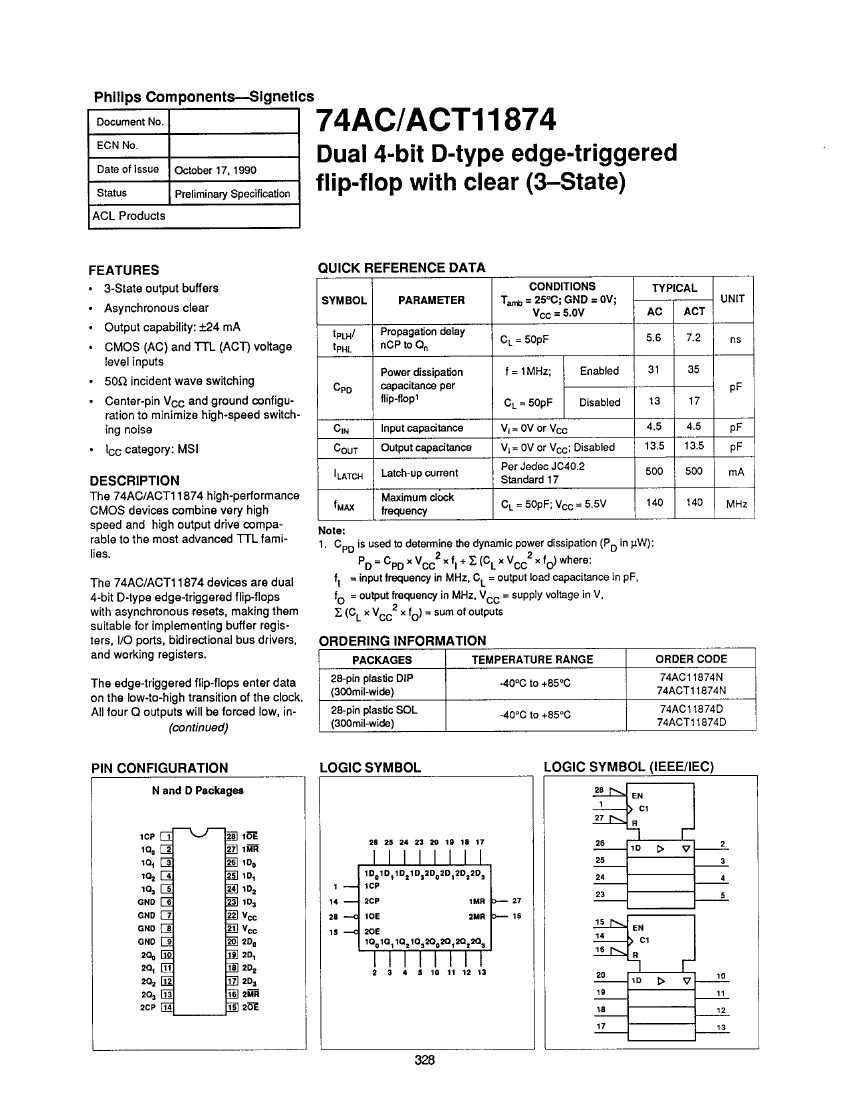

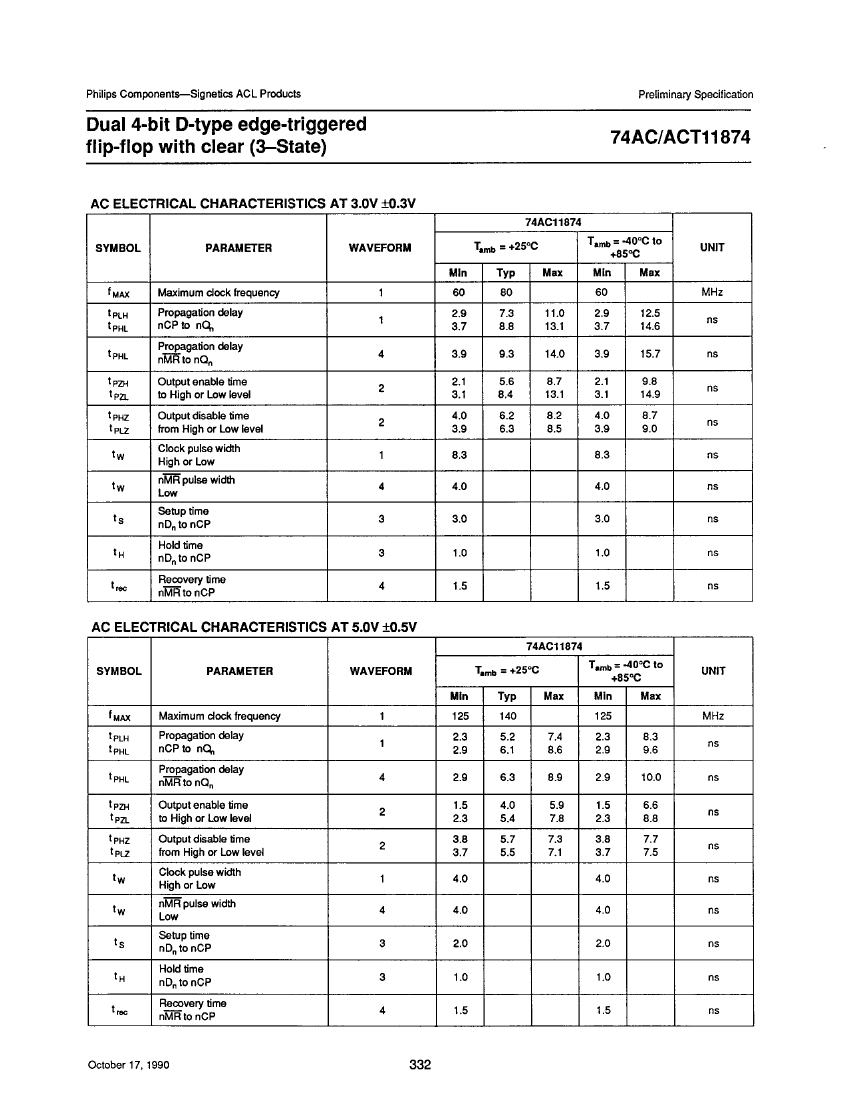

Preview

Download Datasheet

View All

74AC11874D Related Products

	74AC11874D	74AC11874N	74ACT11874D	74ACT11874N
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO28	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP28	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO28	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP28,.4	DIP, DIP28,.3	SOP, SOP28,.4	DIP, DIP28,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	60000000 Hz	60000000 Hz	125000000 Hz	125000000 Hz
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A
Number of functions	8	8	8	8
Number of terminals	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP
Encapsulate equivalent code	SOP28,.4	DIP28,.3	SOP28,.4	DIP28,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	3.3/5 V	3.3/5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
