NOTES:
1.
MATERIALS AND FINISHES:
BODY, BUSHING, HEX NUT - BRASS, SILVER PLATING
CONTACT -
BeCu, GOLD PLATING
O-RING -
SILICONE RUBBER, RED
LOCK WASHER -
PHOSPHOR BRONZE, SILVER PLATING
2.
ELECTRICAL:
A. IMPEDANCE:
50 OHM, NOMINAL
B. FREQUENCY RANGE: DC - 11.0 GHz
C. VSWR:
1.300 MAX.
3.
MECHANICAL:
A. DURABILITY:
B. TEMPERATURE RANGE:
4.
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 82-5552 , AND DATE CODE"
500 CYCLES MIN.
-65 $C TO +165 $C
STAMP "74868 M55339/04-00030
AND DATE CODE (YY/MM)"
THIRD ANGLE PROJ.
REV
REVISIONS
--
M
RELEASE TO MFG.
DESCRIPTION
DATE
ADDED COD SHEET, NO CHANGES
9/19/14
--
ECO
50147
--
APPR
AAP
--
1.562 [39.67] MAX.
0.86 [21,92] REF.
LOCK WASHER
O-RING
3/4" HEX
SCALE
1.000
0.531 [13,487]
REF. TYP.(2)
INTERFACE PER
MIL STD-348
SERIES: N JACK
TYP.(2)
+.011
-000
[13,51 #
0,28]
0.531
0.526 [13.36] REF.
ACROSS FLATS
+.015
0.625
-000
[16,00 #
0,38]
5/8-24 UNEF-2A THREAD
TYP.(2)
0.875 [22,225] REF
0.284 [7,21] REF.
MAX. PANEL THICKNESS
RECOMMENDED MOUNTING
HOLE DIMENSIONS
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
MATERIAL
SEE NOTES
REFERENCE
M55339/04-00030
CONFIGURATION LEVEL: In Work
DRAWN
MADHAN
ENGINEER
B.C. GLEISSNER
APPROVED
K. CAPOZZI
DATE
14-Aug-14
DATE
14-Aug-14
DATE
9/10/14
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.

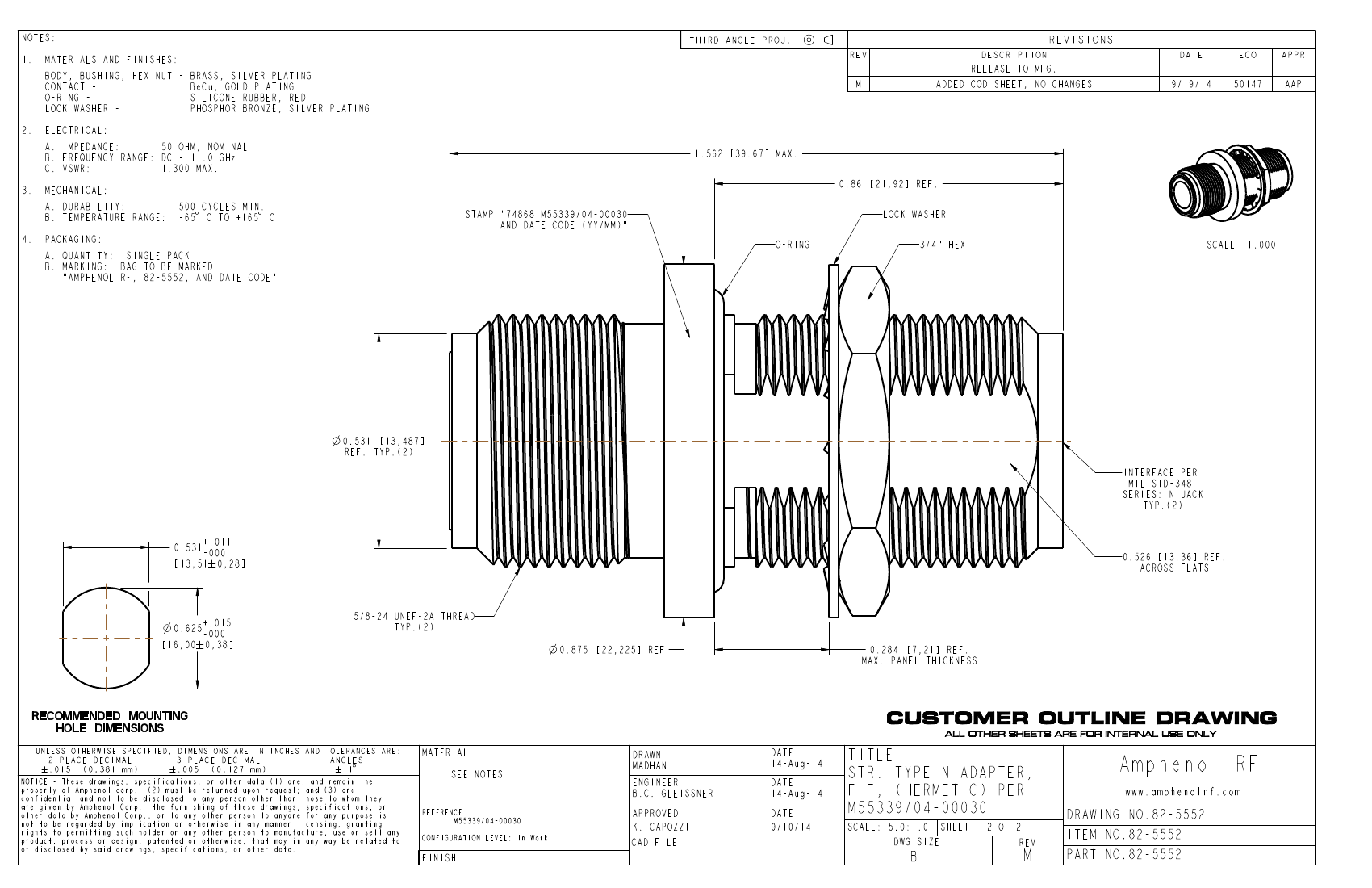

TITLE
STR. TYPE N ADAPTER,
F-F, (HERMETIC) PER
M55339/04-00030
SCALE: 5.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 82-5552
ITEM NO. 82-5552
PART NO. 82-5552
FINISH
CAD FILE
B
REV
M
