5962-8772901EA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8772901EA

5962-8772901EA: Description10H SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16; Categorylogic logic; File Size115KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-8772901EA Overview

10H SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16

5962-8772901EA Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	10H
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.49 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	83 mA
propagation delay (tpd)	3.4 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

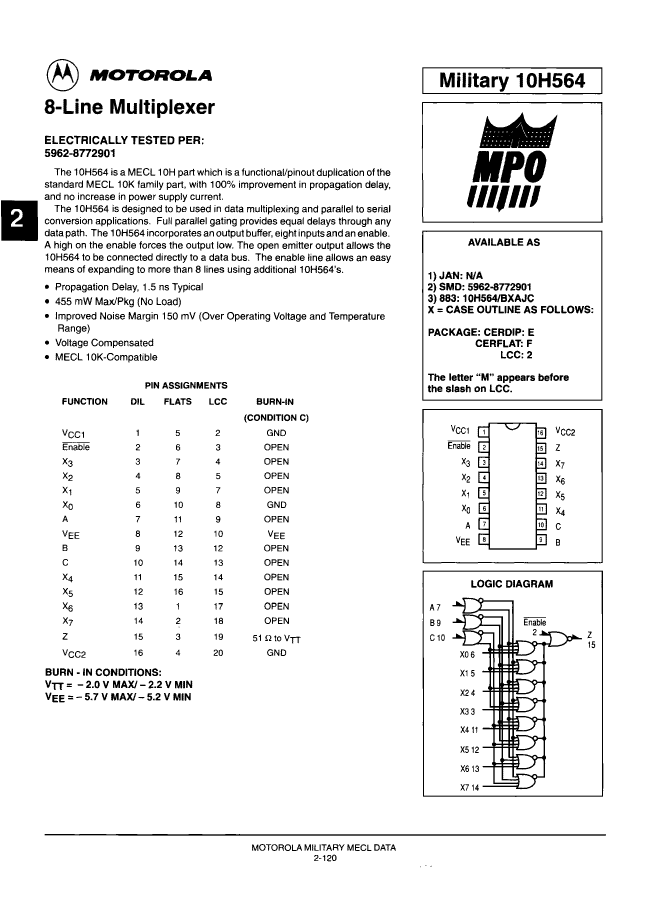

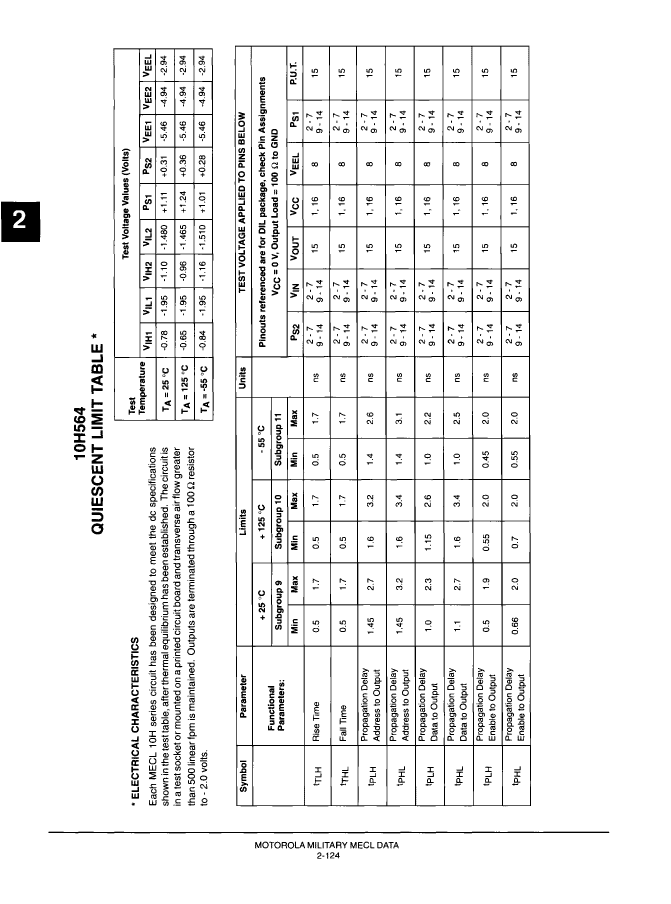

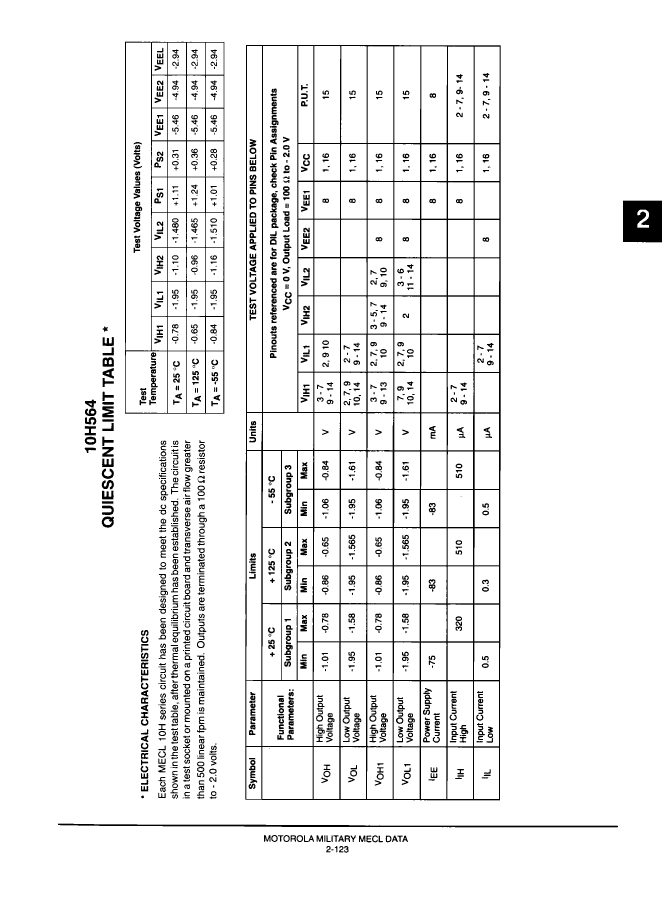

Preview

Download Datasheet

View All

5962-8772901EA Related Products

	5962-8772901EA	5962-87729012A	5962-8772901FA
Description	10H SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16	10H SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	10H SERIES, 8 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16
Parts packaging code	DIP	QLCC	DFP
package instruction	DIP,	QCCN,	DFP,
Contacts	16	20	16
Reach Compliance Code	unknown	unknown	unknown
series	10H	10H	10H
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16
JESD-609 code	e0	e0	e0
length	19.49 mm	8.885 mm	9.65 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1
Number of entries	8	8	8
Output times	1	1	1
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	83 mA	83 mA	83 mA
propagation delay (tpd)	3.4 ns	3.4 ns	3.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.9 mm	2.15 mm
surface mount	NO	YES	YES
technology	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
width	7.62 mm	8.885 mm	6.415 mm
Base Number Matches	1	1	1
Maker	Motorola ( NXP )	-	Motorola ( NXP )
