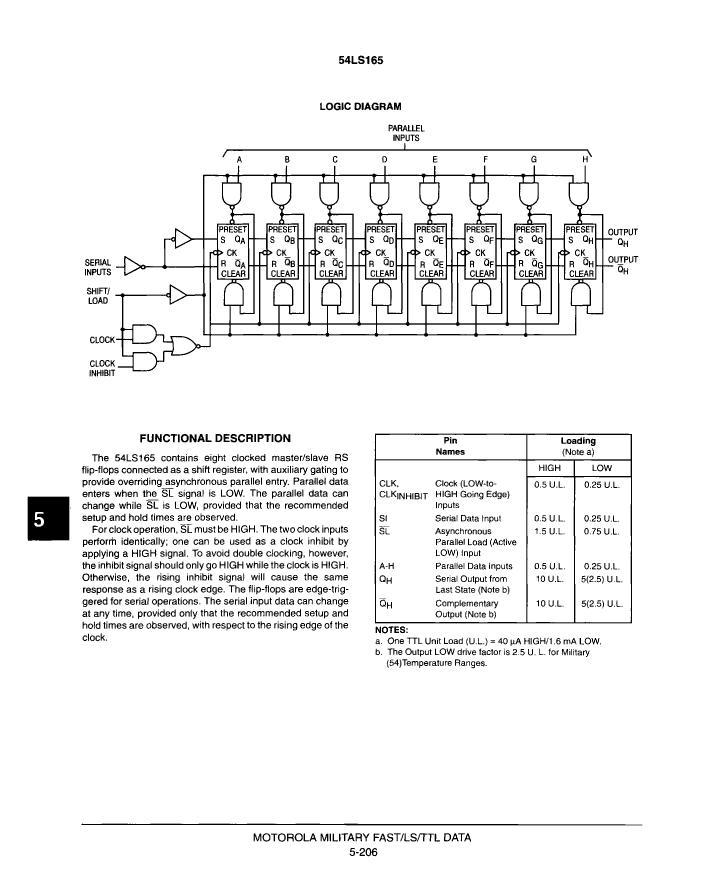

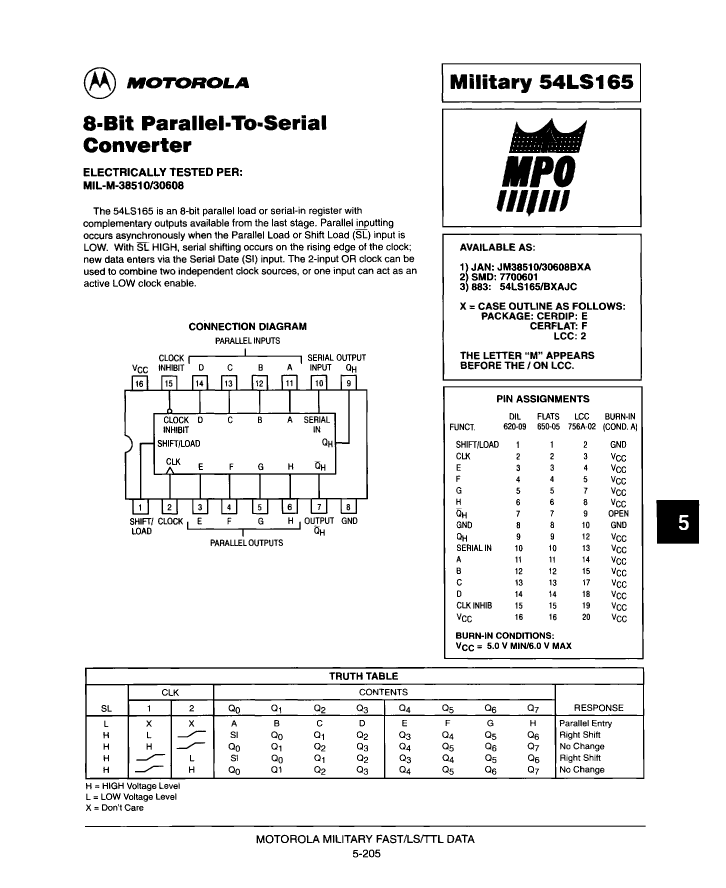

LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16

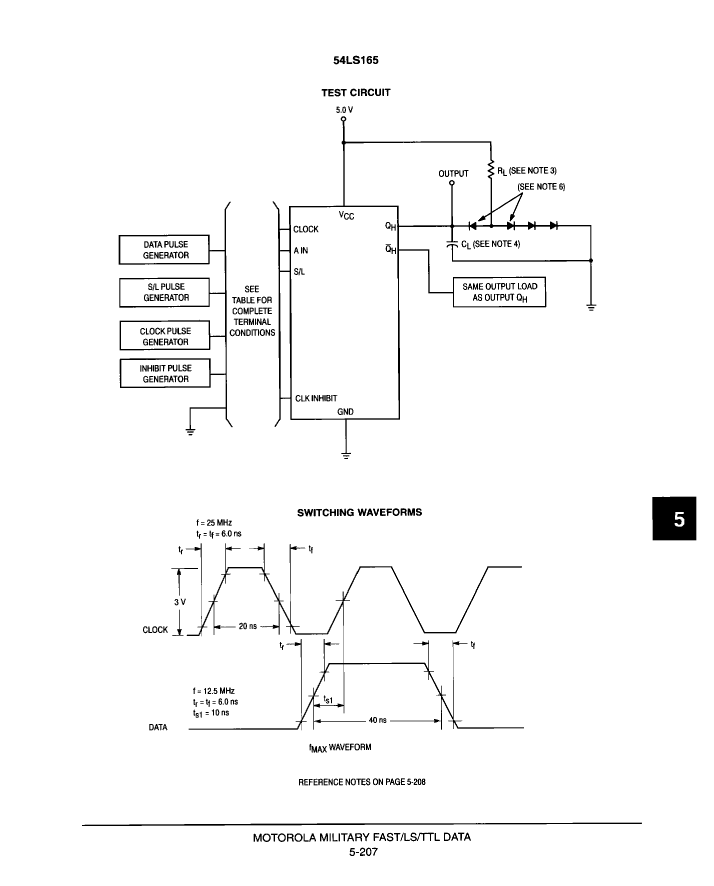

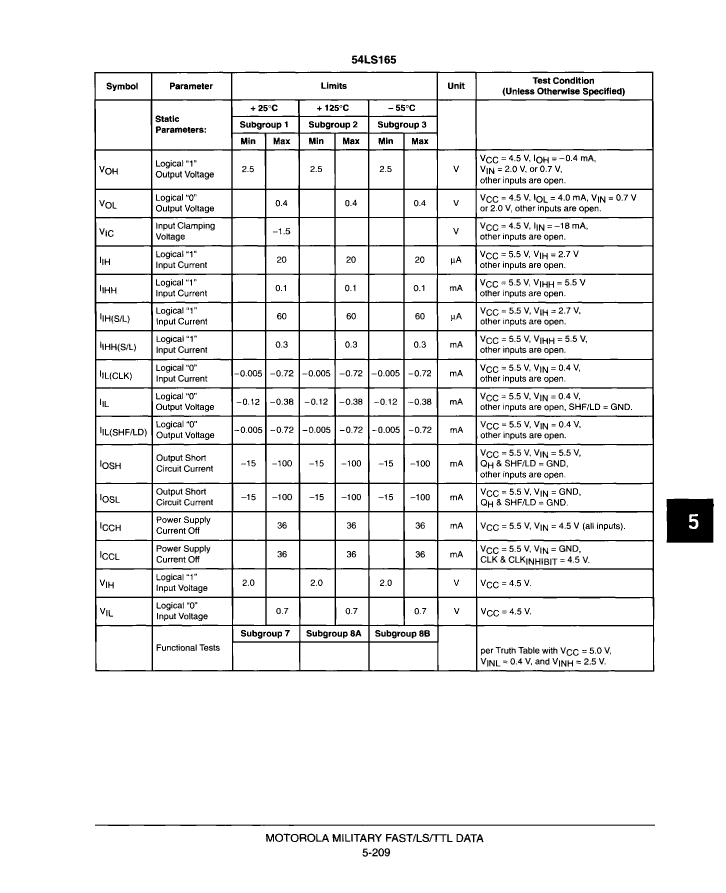

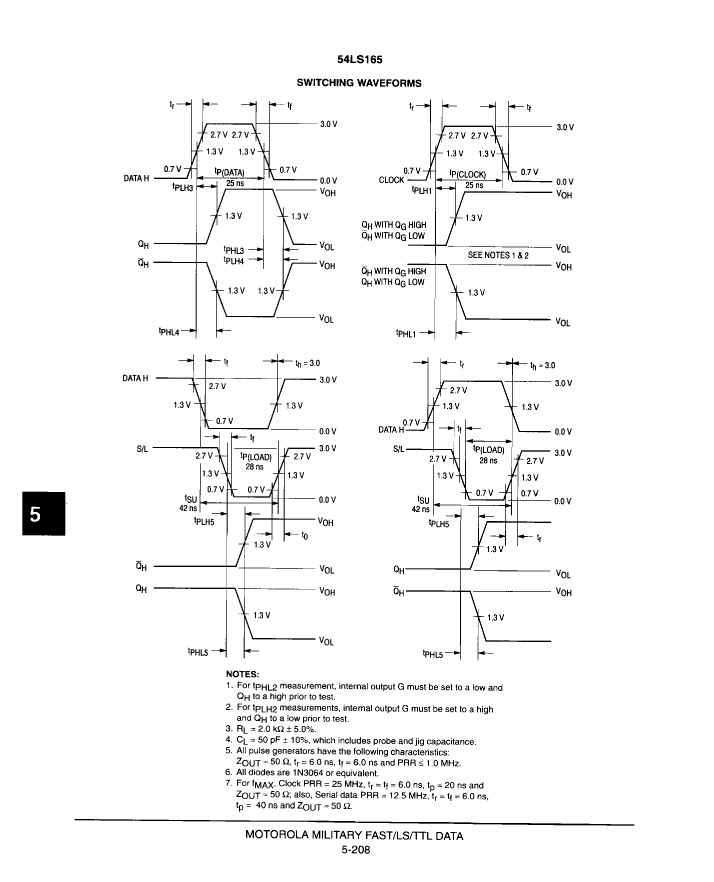

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DFP |
| package instruction | DFP, FL16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | CLOCK INHIBIT |
| Counting direction | RIGHT |
| series | LS |
| JESD-30 code | R-GDFP-F16 |
| JESD-609 code | e0 |
| length | 9.65 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | PARALLEL IN SERIAL OUT |
| Maximum Frequency@Nom-Sup | 25000000 Hz |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 36 mA |
| propagation delay (tpd) | 58 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 6.415 mm |
| minfmax | 20 MHz |
| Base Number Matches | 1 |
| 54LS165/BFAJC | 54LS165M/B2AJC | 54LS165/BEAJC | 7700601FA | 7700601FX | 77006012X | 77006012A | 7700601EX | 7700601EA | |
|---|---|---|---|---|---|---|---|---|---|
| Description | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20 | Parallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CDIP16, CERDIP-16 | Parallel In Serial Out, LS Series, 8-Bit, Right Direction, Complementary Output, TTL, CDFP16, CERAMIC, FP-16 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CQCC20 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16 | LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDIP16, CERDIP-16 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | DFP, FL16,.3 | QCCN, LCC20,.35SQ | DIP, | CERAMIC, FP-16 | DFP, | QCCN, | QCCN, | DIP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| Other features | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT | CLOCK INHIBIT |
| Counting direction | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT |
| series | LS | LS | LS | LS | LS | LS | LS | LS | LS |
| JESD-30 code | R-GDFP-F16 | S-CQCC-N20 | R-GDIP-T16 | R-GDFP-F16 | R-GDFP-F16 | S-CQCC-N20 | S-CQCC-N20 | R-GDIP-T16 | R-GDIP-T16 |
| length | 9.65 mm | 8.89 mm | 19.3 mm | 9.65 mm | 9.65 mm | 8.885 mm | 8.885 mm | 19.3 mm | 19.3 mm |
| Logic integrated circuit type | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 | 16 | 16 | 20 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | QCCN | DIP | DFP | DFP | QCCN | QCCN | DIP | DIP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | CHIP CARRIER | IN-LINE | FLATPACK | FLATPACK | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE |
| propagation delay (tpd) | 58 ns | 58 ns | 58 ns | 58 ns | 58 ns | 58 ns | 58 ns | 58 ns | 58 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.15 mm | 1.9 mm | 4.19 mm | 2.15 mm | 2.15 mm | 1.9 mm | 1.9 mm | 4.19 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | YES | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE | FLAT | FLAT | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 6.415 mm | 8.89 mm | 7.62 mm | 6.415 mm | 6.415 mm | 8.885 mm | 8.885 mm | 7.62 mm | 7.62 mm |
| minfmax | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz |
| Parts packaging code | DFP | QLCC | DIP | - | DFP | - | QLCC | DIP | DIP |
| Contacts | 16 | 20 | 16 | - | 16 | - | 20 | 16 | 16 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | - | - | 50 pF | - | 50 pF |
| Maximum supply current (ICC) | 36 mA | 36 mA | 36 mA | 36 mA | - | - | 36 mA | - | 36 mA |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
