Part Number

Search

78969-110

Description
Board Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size238KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

78969-110 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

78969-110 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
body width0.255 inch
subject depth0.4 inch
body length1.04 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (100)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number78969
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing9.017 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts20
Base Number Matches1

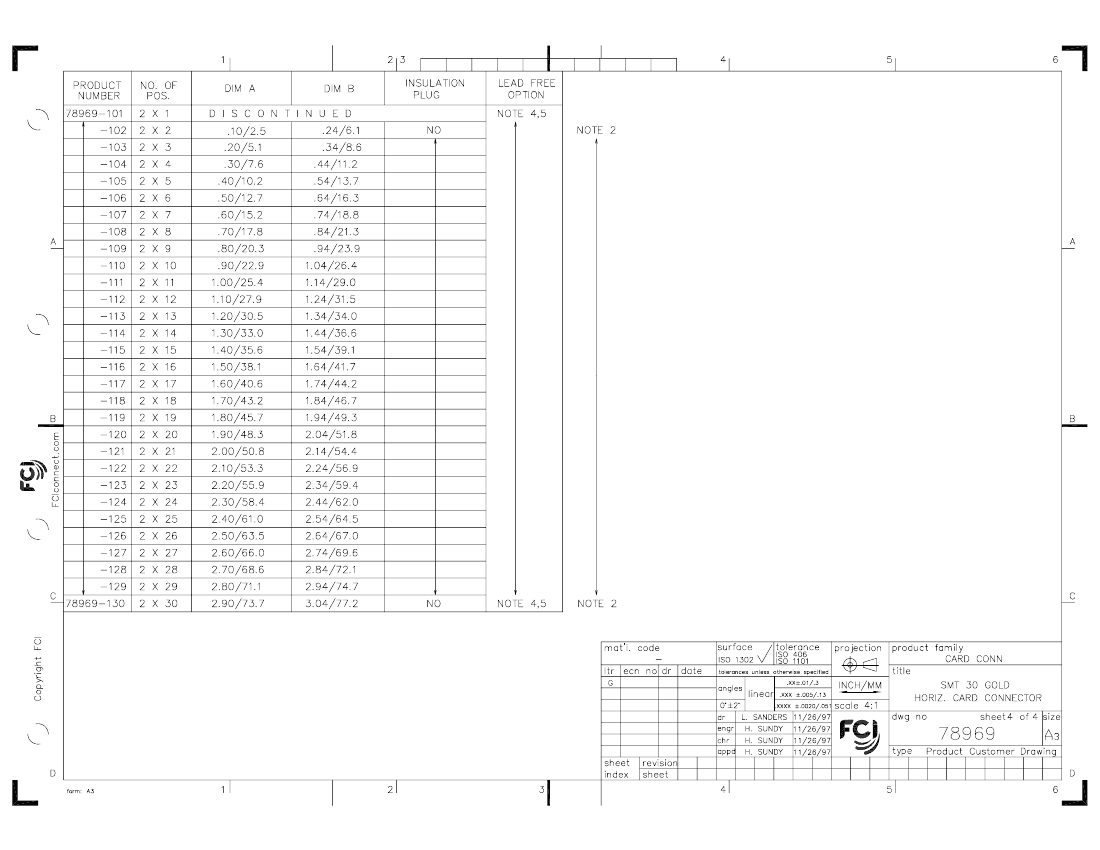

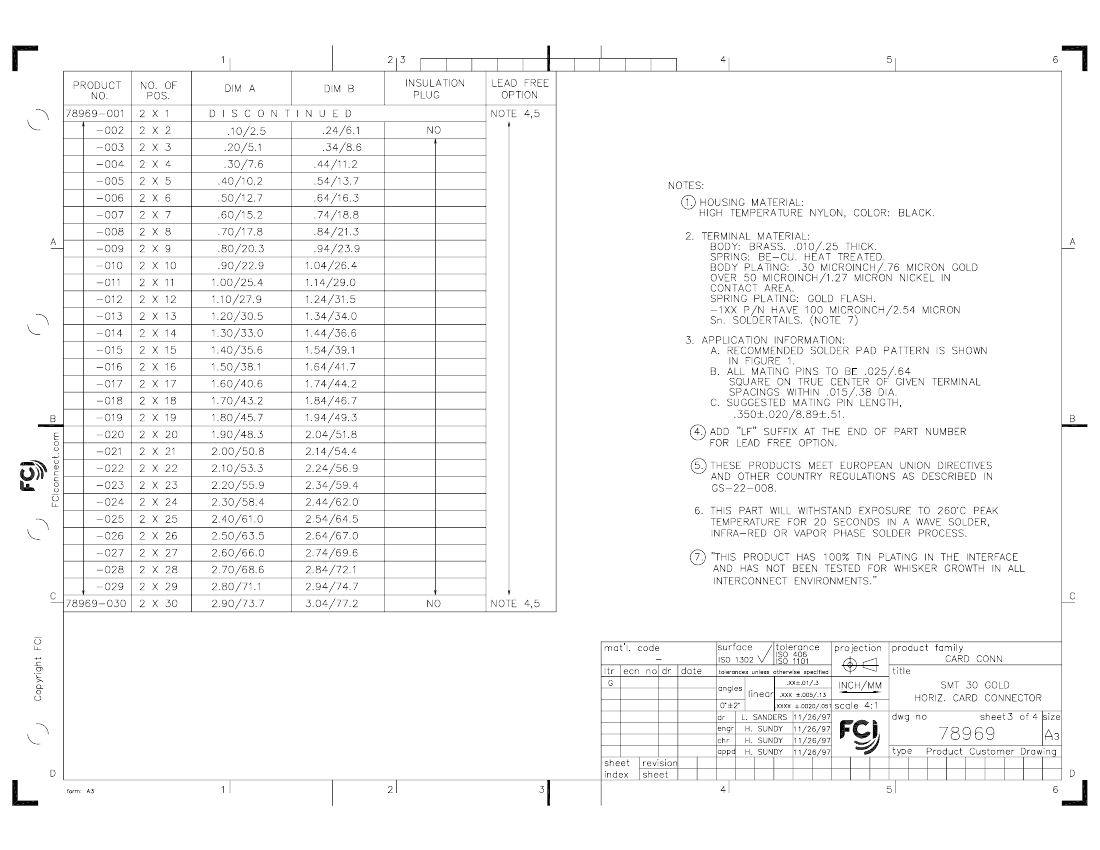

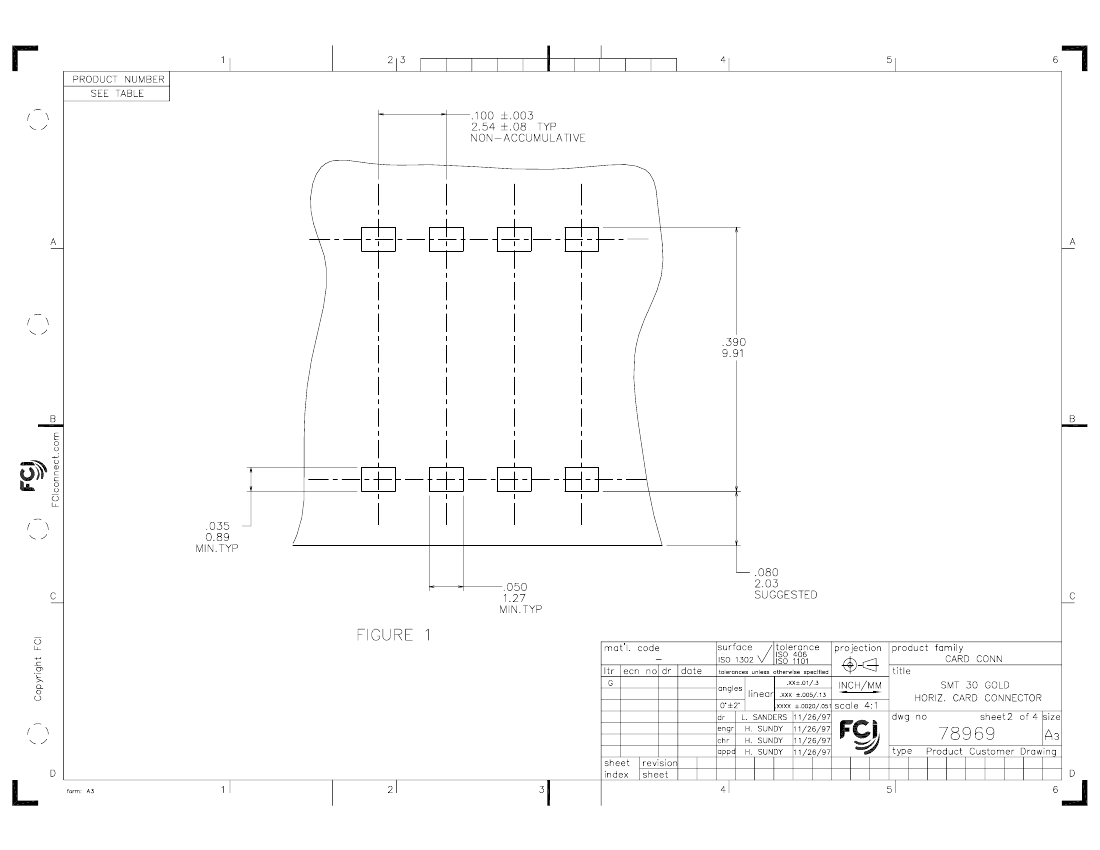

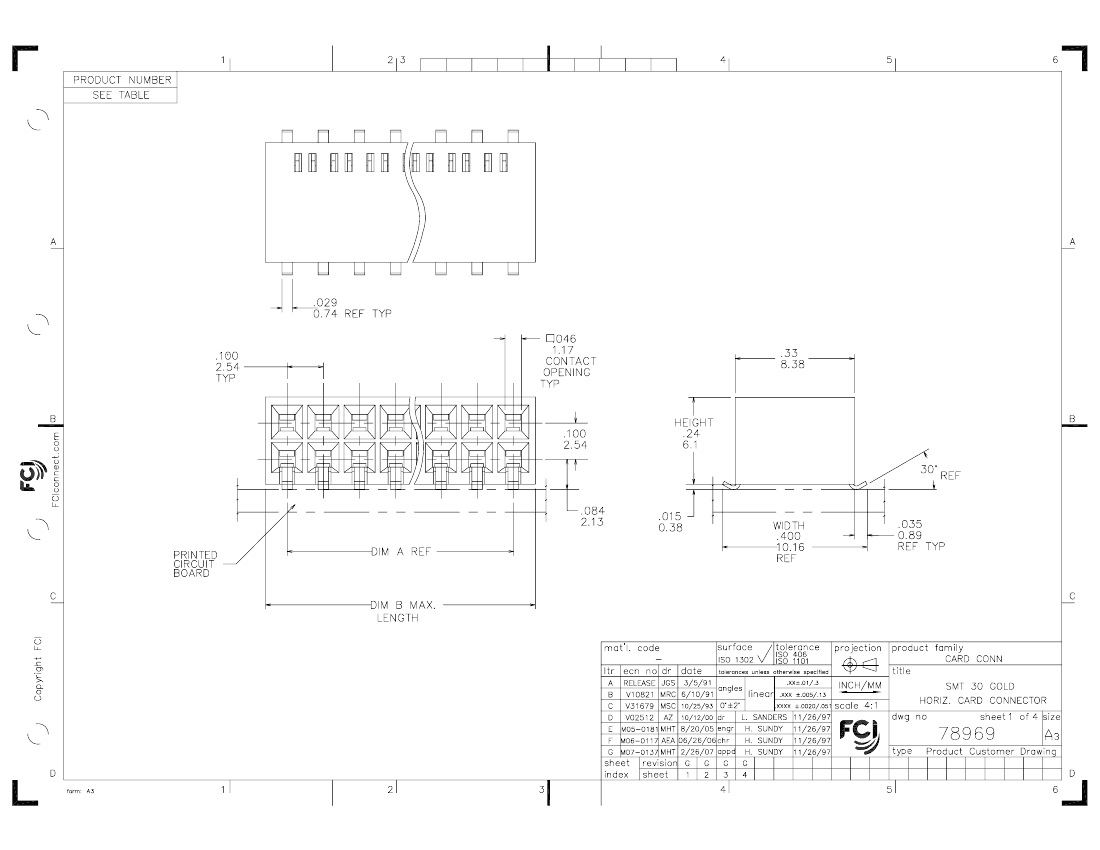

PDM: Rev:G
STATUS:
Released
Printed: Dec 12, 2008
.
