75860-102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 75860-102

75860-102: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size530KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

75860-102 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug

75860-102 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.415 inch
subject depth	0.827 inch
body length	3.732 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	75860
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Loaded row name	A,B
Number of rows loaded	2
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

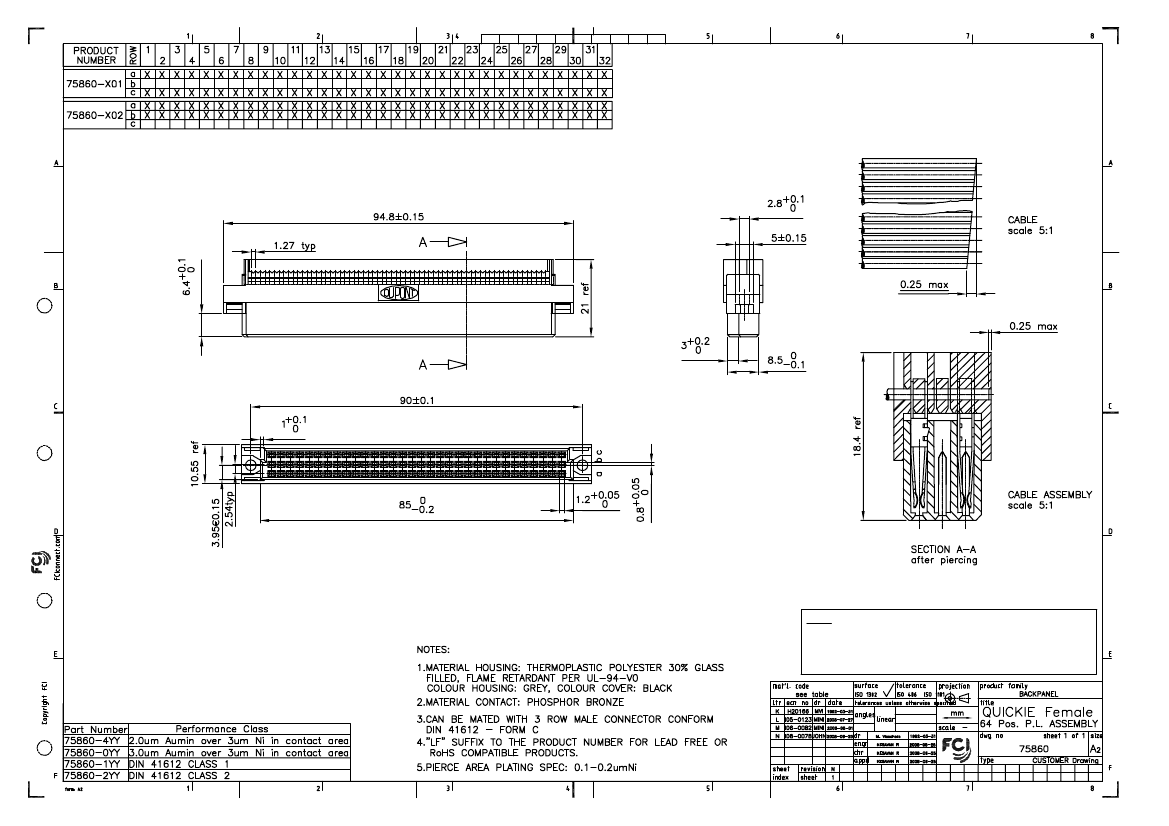

NOTE:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND

OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008.

2. LEAD FREE OR RoHS DIRECTIVE LABELLING TO BE PROVIDED AS

PER GS-14-920 FOR LEAD FREE VERSION.

PDM: Rev:N

STATUS:

Released

Printed: Sep 15, 2009

75860-102 Related Products

	75860-102	75860-001	75860-101	75860-201	75860-002	75860-202	75860-401	75860-402
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Plug	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Locking, Black Insulator, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
body width	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch
subject depth	0.827 inch	0.827 inch	0.827 inch	0.827 inch	0.827 inch	0.827 inch	0.827 inch	0.827 inch
body length	3.732 inch	3.732 inch	3.732 inch	3.732 inch	3.732 inch	3.732 inch	3.732 inch	3.732 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (118) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED	GOLD (118) OVER NICKEL	NOT SPECIFIED	GOLD (79) OVER NICKEL	GOLD (79) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYESTER	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Loaded row name	A,B	A,C	A,C	A,C	A,B	A,B	A,C	A,B
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Total number of contacts	64	64	64	64	64	64	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
Manufacturer's serial number	75860	75860	-	75860	75860	75860	75860	75860
Base Number Matches	1	-	-	-	1	1	1	1
