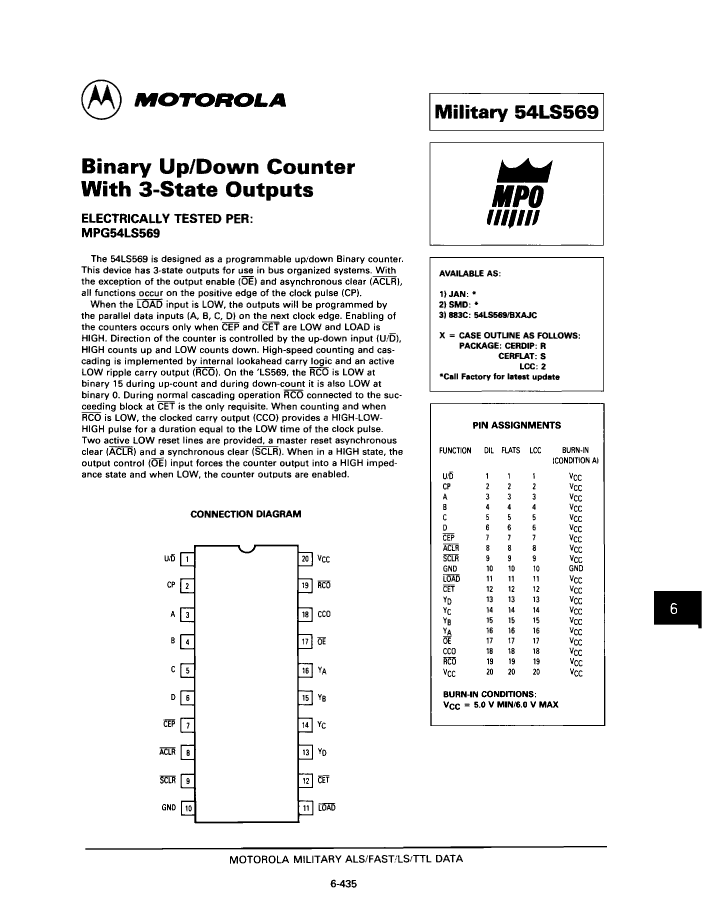

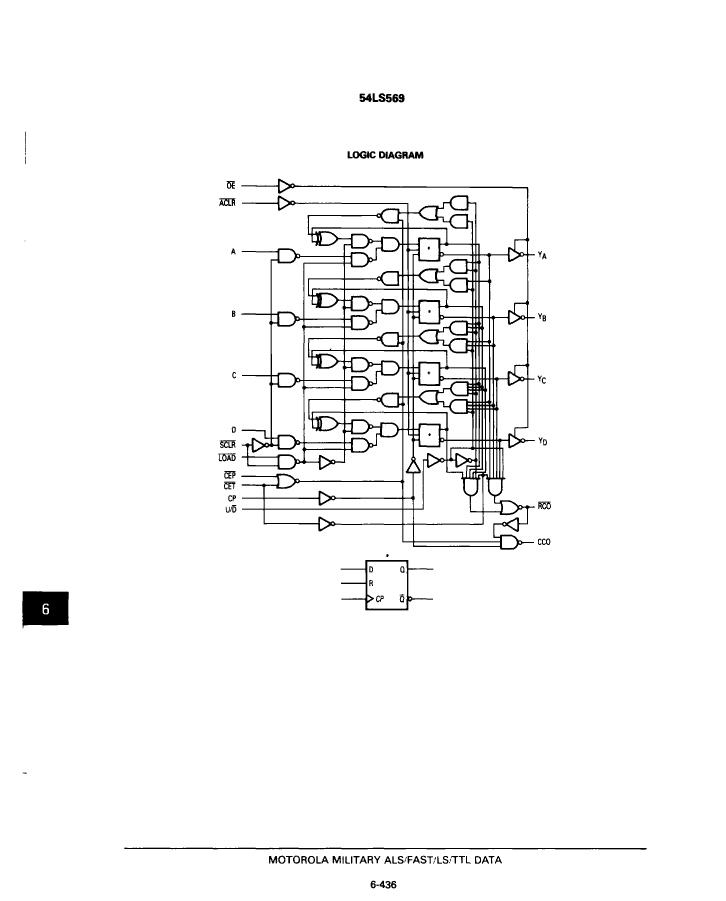

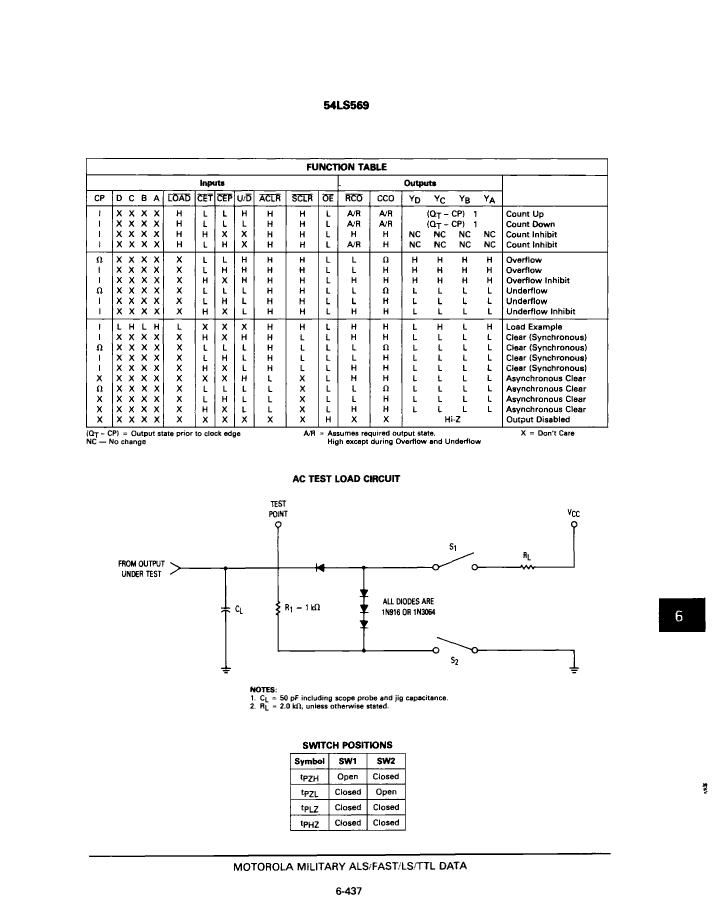

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CQCC20, CERAMIC, LCC-20

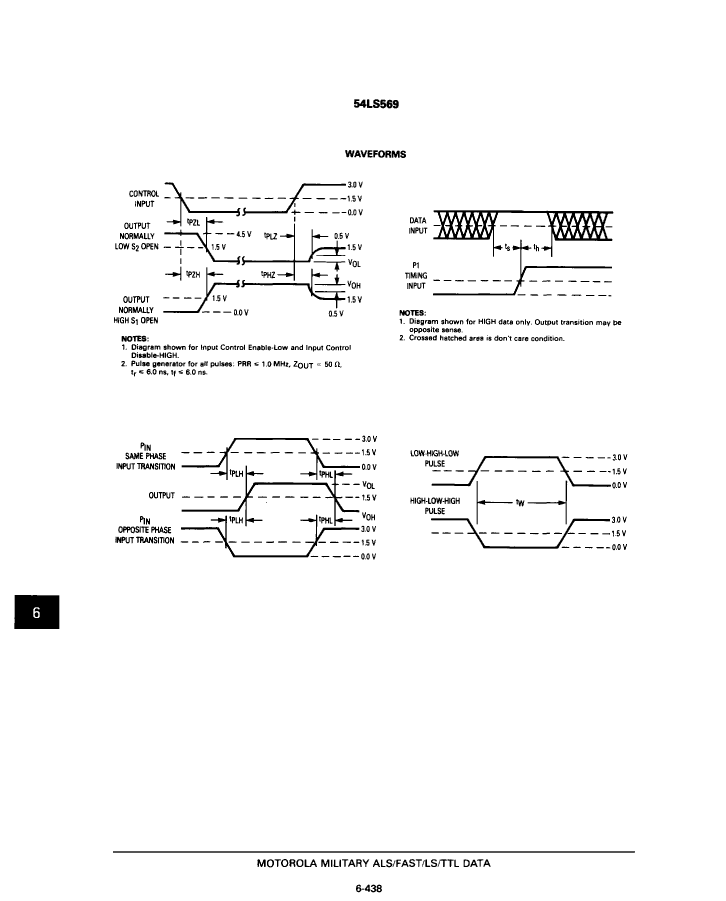

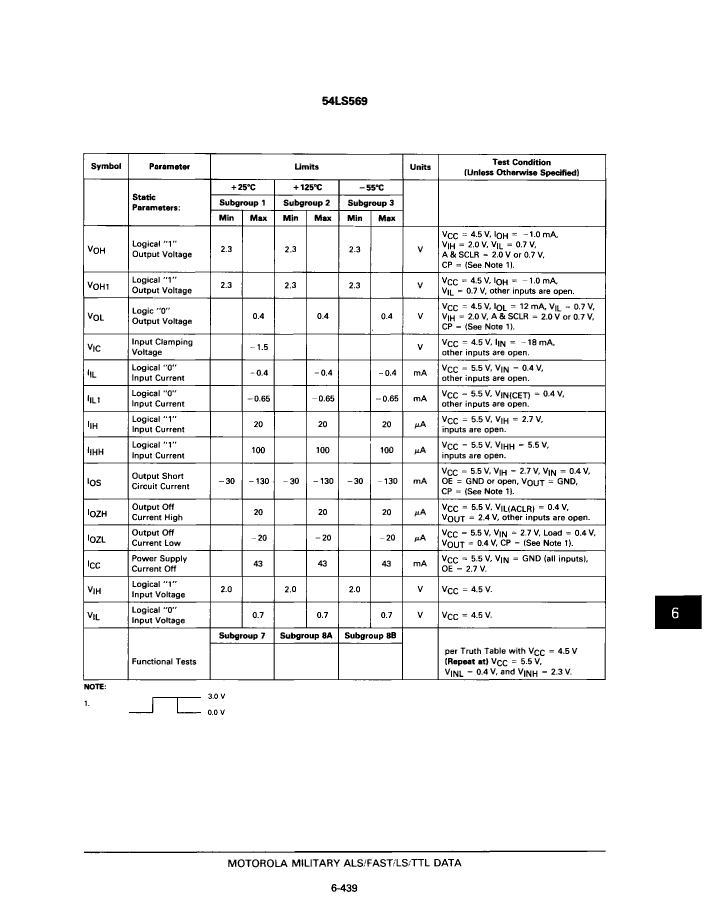

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| Other features | TCO OUTPUT; CLOCKED CARRY OUTPUT |
| Counting direction | BIDIRECTIONAL |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| propagation delay (tpd) | 54 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Trigger type | POSITIVE EDGE |
| width | 8.89 mm |
| minfmax | 18 MHz |
| Base Number Matches | 1 |
