80020022X: DescriptionLS SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CQCC20; Categorylogic logic; File Size96KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

80020022X Overview

LS SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CQCC20

80020022X Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	QCCN,
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS
JESD-30 code	S-CQCC-N20
length	8.885 mm
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.885 mm
Base Number Matches	1

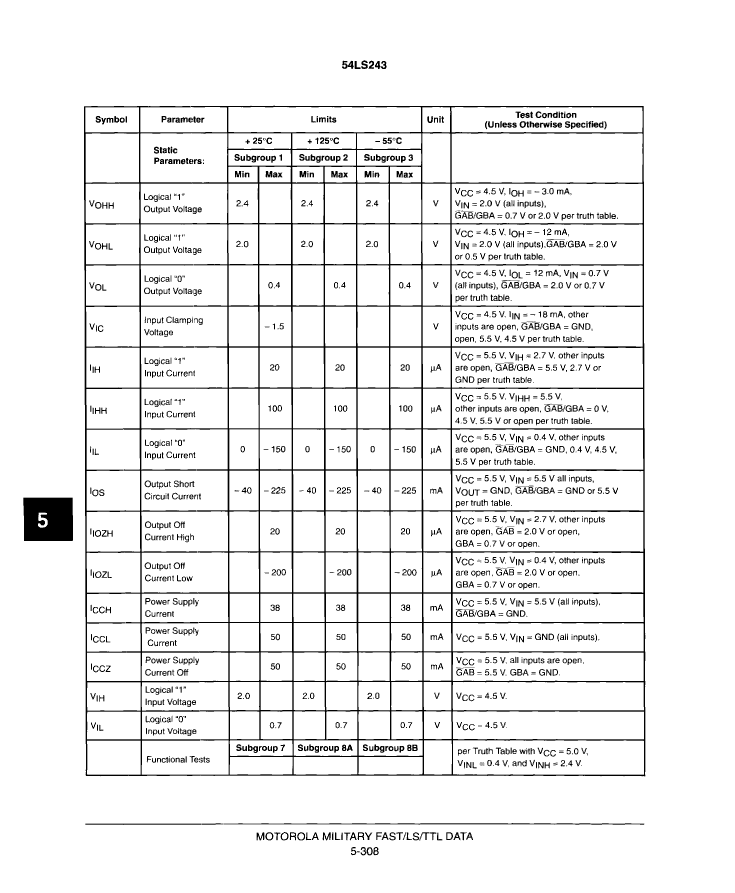

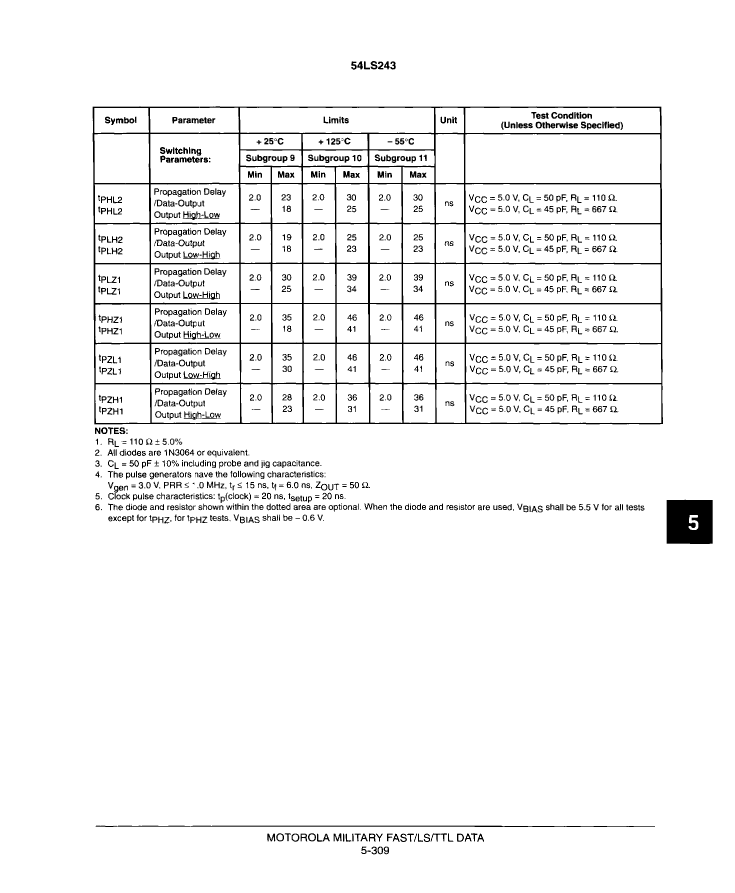

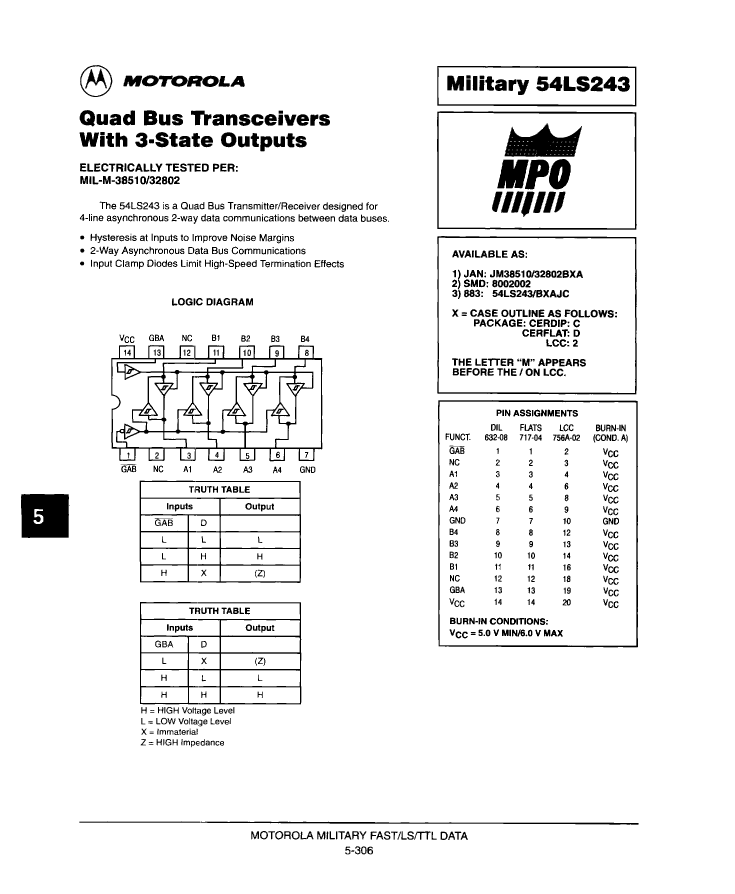

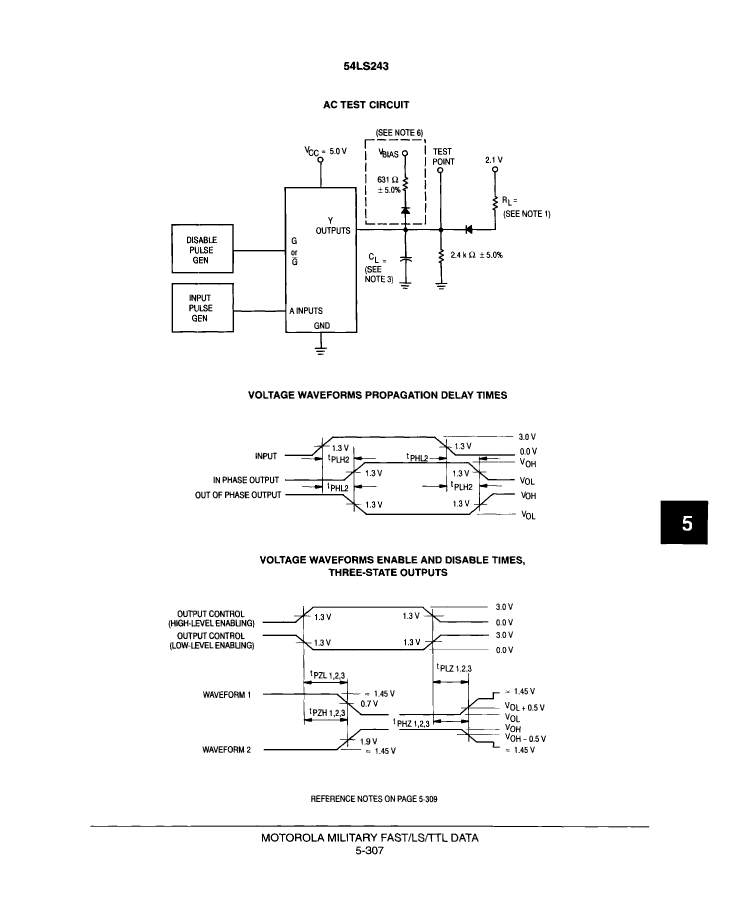

Preview

Download Datasheet

View All

80020022X Related Products

	80020022X	80020022A	8002002CA	8002002DA	54LS243/BCAJC	54LS243/BDAJC	54LS243M/B2AJC	8002002DX	8002002CX
Description	LS SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CQCC20	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDIP14, CERDIP-14	LS SERIES, QUAD 1-BIT TRANSCEIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDIP14, CERDIP-14	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDFP14, CERAMIC, FP-14	LS SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	Bus Transceiver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDFP14	Bus Transceiver, LS Series, 1-Func, 4-Bit, True Output, TTL, CDIP14,
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T14	R-GDFP-F14	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20	R-GDFP-F14	R-GDIP-T14
length	8.885 mm	8.885 mm	19.495 mm	9.65 mm	19.495 mm	9.65 mm	8.89 mm	9.65 mm	19.495 mm
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	4	4	4	1	4	4	4	1	4
Number of functions	1	1	1	4	1	1	1	4	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	14	14	14	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	DFP	DIP	DFP	QCCN	DFP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE
propagation delay (tpd)	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	5.08 mm	2.15 mm	5.08 mm	2.15 mm	1.9 mm	2.15 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL
width	8.885 mm	8.885 mm	7.62 mm	6.415 mm	7.62 mm	6.415 mm	8.89 mm	6.415 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
package instruction	QCCN,	QCCN,	DIP,	DFP,	DIP, DIP14,.3	DFP, FL14,.3	QCCN, LCC20,.35SQ	DFP,	-
Parts packaging code	-	QLCC	DIP	DFP	DIP	DFP	QLCC	-	-
Contacts	-	20	14	14	14	14	20	-	-
Load capacitance (CL)	-	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF	-	-
Maximum supply current (ICC)	-	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	-	-
