74538-41208LF datasheet, PDF - EEWORLD Datasheet

74538-41208LF: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, LEAD FREE; CategoryThe connector The connector; File Size268KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

74538-41208LF Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, 25 Degree, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	POLARIZED
Board mount options	PEG
body length	5.56 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	74538
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	25 DEGREE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0
Base Number Matches	1

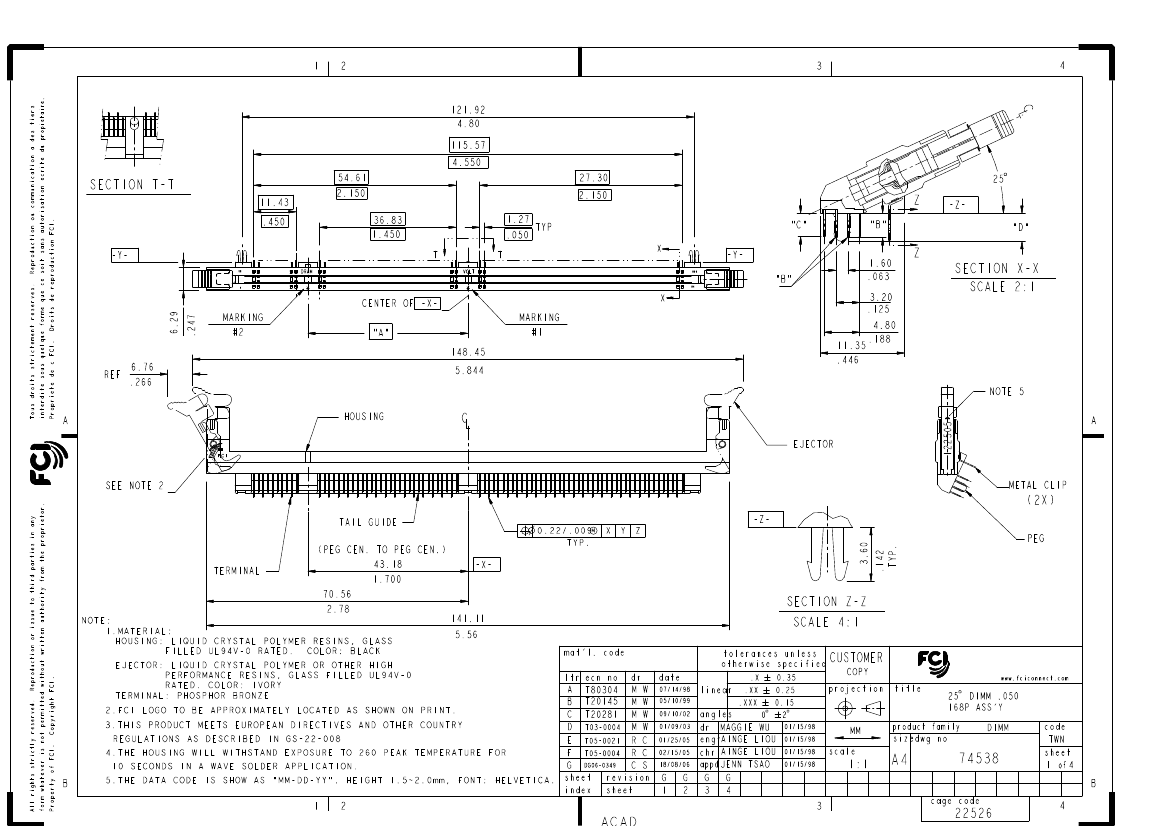

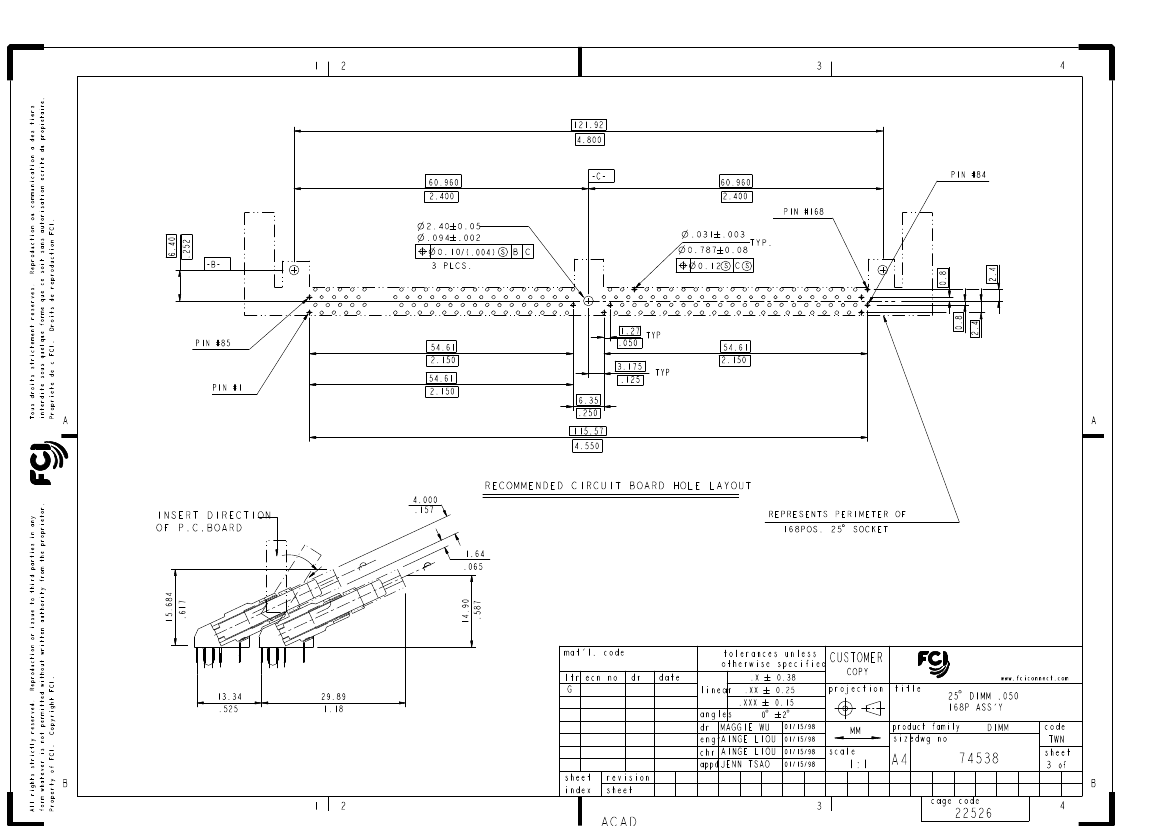

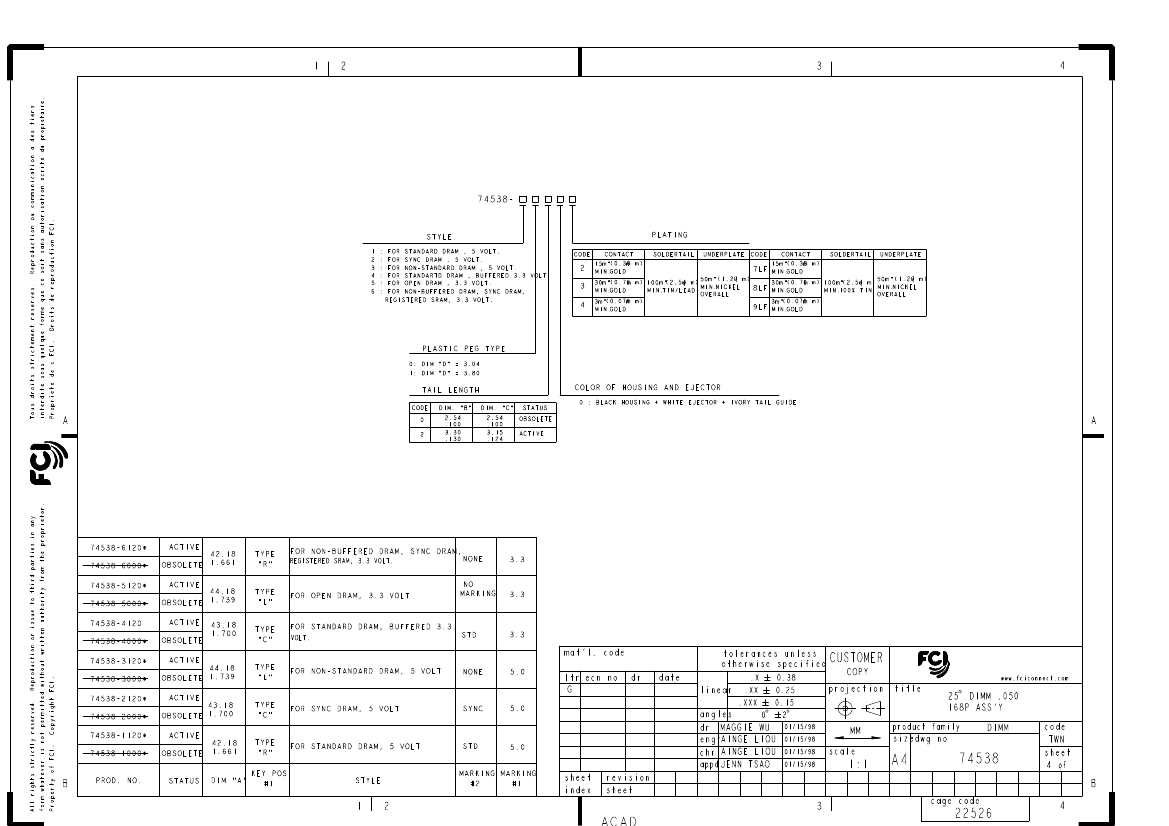

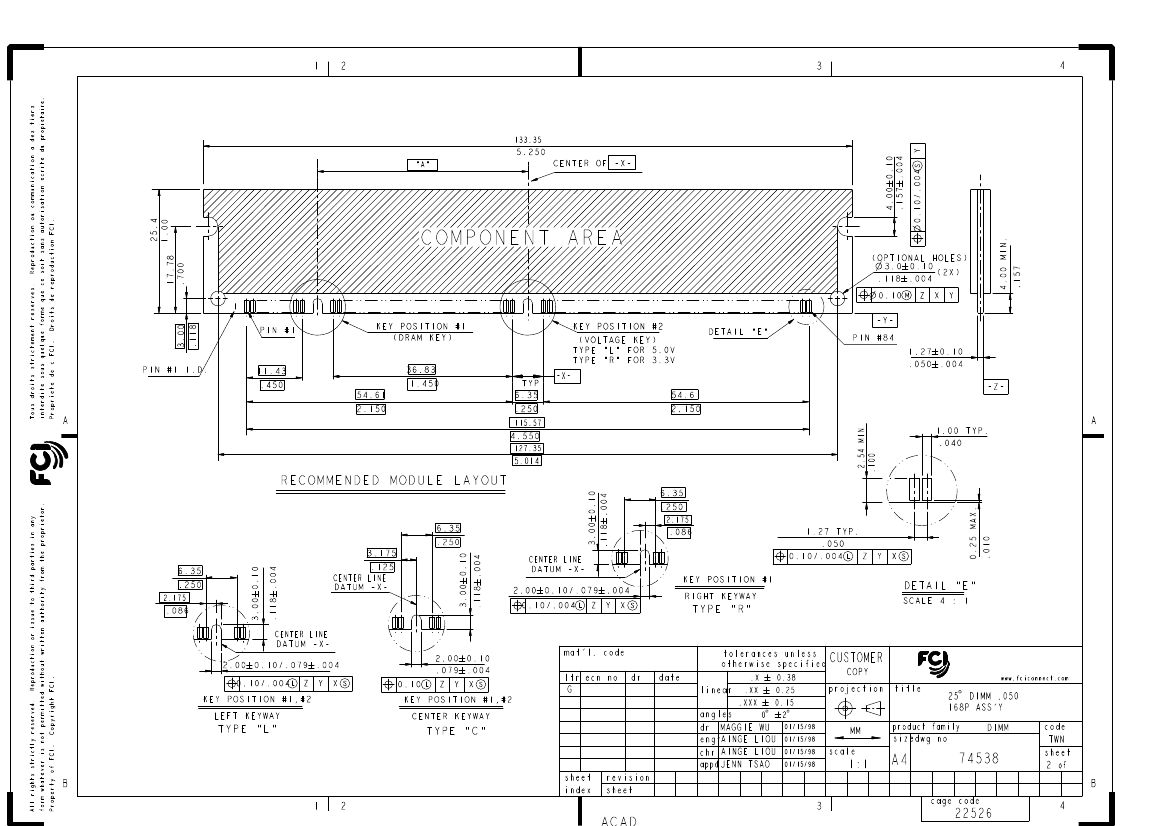

PDM: Rev:G

STATUS:

Released

Printed: Jul 28, 2010
