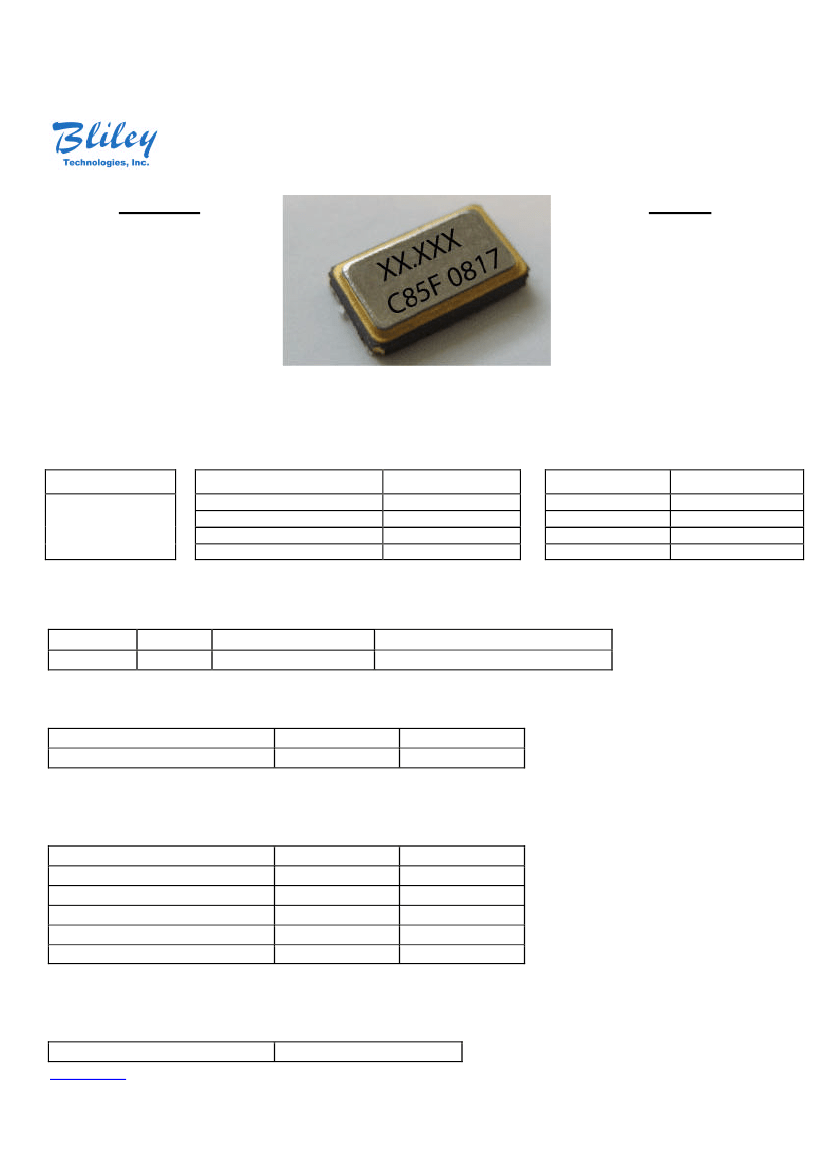

7.0 mm x 5.0 mm XO
Description:
The C85F Crystal Oscillator
(XO) Series products provide a
wide range of options in
temperature stability, operating
frequency range, and ultra low
phase jitter in a 7.0 x 5.0 mm
ceramic package.
•
•
•
•
•
•
C85F series
Feature s:
Available in frequencies from 19.44
MHz to 320 MHz.
Tri-state Enable/Disable
Hermetically sealed ceramic
SMD package
RoHS-6/Leadfree compliant
Integrated jitter 0.3 pS max.
PECL and LVDS outputs
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Operating Temperature
Product Code
Freq. Stability
Product Code
-10 to +60C
A
+/- 25 ppm
A
19.44 to 320MHz
0 to +70C
B
+/- 50 ppm
B
-20 to 70C
C
+/- 75 ppm
C
-40 to 85C
D
+/-100ppm
D
•
***Frequency stability includes 25C tolerance, drift over temperature, change versus voltage and load, 20 year aging,
shock and vibration
•
Aging:
(typical at 20MHz after 30 days continuous operation)
Frequency
20 MHz
Timeframe
1st Year
Aging
+/- 5.0ppm
Product Code
N/A
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
2.5 Vdc +/-10%
A
3.3 Vdc +/-10%
B
Supply Voltage Sensitivity ( +/- 10% ) : +/- 2 ppm max. frequency change
Current Consumption ( I
DD
):
I
DD
( at 2.5V )
Frequency Range ( MHz )
19.440 to 160.000
160.000 to 250.000
250.000 to 320.000
PECL / LVDS
mA
75 / 50
100 / 50
100 / 65
I
DD
( at 3.3V )
PECL / LVDS
mA
75 / 50
100 / 50
100 / 65
Environmental:
Storage Temperature
www.bliley.com
-55 to +125
°C
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel (814) 838-3571
Rev 1.2
7.0 mm x 5.0 mm XO
Output Waveform:
PECL
At 2.5 V
Output Logic 1
1.475 Vmin
Output Logic 0
1.095 Vmax
Rise/Fall Time ( nS ) 1 max
Start-up Time: 3 mS max.
PECL
At 3.3 V
2.275Vmin
1.680Vmax
1 max
LVDS
At 2.5 V
1.6Vmax
0.9Vmin
1 max
LVDS
At 3.3 V
1.6Vmax
0.9Vmin
1 max
C85F series
Tri-state function Pin 1 or Pin 2:
Pin 1 or 2 = Ouput Active with 2.0 V or 2.5 V on Pin 1 or 2 for 2.5V or 3.3V supply respectively
Pin 1 or 2 = Output in high impedance state when 0.5 volts or less on Pin 1 or 2
Ordering Options:
Product Family
Operating
Temperature
C85F
A
C85F
B
C85F
C
C85F
D
Frequency
Stability
A
B
C
D
Supply
Voltage
A
B
Pin 1 or Pin 2
as Tri-state
A ( Pin 1 )
B ( Pin 2 )
Operating
Frequency
XXX.XXXMHz
XXX.XXXMHz
XXX.XXXMHz
XXX.XXXMHz
C85F C A B A 155.520MHz
Part Number Build Example
**Consult Bliley sales if other options required
** Not all combinations of operating frequency and supply voltage are available.
RoHs compliant; -20 to 70C; +/- 25 ppm with a 3.3 volt supply; Pin1 as Tri-state;
Pin 2 as N/C and 155.520 MHz nominal operating frequency.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel (814) 838-3571
Rev 1.2

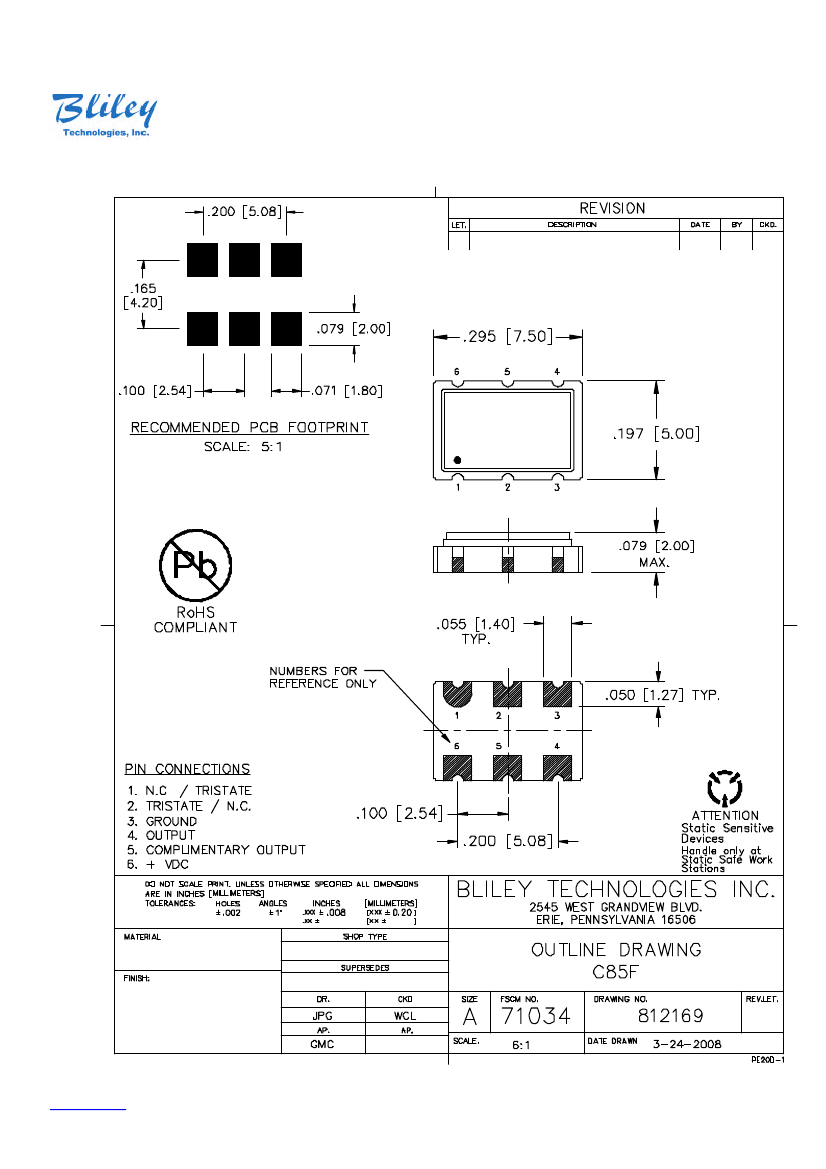

7.0 mm x 5.0 mm XO
C85F series
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 3 of 4
Tel (814) 838-3571
Rev 1.2
7.0 mm x 5.0 mm XO
C85F series
How to Order This Product:
Contact Bliley Technologies with Product Selection Code from Ordering Options Section above.
Attn:
Sales @ Bliley
Fax:
814-833-2712
Phone: 814-838-3571
Email:
info@bliley.com
Web:
www.bliley.com
Date: ____________
From:
Name: ____________________ Company: ___________________
Fax: ______________________ Phone: _____________________
Email: _________________________________________________
Quantities to Quote: ______________ Target Price: $___________
Application / Reference #: _________________________________
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 4 of 4
Tel (814) 838-3571
Rev 1.2
