54F574/BRA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F574/BRA

54F574/BRA: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDIP20; Categorylogic logic; File Size212KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F574/BRA Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDIP20

54F574/BRA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

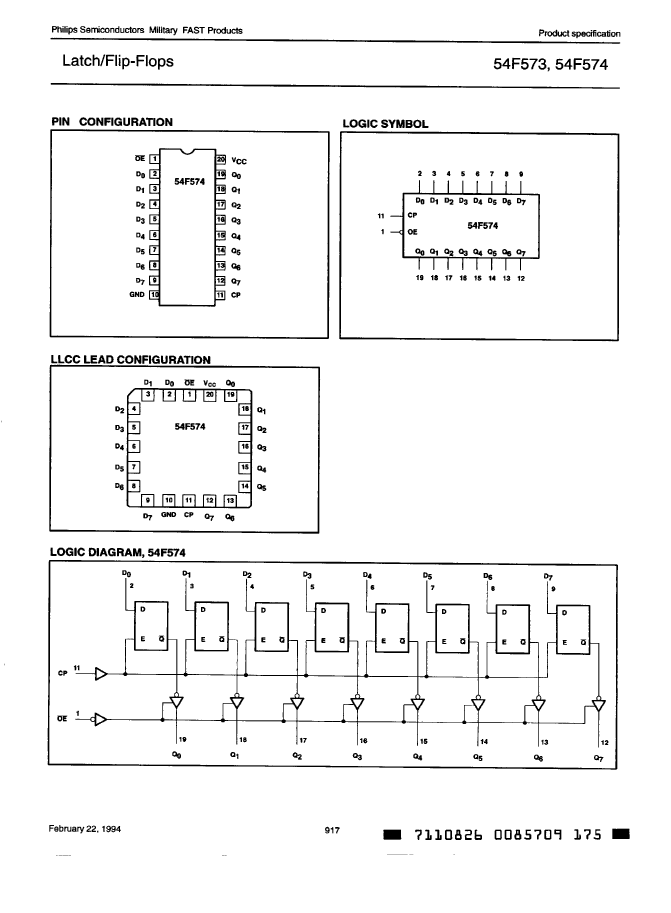

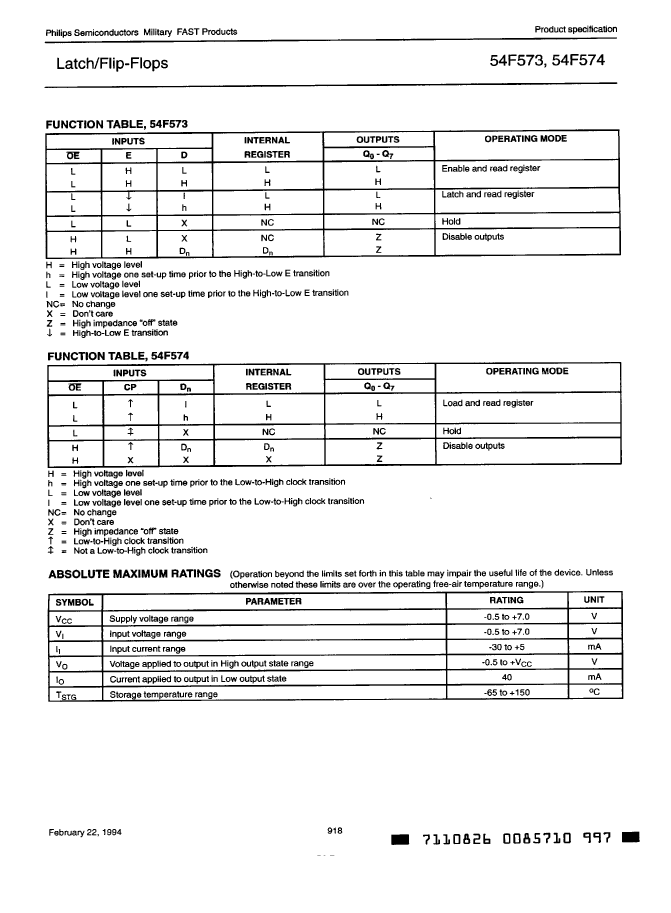

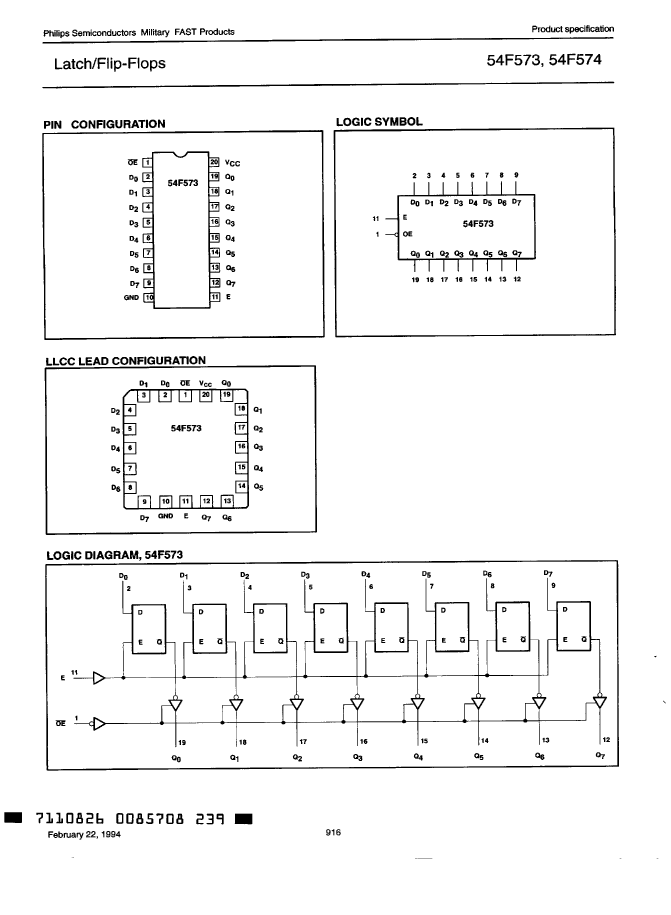

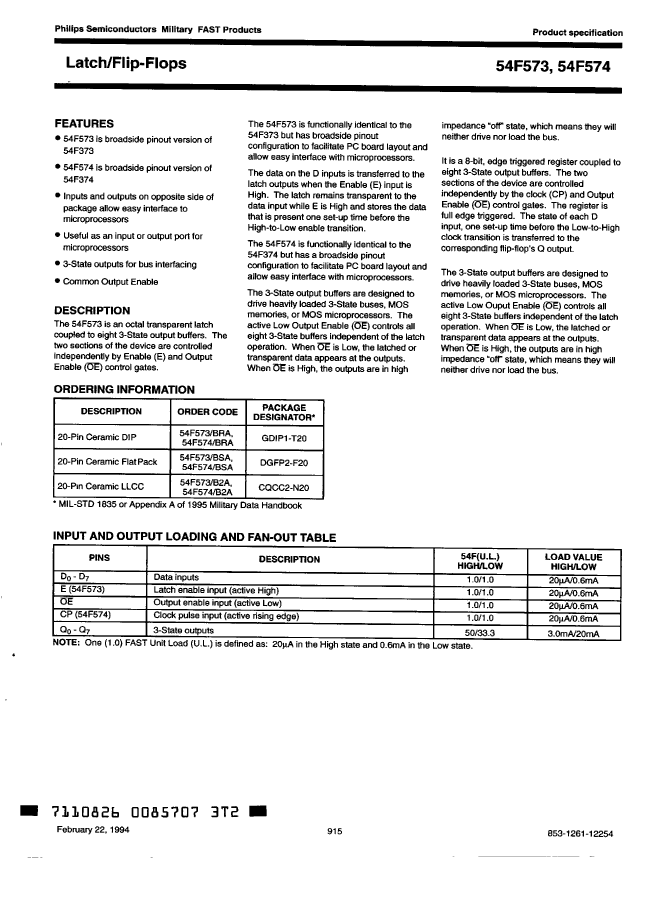

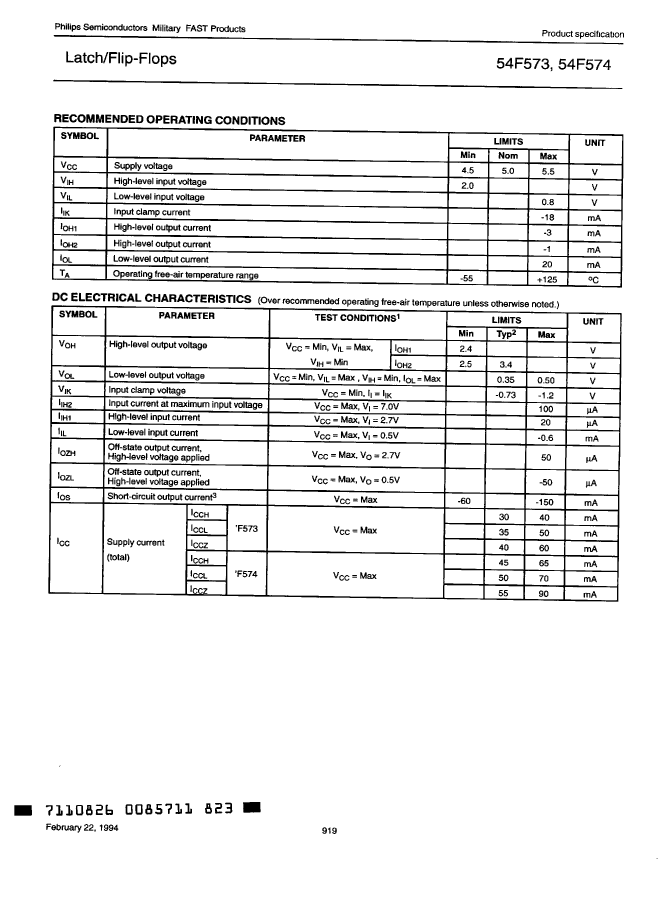

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54F574/BRA Related Products

	54F574/BRA	54F573/BRA	54F574/BSA	54F573/BSA	54F574/B2A	54F573/B2A
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDIP20	D Latch, 1-Func, 8-Bit, TTL, CDIP20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CDFP20	D Latch, 1-Func, 8-Bit, TTL, CDFP20	D Flip-Flop, 8-Func, Positive Edge Triggered, TTL, CQCC20	D Latch, 1-Func, 8-Bit, TTL, CQCC20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	DFP, FL20,.3	DFP, FL20,.3	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-XDFP-F20	R-XDFP-F20	S-XQCC-N20	S-XQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D LATCH	D FLIP-FLOP	D LATCH	D FLIP-FLOP	D LATCH
Number of functions	8	1	8	1	8	1
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DFP	DFP	QCCN	QCCN
Encapsulate equivalent code	DIP20,.3	DIP20,.3	FL20,.3	FL20,.3	LCC20,.35SQ	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD
Base Number Matches	1	1	1	1	-	-
