86585-066LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 86585-066LF

86585-066LF: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size127KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86585-066LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86585-066LF	-	-	View	Buy Now

86585-066LF Overview

Board Connector, 66 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE

86585-066LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
body width	0.365 inch
subject depth	0.545 inch
body length	4.125 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	2 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE ETHER
MIL compliance	NO
Manufacturer's serial number	86585
Plug contact pitch	0.125 inch
Match contact row spacing	0.25 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	66
UL Flammability Code	94V-0
Base Number Matches	1

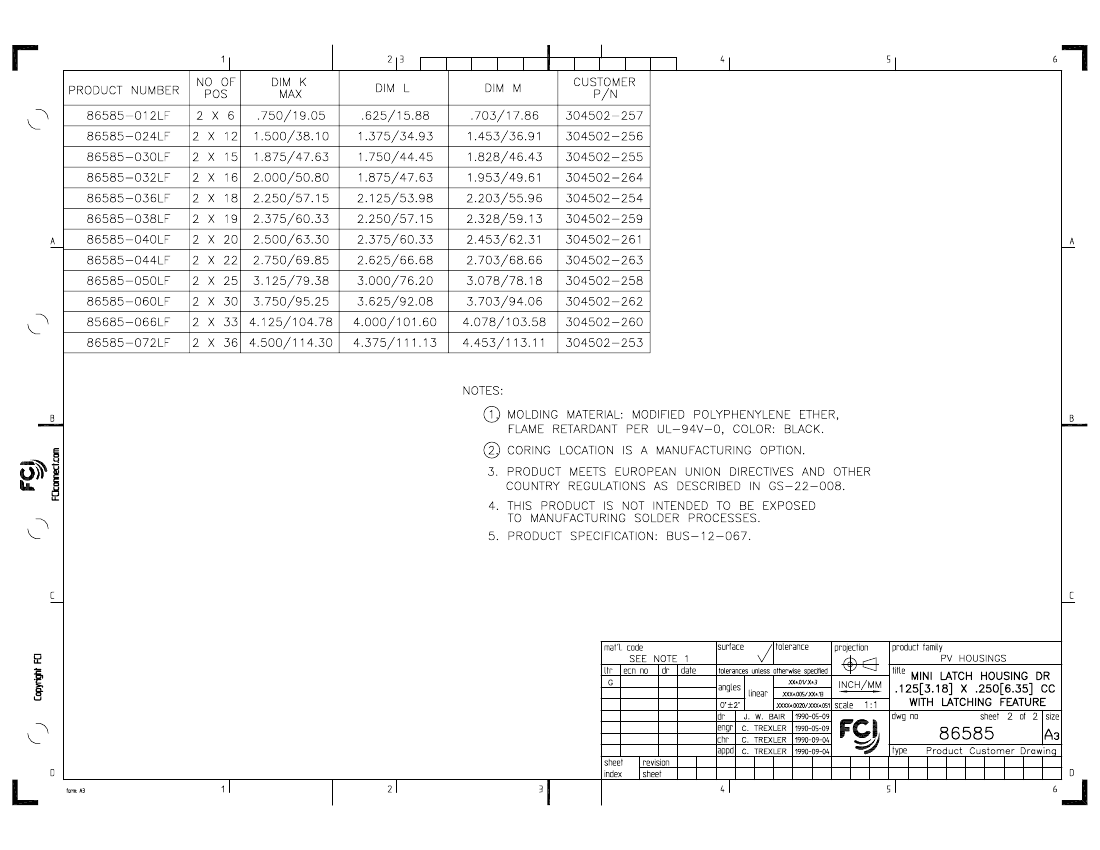

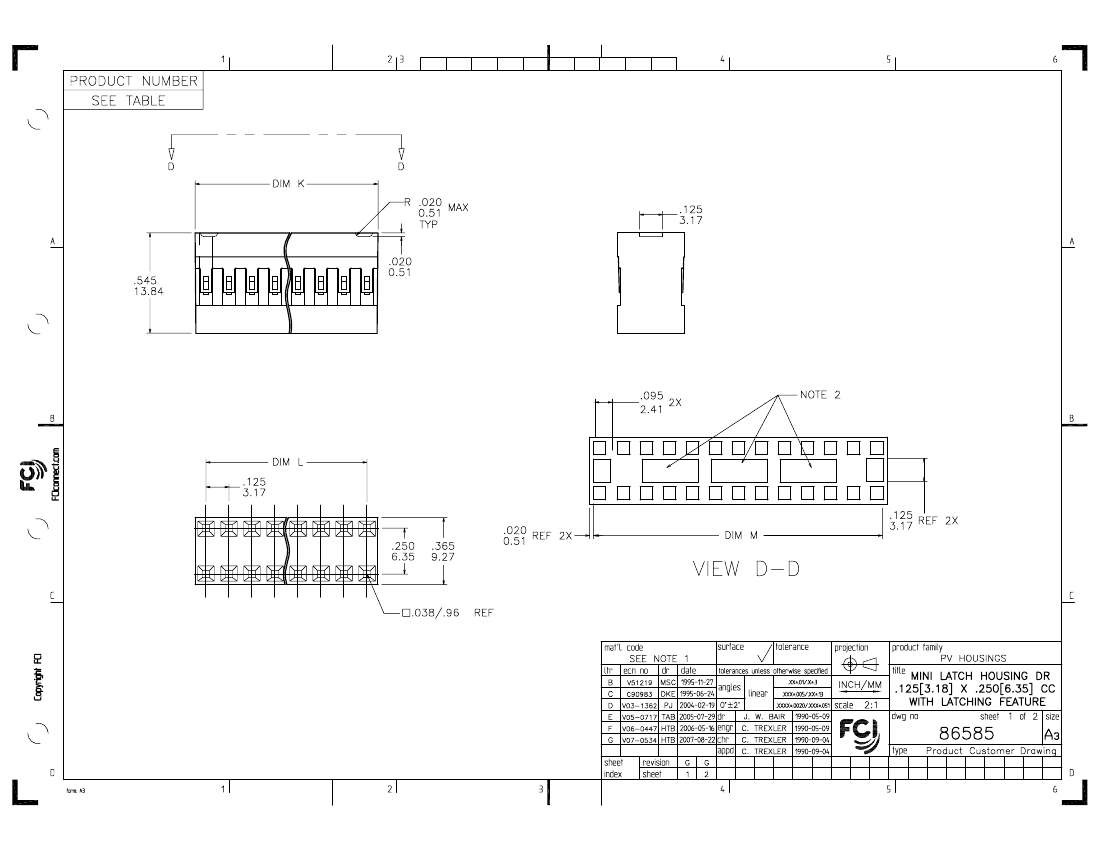

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Sep 15, 2009

86585-066LF Related Products

	86585-066LF	86585-012LF	86585-024LF	86585-036LF	86585-040LF
Description	Board Connector, 66 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE	Board Connector, 12 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE	Board Connector, 24 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Female, 0.125 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	8 weeks	8 weeks	8 weeks	8 weeks	8 weeks
body width	0.365 inch	0.365 inch	0.365 inch	0.365 inch	0.365 inch
subject depth	0.545 inch	0.545 inch	0.545 inch	0.545 inch	0.545 inch
body length	4.125 inch	0.75 inch	1.5 inch	2.25 inch	2.5 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYPHENYLENE ETHER	POLYPHENYLENE ETHER	POLYPHENYLENE ETHER	POLYPHENYLENE ETHER	POLYPHENYLENE ETHER
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	86585	86585	86585	86585	86585
Plug contact pitch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Match contact row spacing	0.25 inch	0.25 inch	0.25 inch	0.25 inch	0.25 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	66	12	24	36	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-
