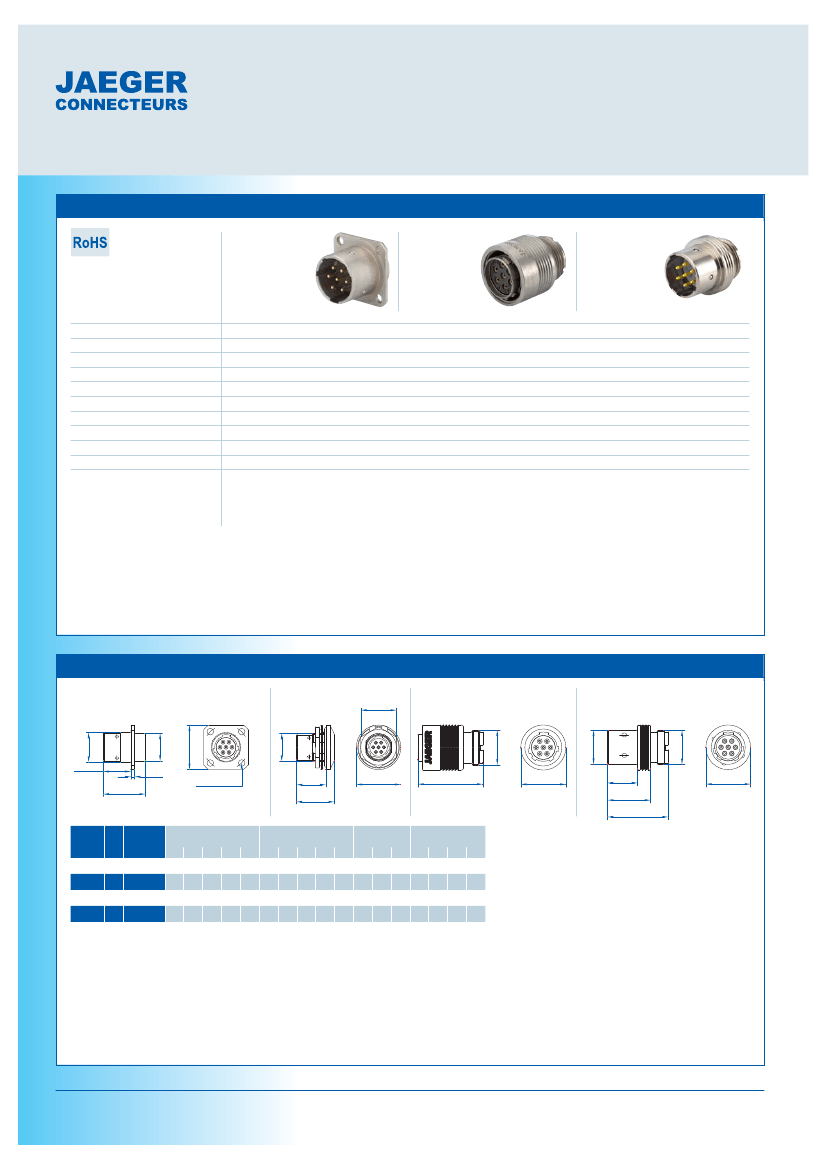

Miniature Push-Pull Series –
Atto Miniature Push-Pull
Technical Data
Panel connector
Cable connector
Coupler connector
Panel connector, cable connector
and coupler connector
Locking
Protection
Contacts
Max. current
Mechanical endurance
Contact resistance
Breakdown voltage between adjacent contacts
Insulation resistance
Operating temperature
Materials
Max. conductor cross-section
circular housing
Push-Pull, for frequent mating
IP 65 with flat-gasket for panel connector
7 to 27 contacts ø 0,76 mm, crimp or solder removable contacts
5 A ø 0,76 mm
50000 locking and mating cycles
< 3 mΩ
> 1500 Volts (RMS)
> 5000 MΩ
-40 °C to +100 °C (500 hours at +100 °C)
Nickel-plated light alloy, gold-plated brass contacts, neoprene insert
0,34 mm²
Dimensional Data
Square panel connector
Circular panel connector
H
Cable connector
Coupler connector
C square
6
connecteurs
1
2
øM
6
5
4
1
2
3
6
6
1
2
1
5
øB
øA
F
J
5
4
3
5
4
3
N
2
4
3
11,3
R
1,5
4 holes ø D
to 90° on ø E
P
Q
øG
I
øK
10
14,4
L
øO
Housing
00
0
1
Number
Square panel connector
of Contacts
ø A ø B C ø D ø E
Circular panel connector
F øG H P Q
Cable connector
I
J øK
Coupler connector
L øM N øO
7
12 11,3 18 2,7 18 M12,5 20 16 13,3 17,2 21,7 M11,5 15 20,3 11,4 M 1,5 15
8-12-19
14,9 14,9 20 2,7 21 M 16 23 19 13,3 17,2 22,2 M 15 18,7 20,8 14,9 M 15 18,7
27
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
46
Dimensions and specifications may be changed without prior notice
Miniature Push-Pull Series –
Atto Miniature Push-Pull
Part Number
Housing
Number of Contacts ø 0,76 mm
Male panel connectors – Female cable connectors – Male coupler connectors
Square male panel connector
Circular male panel connector
Female cable connector
Male coupler connector
Long cable gland
Flat-Gasket for panel connector
(pack of 10)
Cable clamps
Protective cap for panel connector
Protective cap for cable connector
Crimp tool without positioner 630 180 006, positioner 769 100 006
Tool for insertion and removing contacts 769 131 006
Female panel connectors – Male cable connectors – Female coupler connectors
Square female panel connector
Circular female panel connector
Male cable connector
Female coupler connector
Long cable gland
Flat-Gasket for panel connector
(pack of 10)
Cable clamps
Protective cap for panel connector
Protective cap for cable connector
Crimp tool without positioner 630 180 006, positioner 769 100 006
Tool for insertion and removing contacts 769 131 006
00
7
0
8
0
12
0
19
1
27
761 107 006
761 107 206
762 207 006
763 107 006
769 807 006
533 328 006
769 607 006
533 610 006
536 620 006
761 108 006
761 108 206
762 208 006
763 108 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 112 006
761 112 206
762 212 006
763 112 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 119 006
761 119 206
762 219 006
763 119 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 127 006
761 127 206
762 227 006
763 127 006
769 827 006
536 945 006
769 627 006
761 907 006
536 610 006
761 207 006
761 207 206
762 107 006
763 207 006
769 807 006
533 328 006
769 607 006
533 610 006
536 620 006
761 208 006
761 208 206
762 108 006
763 208 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 212 006
761 212 206
762 112 006
763 212 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 219 006
761 219 206
762 119 006
763 219 006
769 819 006
533 368 006
769 619 006
533 650 006
536 660 006
761 227 006
761 227 206
762 127 006
763 227 006
769 827 006
536 945 006
769 627 006
761 907 006
536 610 006
- For assembly, wiring, panel connector installation and contact arrangement instructions, see: Technical guides;
- Other accessories, see: Accessories.
- All connectors are delivered with their contacts.
Dimensions and specifications may be changed without prior notice
47
Technical guides
Accessories
- Straight and right-angle panel connectors are also available for printed circuit boards.
-
Important:
All the contacts must be mounted in the insert using our tool.
Connectors with removable contacts
Connectors with non-removable contacts

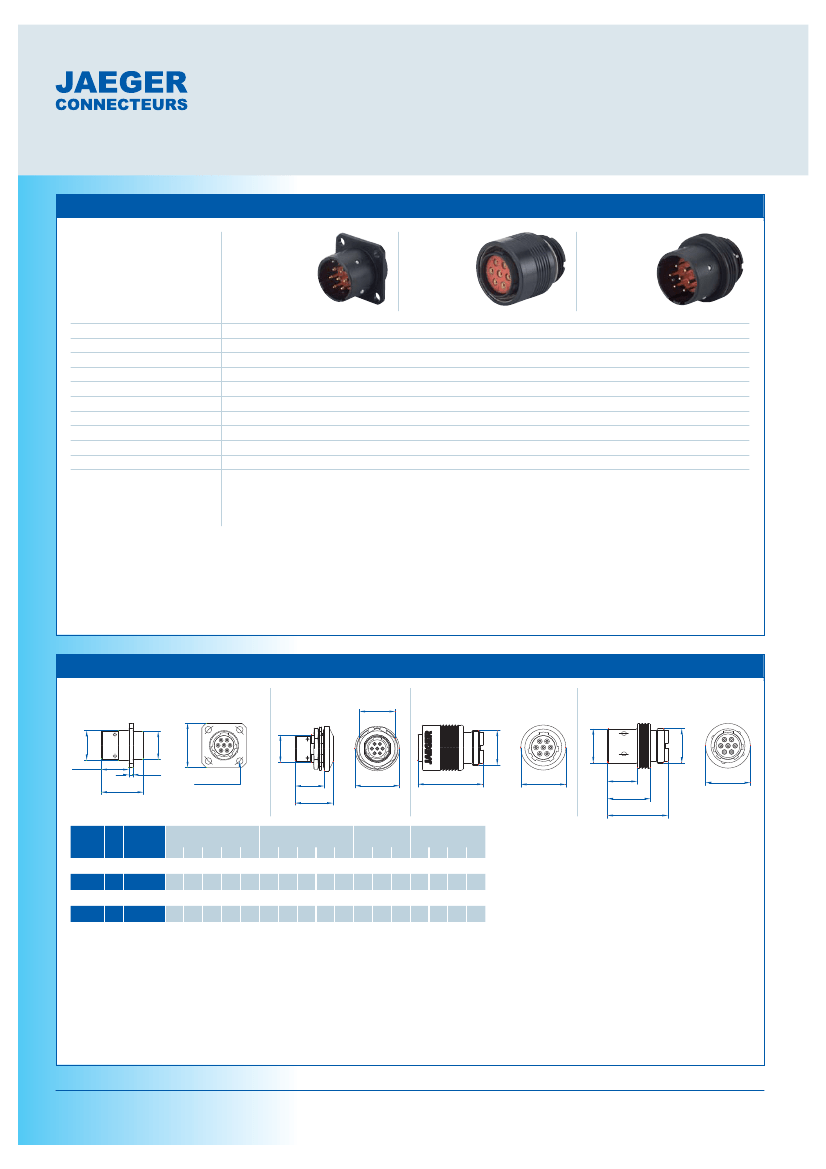

Miniature Push-Pull Series –
Natto Miniature Push-Pull
Technical Data
Panel connector
Cable connector
Coupler connector
Panel connector, cable connector
and coupler connector
Locking
Protection
Contacts
Max. current
Mechanical endurance
Contact resistance
Breakdown voltage between adjacent contacts
Insulation resistance
Operating temperature
Materials
Max. conductor cross-section
circular housing
Push-Pull, for frequent mating
IP 65 with flat-gasket for panel connector except for housing 1 IP 50 to 54 with conexil in the housing and flat-gasket for panel connector
3 to 19 contacts ø 1 mm, ø 1,6 mm and ø 2,4 mm, crimp or solder removable contacts
7 A ø 1 mm, 15 A ø 1,6 mm et 30 A ø 2,4 mm
50000 locking and mating cycles
< 2 mΩ 1 mm – < 1,5 mΩ 1,6 mm – < 1 mΩ 2,4 mm
> 2500 Volts (RMS)
> 5000 MΩ
-40 °C to +100 °C (500 hours at +100 °C)
Nickel-plated light alloy, gold-plated brass contacts, neoprene insert
0,93 mm² for 3 – 7 or 12 contacts ø 1 mm
0,60 mm² for 4 or 19 contacts ø 1 mm
1,50 mm² for 3 – 4 or 7 contacts ø 1,6 mm
3,18 mm² for 3 or 4 contacts ø 2,4 mm
Dimensional Data
Square panel connector
Circular panel connector
H
Cable connector
Coupler connector
C square
connecteurs
6
5
4
1
6
6
øM
1
2
1
2
5
6
1
øB
øA
N
F
J
2
3
5
4
3
5
4
3
2
4
3
11,3
R
1,5
4 holes ø D
to 90° on ø E
P
Q
øG
I
øK
10
14,4
L
øO
Housing
00
0
1
1
1
ø Number
Square panel connector
mm of Contacts
ø A ø B C ø D ø E
1
1
1
1,6
2,4
3-4
7
12-19
3-4-7
3-4
Circular panel connector
F øG H P Q
Cable connector
I
J øK
Coupler connector
L øM N øO
12 11,3 18 2,7 18 M12,5 20 16 13,3 17,2 21,7 M11,5 15 20,3 11,4 M11,5 15
14,9 14,9 20 2,7 21 M 16 23 19 13,3 17,2 22,2 M 15 18,7 20,8 14,9 M 15 18,7
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
48
Dimensions and specifications may be changed without prior notice
Miniature Push-Pull Series –
Natto Miniature Push-Pull
Part Number
Housing
Number of Contacts
L
ø mm
00
3
1
00
4
1
0
7
1
1
12
1
1
19
1
1
3
1,6
1
4
1,6
1
7
1,6
1
3
2,4
1
4
2,4
Female panel connectors – Male cable connectors – Female coupler connectors
Square female panel connector
533 232 006 533 800 006 533 272 006
Circular female panel connector
533 238 006 533 810 006 533 278 006
Male cable connector
530 233 006 530 800 006 530 273 006
Female coupler connector
Union nut
530 238 006
530 330 006
530 810 006
530 840 006
533 328 006
530 841 006
530 278 006
530 370 006
533 368 006
530 371 006
533 282 006
533 318 006
530 283 006
530 813 006
536 945 006
769 627 006
533 292 006
533 358 006
530 293 006
530 816 006
536 945 006
769 627 006
535 311 006
535 311 206
535 110 006
535 211 006
536 945 006
769 627 006
536 610 006
535 351 006
535 351 206
535 150 006
535 251 006
536 945 006
769 627 006
536 610 006
535 391 006
535 391 206
535 190 006
535 291 006
536 945 006
769 627 006
536 610 006
535 431 006
535 431 206
535 230 006
535 331 006
536 945 006
769 627 006
536 610 006
535 471 006
535 471 206
535 270 006
535 371 006
536 945 006
769 627 006
536 610 006
Flat-Gasket for panel connector
(pack of 10)
533 328 006
Cable clamps
530 331 006
Protective cap for cable connector
536 620 006 536 620 006 536 660 006 536 610 006 536 610 006
Complete crimp tool: 579 316 006 (small crimp: ø 1 mm), 579 481 006 (large crimp: ø 1 mm, ø 1,6 mm, ø 2,4 mm)
Tool for insertion and removing contacts ø 1 mm 597 104 006, ø 1,6 mm 577 454 006 ø 2,4 mm 577 458 006
- Straight and right-angle panel connectors are also available for printed circuit boards.
- Other accessories, see: Accessories.
- Polarisation: Polarisation systems are available to prevent incorrect connection between identical connectors (same series and same contact arrangement). Consult us.
- All connectors are delivered with their contacts.
- Thermocouple contacts can be fitted. See: Accessories.
- ø 1,6 mm and ø 2,4mm, contact No. 1, which makes the electrical connection before the other contacts and disconnects it after their separation, can be used as a ground contact.
Dimensions and specifications may be changed without prior notice
49
Technical guides
Accessories
-
Important:
All the contacts must be mounted in the insert using our tool.
- For assembly, wiring, panel connector installation and contact arrangement instructions, see: Technical guides;
Connectors with removable contacts
Male panel connectors – Female cable connectors – Male coupler connectors
Square male panel connector
533 233 006 533 801 006 533 273 006 533 283 006 533 293 006
Circular male panel connector
533 239 006 533 811 006 533 279 006 533 319 006 533 359 006
Female cable connector
530 232 006 530 801 006 530 272 006 530 282 006 530 292 006
Male coupler connector
530 239 006 530 811 006 530 279 006 530 812 006 530 815 006
Union nut
530 330 006 530 840 006 530 370 006
Flat-Gasket for panel connector
(pack of 10)
533 328 006 533 328 006 533 368 006 536 945 006 536 945 006
Cable clamps
530 331 006 530 841 006 530 371 006 769 627 006 769 627 006
Protective cap for panel connector
533 610 006 533 610 006 533 650 006 761 907 006 761 907 006
Complete crimp tool: 579 316 006 (small crimp: ø 1 mm), 579 481 006 (large crimp: ø 1 mm, ø 1,6 mm, ø 2,4 mm)
Tool for insertion and removing contacts ø 1 mm 597 104 006, ø 1,6 mm 577 454 006 ø 2,4 mm 577 458 006
535 310 006
535 310 206
535 111 006
535 210 006
536 945 006
769 627 006
761 907 006
535 350 006
535 350 206
535 151 006
535 250 006
536 945 006
769 627 006
761 907 006
535 390 006
535 390 206
535 191 006
535 290 006
536 945 006
769 627 006
761 907 006
535 430 006
535 430 206
535 231 006
535 330 006
536 945 006
769 627 006
761 907 006
535 470 006
535 470 206
535 271 006
535 370 006
536 945 006
769 627 006
761 907 006
Connectors with non-removable contacts
Miniature Push-Pull Series –
Natto Miniature Push-Pull High-Performance
Technical Data
Panel connector
Cable connector
Coupler connector
Panel connector, cable connector
and coupler connector
Locking
Protection
Contacts
Max. current
Mechanical endurance
Contact resistance
Breakdown voltage between adjacent contacts
Insulation resistance
Operating temperature
Materials
Max. conductor cross-section
circular housing
Push-Pull, for frequent mating
IP 65 with flat-gasket for panel connector except for housing 1 IP 50 to 54 with conexil in the housing and flat-gasket for panel connector
3 to 19 contacts ø 1 mm, ø 1,6 mm and ø 2,4 mm, crimp or solder removable contacts
7 A ø 1 mm, 15 A ø 1,6 mm et 30 A ø 2,4 mm
50000 locking and mating cycles
< 2 mΩ 1 mm – < 1,5 mΩ 1,6 mm – < 1 mΩ 2,4 mm
> 2500 Volts eff
> 5000 MΩ
-55 °C to +200 °C (500 hours at +200 °C)
Light alloy, black anodising, gold-plated brass contacts, silicon insert
0,93 mm² for 3 – 7 or 12 contacts ø 1 mm
0,60 mm² for 4 or 19 contacts ø 1 mm
1,50 mm² for 3 – 4 or 7 contacts ø 1,6 mm
3,18 mm² for 3 or 4 contacts ø 2,4 mm
Dimensional Data
Square panel connector
Circular panel connector
H
Cable connector
Coupler connector
C square
6
5
4
1
6
1
2
4
3
øM
øB
øA
6
2
connecteurs
6
1
5
2
1
F
3
5
J
5
4
3
N
2
4
3
11,3
R
1,5
4 holes ø D
to 90° on ø E
P
Q
øG
I
øK
10
14,4
L
øO
Housing
00
0
1
1
1
ø Number
Square panel connector
mm of Contacts
ø A ø B C ø D ø E
1
1
1
1,6
2,4
3-4
7
12-19
3-4-7
3-4
Circular panel connector
F øG H P Q
Cable connector
I
J øK
Coupler connector
L øM N øO
12 11,3 18 2,7 18 M12,5 20 16 13,3 17,2 21,7 M11,5 15 20,3 11,4 M11,5 15
14,9 14,9 20 2,7 21 M 16 23 19 13,3 17,2 22,2 M 15 18,7 20,8 14,9 M 15 18,7
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
21 20,9 27 3,2 28 M 25 34 30 17,9 20,3 24,2 M 20 25 24,2 20,1 M 20 24
50
Dimensions and specifications may be changed without prior notice
京公网安备 11010802033920号
EEWORLD
