88888-2D2M: DescriptionCard Edge Connector, 230 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, M2, Natural Insulator, Plug; CategoryThe connector The connector; File Size682KB，3 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

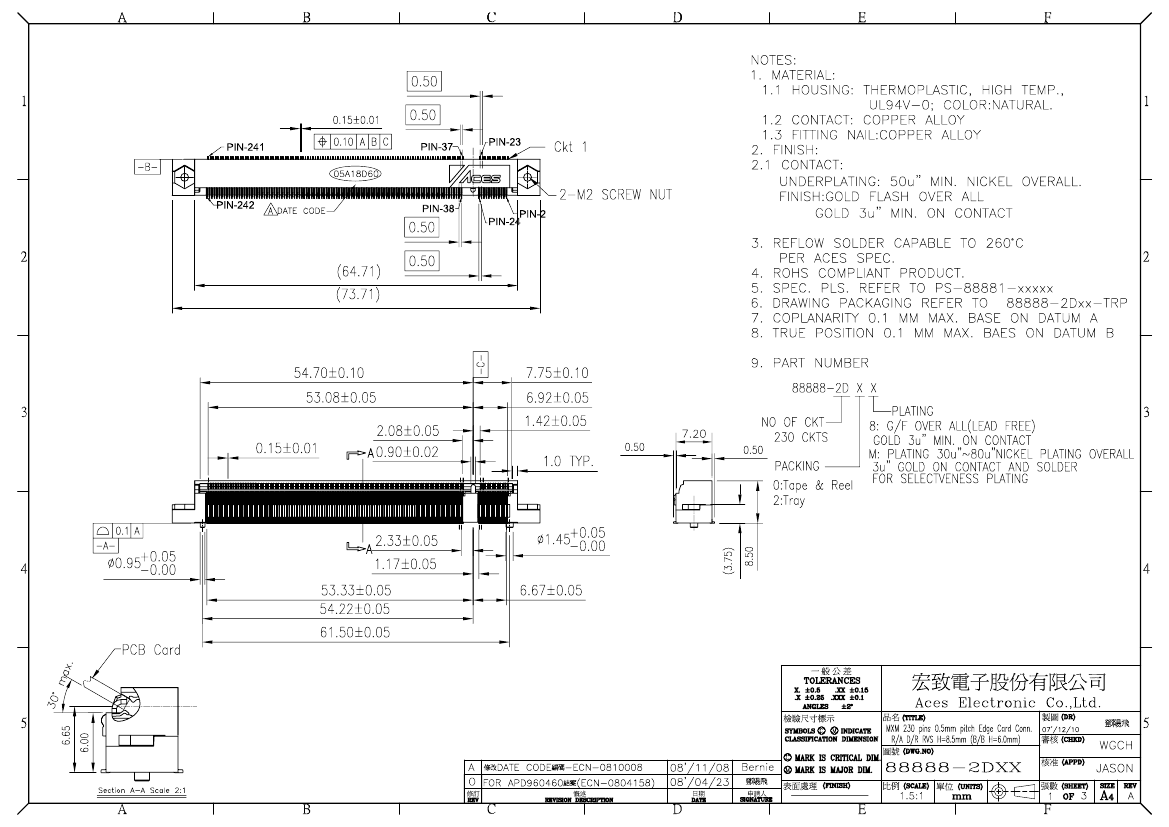

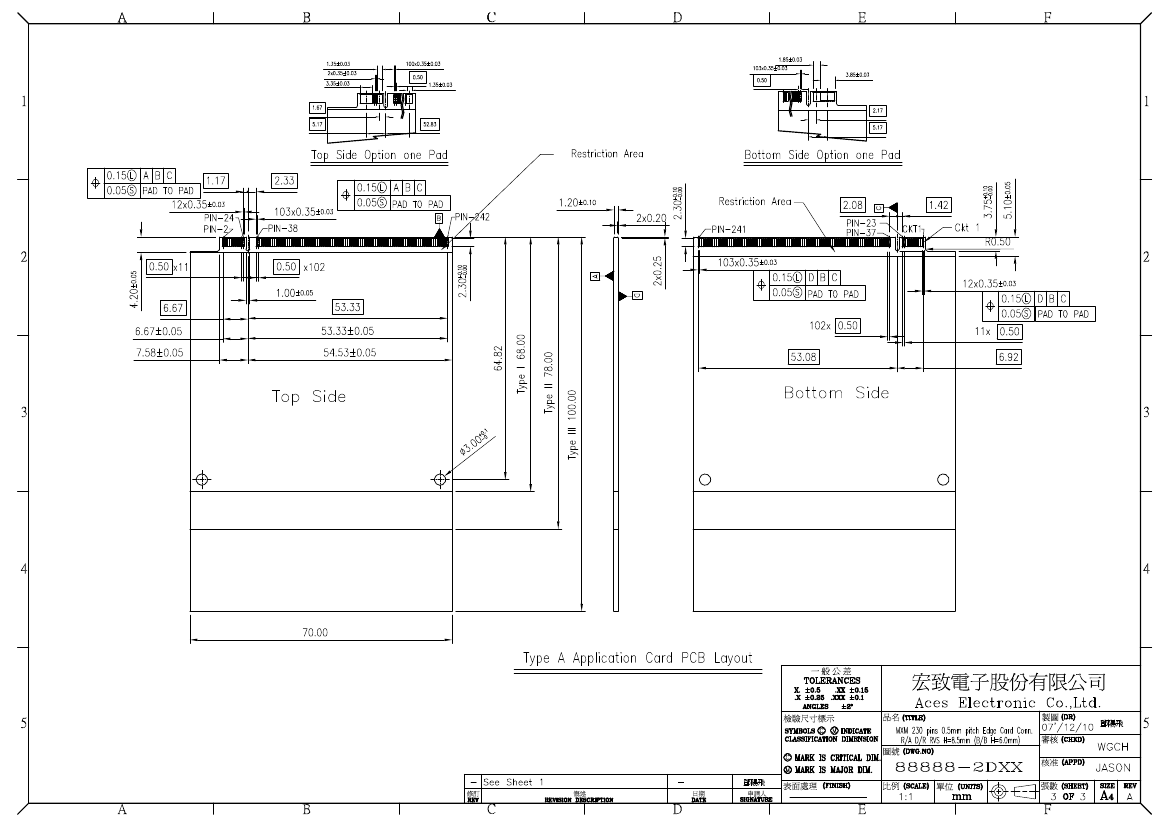

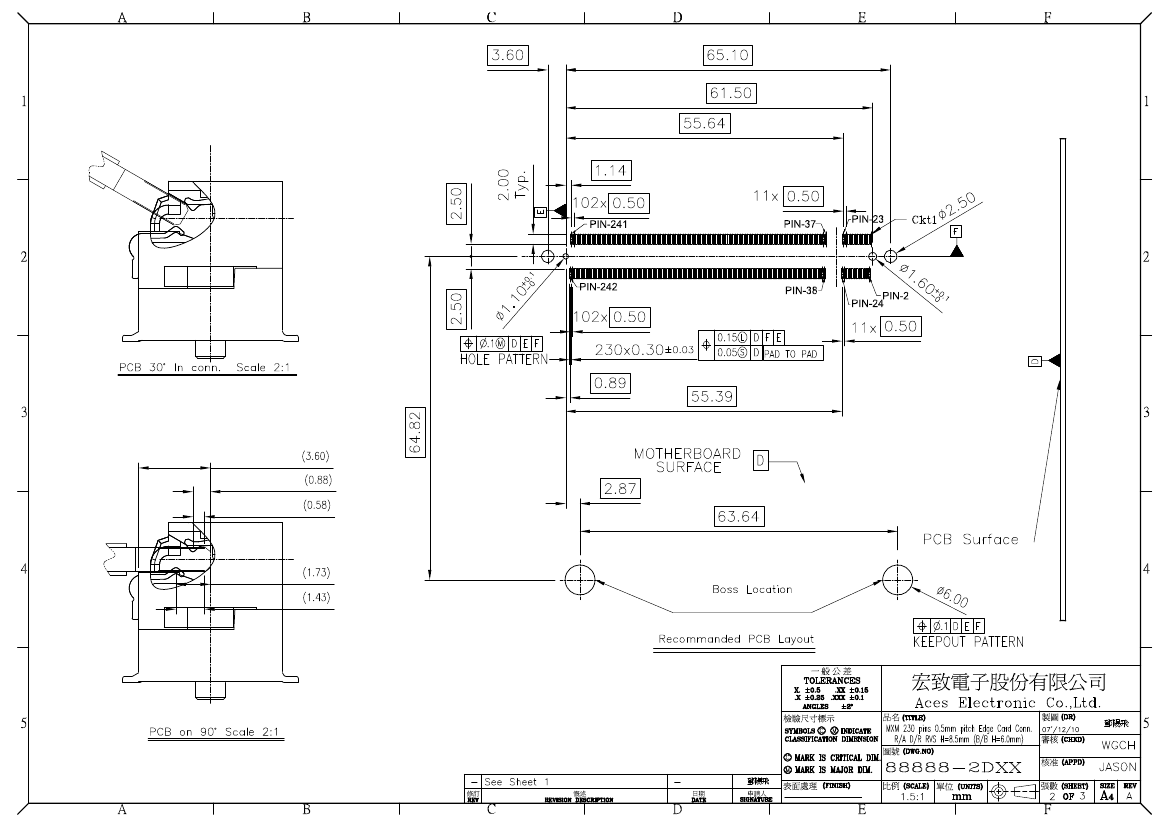

88888-2D2M Overview

Card Edge Connector, 230 Contact(s), 2 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, M2, Natural Insulator, Plug

88888-2D2M Parametric

Parameter Name	Attribute value
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.335 inch
subject depth	0.323 inch
body length	2.902 inch
Body/casing type	PLUG
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Manufacturer's serial number	88888
Plug contact pitch	0.02 inch
Installation option 1	M2
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	7.493 mm
Plating thickness	3u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	230
Base Number Matches	1
