52165216 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52165216

52165216: DescriptionRF Connector Adapter, N-SMA, Panel Mount, Female-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

52165216 Overview

RF Connector Adapter, N-SMA, Panel Mount, Female-Male, ROHS COMPLIANT

52165216 Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Adapter type	N-SMA
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-MALE
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	BETWEEN
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.12
Base Number Matches	1

Preview

Download Datasheet

View All

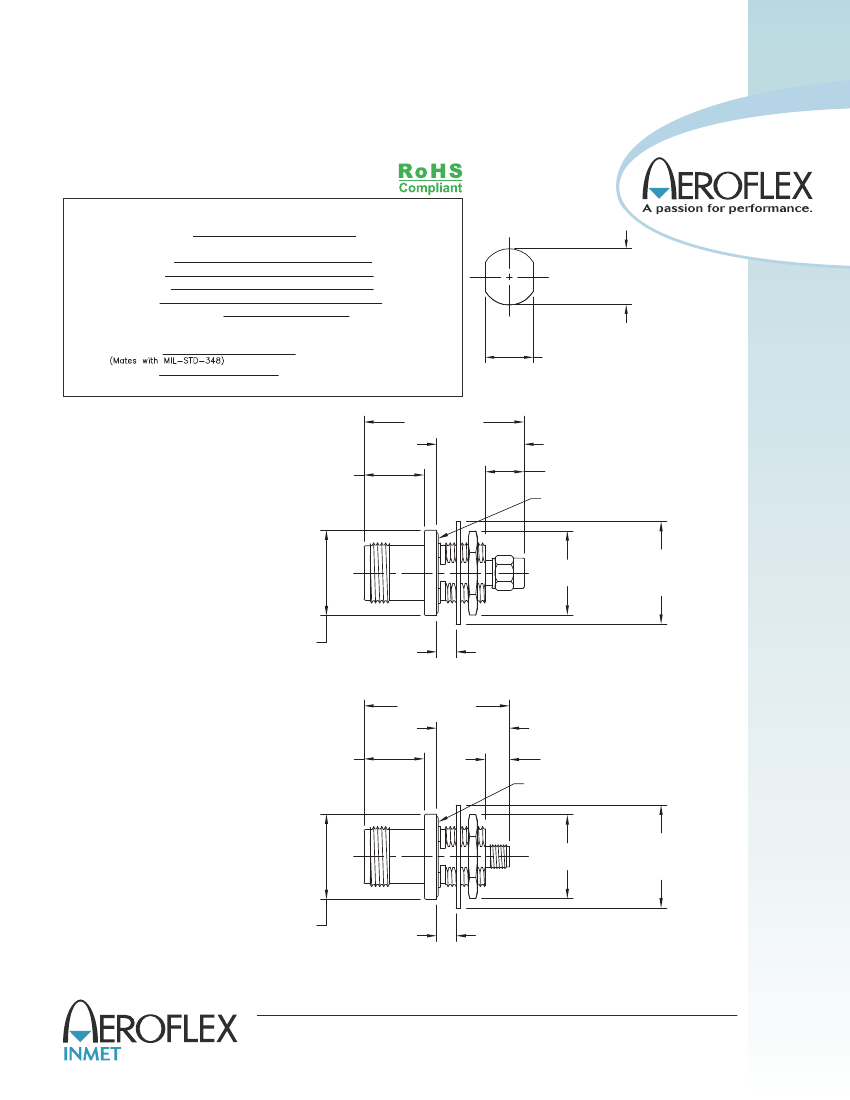

ADAPTERS, BETWEEN-SERIES

Type N / SMA, DC - 18 GHz, Bulkhead Mount

SPECIFICATIONS:

Models: 5203, 5207 5216, 521

Electrical:

Frequency Range

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 18 GHz

Impedance

Operating Temp Range

DC - 18.0 GHz

1.04:1 Max.

1.07:1 Max.

1.12:1 Max.

50 Ohms

-65°C to +125°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

Ø.625+.010 15.88+0.25

-.000

-0.00

[

]

Mechanical:

Connectors

Conductors

.540 13.72

.532 13.51

Recommended Panel

Configuration

[

]

Model Number:

5207

Type N Female / SMA Male

No O-Ring Included

1.65 [41.9]

.90 [22.8]

.62 [15.7]

.40 [10.2]

*O-Ring

Model Number:

5216

Type N Female / SMA Male

*Includes O-Ring

.75 HEX

Ø1.071 27.20

1.045 26.54

[

]

Ø.88+.02 22.4+0.5

-.01

-0.3

[

]

1.50 [38.1]

.33 [8.4] Max.

Panel

Model Number:

5203

Type N Female / SMA Female

No O-Ring Included

.75 [19.0]

.62 [15.7]

.25 [6.4]

*O-Ring

Model Number:

5217

Type N Female / SMA Female

*Includes O-Ring

.75 HEX

Ø1.071 27.20

1.045 26.54

[

]

Ø.88+.02 22.4+0.5

-.01

-0.3

[

]

.33 [8.4] Max. Panel

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

5207: REV H

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com
