51952-005LF datasheet, PDF - EEWORLD Datasheet

51952-005LF: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size265KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51952-005LF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	51952
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

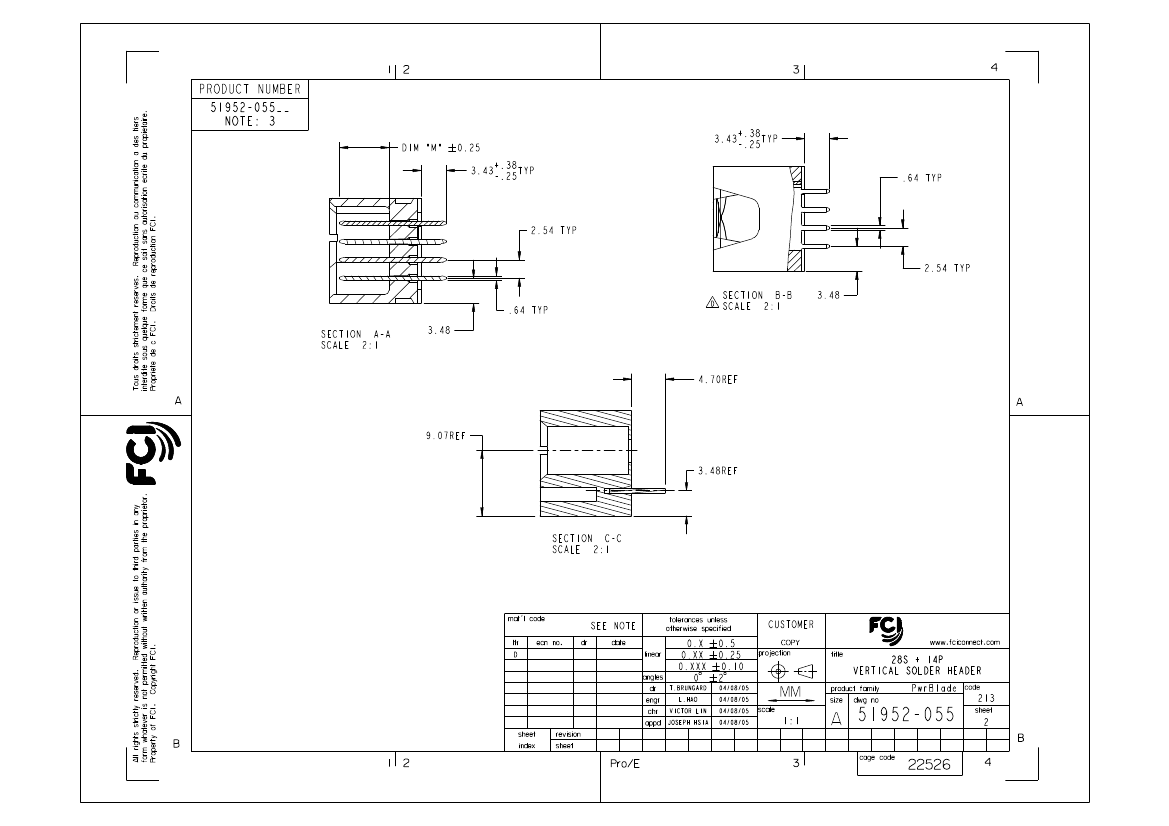

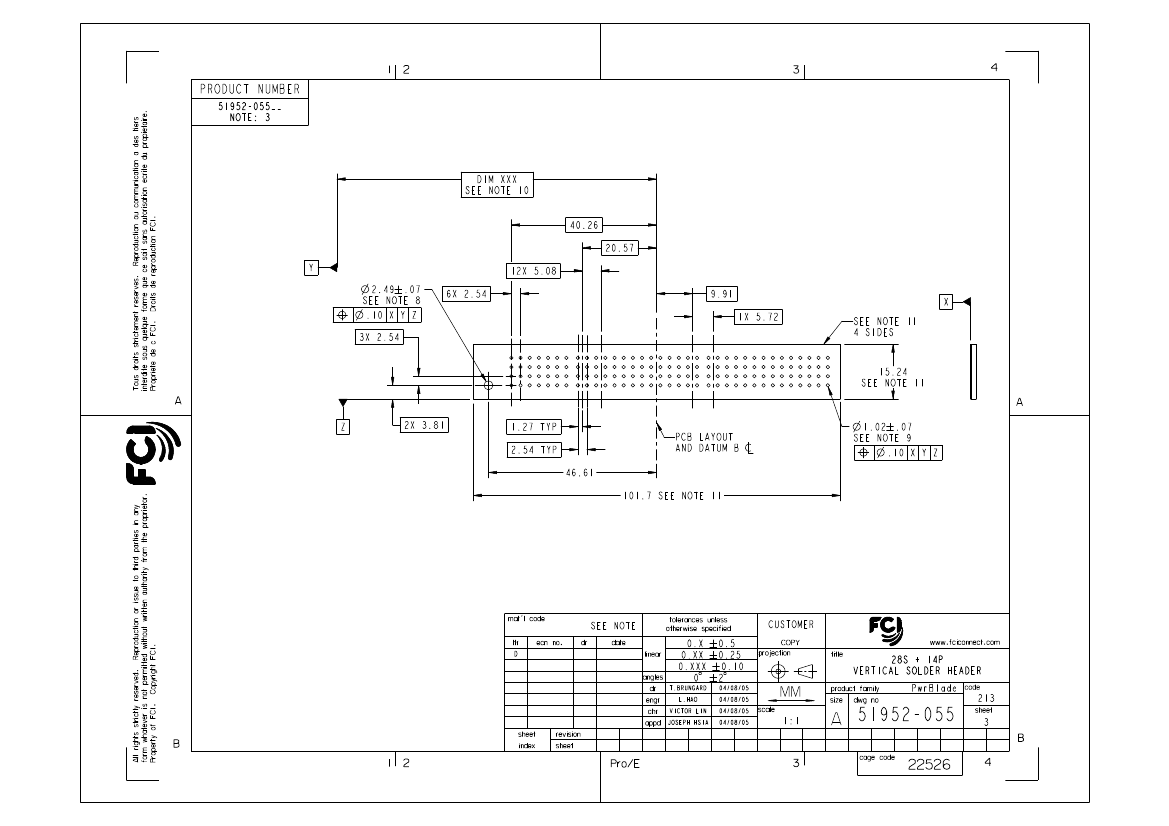

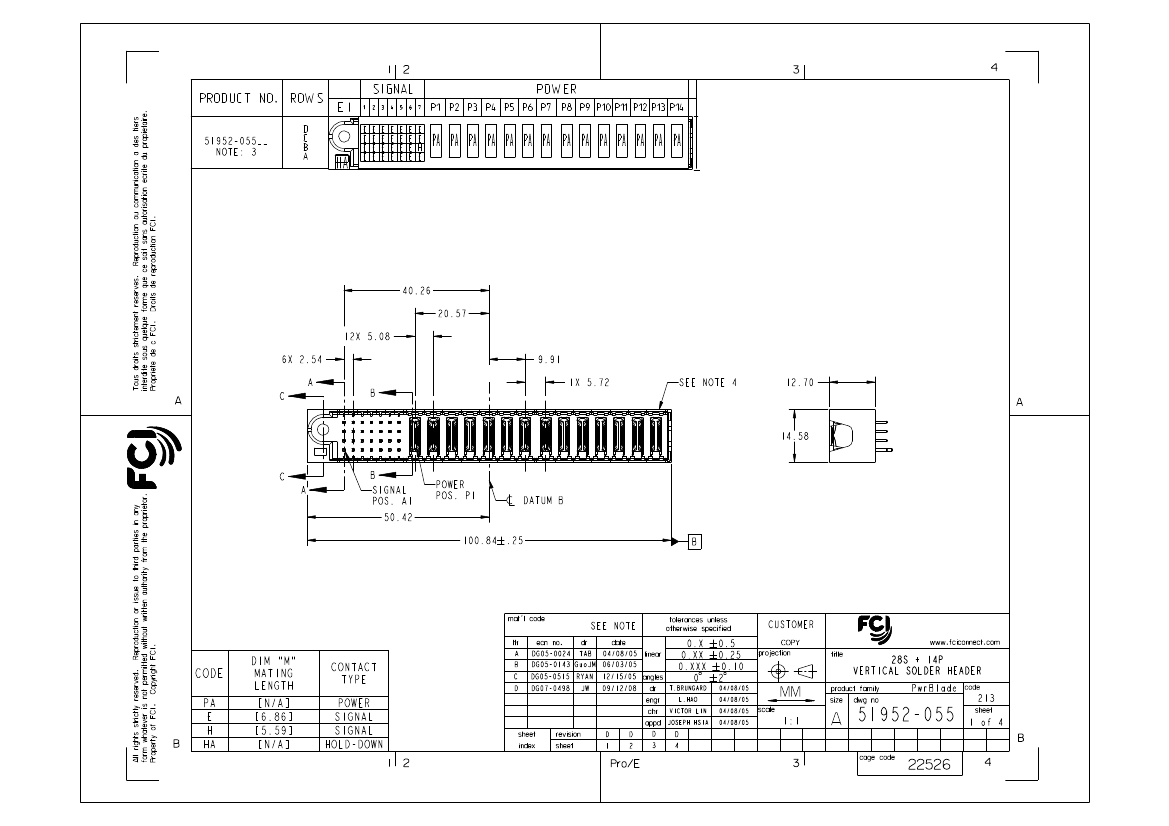

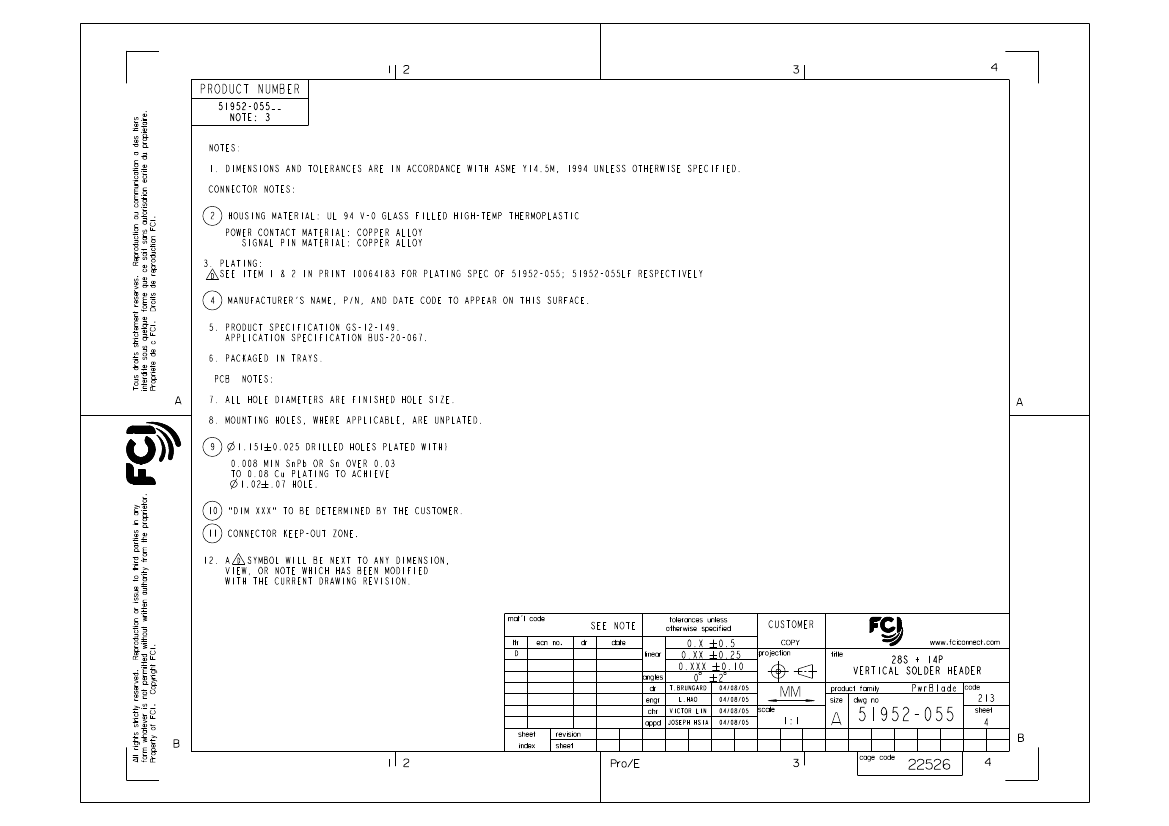

PDM: Rev:D

STATUS:

Released

Printed: Dec 20, 2010

	51952-005LF	51952-055LF	51952-005
Description	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	VER HDR POWERBLADE	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.72 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	PRESS FIT
Total number of contacts	24	42	24
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
package instruction	LEAD FREE	LEAD FREE	-
Manufacturer's serial number	51952	-	51952
