Part Number

Search

51952-074GLF

Description
Board Connector, 92 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size257KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51952-074GLF Overview

Board Connector, 92 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE

51952-074GLF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsHOLE .086-.098
body width0.574 inch
subject depth0.5 inch
body length3.15 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51952
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts92
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N
Base Number Matches1

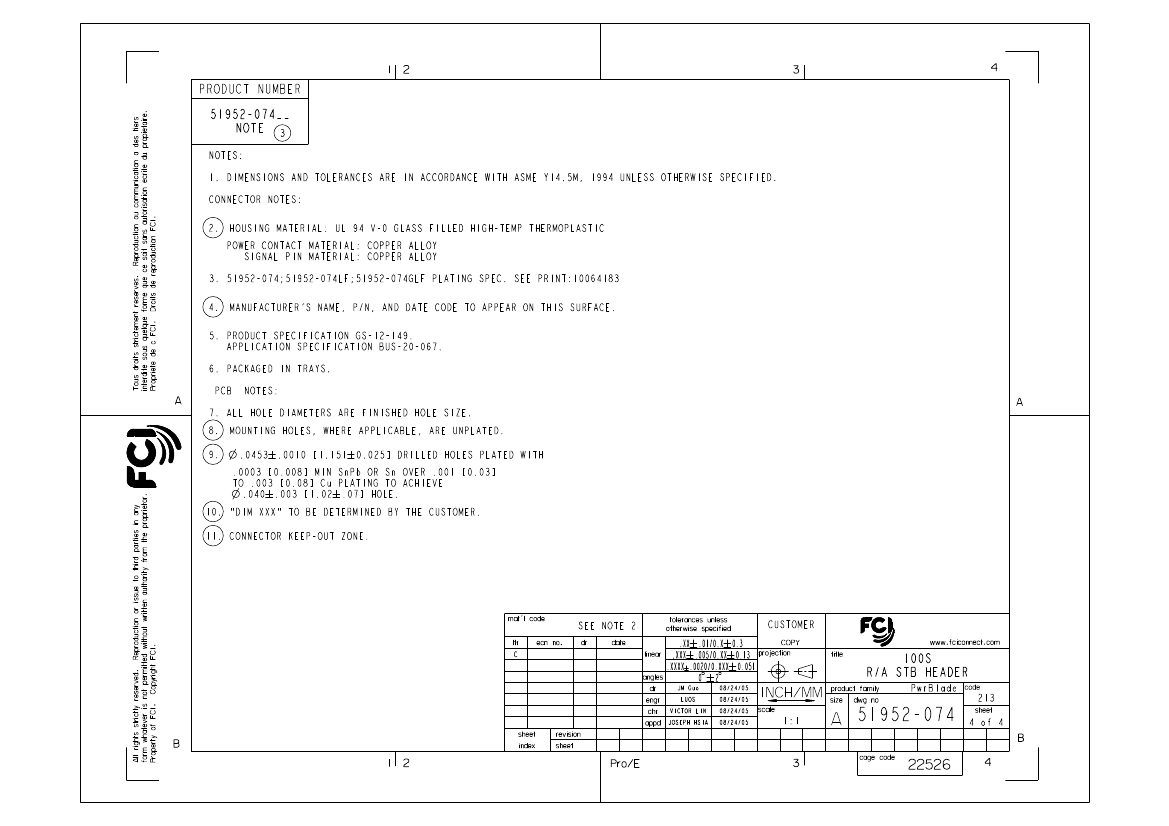

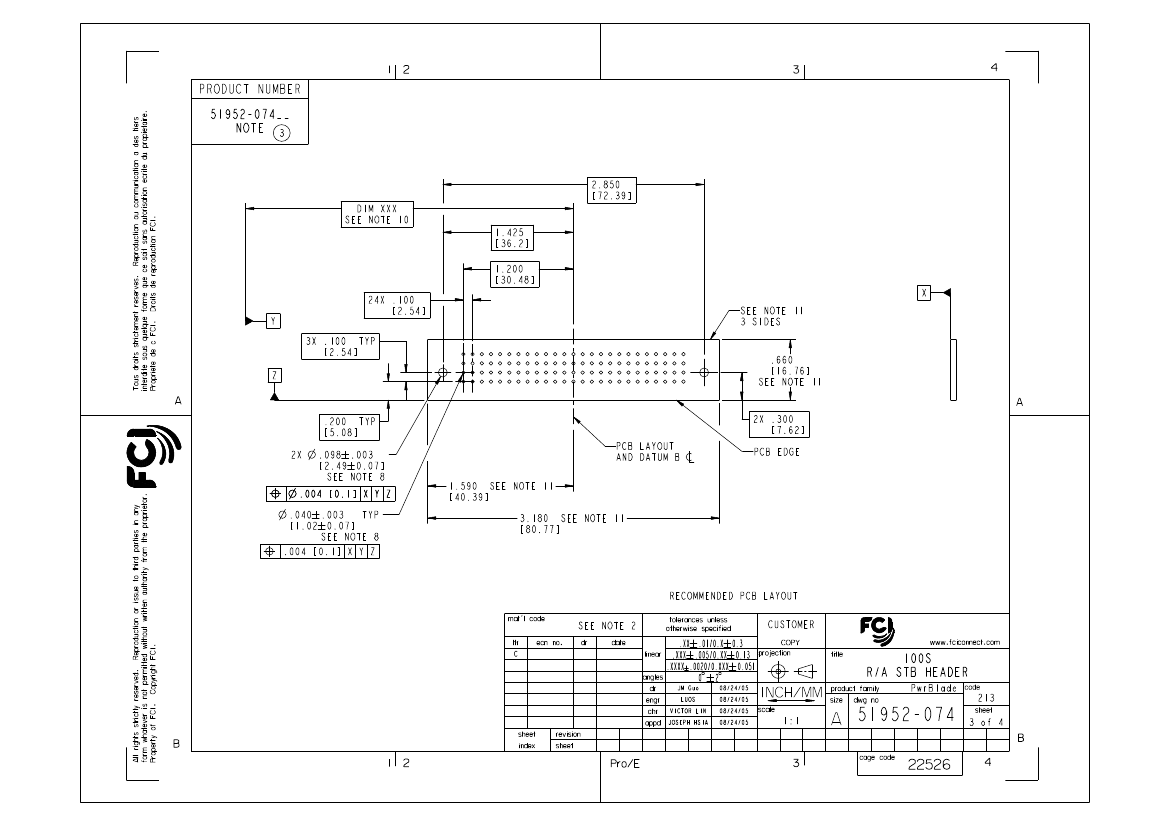

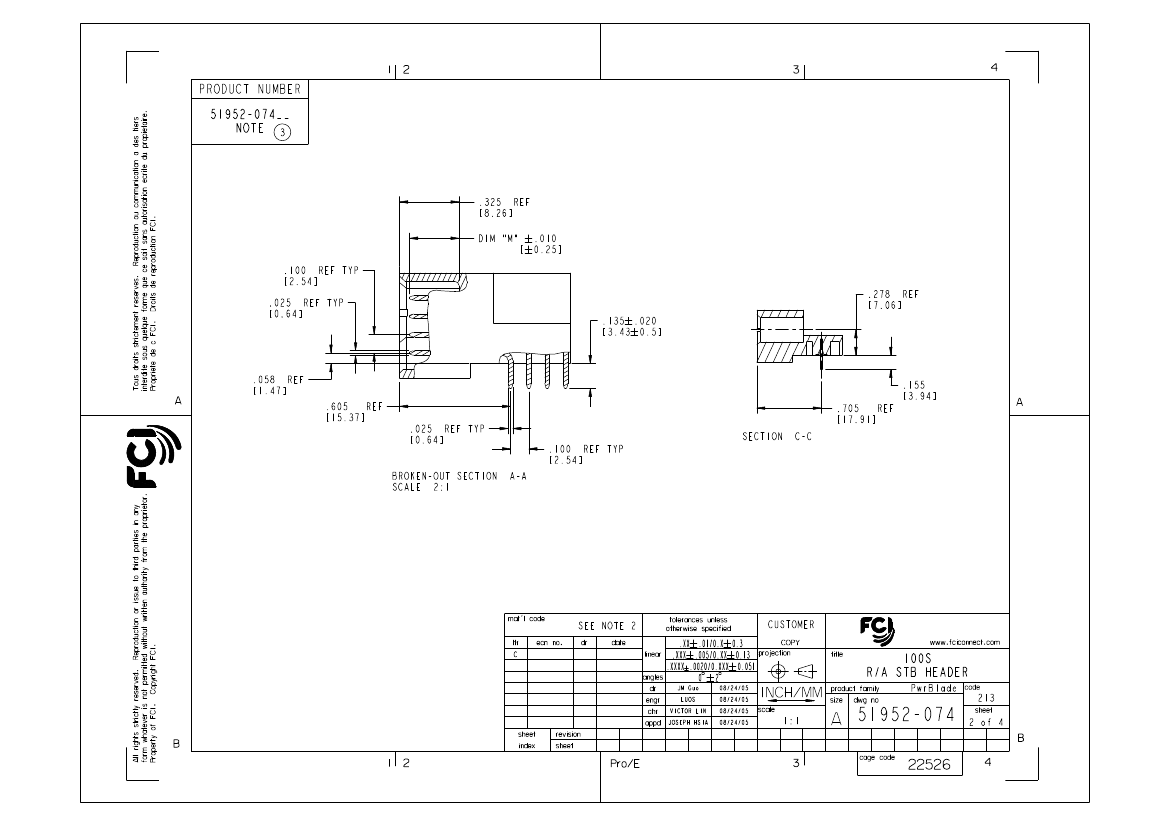

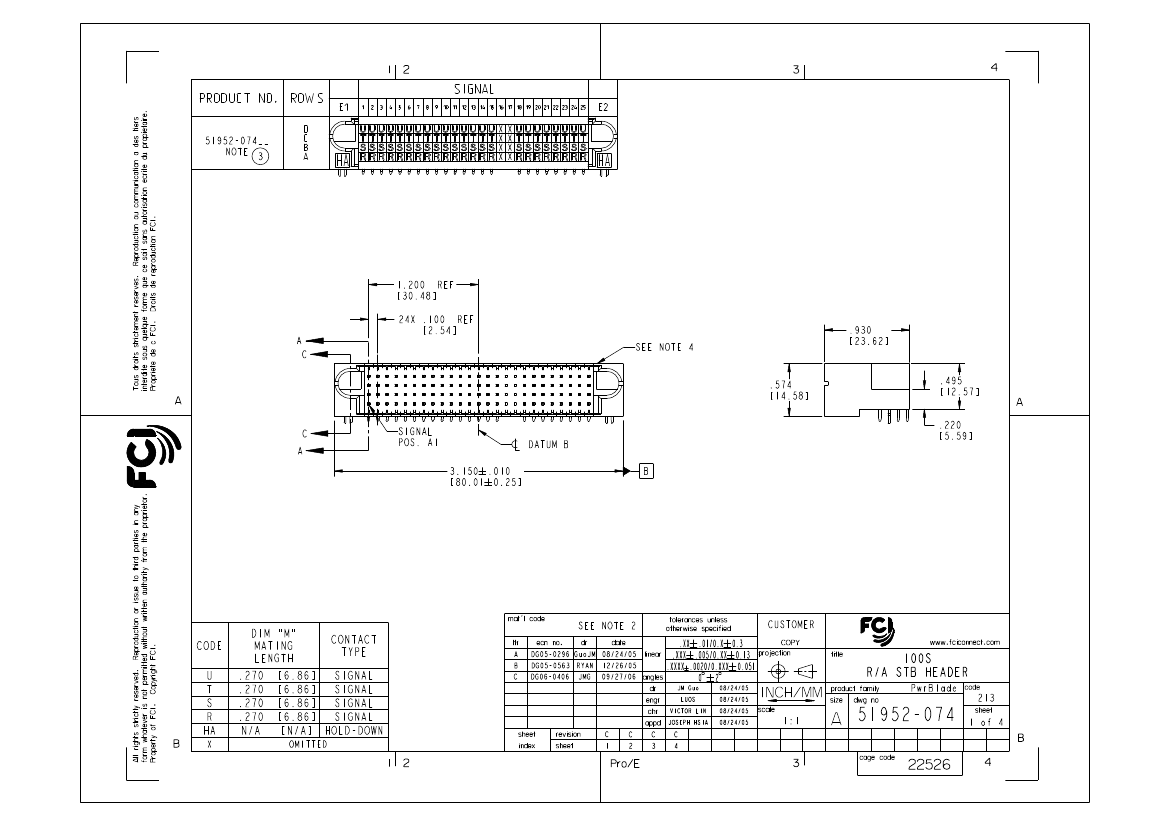

PDM: Rev:C
STATUS:
Released
Printed: Dec 20, 2010
.

51952-074GLF Related Products

51952-074GLF 51952-074
Description Board Connector, 92 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE Board Connector, 92 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.574 inch 0.574 inch
subject depth 0.5 inch 0.93 inch
body length 3.15 inch 3.15 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE
Contact material NOT SPECIFIED COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 1000VDC V 1000VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Manufacturer's serial number 51952 51952
Plug contact pitch 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation option 1 GUIDE PIN LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 4 4
Number of rows loaded 4 4
Maximum operating temperature 105 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 92 92
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .17792 N
Base Number Matches 1 1
