5159.002.31.11.94.111 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5159.002.31.11.94.111

5159.002.31.11.94.111: DescriptionBoard Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size637KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5159.002.31.11.94.111 Overview

Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle

5159.002.31.11.94.111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: DIN 14612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5159
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

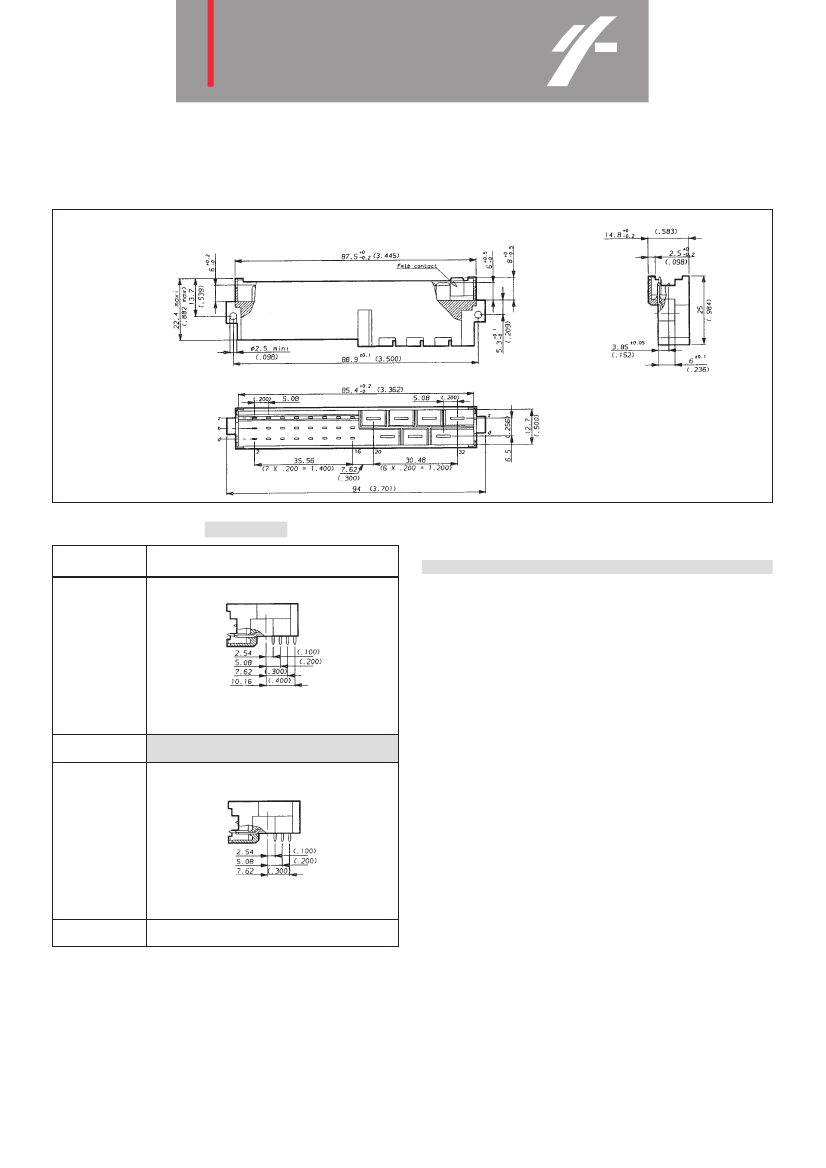

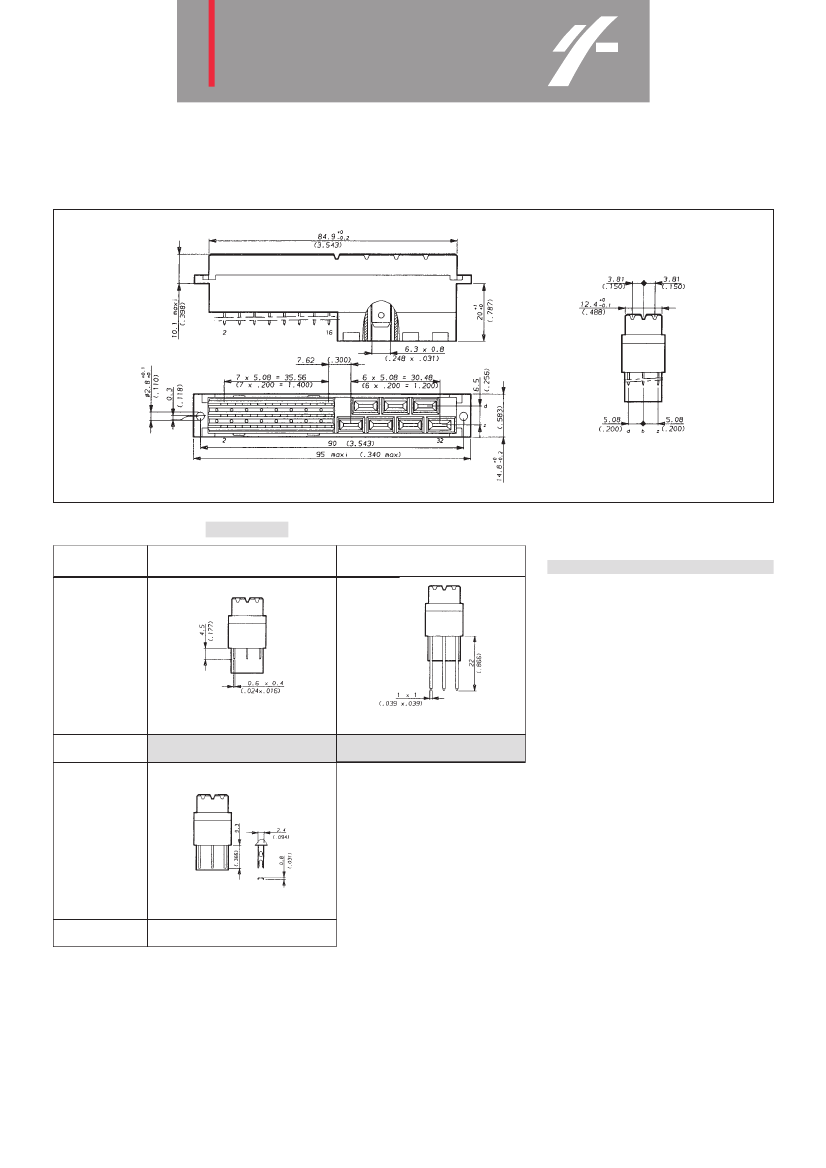

DIN 41612

Plugs, medium/high power

5159 series, mixed style F24/H7

Catalogue numbers -

standard items

Nbr of

contacts

Contact termination

Performance class / plating :

• DIN 41612 class II: replace x by

in part number.

• DIN 41612 class I: replace x by

in part number.

Contact plating:

- medium power contact: selective gold over nickel on contact area,

tin-lead on termination.

- high power contacts: silver over nickel.

Options:

Special contact arrangements and additional first make/last break

are available upon request: consult factory.

angled spills

24+7

5159.002.31.23.x4.111

24 angled spills + 7 faston

24+7

5159.002.31.24.x4.111

5159.002.31.11.94.111 Related Products

	5159.002.31.11.94.111	GRM1881X0J273JA01	5159.002.31.15.94.111	5159.002.31.23.94.111	5159.002.31.18.94.111	5159.002.31.23.54.111	5159.002.31.15.93.111	5159.002.31.18.93.111	5159.002.31.24.54.111	5159.002.31.24.94.111
Description	Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle	Chip Multilayer Ceramic Capacitors for General Purpose	Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle	Board Euro Connector, 31 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 31 Contact(s), 3 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle	Board Euro Connector, 31 Contact(s), 3 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 31 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, Plug	Board Euro Connector, 31 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, Plug
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	-	unknown	unknown	unknown	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 14612	-	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612, FASTON	STANDARD: DIN 14612, FASTON
Body/casing type	RECEPTACLE	-	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Connector type	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	-	FEMALE	MALE	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE
DIN compliance	YES	-	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5159	-	5159	5159	5159	5159	5159	5159	5159	5159
Mixed contacts	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	-	3	3	3	3	3	3	3	3
Terminal pitch	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	-	WIRE WRAP	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER
Total number of contacts	31	-	31	31	31	31	31	31	31	31
Contact to complete cooperation	-	-	-	NOT SPECIFIED	-	NOT SPECIFIED	AU ON NI	AU ON NI	GOLD OVER NICKEL	GOLD OVER NICKEL
