Part Number

Search

51963-030

Description
Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size220KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51963-030 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle

51963-030 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsHOLE .12- .126
body width0.574 inch
subject depth0.5 inch
body length2.15 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance0.7 mΩ
Contact styleBLADE PIN-SKT
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force7.1168 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch7.62 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Evacuation force-minimum value2.224 N
Base Number Matches1

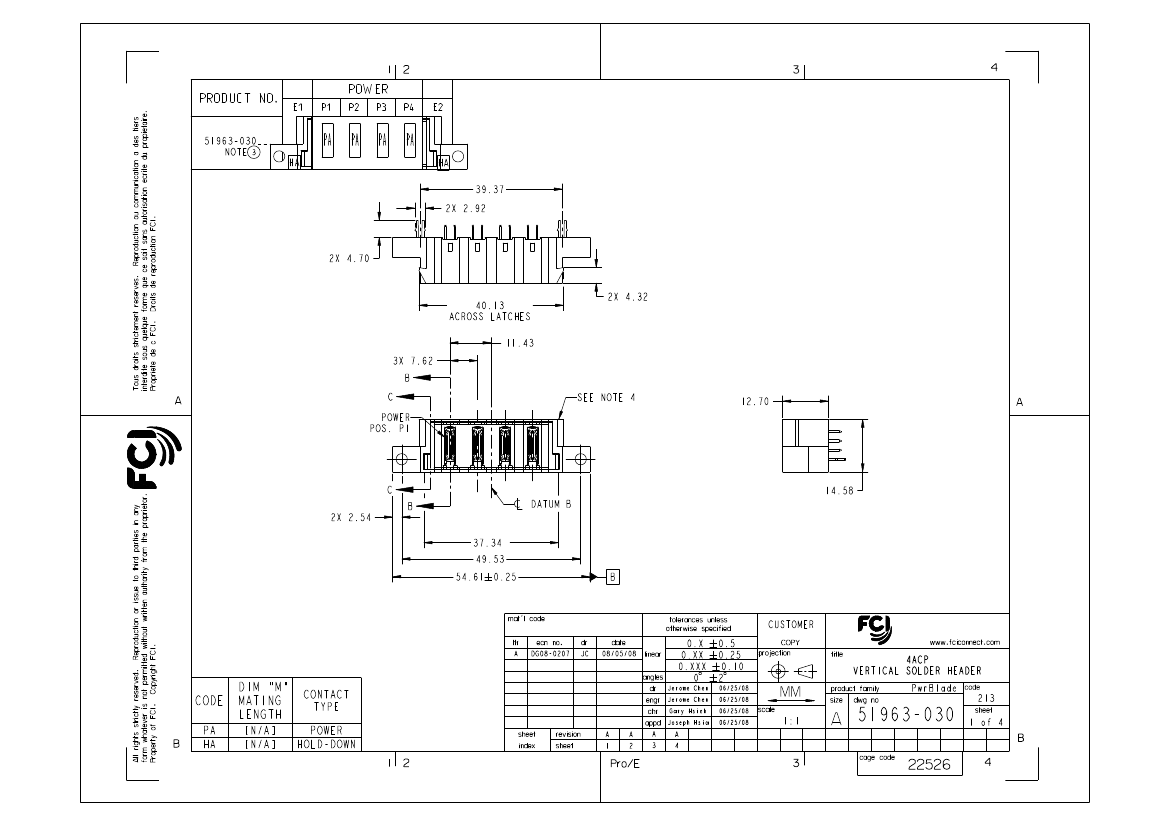

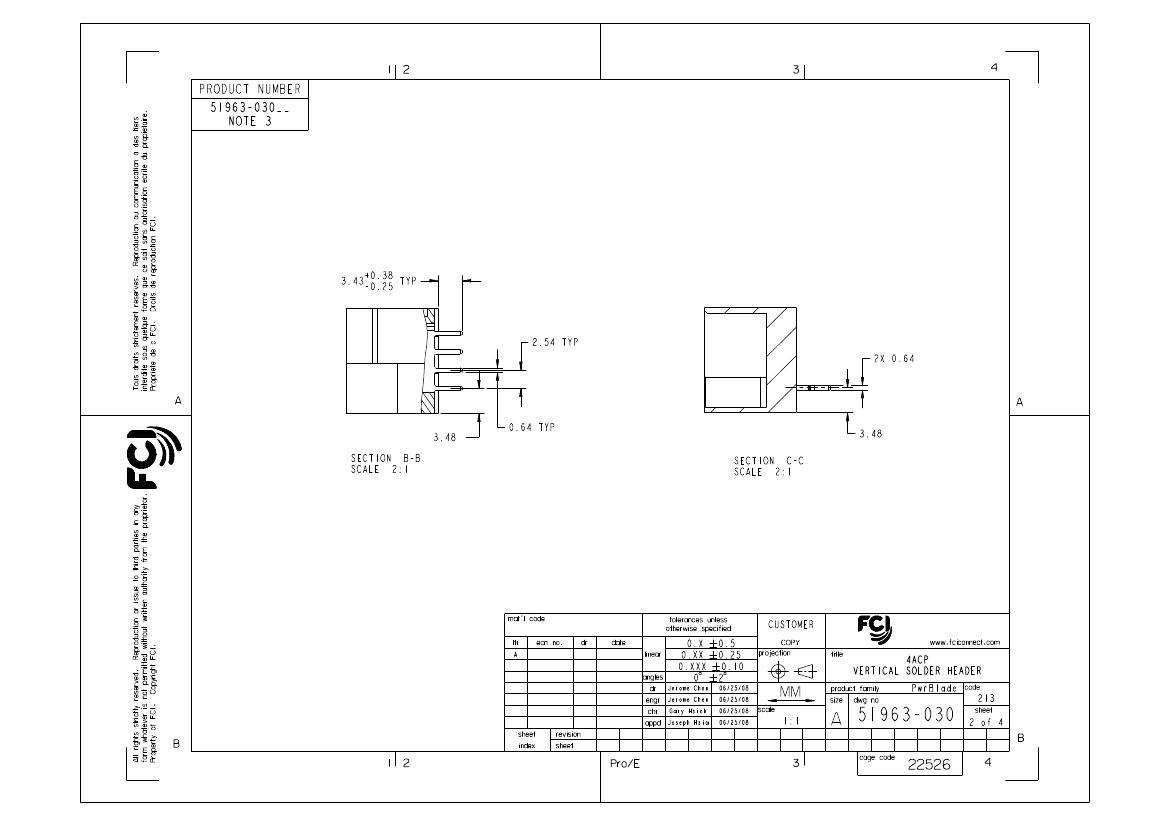

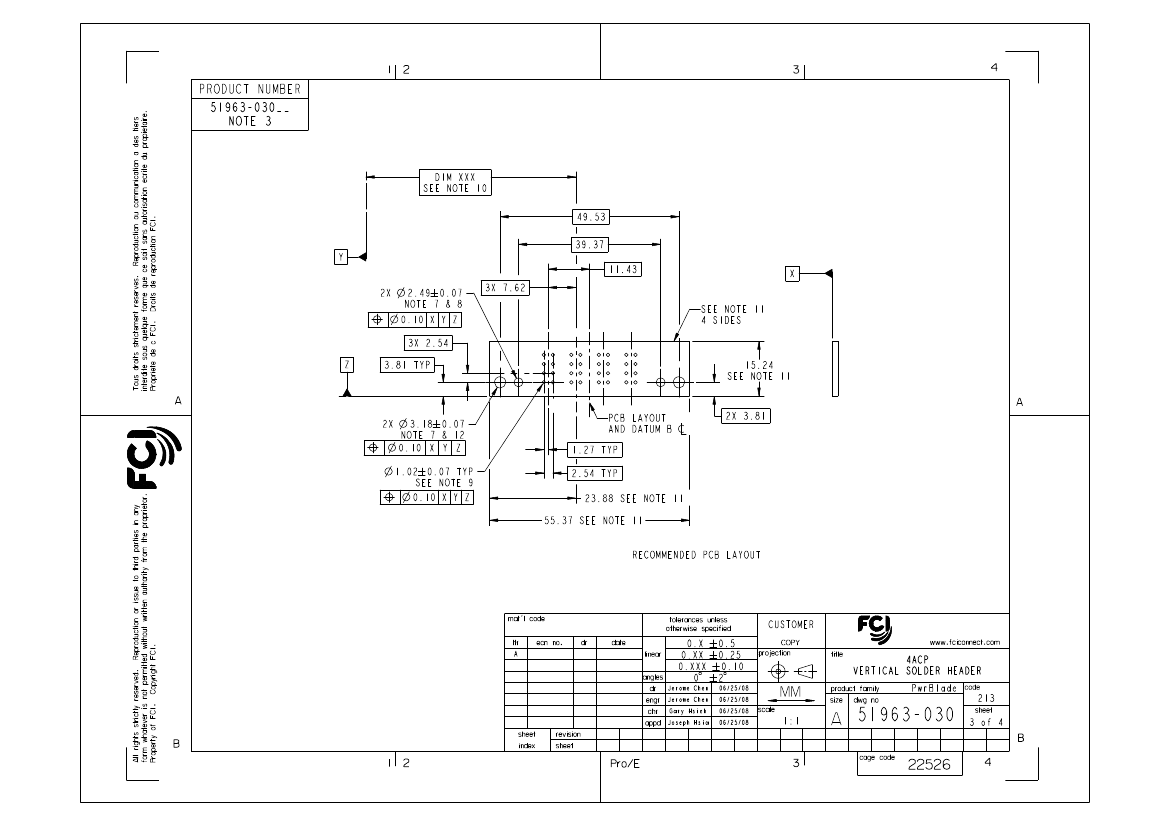

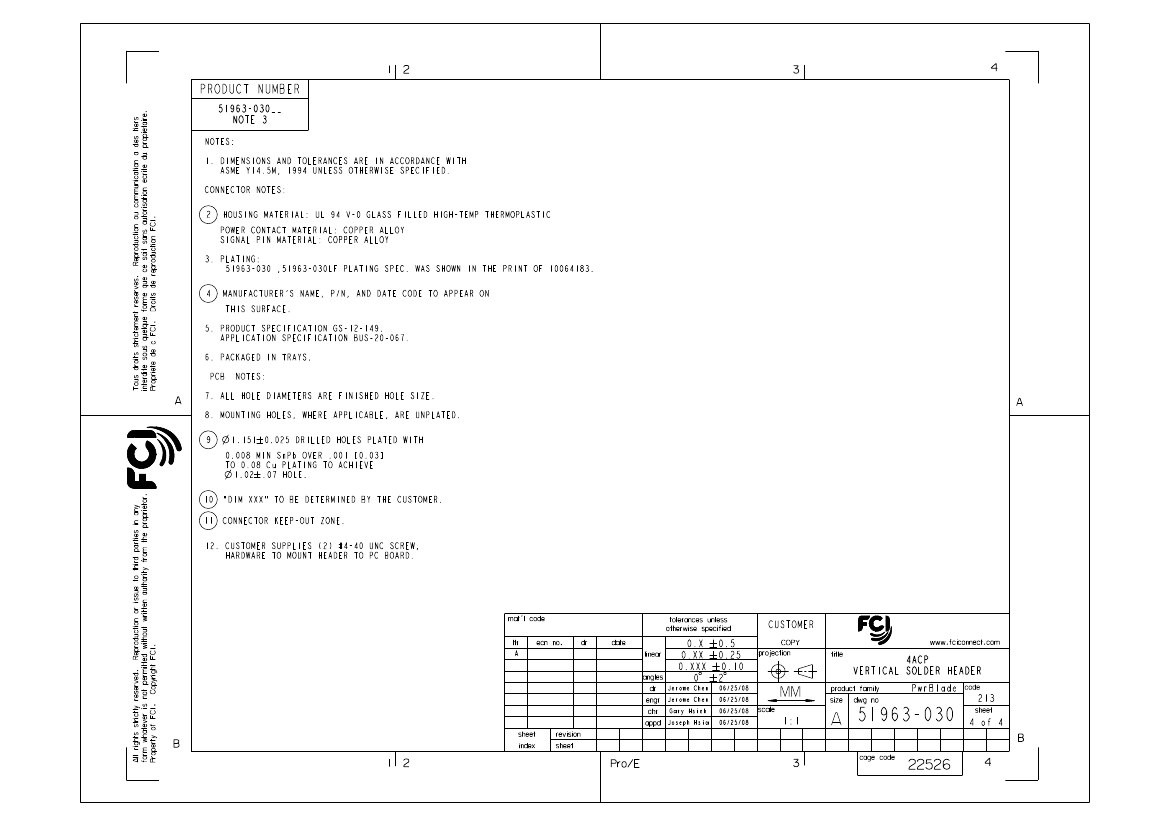

PDM: Rev:A
STATUS:
Released
Printed: Dec 20, 2010
.

51963-030 Related Products

51963-030 51963-030LF
Description Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Board mount options HOLE .12- .126 HOLE .12- .126
body width 0.574 inch 0.574 inch
subject depth 0.5 inch 0.5 inch
body length 2.15 inch 2.15 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S0P4 S0P4
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material COPPER ALLOY NOT SPECIFIED
Contact resistance 0.7 mΩ 0.7 mΩ
Contact style BLADE PIN-SKT BLADE PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force 7.1168 N 7.1168 N
Insulation resistance 10000000000 Ω 10000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 1 1
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 7.62 mm 7.62 mm
Termination type SOLDER SOLDER
Total number of contacts 4 4
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value 2.224 N 2.224 N
Base Number Matches 1 1
