C-15-DFB-PD-SFCH: DescriptionFIBER OPTIC DFB LASER MODULE EMITTER, 1535-1565nm, THROUGH HOLE MOUNT, FC/PC CONNECTOR; CategoryLED optoelectronic/LED; File Size737KB，6 Pages; ManufacturerSOURCE; Websitehttp://www.sourcephotonics.com/

Download Datasheet View All

C-15-DFB-PD-SFCH Overview

FIBER OPTIC DFB LASER MODULE EMITTER, 1535-1565nm, THROUGH HOLE MOUNT, FC/PC CONNECTOR

Preview

Download Datasheet

View All

1550nm MQW-DFB Laser Diode Module

C-15-DFB-XX-SXXXX/XXX-X-XX

Features

• Un-cooled laser diode with MQW structure

• High temperature operation without active cooling

• Hermetically sealed active component

• Built-in InGaAs monitor photodiode

• Complies with Telcordia Technologies GR-468-CORE

• Single frequency operation with high SMSR

Pacjaging

• TOSA

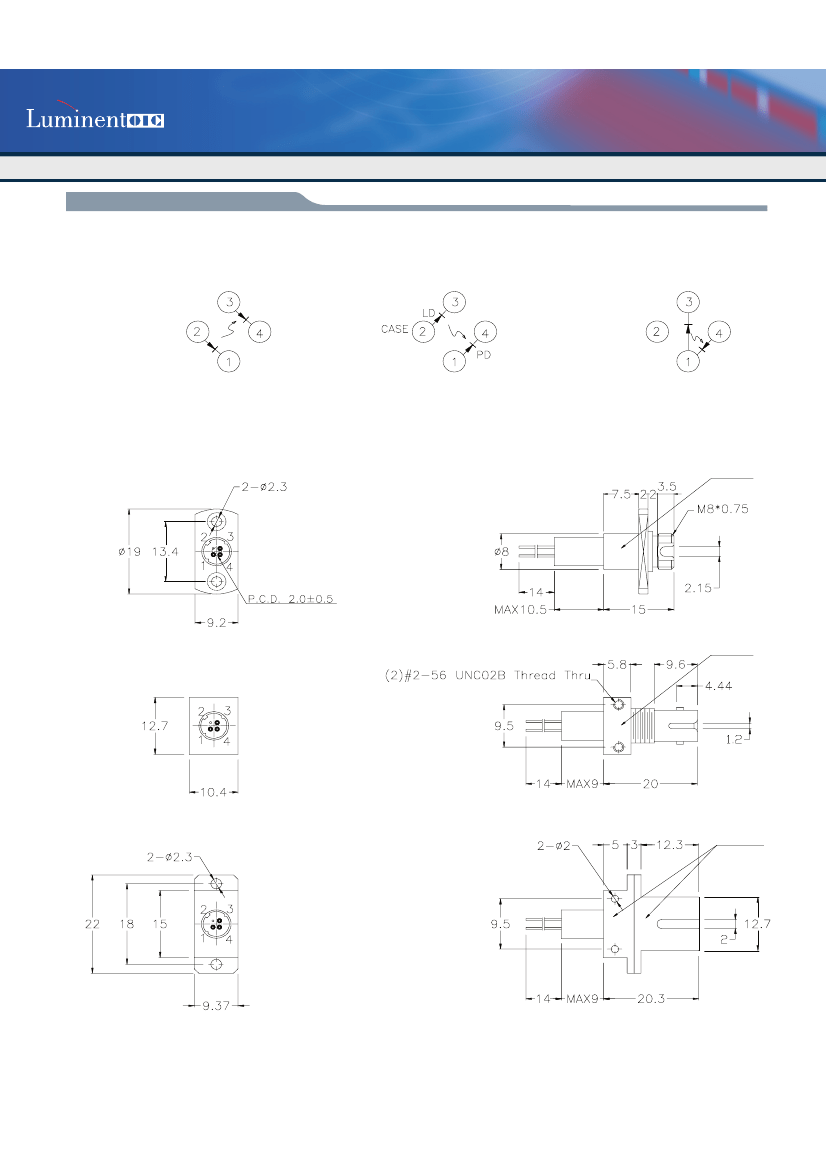

• FC/ST/SC receptacle package with 2-hole ﬂange

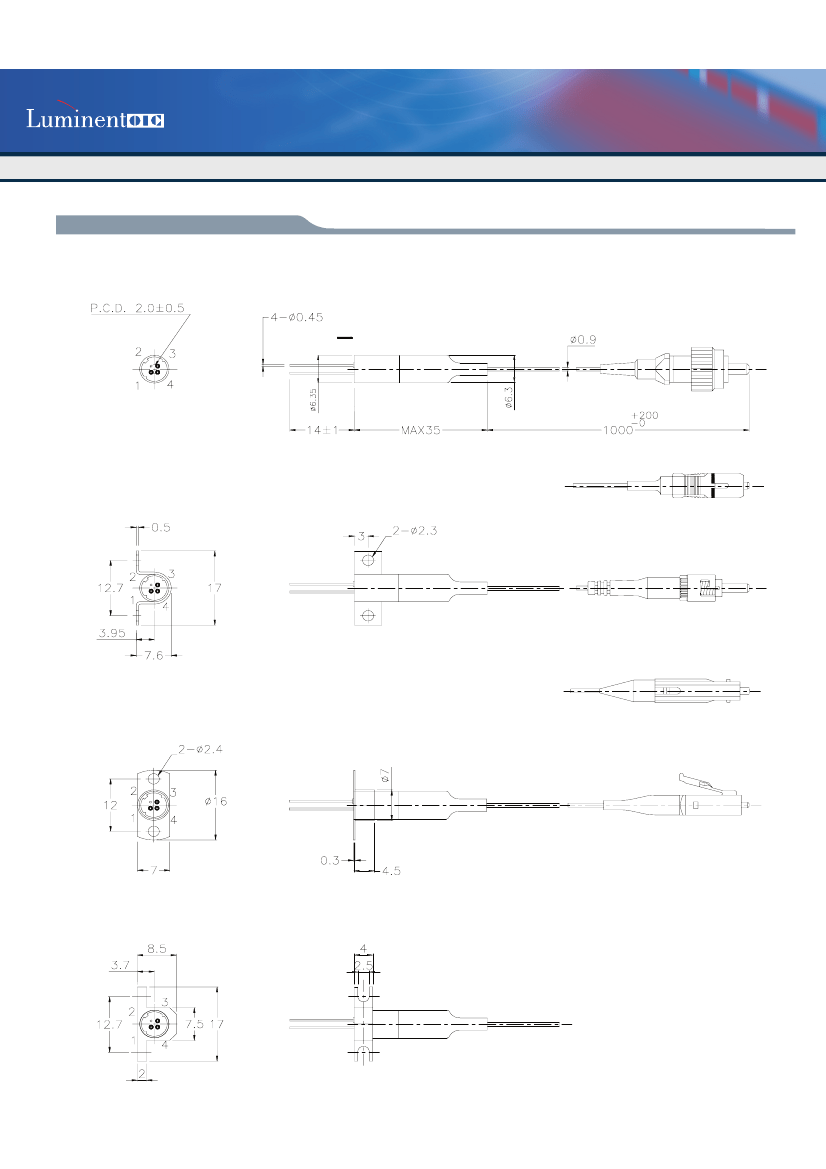

• Fiber pigtailed with optional FC/ST/SC/MU/LC connector

Application

• Design for ﬁber-optics networks

• RoHS Compliant available

Absolute Maximum Ratings (Tc=25ºC)

Parameter

Fiber Output Power L/M/H/2

LD Reverse Voltage

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

Symbol

RLD

RPD

FPD

opr

stg

Rating

0.6(L) / 1(M) / 2(H) / 2.6(2)

2.0

0 ~+70

-40 ~+85

Unit

ºC

(All optical data refer to a coupled 9/125µm SM ﬁber)

Optical and Electrical Characteristics (Tc=25ºC)

Parameter

Threshold Current

Fiber Output Power

2 (without Isolator)

2 (with Isolator)

Peak Wavelength

Side mode Suppression Ratio

Forward Voltage

Rise/Fall Time

Tracking Error

PD Monitor Current

PD Dark Current

PD Capacitance

Symbol

Min

Typ

Max

Unit

Test Conditions

0.2

0.5

/ t

∆P

DARK

1535

1.6

2.5

1550

1.2

0.5

1565

1.5

0.3

1.5

0.1

µA

CW,I

+30mA, kink free

Note 3

CW, P

(Min),0~70ºC

CW, P

(Min)

Ibias=Ith,10~90%

Lead length = 1mm

APC, 0~70ºC

CW, P

(Min), V

RPD

=2V

RPD

=5V

RPD

=5V,f=1MHz

CW,I

+25mA, kink free

-1.5

100

Note: 1.Pin assignment can be customized.

2.Speciﬁcations subject to change without notice.

3.Selected wavelength is available for WDM application.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS894-NOV0305

rev. A.0
