622 Mbps DFB Laser Single Mode Transceiver(LH)
C-1X-622(C)-TDFB(3)-SSC4

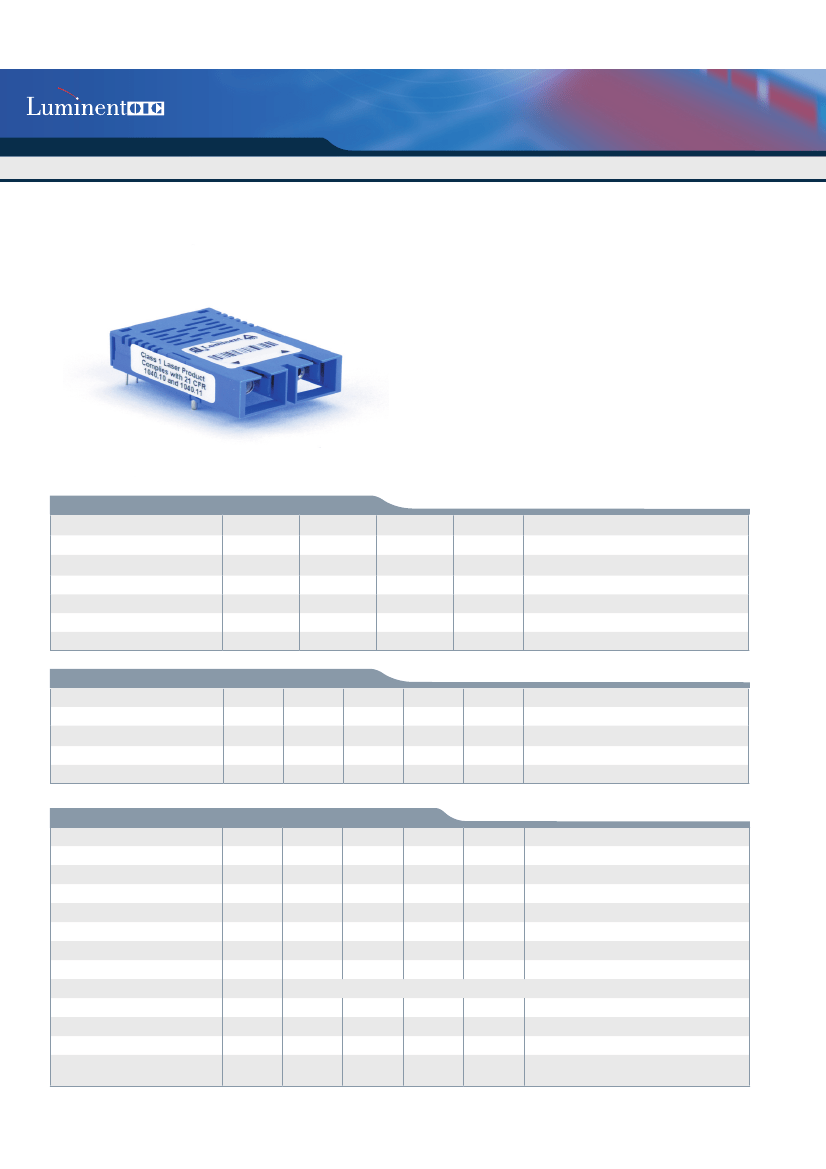

Features
• SC Duplex Single Mode Transceiver
• Industry Standard 1x9 Footprint
• Complies with SONET OC-12 SDH STM-4
• Single +3.3V/5V power supply
• Operatng Temperature Range 0 to 70ºC
• PECL Differential Inputs and Outputs
• TTL/LVTTL Signal Detection Output [C-1X-622C-TDFB(3)-SSC4]
• PECL/LVPECL Signal Detection Output [C-1X-622-TDFB(3)-SSC4]
• Wave Solderable and Aqueous Washable
• Uncooled laser diode with MQW sturcture
• Complies with Bellcore GR-468-CORE
• ATM 622 Mbps Link application
• SONET/SDH Equipment Interconnect application
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Power Supply Voltage
Output Current
Soldering Temperature
Operating temerature
Storage Temperature
Recommended Operating Condition
Parameter
Power Supply Voltage
Power Supply Voltage
Operating Temperature (Case)
Data Rate
Symbol
V
cc
V
cc
T
opr
-
Min.
4.75
3.1
0
-
Typ.
5
3.3
-
622
Max.
5.25
3.5
70
-
Unit
V
V
ºC
Mbps
Note
C-1X-622(C)-TDFB-SSC4
C-1X-622(C)-TDFB3-SSC4
Symbol
V
cc
V
cc
I
out
-
Min.
0
0
0
-
0
-40
Max.
6.0
3.6
30
240
70
85
Unit
V
V
mA
ºC
ºC
ºC
Note
C-1X-622(C)-TDFB-SSC4
C-1X-622(C)-TDFB3-SSC4
10 seconds on leads only
T
opr
T
stg
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Output center Wavelength
Output center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Relative Intensity Noise
Total Jitter
tr
tf
Symbol
P
o
λ
λ
∆λ
Sr
ER
Min
-3
1280
1480
-
30
10
-
-
-
-
Typical
-
1310
1550
-
35
-
-
-
-
-
Max
+2
1335
1580
1
-
-
1.2
1.2
-120
0.55
Unit
dBm
nm
nm
nm
dB
dB
ns
ns
dB/Hz
ns
Notes
C-13-622(C)-TDFB(3)-SSC4
C-15-622(C)-TDFB(3)-SSC4
-20 dB width
Compliant with ITU recommendation G.957
10% to 90% Values
10% to 90% Values
Measured with 2
23
-1 PRBS with 72 ones and
72 zeros.
RIN
TJ
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS577-Jun0306
Rev A.1
622 Mbps DFB Laser Single Mode Transceiver(LH)
C-1X-622(C)-TDFB(3)-SSC4
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
-
-350
-
300
-2.0
-1.1
-
-
-
-
-
-
150
-
350
-
-1.58
-0.74
mA
µA
µA
mV
V
V
These inputs are compatible with 10K, 10KH
and 100K ECL and PECL inputs
Maximum current is specified at Vcc=
Maximum @ maximum temperature
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Wavelength of Operation
-
P
in
Pa
Pd
-
-3
-
-40
-
1100
-
-
-
-
3
-
-28
-
-28
-
-
1600
dBm
dBm
dBm
dBm
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2
23
-1 PRBS,BER= 10
-10
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL
V
SDH
V
SDL-
V
cc
V
SDH-
V
cc
-
-2.0
-1.1
-
2.0
-2.0
-1.1
-
-
-
-
-
-
-
100
-1.58
-0.74
0.5
-
-1.58
-0.74
mA
V
V
V
V
V
V
The current excludes the output load current
These outputs are compatible with 10K,
10KH and 100KECL and PECL outputs
C-1X-622C-TDFB(3)-SSC4
C-1X-622-TDFB(3)-SSC4
Symbol
Min
Typical
Max
Unit
Note
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS577-Jun0306
Rev A.1
622 Mbps DFB Laser Single Mode Transceiver(LH)
C-1X-622(C)-TDFB(3)-SSC4
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (TX-)
8. (TX+)
9. (Tx GND)
NC
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
Top View
NC
PIN
1
2
3
4
5
6
7
8
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
+3.3V/5V dc power for the receiver section
+3.3V/5V dc power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS577-Jun0306
Rev A.1
622 Mbps DFB Laser Single Mode Transceiver(LH)
C-1X-622(C)-TDFB(3)-SSC4

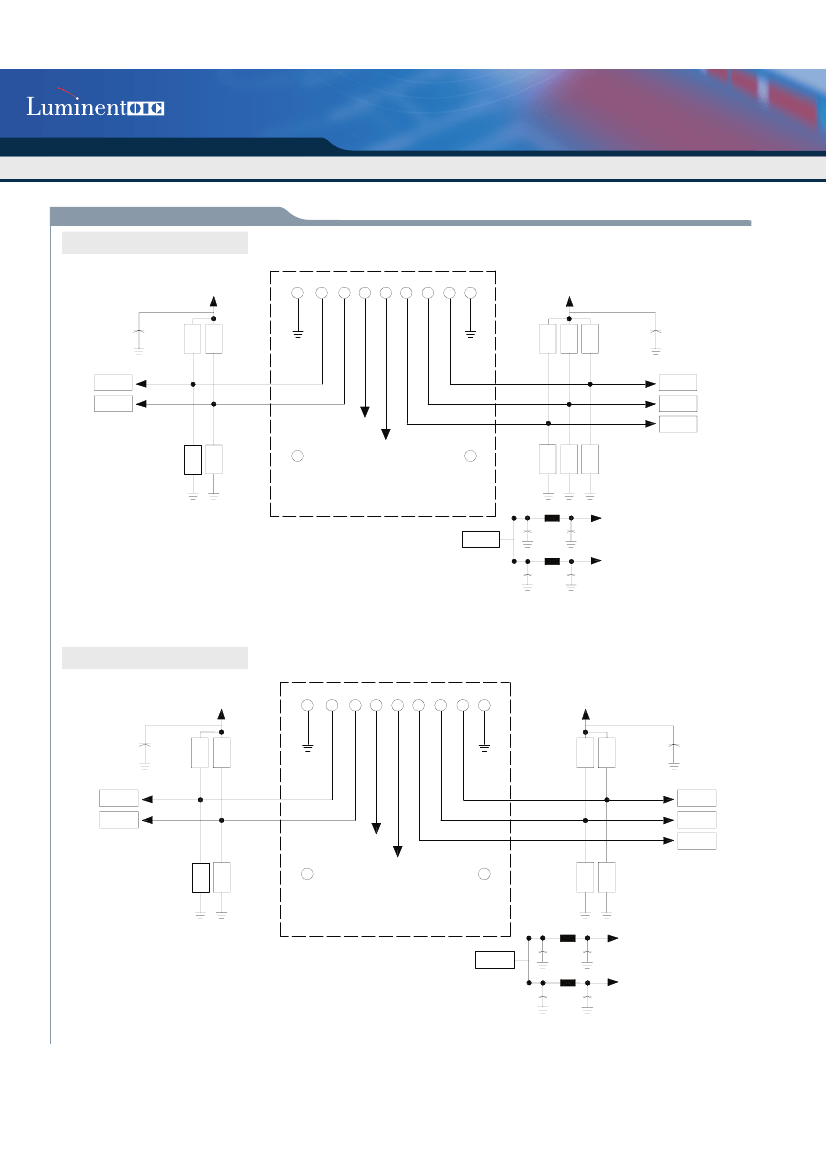

Recommended Circuit Schematic
C-1X-622-TDFB(3)-SSC4
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6 5
4 3 2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R10
R6
No internal
connection
Transceiver
Top view
No internal
connection
R8
L1
Vcc
Notes +3.3V:
R1=R3=R5=R7=R9=130
R2=R4=R6=R8=R10=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=R9=82
R2=R4=R6=R8=R10=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
C3
C1
Rx Vcc
L2
C4
C2
Tx Vcc
C-1X-622C-TDFB(3)-SSC4
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6 5
4 3 2
1
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R6
R8
No internal
connection
Transceiver
Top view
No internal
connection
L1
Notes +3.3V:
R1=R3=R5=R7=130
R2=R4=R6=R8=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=82
R2=R4=R6=R8=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Vcc
C3
L2
C4
C1
Rx Vcc
C2
Tx Vcc
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS577-Jun0306
Rev A.1
4
622 Mbps DFB Laser Single Mode Transceiver(LH)
C-1X-622(C)-TDFB(3)-SSC4

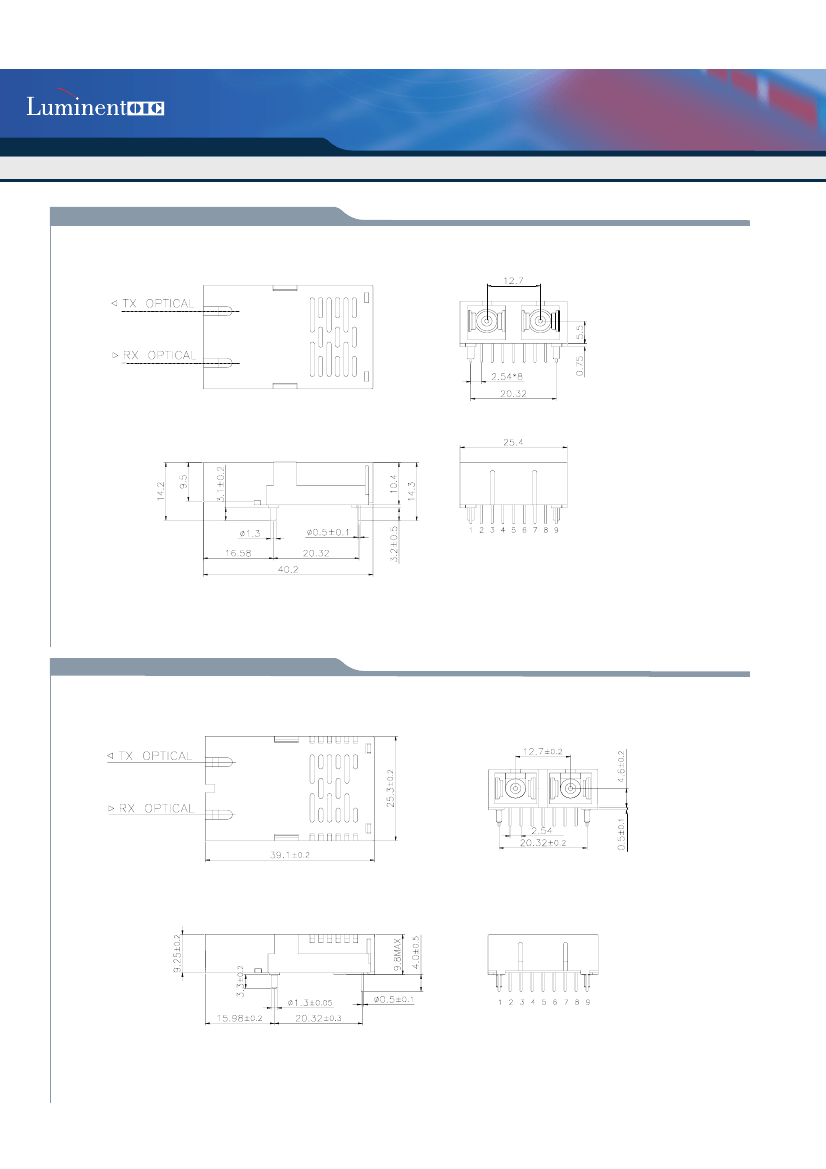

Package Diagram (10.4 mm SC transceiver assembly)
Top View
Front View
Units: mm
Side View
Package Optiot:
Blank / A = Black Case
Package Diagram (9.8 mm SC transceiver assembly)
Rear View
Top View
Front View
Units: mm
