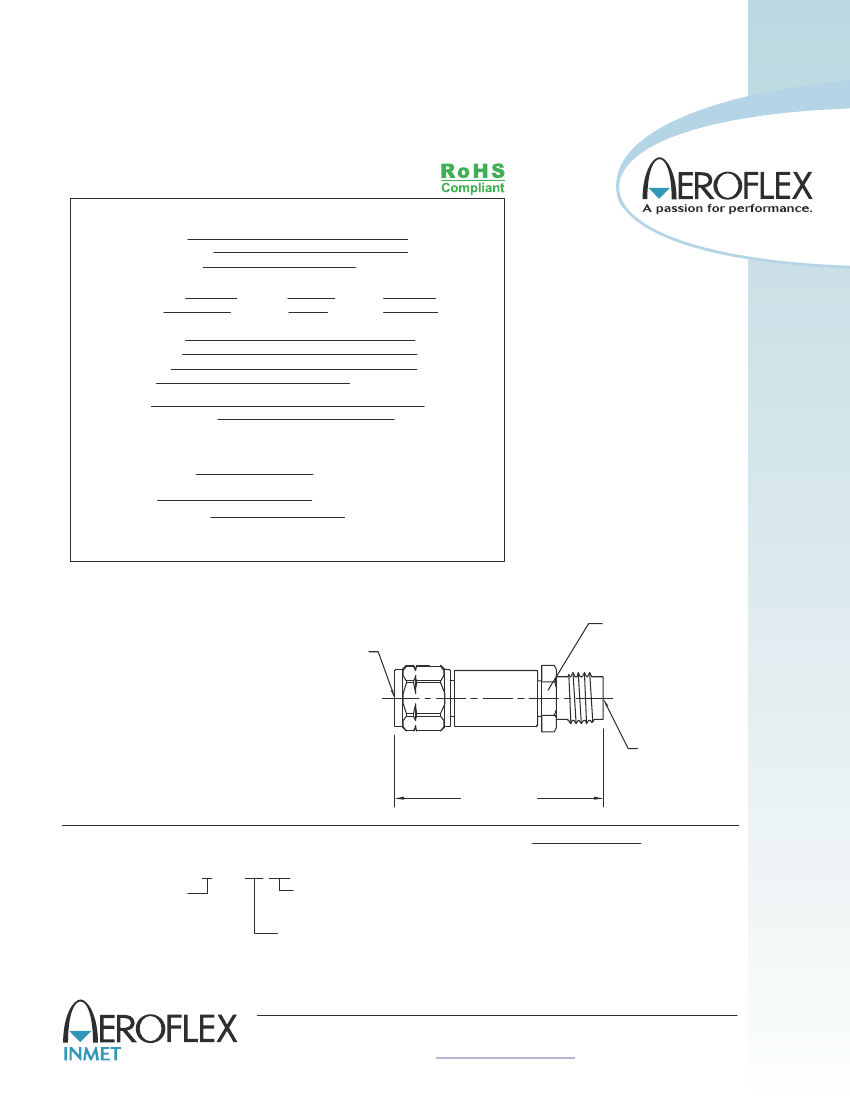

ATTENUATORS
2.4mm, up to 50 GHz, 0.5 Watts
SPECIFICATIONS:
Models: 40 EH-XX & 50EH-XX
Electrical:
Frequency Range
Standard Freq. Values
*Standard dB Values
Attenuation Accuracy
0, 3, 6 & 10 dB
20 & 30 dB
VSWR
DC - 26.5 GHz
26.5 - 40 GHz
40 - 50 GHz
Input Power
Impedance
Operating Temp Range
DC - 50 GHz
40 & 50 GHz
0, 3, 6, 10, 20 & 30 dB
26.5 - 40 GHz 40 - 50 GHz
±1.0 dB
±1.5 dB
±1.25 dB
±2.0 dB
1.35:1 Max.
1.60:1 Max.
1.75:1 Max.
0.5 Watts Avg. @ +25°C
Derated Linearly to 0. Watts @ +1
o
C
1
25
DC - 26.5 GHz
±0.5 dB
±0.75 dB
50 Ohms
-45°C to +85°C
Mechanical:
2.4mm Connectors
(Mates with 1.85mm & V* Connectors)
Gold Plated Beryllium Copper
Gold Plated Beryllium Copper
Passivated Stainless Steel
Conductors
Barrel & Coupling Nut**
** For a Gold Plated Barrel & Coupling Nut add /AU to the Model Number
*V is a trademark of Anritsu Corp.
Model Number:
40EH-XX
Frequency Range: DC - 40 GHz
5/16 Hex
2.4mm Male
Model Number:
50EH-XX
Frequency Range: DC - 50 GHz
2.4mm Female
1.12 ±.05
[28.4 ±1.3]
HOW TO ORDER:
Model Number:
Ordering Examples:
Model Number:
50EH-10
DC - 50 GHz, 10dB
Finish
= Passivated Barrel & Coupling Nut
/AU = Gold Plated Barrel & Coupling Nut
dB Value
Model Number:
40EH-6
DC - 40 GHz, 6dB
XXEH-XX/FF
Freq. Range
40 = DC - 40 GHz
50 = DC - 50 GHz
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing or use.
50EH-ATT: REV J
Aeroflex / Inmet, Inc.
300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet
