82S16/BFA: DescriptionStandard SRAM, 256X1, 70ns, TTL, CDFP16; Categorystorage storage; File Size204KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

82S16/BFA Overview

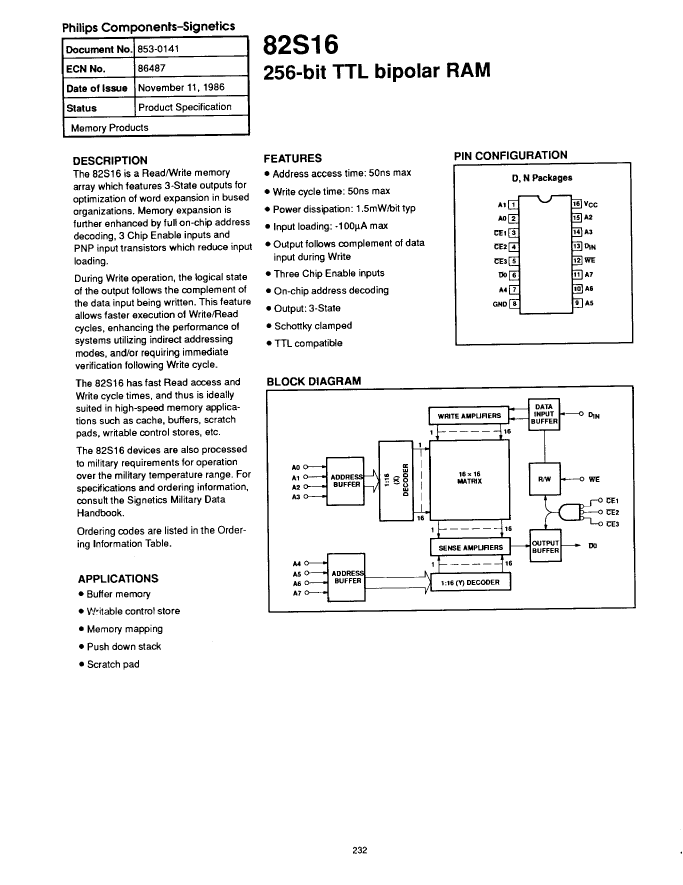

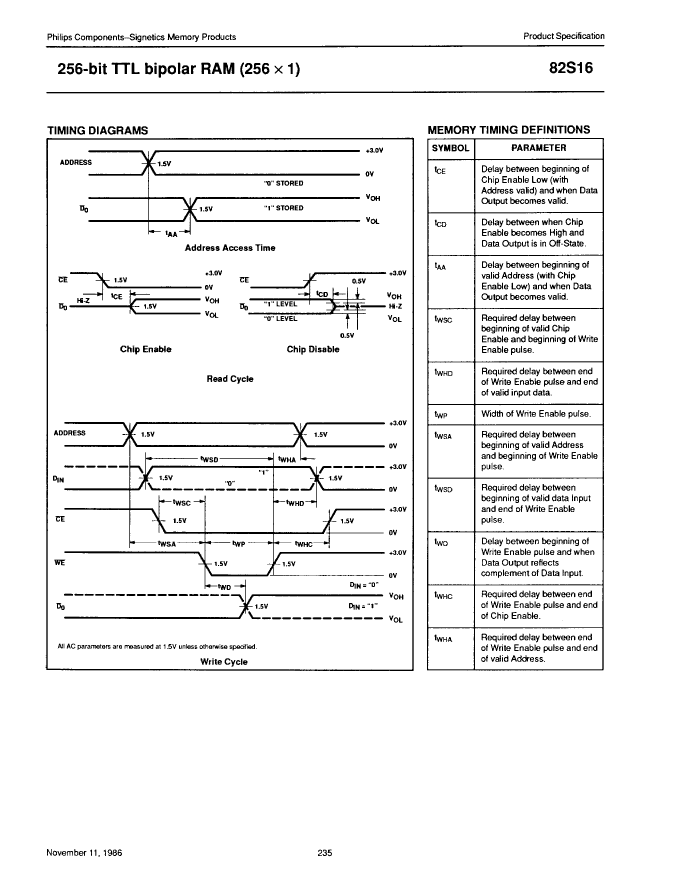

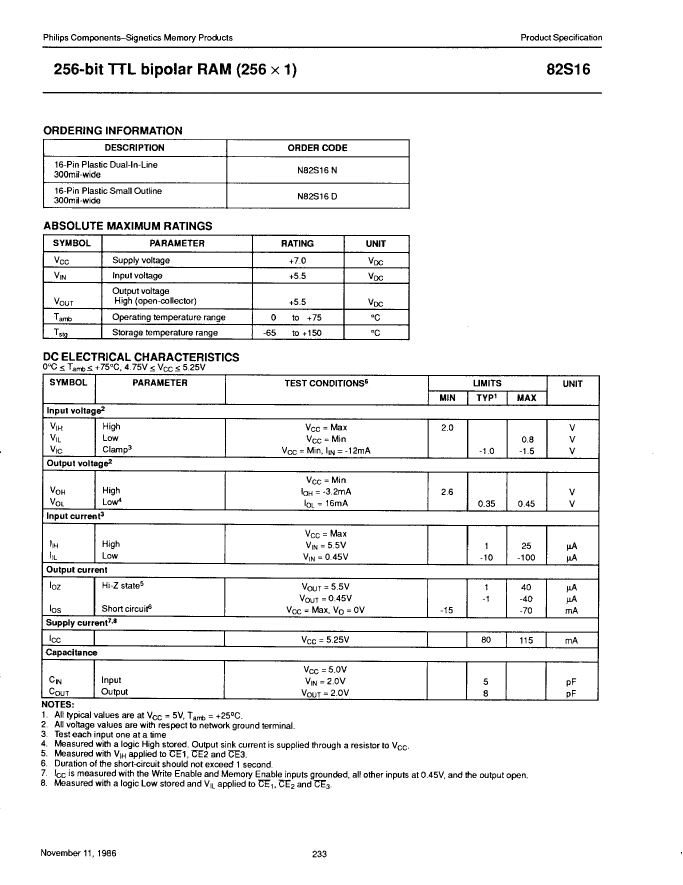

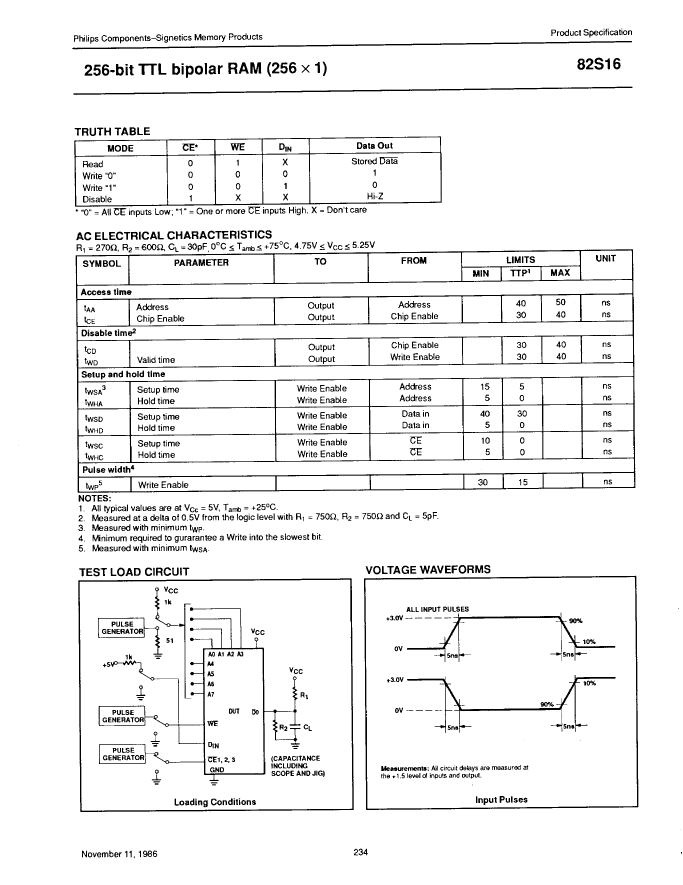

Standard SRAM, 256X1, 70ns, TTL, CDFP16

82S16/BFA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
Maximum access time	70 ns
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Memory IC Type	STANDARD SRAM
memory width	1
Number of terminals	16
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256X1
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

82S16/BFA Related Products

	82S16/BFA	N82S16D	N82S16B	N82S116FB	N82S16N-B	N82S16NA	N82S16F	N82S116NA
Description	Standard SRAM, 256X1, 70ns, TTL, CDFP16	Standard SRAM, 256X1, 50ns, TTL, PDSO16	Standard SRAM, 256X1, 50ns, TTL, PDIP16	Standard SRAM, 256X1, 40ns, TTL, CDIP16	Standard SRAM, 256X1, 50ns, TTL, PDIP16	Standard SRAM, 256X1, 50ns, TTL, PDIP16	Standard SRAM, 256X1, 50ns, TTL, CDIP16	Standard SRAM, 256X1, 40ns, TTL, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL16,.3	SOP, SOP16,.4	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	70 ns	50 ns	50 ns	40 ns	50 ns	50 ns	50 ns	40 ns
JESD-30 code	R-XDFP-F16	R-PDSO-G16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
word count	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256	256	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256X1	256X1	256X1	256X1	256X1	256X1	256X1	256X1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	SOP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL16,.3	SOP16,.4	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified
