Board Connector, 20 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE

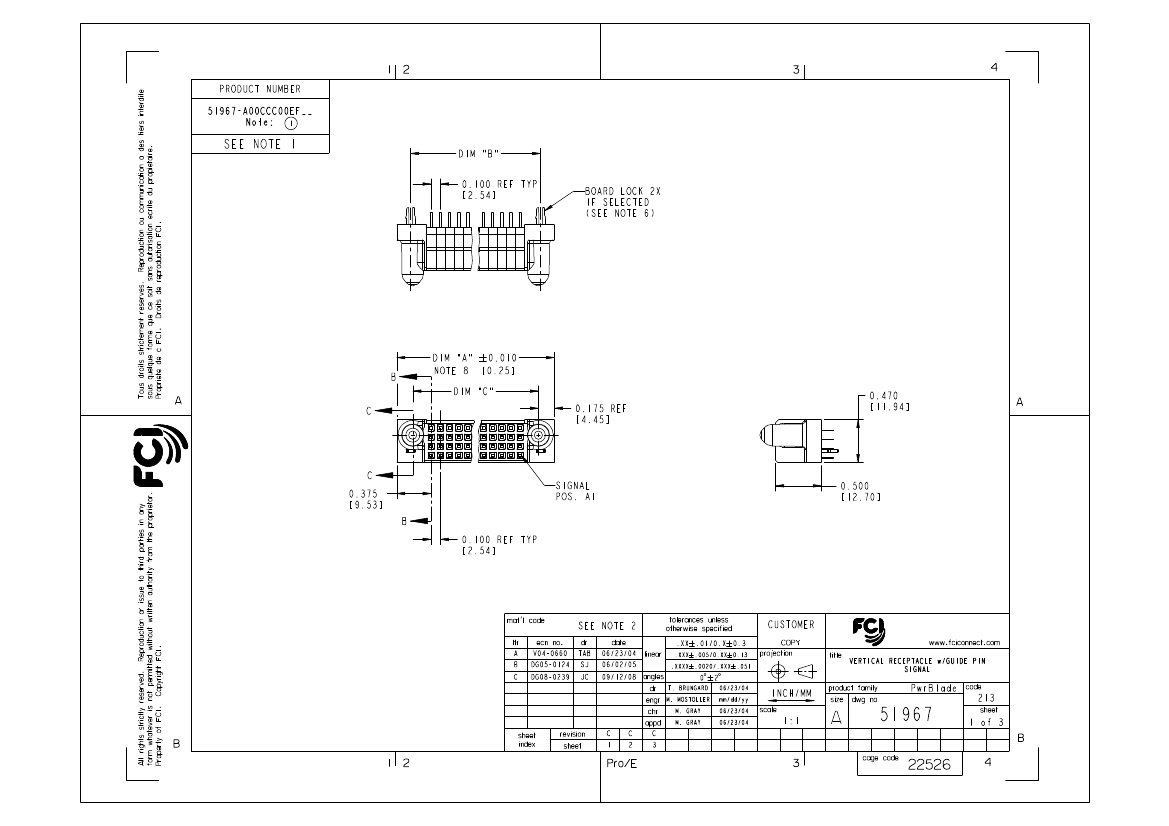

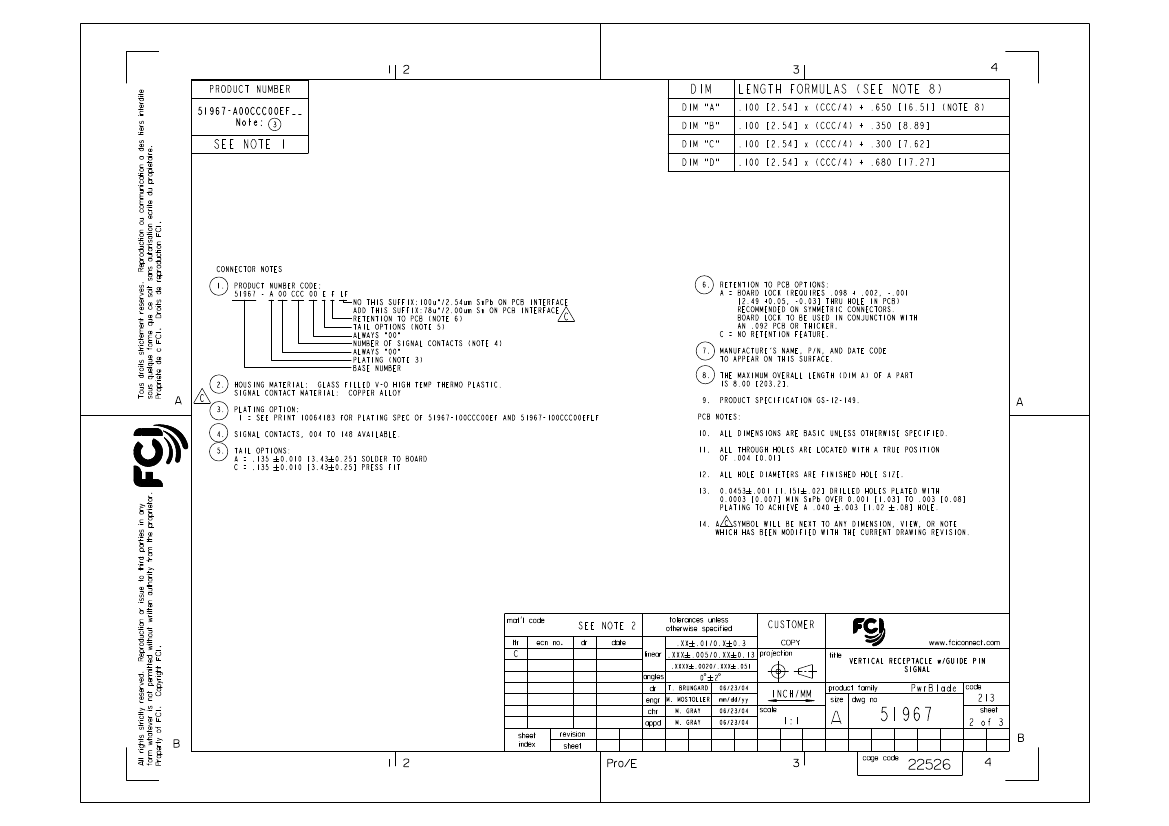

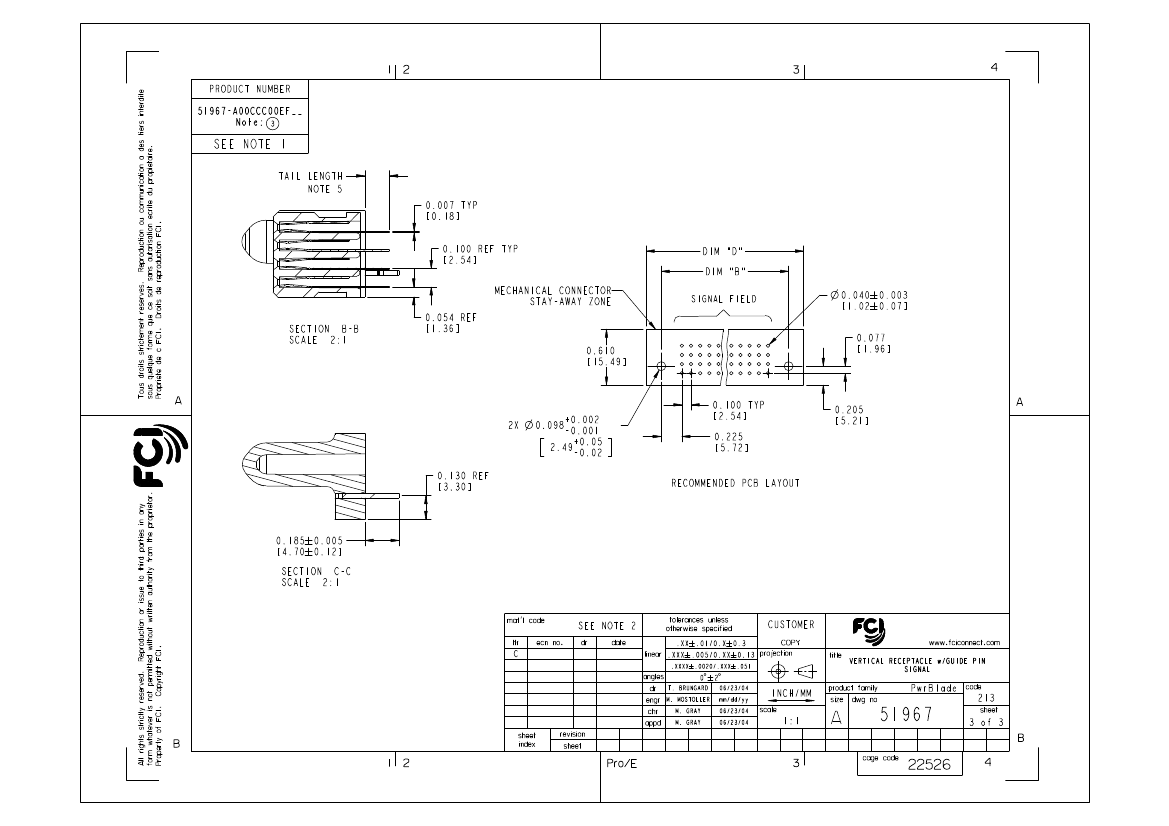

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 6 weeks |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.47 inch |
| subject depth | 0.5 inch |
| body length | 1.15 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VDC V |
| Durability | 200 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .973 N |
| Insulation resistance | 500000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.135 inch |
| Terminal pitch | 2.54 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .17792 N |
| Base Number Matches | 1 |
| 51967-10002000CCLF | 51967-10006400AALF | 51967-10009600ACLF | 51967-10010800CCLF | 51967-10012000AALF | 51967-10002400CCLF | 51967-10003200CCLF | |
|---|---|---|---|---|---|---|---|
| Description | Board Connector, 20 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 64 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 96 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 108 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 120 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 24 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE | Board Connector, 32 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| package instruction | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Factory Lead Time | 6 weeks | 6 weeks | 6 weeks | 5 weeks | 6 weeks | 6 weeks | 6 weeks |
| Board mount options | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK | SPLIT BOARD LOCK |
| body width | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch |
| subject depth | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch | 0.5 inch |
| body length | 1.15 inch | 2.25 inch | 3.05 inch | 3.35 inch | 3.65 inch | 1.25 inch | 1.45 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | GOLD (30) OVER NICKEL |
| Contact completed and terminated | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1000VDC V | 1000VDC V | 1000VDC V | 1000VDC V | 1000VDC V | 1000VDC V | 1000VDC V |
| Durability | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | .973 N | .973 N | .973 N | .973 N | .973 N | .973 N | .973 N |
| Insulation resistance | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω | 500000000 Ω |
| insulator material | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC | GLASS FILLED THERMOPLASTIC |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.135 inch | 0.135 inch | 0.135 inch | 0.135 inch | 0.135 inch | 0.135 inch | 0.135 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | PRESS FIT | SOLDER | SOLDER | PRESS FIT | SOLDER | PRESS FIT | PRESS FIT |
| Total number of contacts | 20 | 64 | 96 | 108 | 120 | 24 | 32 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .17792 N | .17792 N | .17792 N | .17792 N | .17792 N | .17792 N | .17792 N |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 |
