65495-023 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 65495-023

65495-023: DescriptionBoard Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug,; CategoryThe connector The connector; File Size209KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

65495-023 Overview

Board Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug,

65495-023 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PCB TRANSITION CONNECTOR
body width	0.4 inch
subject depth	0.24 inch
body length	1.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	IDC
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.156 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

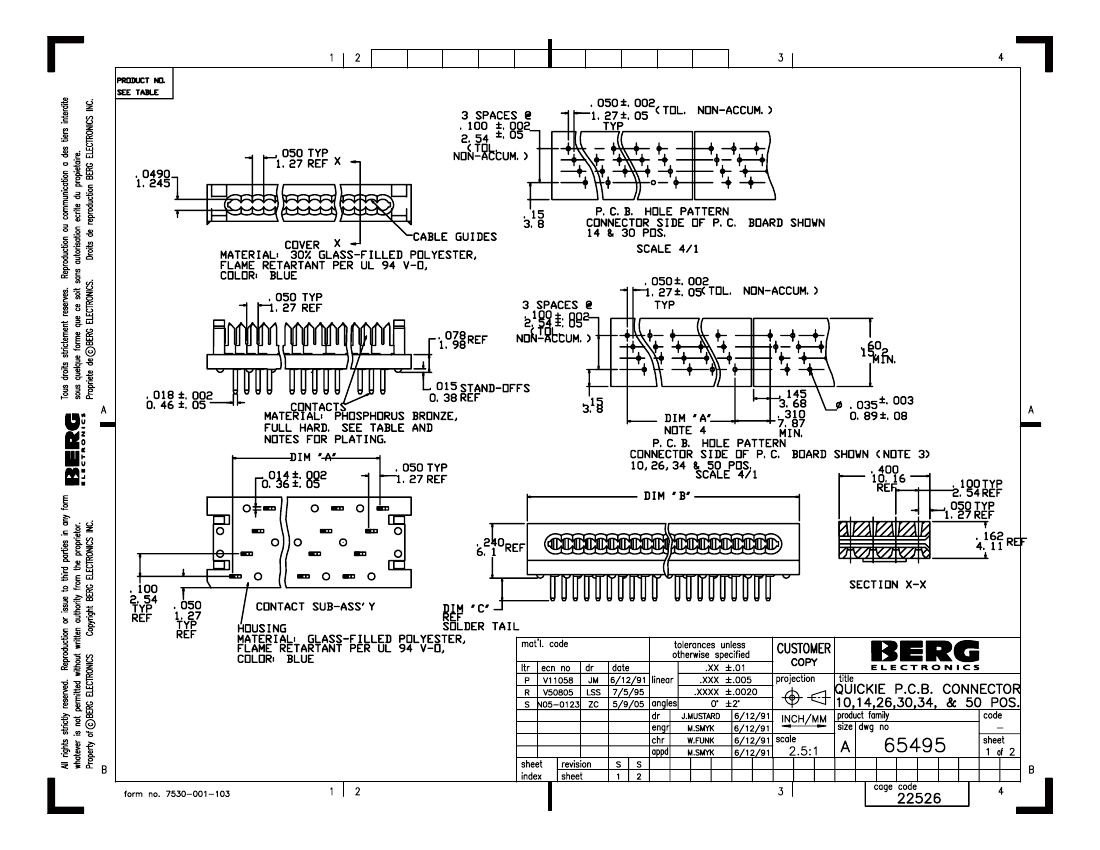

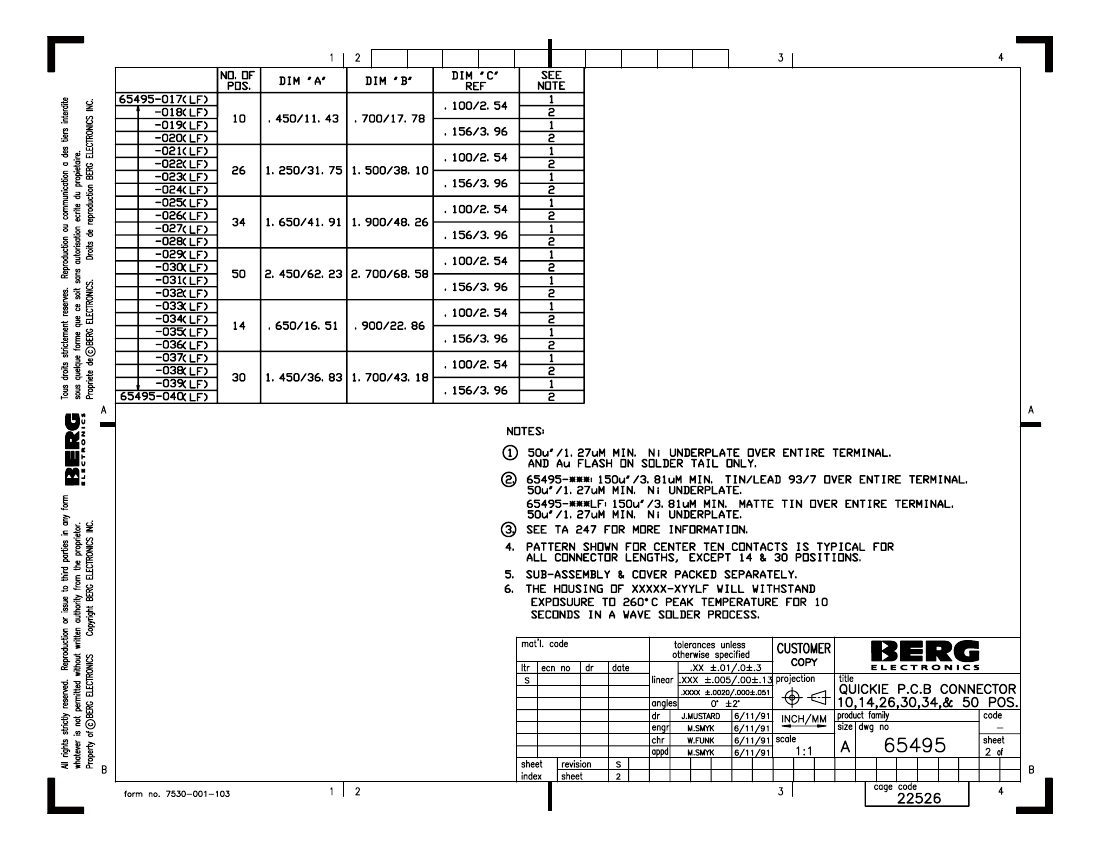

Preview

Download Datasheet

View All

PDM: Rev:S

STATUS:

Released

Printed: Nov 06, 2006

65495-023 Related Products

	65495-023	65495-040	65495-027	65495-032	65495-035	65495-037	65495-039
Description	Board Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug,	Board Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Board Connector, 34 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug,	Board Connector, 50 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug,	Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug	Board Connector, 30 Contact(s), 1 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Blue Insulator, Plug	Board Connector, 30 Contact(s), 1 Row(s), Female, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	30	34	50	14	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	-
Other features	PCB TRANSITION CONNECTOR	-	PCB TRANSITION CONNECTOR	PCB TRANSITION CONNECTOR	PCB TRANSITION CONNECTOR	PCB TRANSITION CONNECTOR	-
body width	0.4 inch	-	0.4 inch	0.4 inch	0.4 inch	0.4 inch	-
subject depth	0.24 inch	-	0.24 inch	0.24 inch	0.24 inch	0.24 inch	-
body length	1.5 inch	-	1.9 inch	2.7 inch	0.9 inch	1.7 inch	-
Body/casing type	PLUG	-	PLUG	PLUG	PLUG	PLUG	-
Contact to complete cooperation	NOT SPECIFIED	-	AU ON NI	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	-
Contact material	NOT SPECIFIED	-	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	-
contact mode	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
Contact resistance	15 mΩ	-	15 mΩ	15 mΩ	15 mΩ	15 mΩ	-
Contact style	IDC	-	IDC	IDC	IDC	IDC	-
Dielectric withstand voltage	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V	-
Insulation resistance	50000000000 Ω	-	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	-
Insulator color	BLUE	-	BLUE	BLUE	BLUE	BLUE	-
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-
Plug contact pitch	0.2 inch	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch	-
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	-
PCB row number	4	-	4	4	4	4	-
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Plating thickness	FLASH inch	-	FLASH inch	160u inch	FLASH inch	FLASH inch	-
Rated current (signal)	1 A	-	1 A	1 A	1 A	1 A	-
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.156 inch	-	0.156 inch	0.156 inch	0.156 inch	0.1 inch	-
Manufacturer's serial number	-	65495	-	-	65495	65495	65495
Is Samacsys	-	-	N	N	N	N	N
