86093967894755122E1 datasheet, PDF

86093967894755122E1: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86093967894755122E1 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
Base Number Matches	1

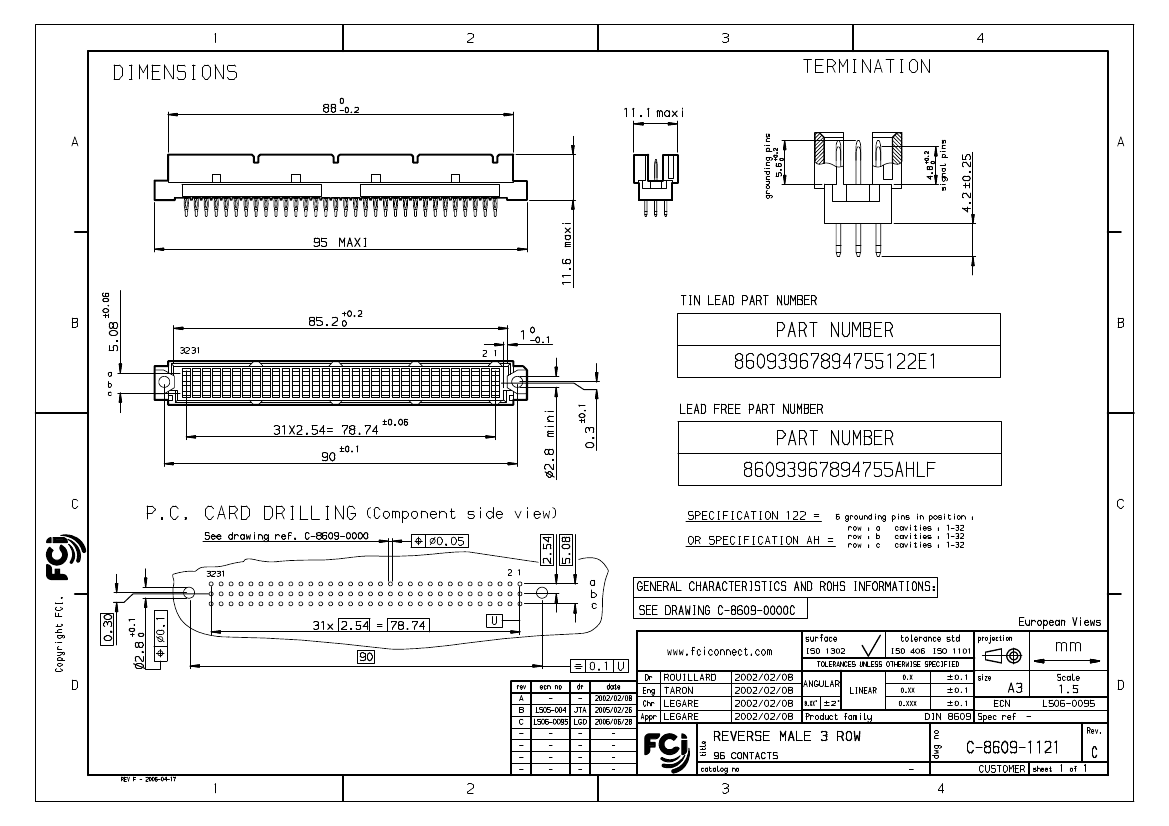

PDM: Rev:C

STATUS:

Released

Printed: May 14, 2011

.

	86093967894755122E1	86093967894755AHLF
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD	NOT SPECIFIED
Contact point gender	MALE	MALE
DIN compliance	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	96	96
