5159.035.32.11.93.11 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5159.035.32.11.93.11

5159.035.32.11.93.11: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size653KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5159.035.32.11.93.11 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

5159.035.32.11.93.11 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: DIN 14612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5159
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
Base Number Matches	1

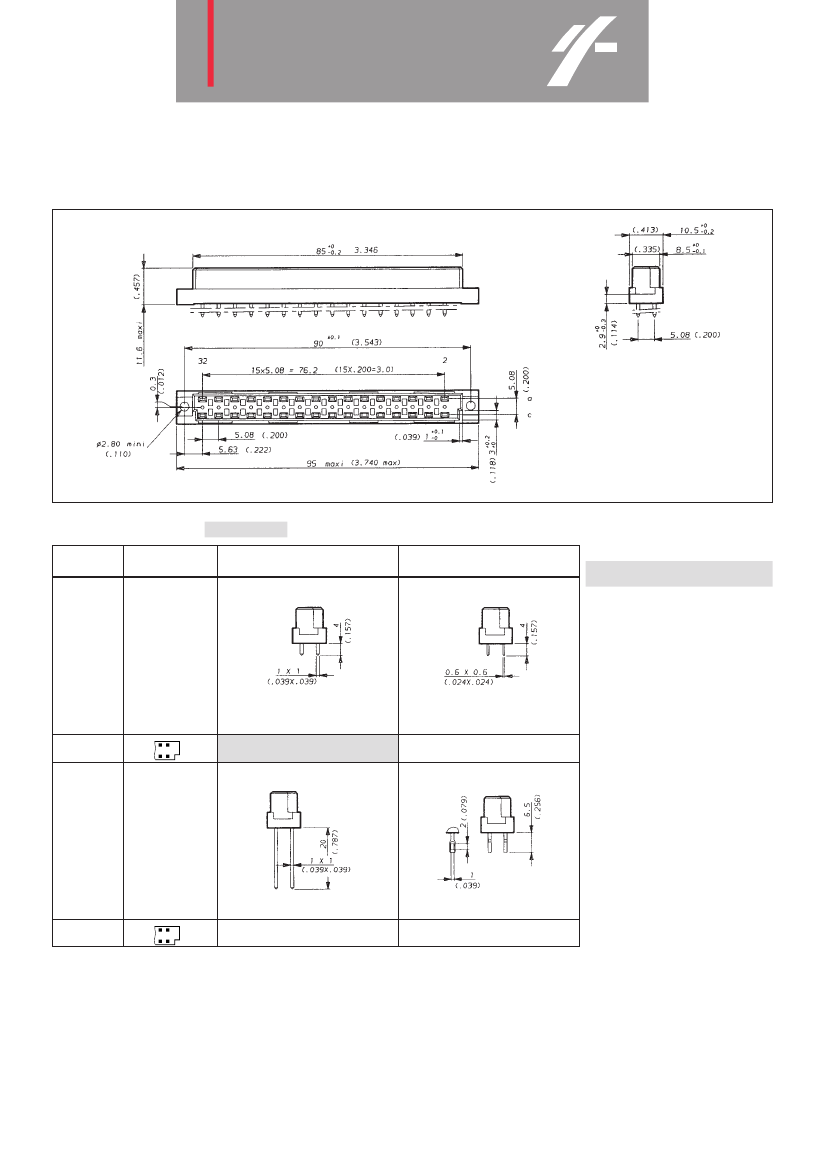

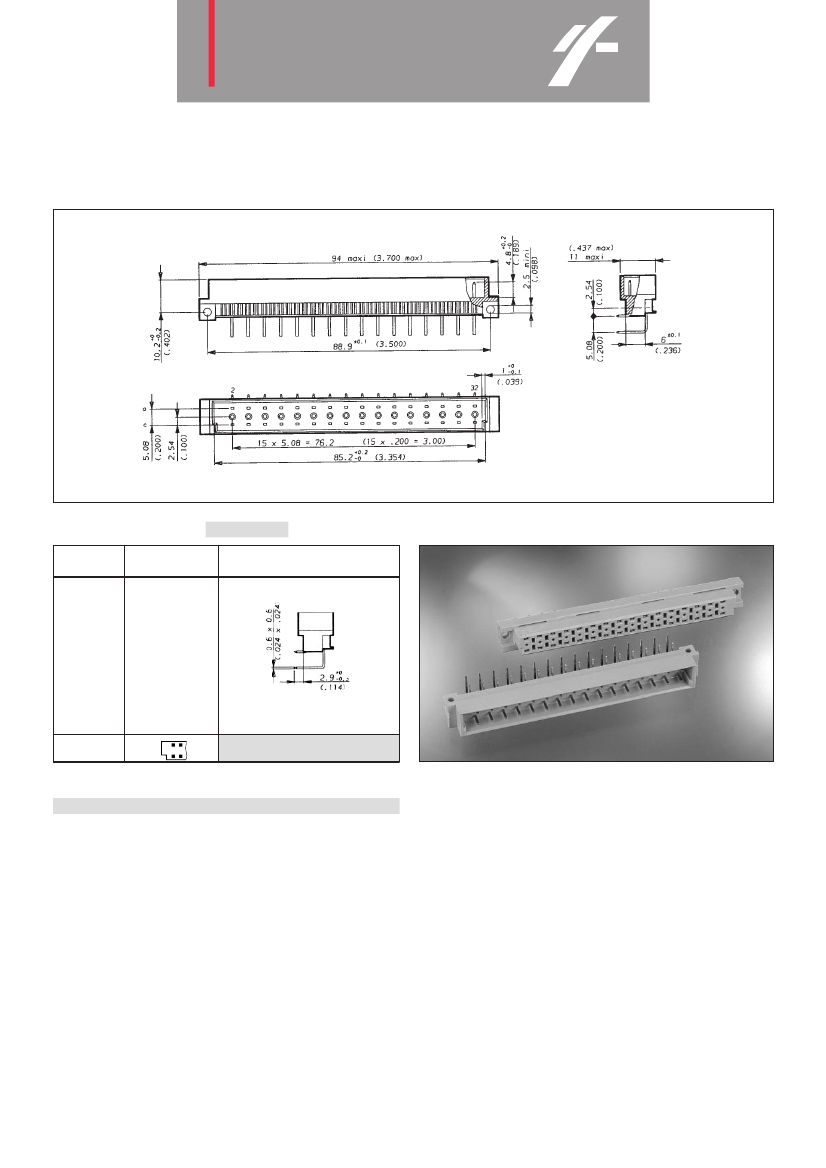

Preview

Download Datasheet

View All

DIN 41612

Plugs, medium power, 2 row

5159 series, style D

Catalogue numbers -

standard items

Nbr of

contacts

Contact

arrang.

Contact

termination

angled spills PCB 1,6 (.063)

2 4

5159.035.32.63.x4.11

Performance class / plating:

• DIN 41612 class II: replace x by

in part number.

• DIN 41612 class I: replace x by

in part number.

Contact plating: selective gold over nickel on contact area, tin-lead

on termination.

Options:

Special terminations and contact arrangements are available upon

request: consult factory.

5159.035.32.11.93.11 Related Products

	5159.035.32.11.93.11	5159.035.32.18.93.11	5159.035.32.18.94.11	5159.035.32.15.93.11	5159.035.32.63.54.11	5159.035.32.12.93.11	5159.035.32.12.94.11	5159.035.32.11.94.11	5159.035.32.15.94.11	5159.035.32.63.94.11
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Plug,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	unknown	unknown	compliant
Other features	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612	STANDARD: DIN 14612
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER
Total number of contacts	32	32	32	32	32	32	32	32	32	32
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Base Number Matches	1	1	1	1	1	1	1	-	-	-
