B43510B3128M000 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B43510B3128M000

B43510B3128M000: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 385V, 1200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT; CategoryPassive components capacitor; File Size258KB，11 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B43510B3128M000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B43510B3128M000	-	-	View	Buy Now

B43510B3128M000 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 385V, 1200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT

B43510B3128M000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm
dielectric materials	ALUMINUM (WET)
ESR	110 mΩ
JESD-609 code	e3
leakage current	2.7733 mA
length	70 mm
Manufacturer's serial number	B43510
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
method of packing	CARDBOARD
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	385 V
ripple current	5540 mA
series	B43510
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

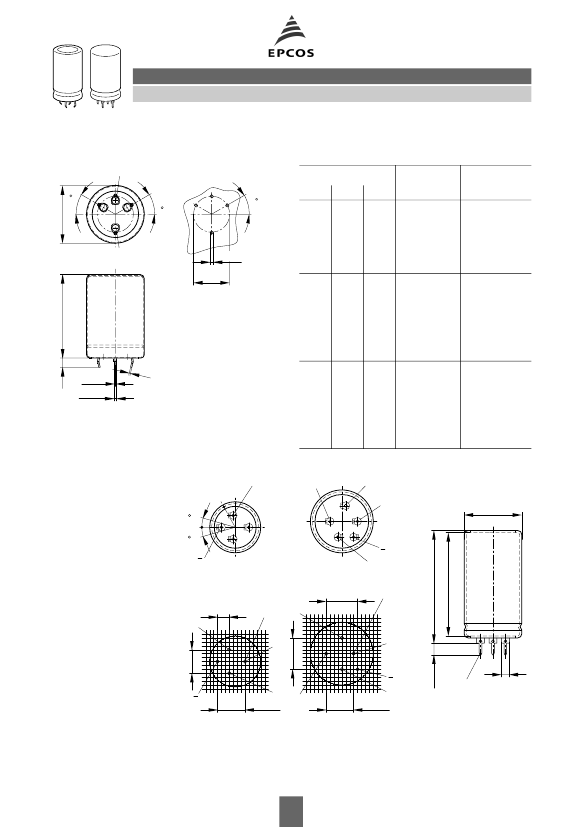

Capacitors with 4 Snap-In Terminals and Solder Pins

Miniaturized

–

85 °C

B43510, B43520

Long-life grade capacitors

Applications

Frequency converters

Switch-mode power supplies in industrial

B43510

B43520

and consumer electronics

Uninterruptible power supplies

Features

KAL0409-D

Extremely small dimensions

High ripple current capability

Many different case sizes

Pinning ensures correct insertion

B43510

B43520

Construction

Charge-discharge proof, polar

Aluminum case, fully insulated

Overload protection by preset break point in case

Terminals

4 snap-in terminals (6,3 mm and 4,5 mm length)

Solder pin mounting on printed circuit boards,

pins fit standardized spacings on PCB

178

10/02

B43510B3128M000 Related Products

	B43510B3128M000	B43510A5827M000	B43520B5108M000	B43520A5827M000	B43520B9128M000	B43520B9158M000	B43520A5108M000	B43520A3158M000	B43520A3188M000
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 385V, 1200uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, STUD MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, STUD MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1200uF, STUD MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1500uF, STUD MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, STUD MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 385V, 1500uF, STUD MOUNT, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 385V, 1800uF, THROUGH HOLE MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	1200 µF	820 µF	1000 µF	820 µF	1200 µF	1500 µF	1000 µF	1500 µF	1800 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm	35 mm	40 mm	35 mm	40 mm	40 mm	35 mm	40 mm	40 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	110 mΩ	250 mΩ	200 mΩ	250 mΩ	110 mΩ	90 mΩ	200 mΩ	90 mΩ	80 mΩ
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	2.7733 mA	2.37014 mA	2.72275 mA	2.37014 mA	2.8484 mA	3.32927 mA	2.72275 mA	3.24148 mA	3.68219 mA
length	70 mm	80 mm	70 mm	80 mm	70 mm	80 mm	100 mm	80 mm	100 mm
Manufacturer's serial number	B43510	B43510	B43520	B43520	B43520	B43520	B43520	B43520	B43520
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	STUD MOUNT	STUD MOUNT	STUD MOUNT	STUD MOUNT	STUD MOUNT	STUD MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-25 °C	-25 °C	-25 °C	-40 °C	-40 °C	-25 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Snap-in	Snap-in	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
method of packing	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	385 V	450 V	450 V	450 V	400 V	400 V	450 V	385 V	385 V
ripple current	5540 mA	4610 mA	5060 mA	4610 mA	5540 mA	6530 mA	5590 mA	6530 mA	7800 mA
series	B43510	B43510	B43520	B43520	B43520	B43520	B43520	B43520	B43520
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	SNAP-IN
Base Number Matches	1	1	1	1	1	1	1	1	1
