70267-909 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70267-909

70267-909: DescriptionBoard Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

70267-909 Overview

Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

70267-909 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRESS-FIT, TUBE PACKAGING
body width	0.543 inch
subject depth	0.626 inch
body length	3.778 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
Insulator color	GRAY
Manufacturer's serial number	70267
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	192
Base Number Matches	1

Preview

Download Datasheet

View All

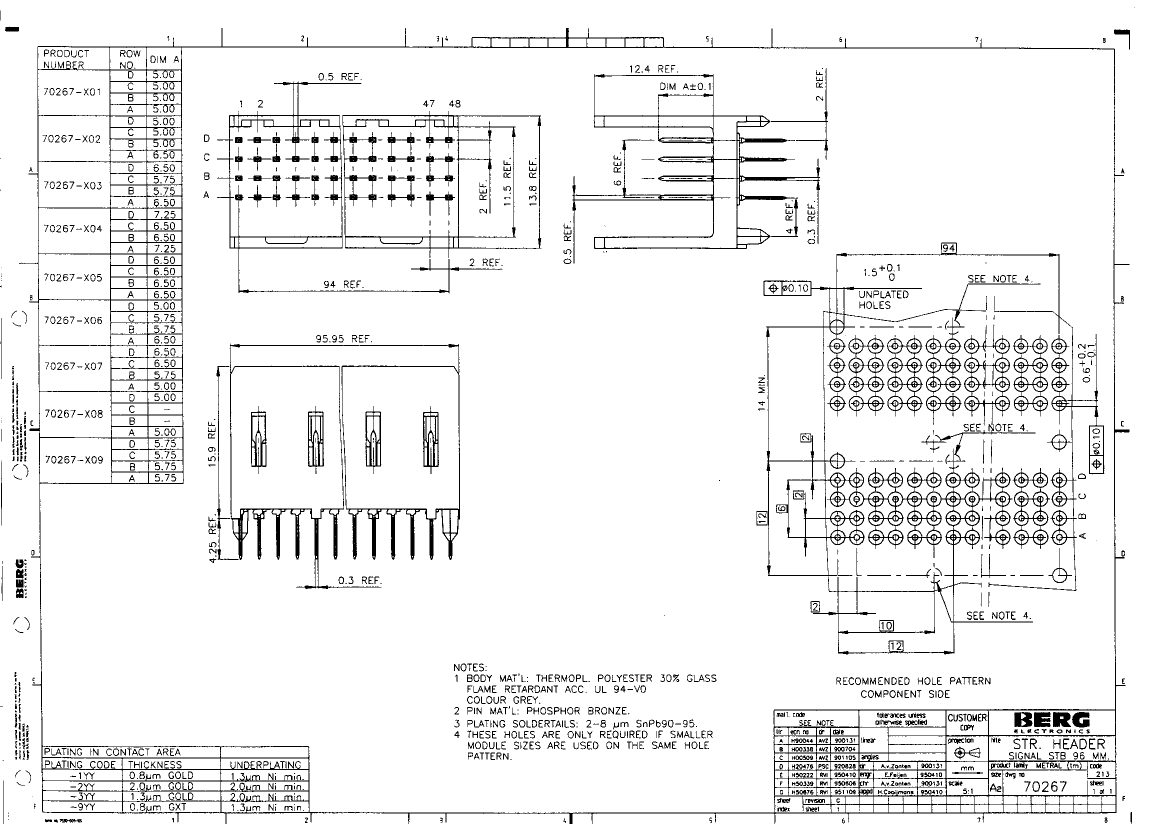

PDM: Rev:G

STATUS:

Released

Printed: Aug 18, 2002
