1S1-MSP3-R2/2M6KE datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 1S1-MSP3-R2/2M6KE

1S1-MSP3-R2/2M6KE: DescriptionRocker Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Narrow Rocker Type Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size1MB，5 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric View All

1S1-MSP3-R2/2M6KE Overview

Rocker Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Narrow Rocker Type Actuator, Through Hole-right Angle

1S1-MSP3-R2/2M6KE Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	NARROW ROCKER TYPE
body width	8.1 mm
body height	5.1 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e0
Manufacturer's serial number	1S1
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	TIN LEAD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Carling

Technologies

™

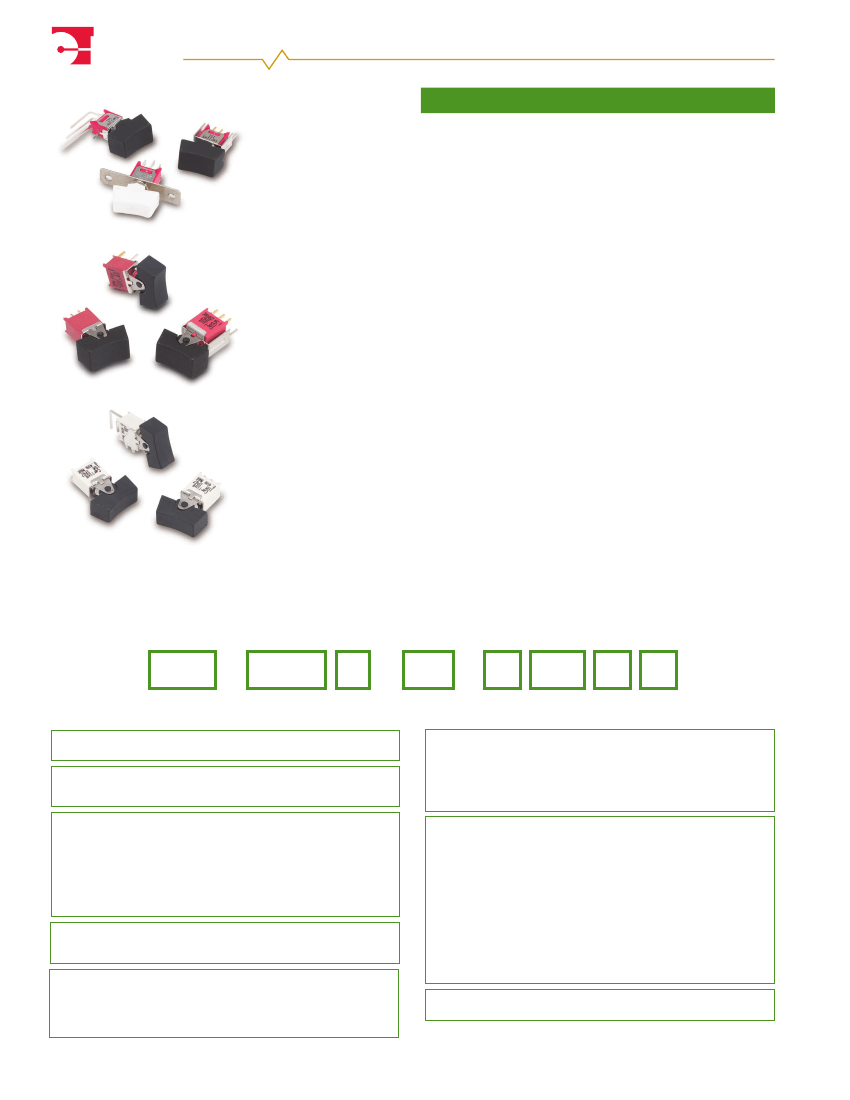

1S-Series Sub-Miniature Rocker Switches

1S1-Series

Sub-Miniature Rocker

Switch

Specifications

Contact Rating . . . . . . . . . refer to ordering scheme

Electrical Life . . . . . . . . . .

1S1-Series:

30,000 make & break

cycles @ full load

1SS & 1SM-Series:

50,000 make &

break cycles @ full load

Contact Resistance. . . . . . 20 mΩ max. initial @ 2-4 VDC

100mA for both silver & gold plated

contacts.

Insulation Resistance . . . 1000 MΩ min.

Dielectric Strength . . . . . . 1500 Volts RMS @ sea level

Operating Temperature . . . -30°C to +85°C

Index of Protection . . . . . .

1SS & 1SM-Series:

IP67

Solder Heat Resistance. . . MIL-STD-202, Method 210

Actuator Travel . . . . . . . . . 25°

1SS-Series

Sealed

Sub-Miniature

Rocker Switch

Materials

Case . . . . . . . . . . . . . . . . all UL94 V-0

1S1-Series:

Dially phthalate (DAP)

1SS-Series:

Glass filled nylon 6/6,

flame retardant, heat stabilized

1SM-Series:

Glass filled nylon 4/6,

flame retardant, heat stabilized

Rocker. . . . . . . . . . . . . . .

1S1-Series:

Nylon (UL 94V-0)

1SS & 1SM-Series:

Nylon, black

standard, internal o-ring sealed

Bushing . . . . . . . . . . . . . .

1S1-Series:

Brass, nickel plated

1SS-Series:

Glass filled nylon 6/6,

flame retardant, heat stabilized (UL

94V-0)

1SM-Series:

Glass filled nylon 4/6,

flame retardant, heat stabilized (UL

94V-0)

Housing. . . . . . . . . . . . . . .1S1-Series: Stainless Steel

Switch Support . . . . . . . . .

1S1 & 1SM-Series:

Brass, tin plated

Terminal Seal . . . . . . . . . . Epoxy

1SM-Series

Sealed Surface

Mount

Sub-Miniature

Rocker Switch

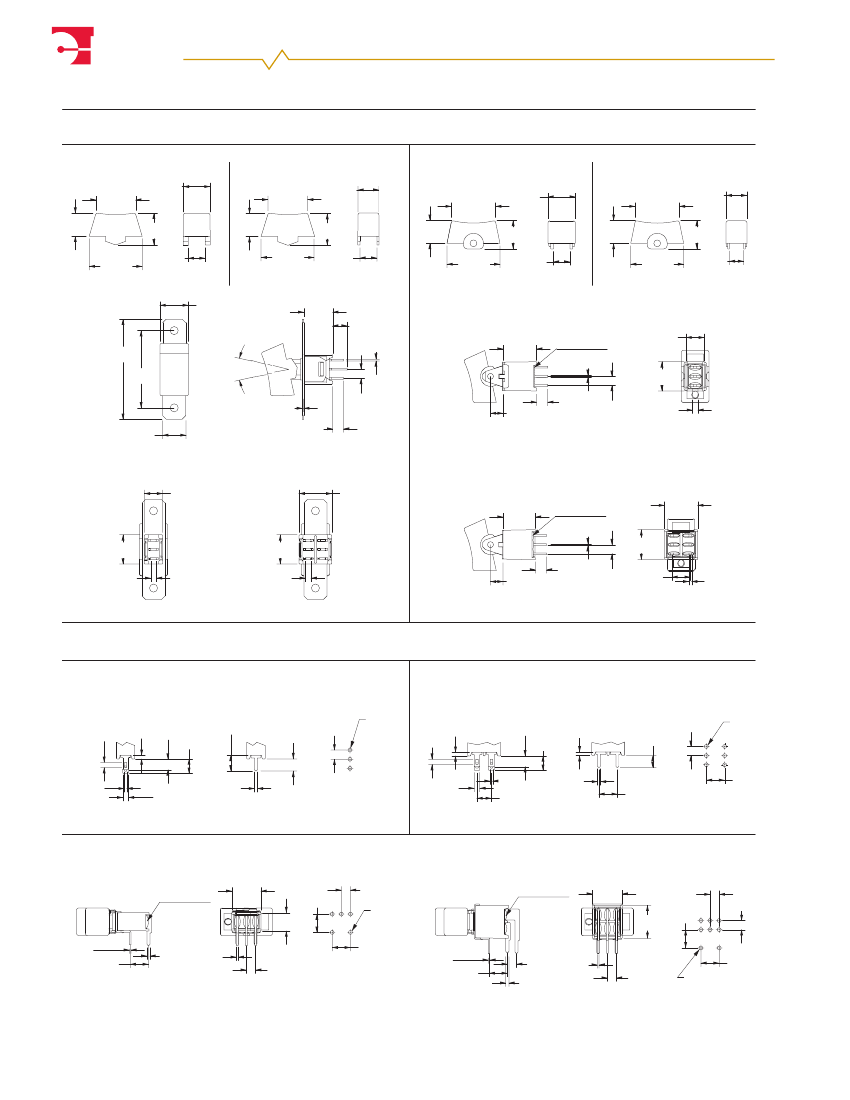

1S1-Series Ordering Scheme

1S1

MSP 1

2 M6 Q E

Series

Poles

Circuit

Actuator Style

Actuator

Color

Termination

Contact

Seal

1 SERIES

1S1

Sub-Miniature Rocker Switch

2 POLES

MSP

single pole - uses terminals 1, 2 & 3.

MDP

double pole uses terminals 1,2, 3, 4, 5 & 6.

3 CIRCUIT

( ) - momentary

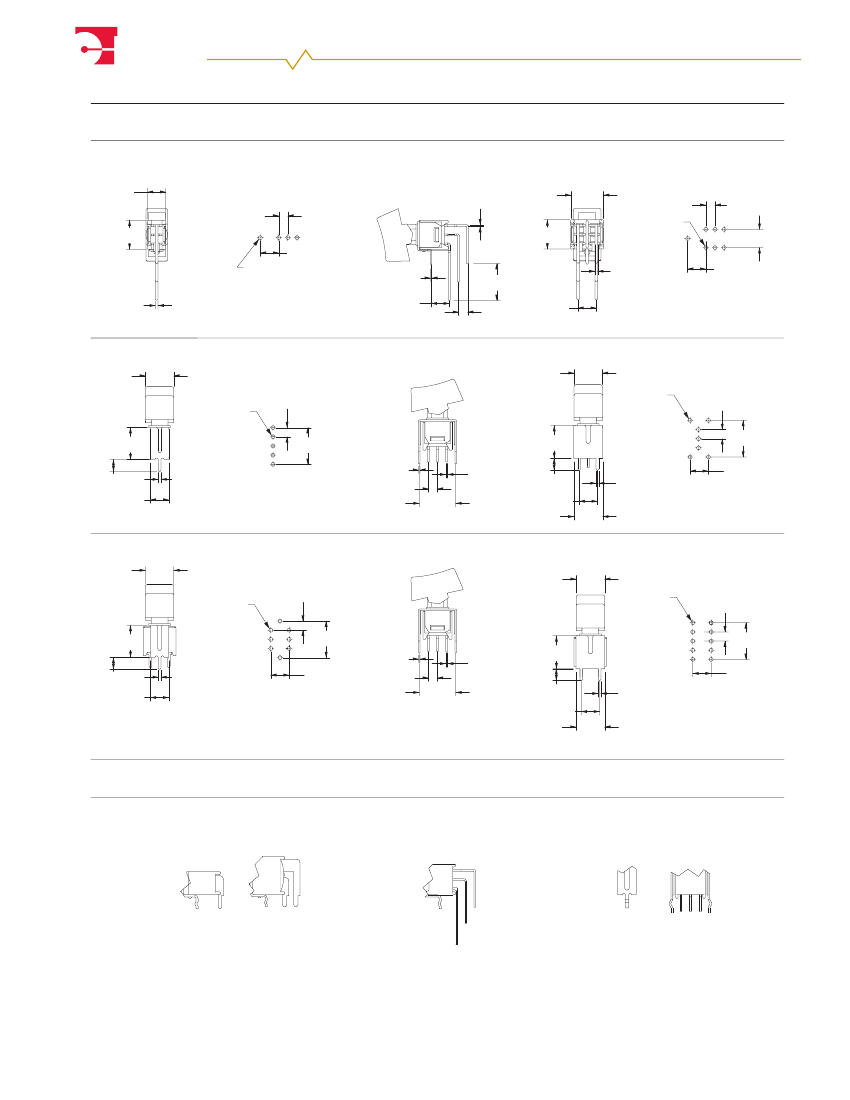

6 TERMINATION

Solder Lug

PCB

PC Mount, 90° horizontal

PC Mount, 90° vertical

VS2

PC Mount, U bracket,

.620 mounting x .460 high

VS3

PC Mount, U bracket,

.620 mounting x .630 high

M61

Snap-In, U bracket,

90° horizontal

M71

Snap-In, U bracket,

90° vertical

VS21

Snap-In, U bracket

Switching Position:

2-3, 5-6

(ON)

OPEN

NONE

OFF

2-1, 5-4

(ON)

7 CONTACT

Material Terminal Plating Rating

silver

gold over silver

3A@125VAC or 28VDC,

1.5A @ 250VAC

gold

tin-lead

0.4VA max. @20V max (AC/DC)

silver

tin-lead

3A@125VAC or 28VDC,

1.5A @ 250VAC

silver

3A@125VAC or 28VDC,

1.5A @ 250VAC

gold

0.4VA max. @20V max (AC/DC)

Approvals

UL CSA

–

UL CSA

–

4 ACTUATOR STYLE

Small rocker

Narrow black rocker

5 ACTUATOR COLOR

white

black

red

NOTE:

Tin-lead option available with PC type terminations only.

Moveable contact & terminals: copper alloy, silver plated

Moveable contact & terminals: copper alloy with gold plate over nickel plate

Terminals: silver plated with outer layer in gold plating

Outer terminals: copper alloy with tin-lead over nickel plate

orange

yellow

green

blue

brown

gray

8 EPOXY SEAL

epoxy seal

Black, white and red are standard. Other colors available, consult factory.

www.carlingtech.com
