10Gbps 1310 nm 0 ~ 85ºC
MQW-DFB Laser Diode Module-TOSA
C-13-DFB10-TX-SXXXX-HT

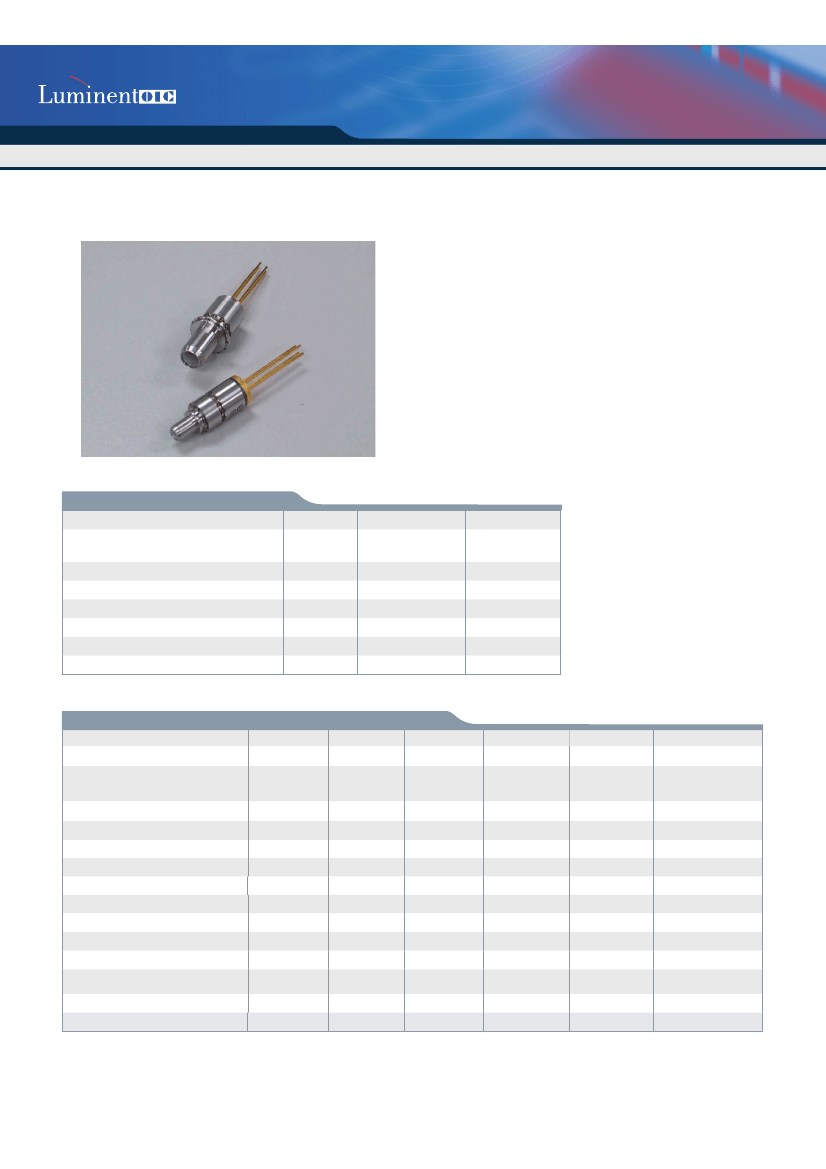

Features
• Uncooled DFB Laser diode with MQW structure
• Hermetically sealed active component
• Built-in InGaAs monitor photodiode
• Single frequency operation with high SMSR
• Integrated 4-pin TO-18 TOSA package, with built-in isolator, for
SC/LC connector
• Designed for 10Gbps Ethernet application.
Absolute Maximum Rating (Tc=25ºC)
Parameter
Fiber Output Power (Middle power)
(High power)
LD Reverse Voltage
LD Forward Current
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
Symbol
P
O
V
RLD
I
FLD
V
RPD
I
FPD
T
opr
T
stg
Value
2(CW)
4(CW)
2
150
10
2.0
0 to +85
-40 to +85
Unit
mW
V
mA
V
mA
ºC
ºC
(All optical data refer to a coupled 9/125µm SM fiber)
Optical and Electrical Characteristics( T=0 to 70ºC unless otherwise noted)
Parameter
Threshold Current
Optical Output Power (Middle power)
(High power)
Operating Current
Peak Wavelength
Spectral Width (RMS)
Side Mode Suppression
Wavelength Temperature Coefficient
Forward Voltage
Rise/Fall Time, 20 to 80%*
Relative Intensity Noise
Tracking Error
PD Monitor Current
PD Dark Current
PD Capacitance
Symbol
I
th
P
o
I
op
Min
-
0.3
1.5
-
1295
-
30
-
-
-
-
-1.5
100
-
-
Typical
10
-
40
1310
-
-
0.08
1.5
40
-
-
-
-
6
Max
15
1
2.5
-
1325
1
-
0.1
-
-
-130
1.5
-
0.1
15
Unit
mA
mW
mA
nm
nm
dB
nm/ºC
V
ps
dB/Hz
dB
µA
µA
pF
Test Condition
T=25ºC
I
op
=40mA,CW,T=25º
T=25ºC
CW, T=25º, @ I
op
P
o
=2mW, CW
CW, @ I
op
CW, @ I
op
CW, T=25ºC, @ I
op
I
m
=constant, CW
CW, V
RPD
=5V, T=25ºC
@ I
op
V
RPD
=5V
V
RPD
=5V, f=1MHz
λ
∆λ
Sr
δλ/δT
V
F
t
r
/t
f
RIN
∆P
f
/P
f
I
m
I
DARK
C
t
*10.3125Gb/s PRBS 2
31
-1, Er=6.0dB, @ I
OP
, and T=25ºC
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMINENTOIC.COM
1
LUMNDS619-JAN2505
rev. A.3
10Gbps 1310 nm 0 ~ 85ºC
MQW-DFB Laser Diode Module-TOSA
C-13-DFB10-TX-SXXXX-HT

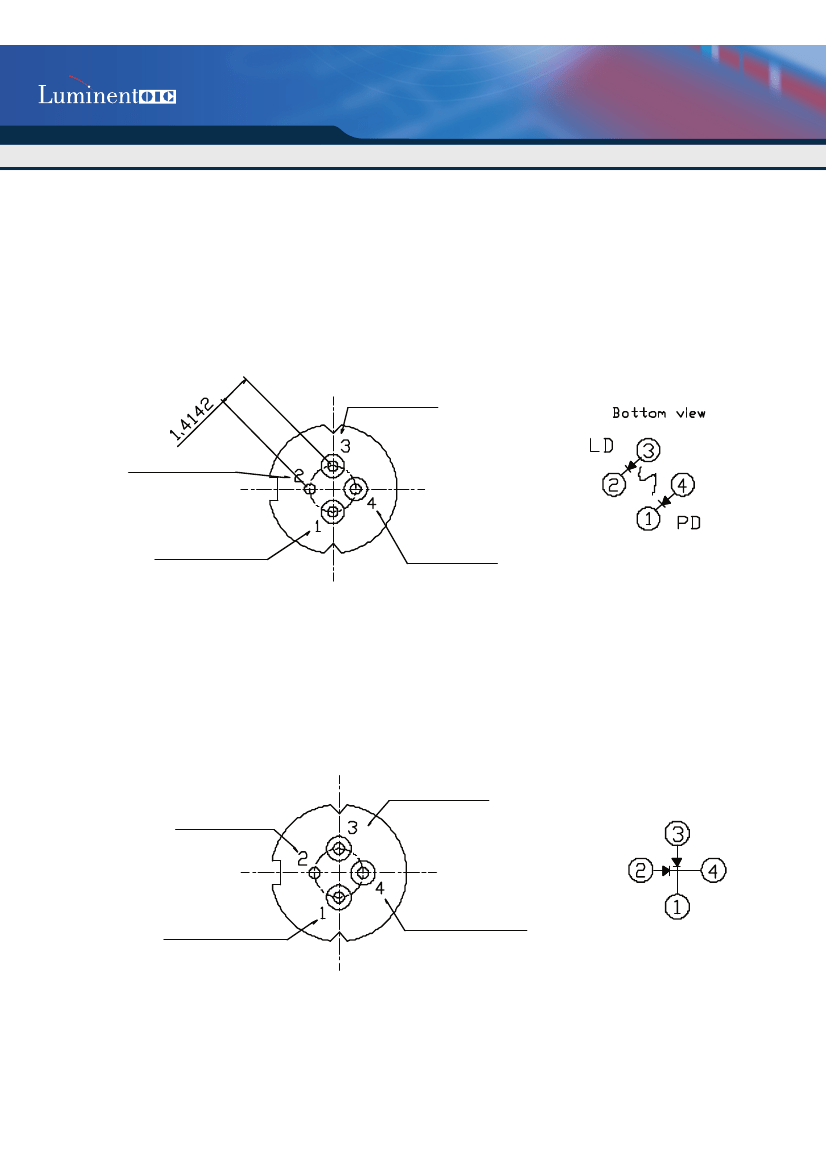

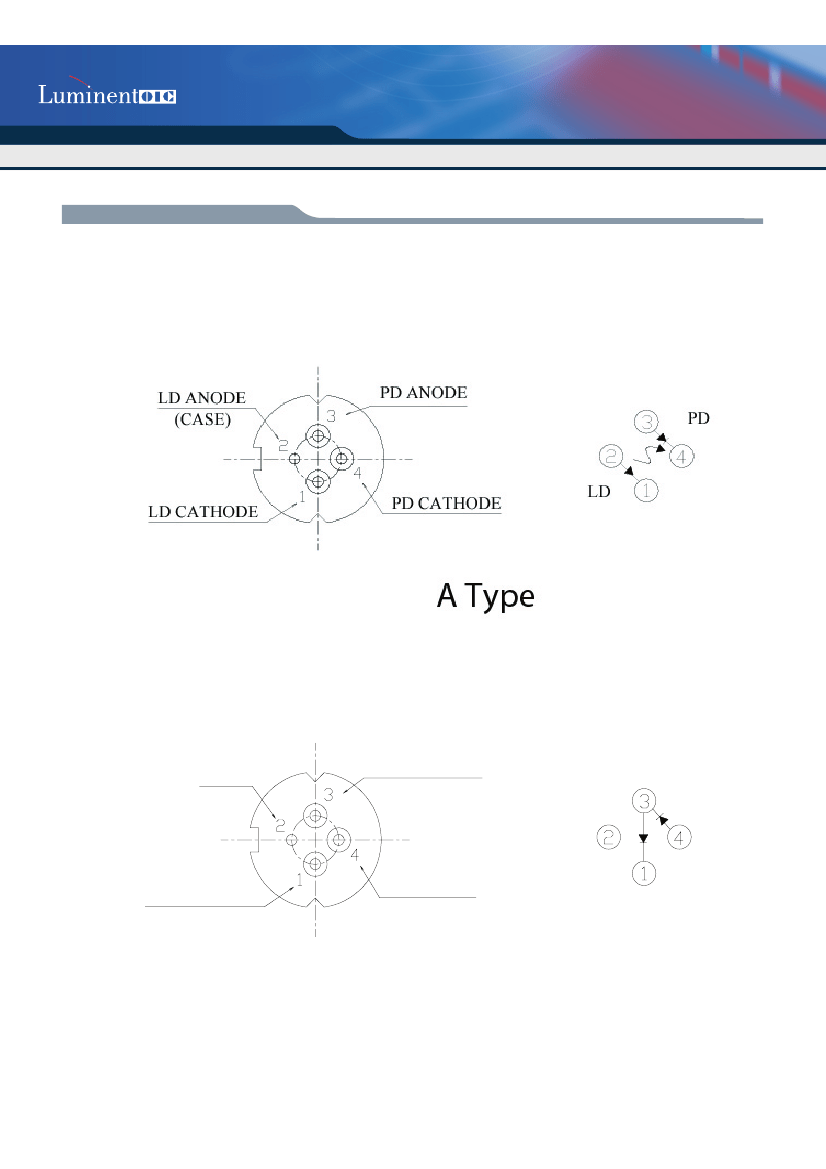

Pin Assignment
Bottom view
Bottom view
CASE
LD ANODE
PD CATHODE
PD
LD CATHODE
PD ANODE
LD
G Type
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS619-JAN2505
rev. A.3
10Gbps 1310 nm 0 ~ 85ºC
MQW-DFB Laser Diode Module-TOSA
C-13-DFB10-TX-SXXXX-HT
Bottom view
mm
LD CATHODE
(CASE)
LD ANODE
PD CATHODE
PD ANODE
J Type
Bottom view
CASE
PD ANODE
LD ANODE
LD
PD
LD CATHODE
PD CATHODE
K Type
K Type
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS619-JAN2505
rev. A.3
10Gbps 1310 nm 0 ~ 85ºC
MQW-DFB Laser Diode Module-TOSA
C-13-DFB10-TX-SXXXX-HT

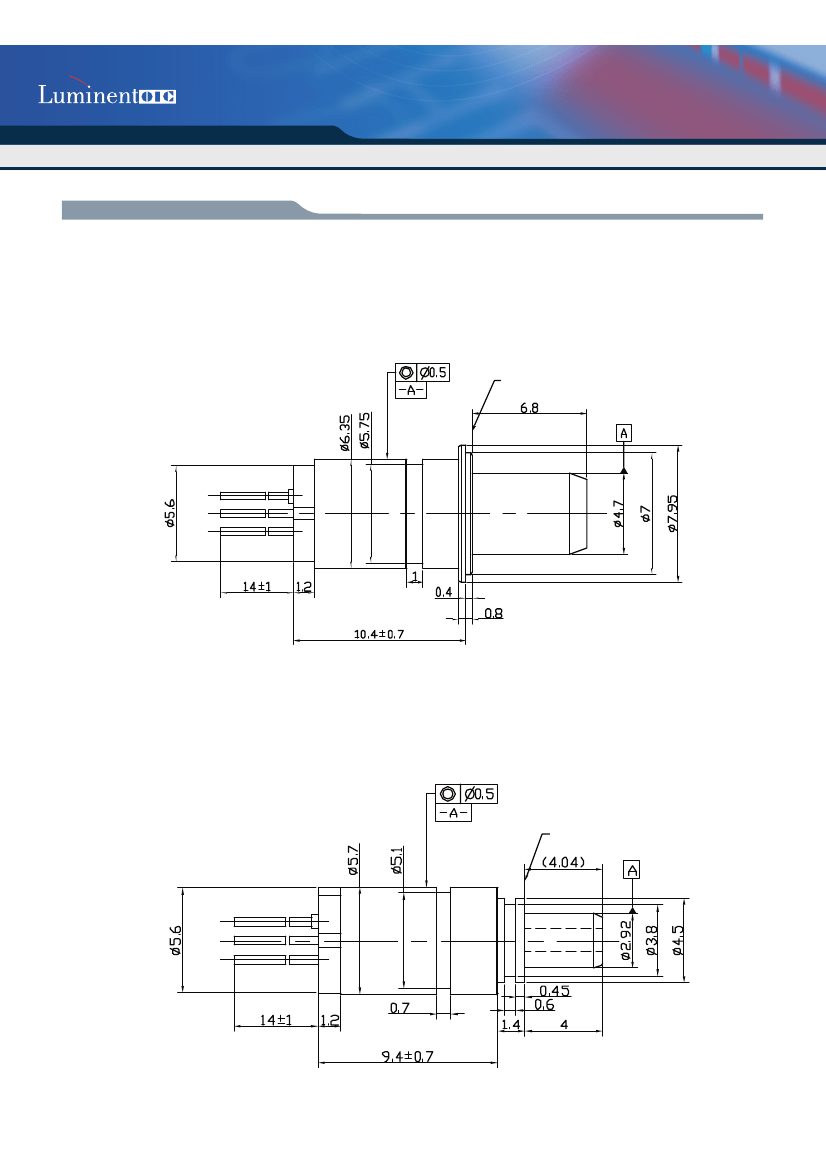

Packaging Dimensions
Units in mm
C-13-DFB10-TX-SSC2I-HT
Optical Plane
C-13-DFB10-TX-SLC2I-HT
Optical Plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS619-JAN2505
rev. A.3
10Gbps 1310 nm 0 ~ 85ºC
MQW-DFB Laser Diode Module-TOSA
C-13-DFB10-TX-SXXXX-HT

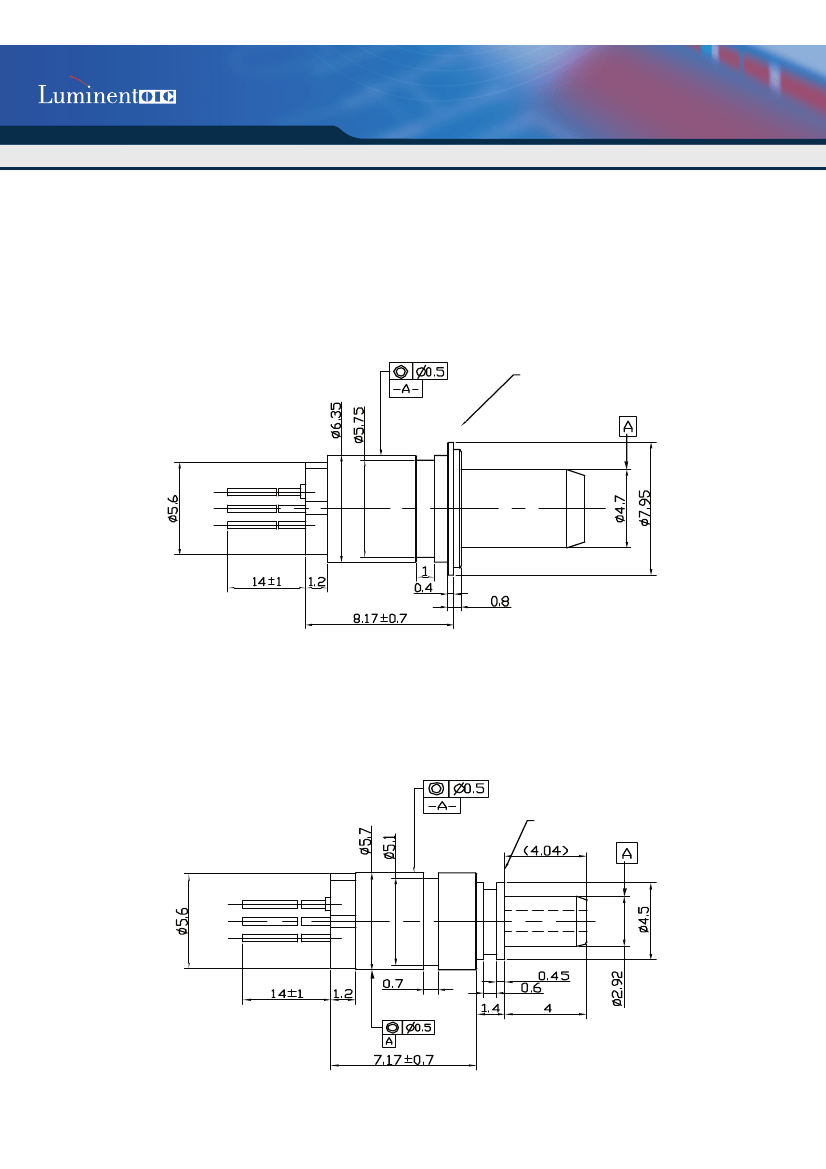

Units in mm
C-13-DFB10-TX-SSCMI-HT
Optical Plane
C-13-DFB10-TX-SLCMI-HT
Optical Plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
5
LUMNDS619-JAN2505
rev. A.3
