89434-001 datasheet, PDF - EEWORLD Datasheet

89434-001: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size197KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89434-001 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	OTHER STACKING CONNECTOR: 25 CONTACTS; SHELL SIZE: 3/B
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	89434
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

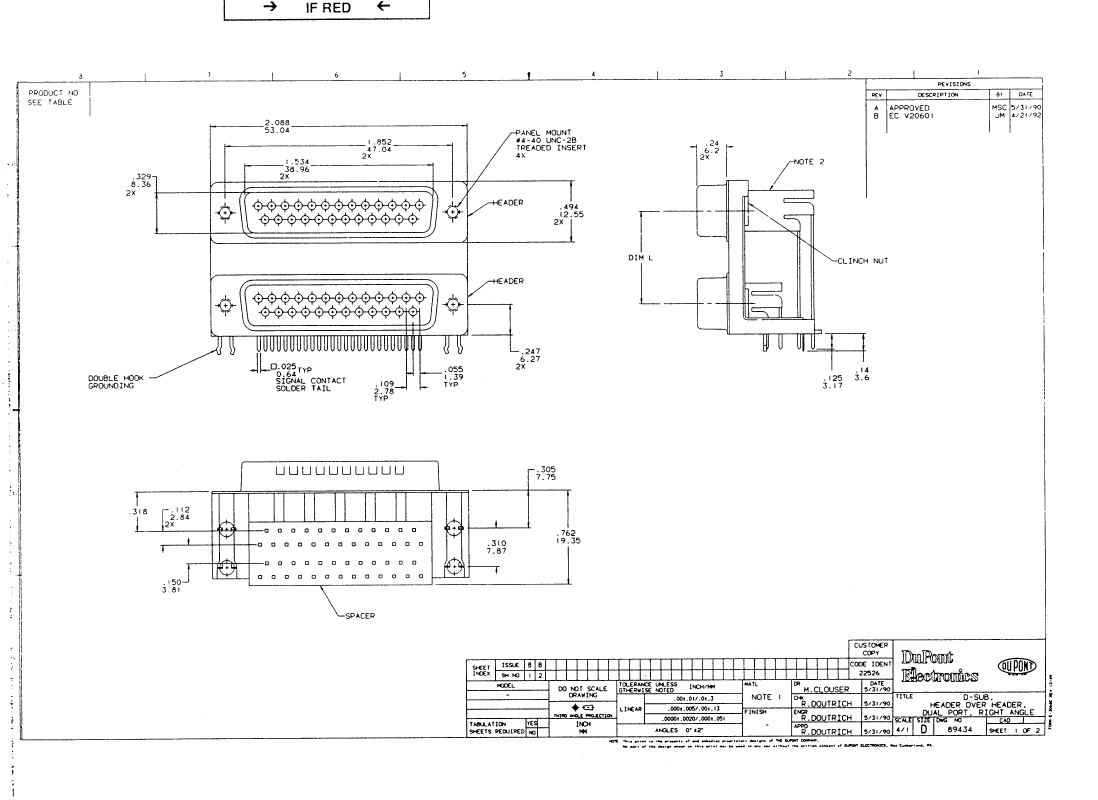

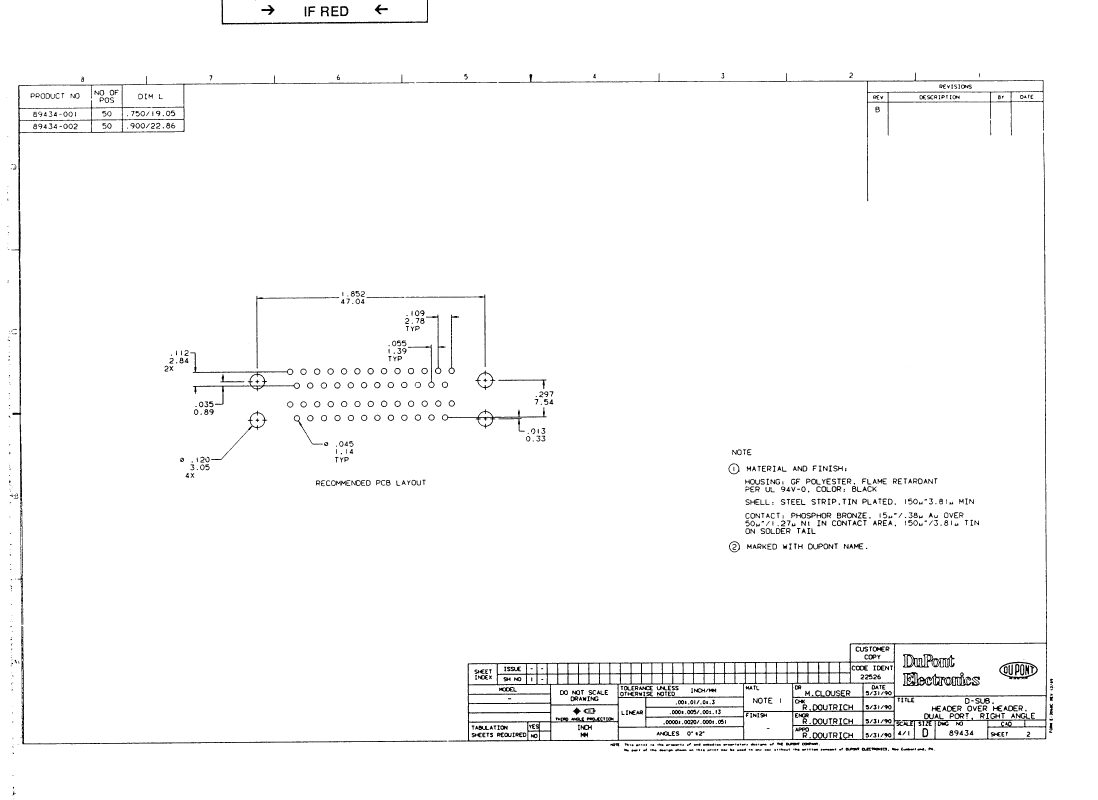

PDM: Rev:B

STATUS:

Released

Printed: Nov 10, 2004

	89434-001	89434-002
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Other features	OTHER STACKING CONNECTOR: 25 CONTACTS; SHELL SIZE: 3/B	OTHER STACKING CONNECTOR: 25 CONTACTS; SHELL SIZE: 3/B
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO
Manufacturer's serial number	89434	89434
Mixed contacts	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	3/B	3/B
Termination type	SOLDER	SOLDER
Total number of contacts	25	25
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
