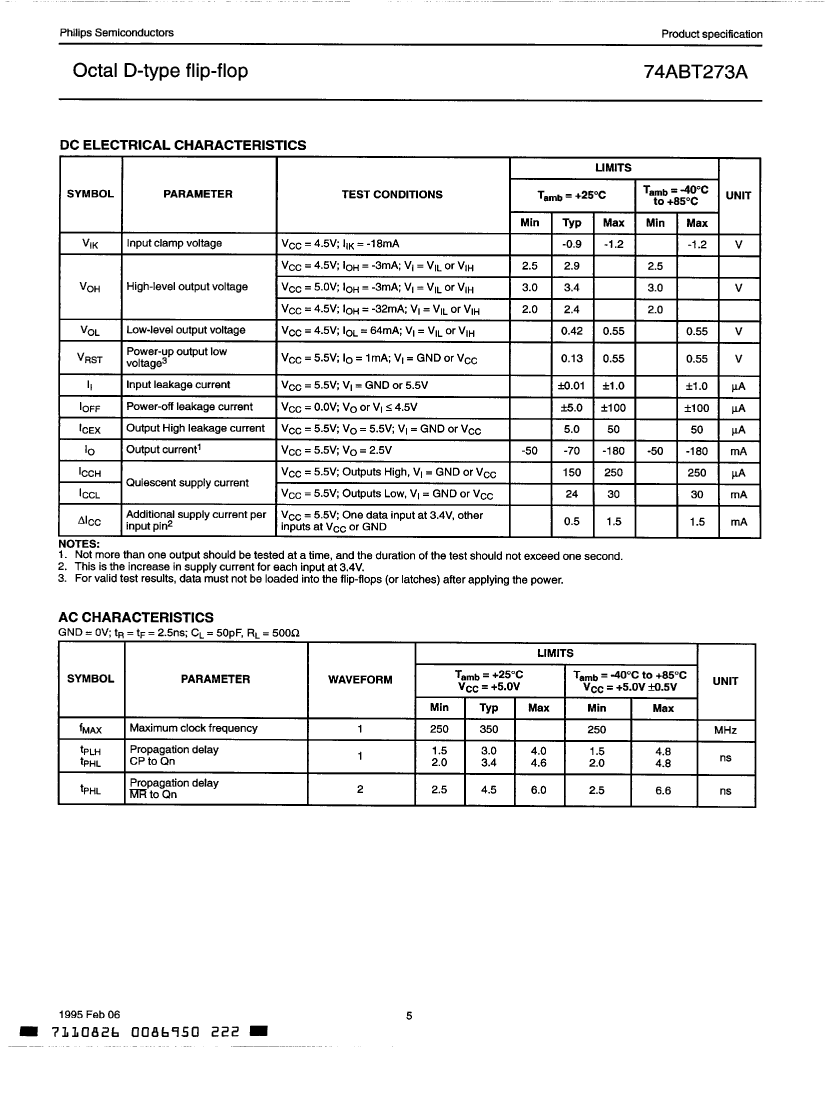

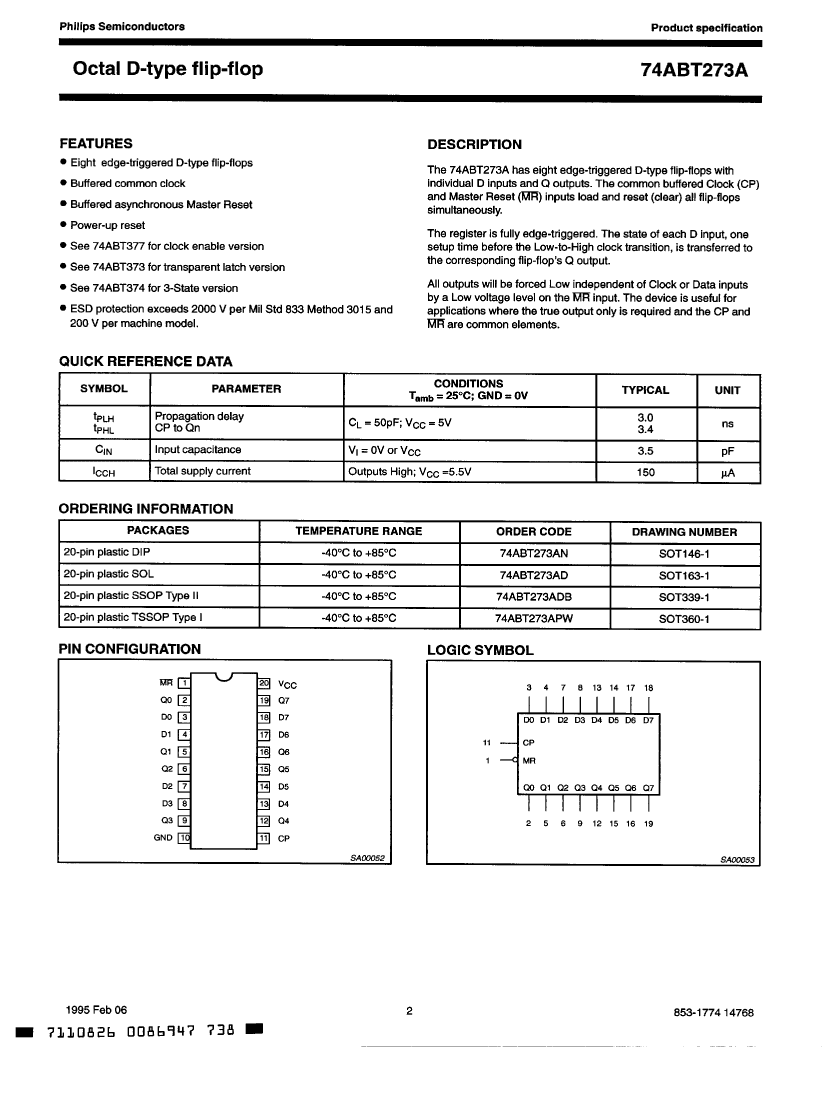

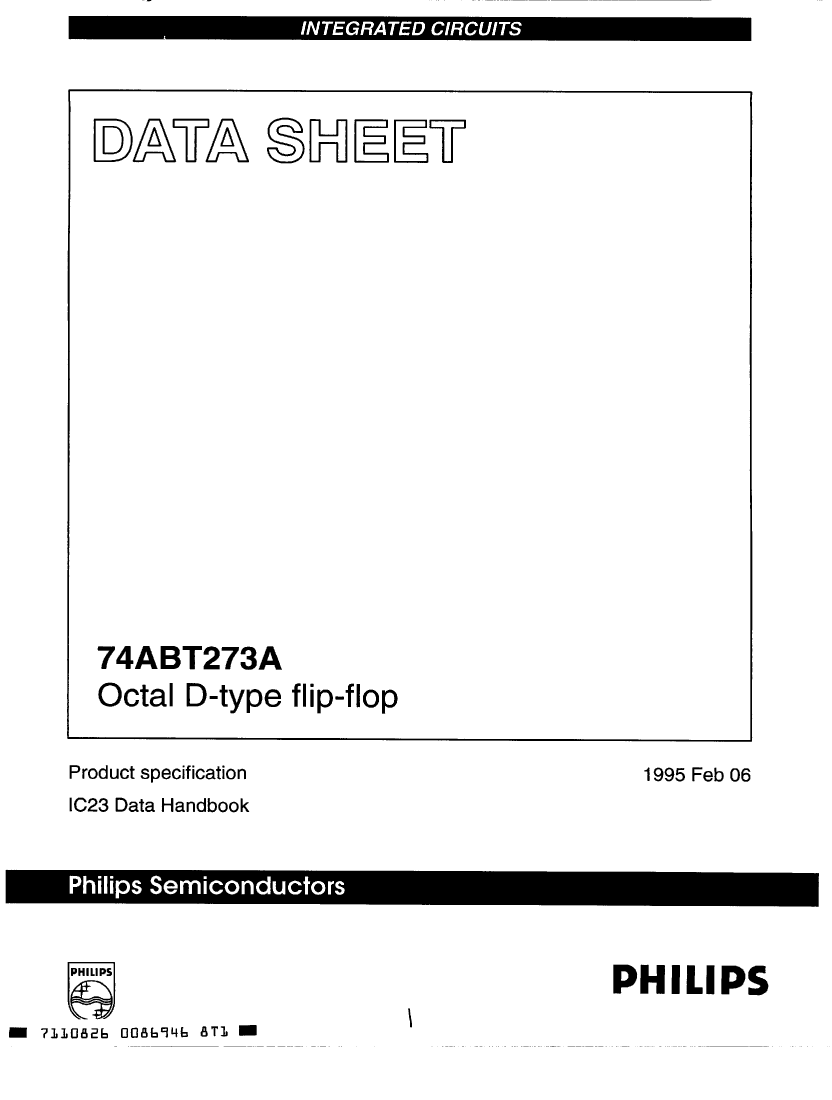

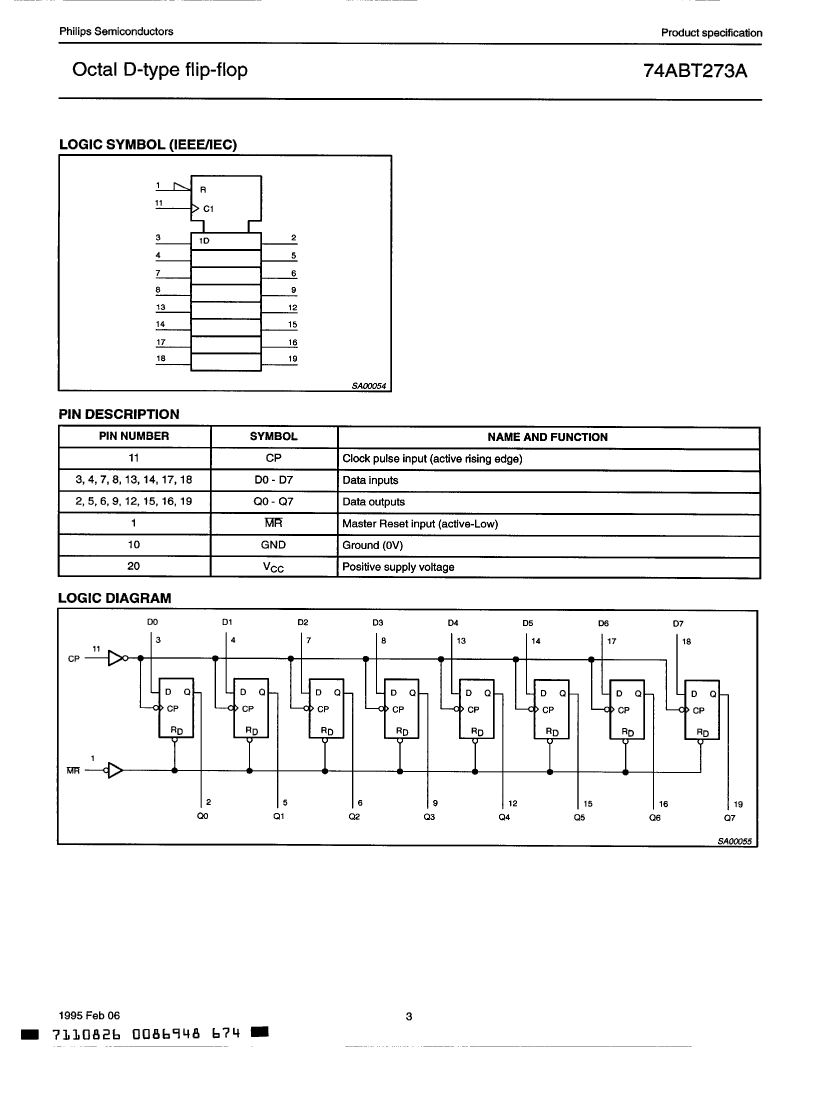

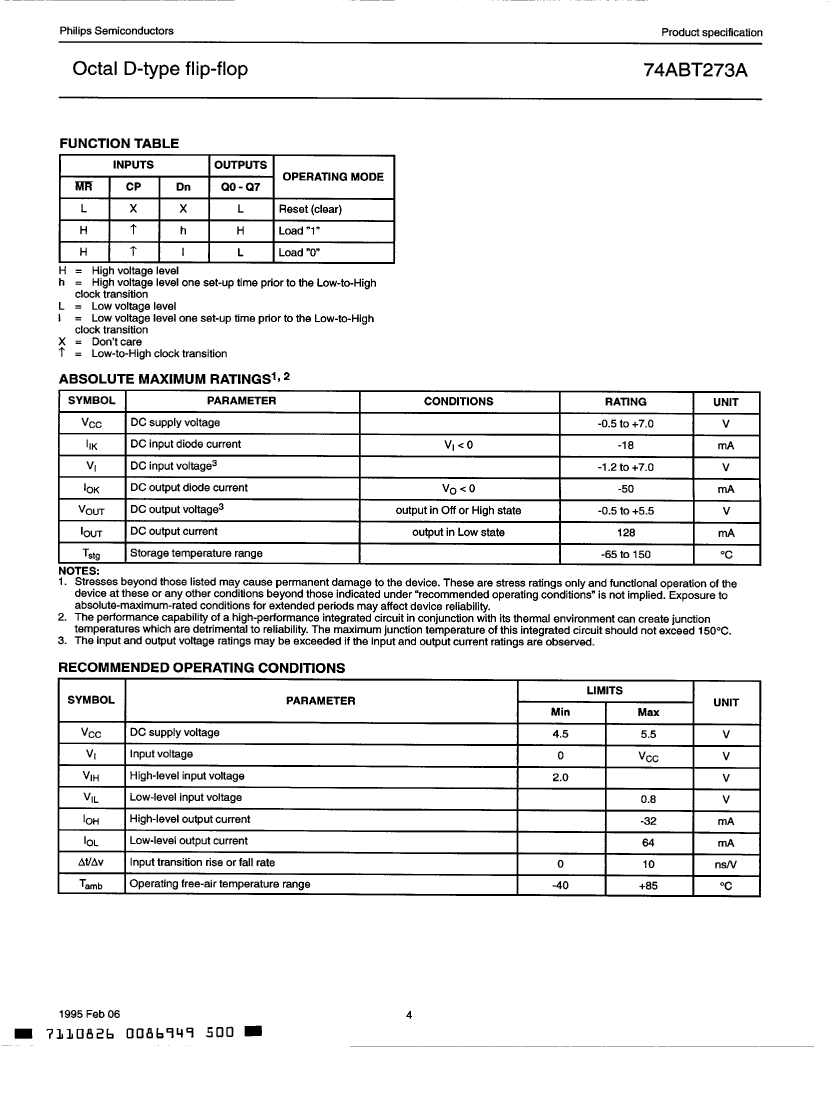

Preview

74ABT273ADB: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,; Categorylogic logic; File Size255KB，11 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74ABT273ADB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74ABT273ADB	-	-	View	Buy Now

74ABT273ADB Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,

74ABT273ADB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	250000000 Hz
MaximumI(ol)	0.064 A
Humidity sensitivity level	1
Number of functions	8
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

74ABT273ADB Related Products

	74ABT273ADB	74ABT273APW	74ABT273AD
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,	D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,	D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP20,.3	TSSOP, TSSOP20,.25	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	250000000 Hz	250000000 Hz	250000000 Hz
MaximumI(ol)	0.064 A	0.064 A	0.064 A
Number of functions	8	8	8
Number of terminals	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	SOP
Encapsulate equivalent code	SSOP20,.3	TSSOP20,.25	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1
Humidity sensitivity level	1	-	1
