51915-225 datasheet, PDF - EEWORLD Datasheet

51915-225: DescriptionBoard Connector, 18 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size238KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

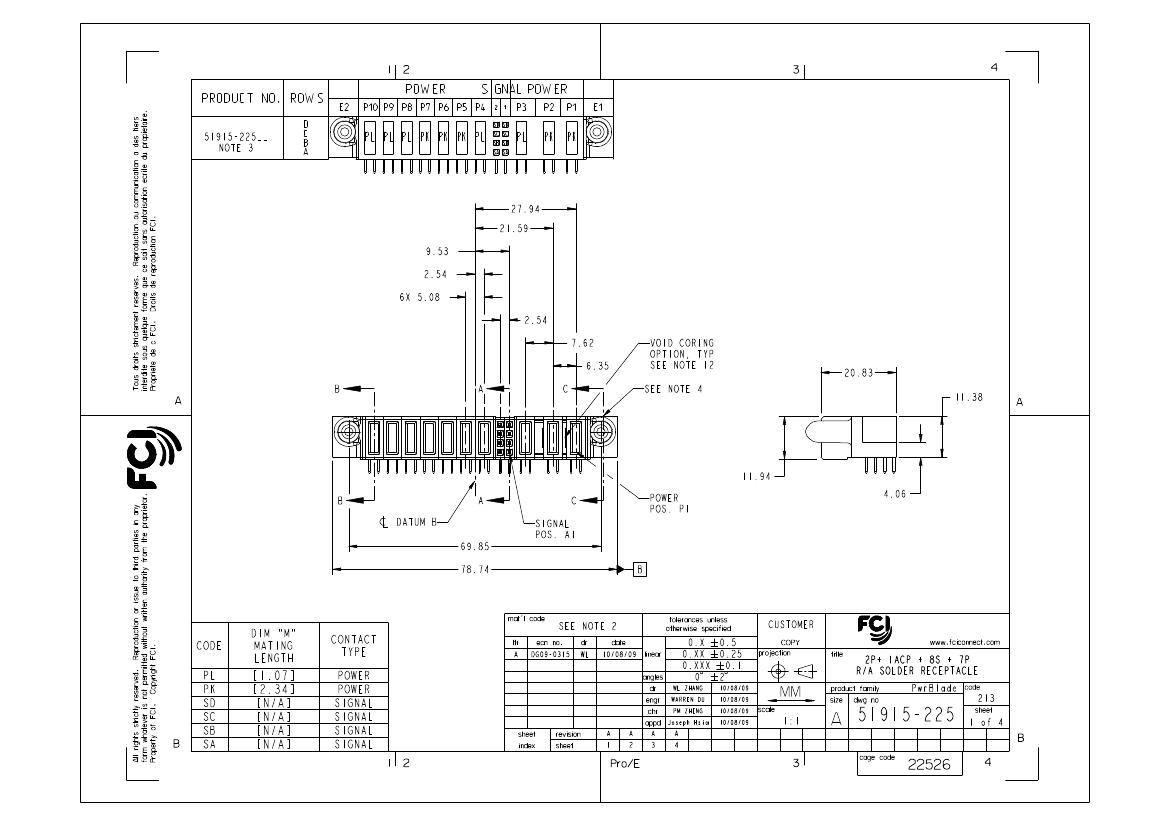

51915-225 Overview

Board Connector, 18 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.47 inch
subject depth	0.82 inch
body length	3.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S8P10
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51915
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	18
Evacuation force-minimum value	.17792 N
Base Number Matches	1

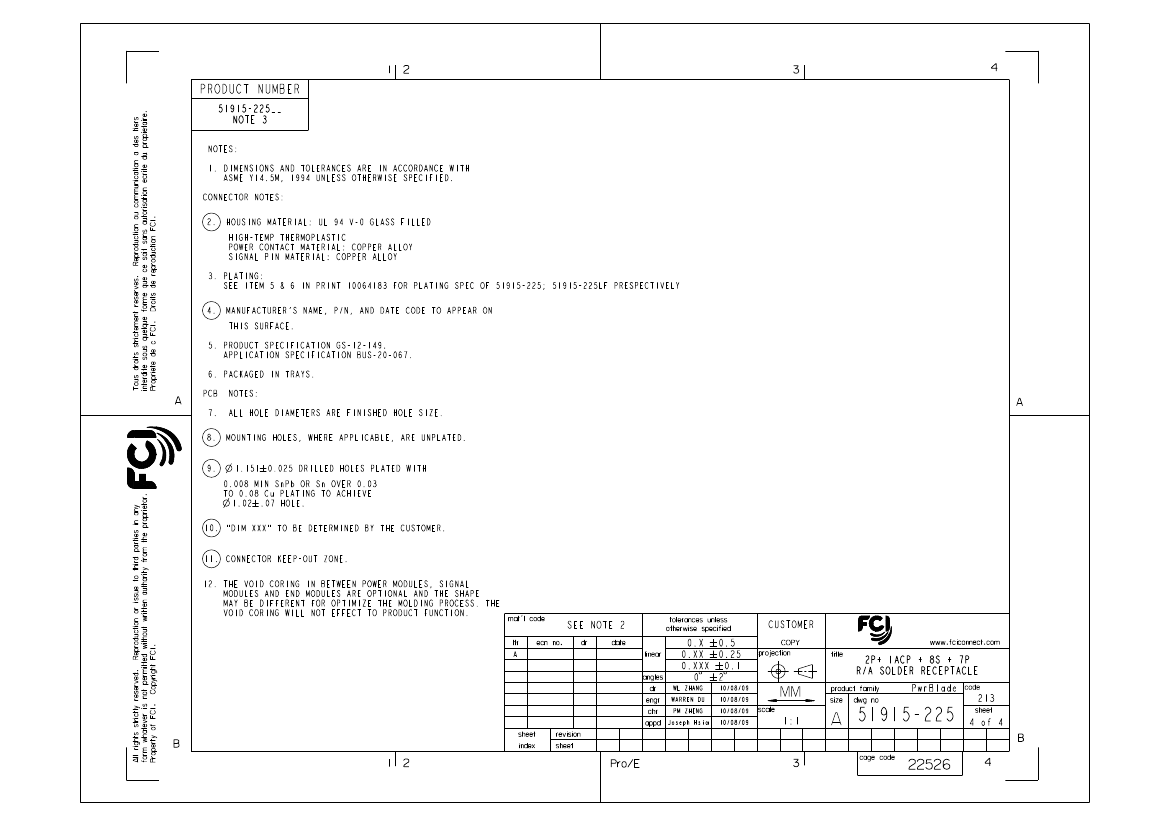

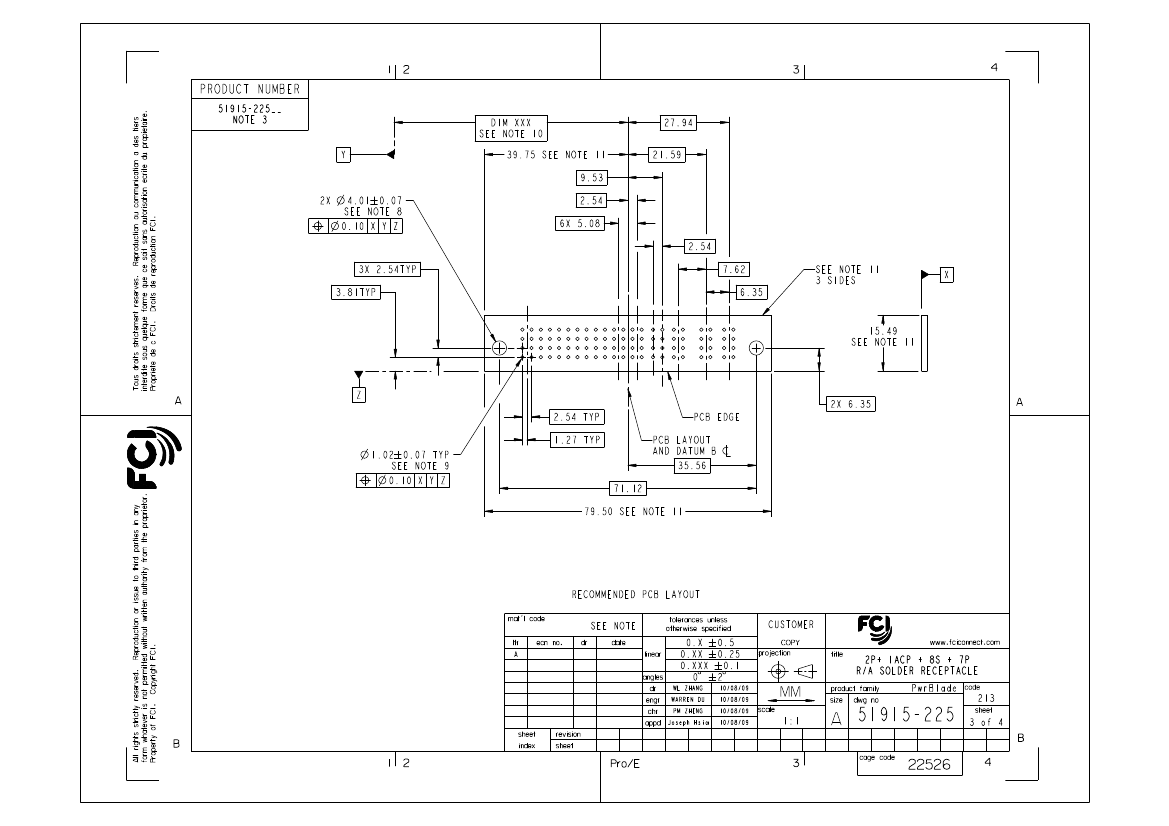

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

	51915-225	51915-225LF
Description	Board Connector, 18 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle	PwrBlade®, Power Connectors, 2P 1ACP 8S 7P Right Angle Receptacle, Solder To Board
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.47 inch	0.47 inch
subject depth	0.82 inch	0.82 inch
body length	3.1 inch	3.1 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S8P10	S8P10
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	18	18
Evacuation force-minimum value	.17792 N	.17792 N
