54ABT273/B2A datasheet, PDF - EEWORLD Datasheet

54ABT273/B2A: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20,; Categorylogic logic; File Size397KB，10 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

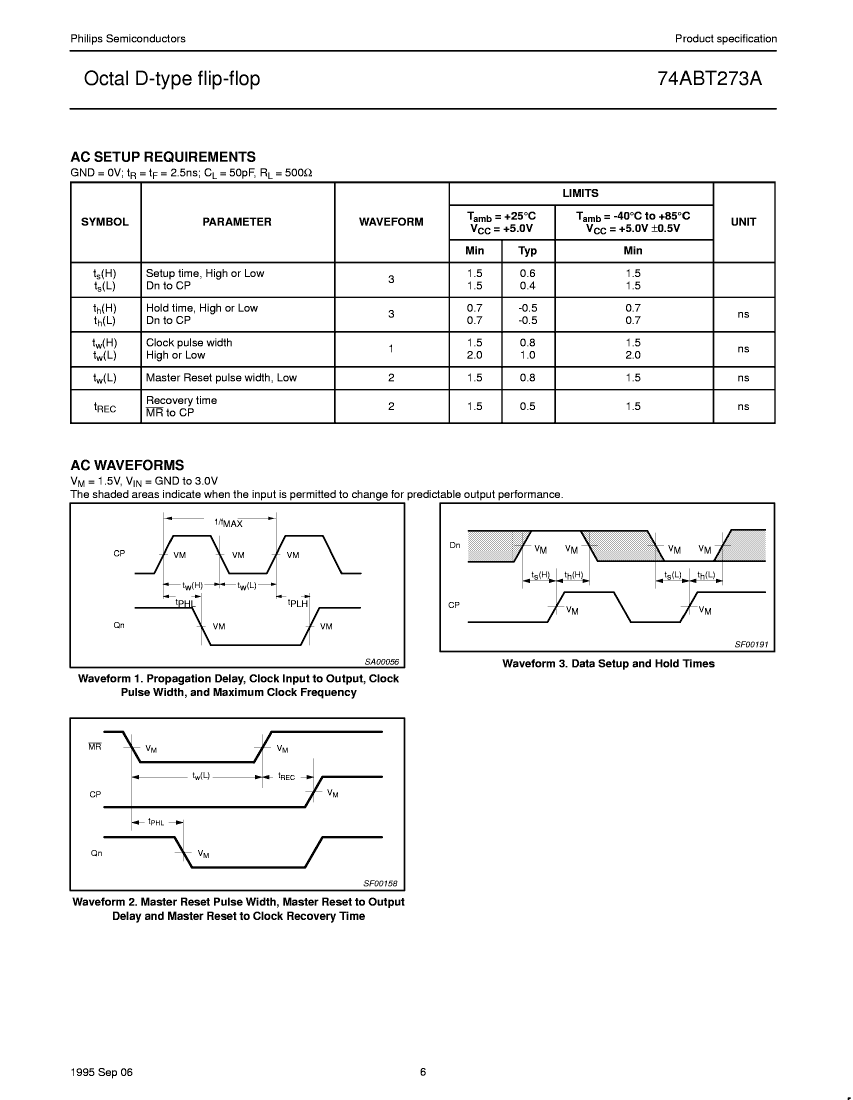

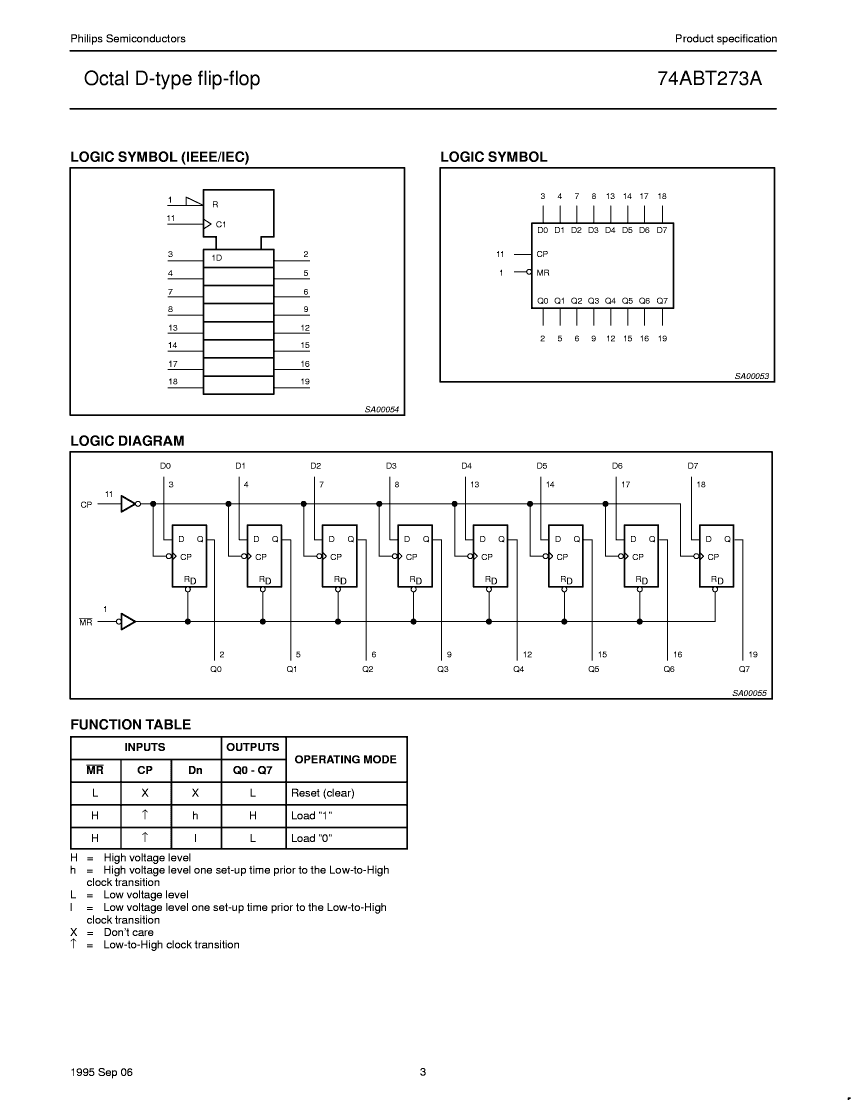

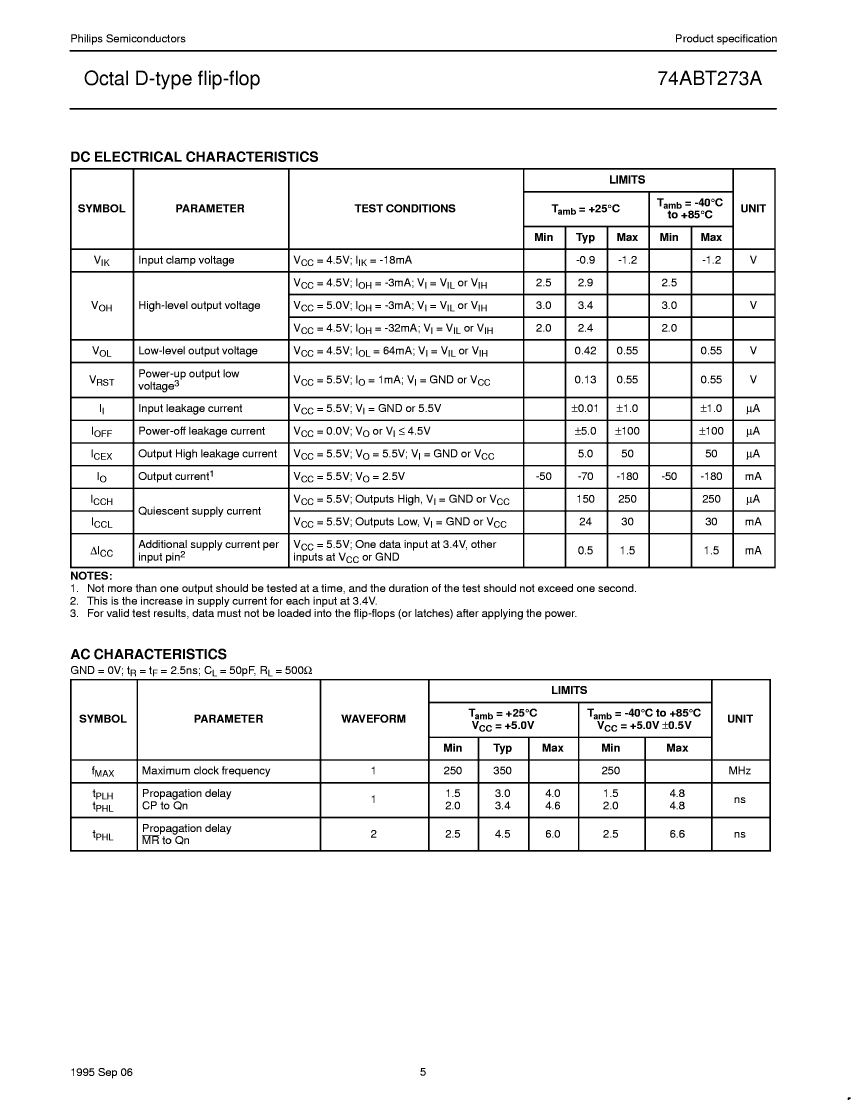

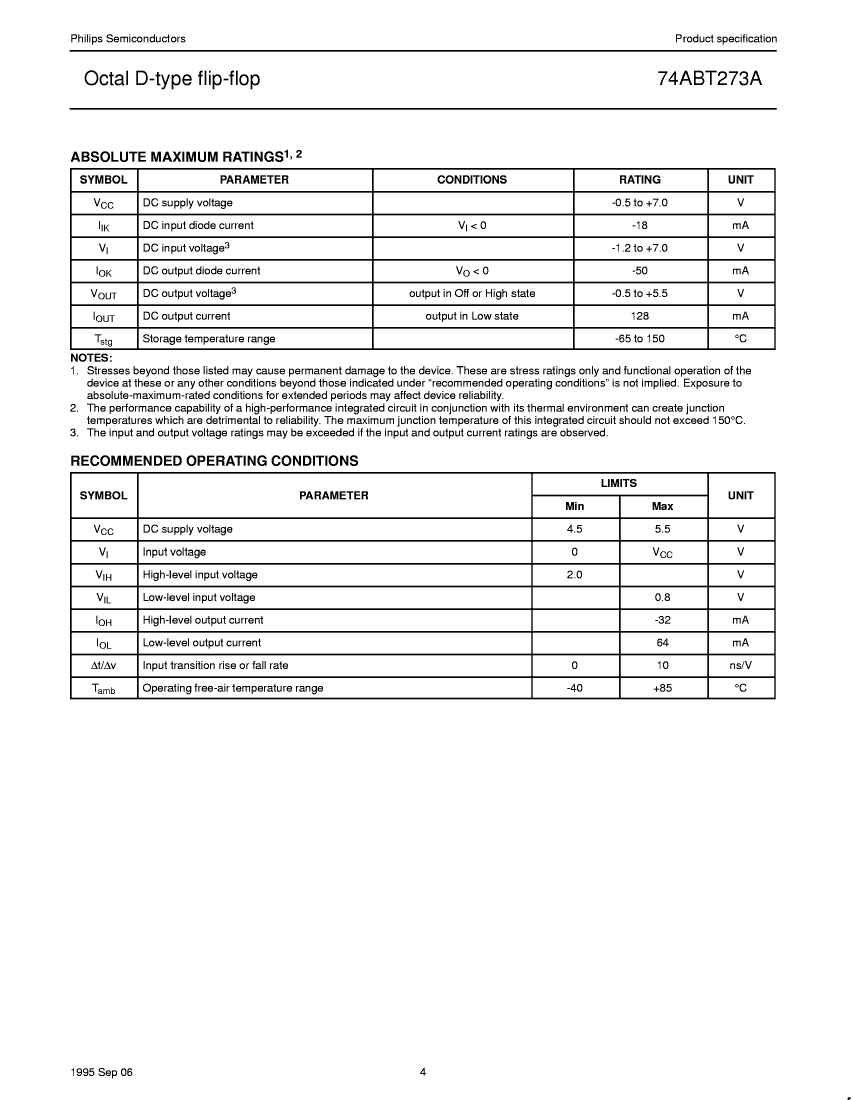

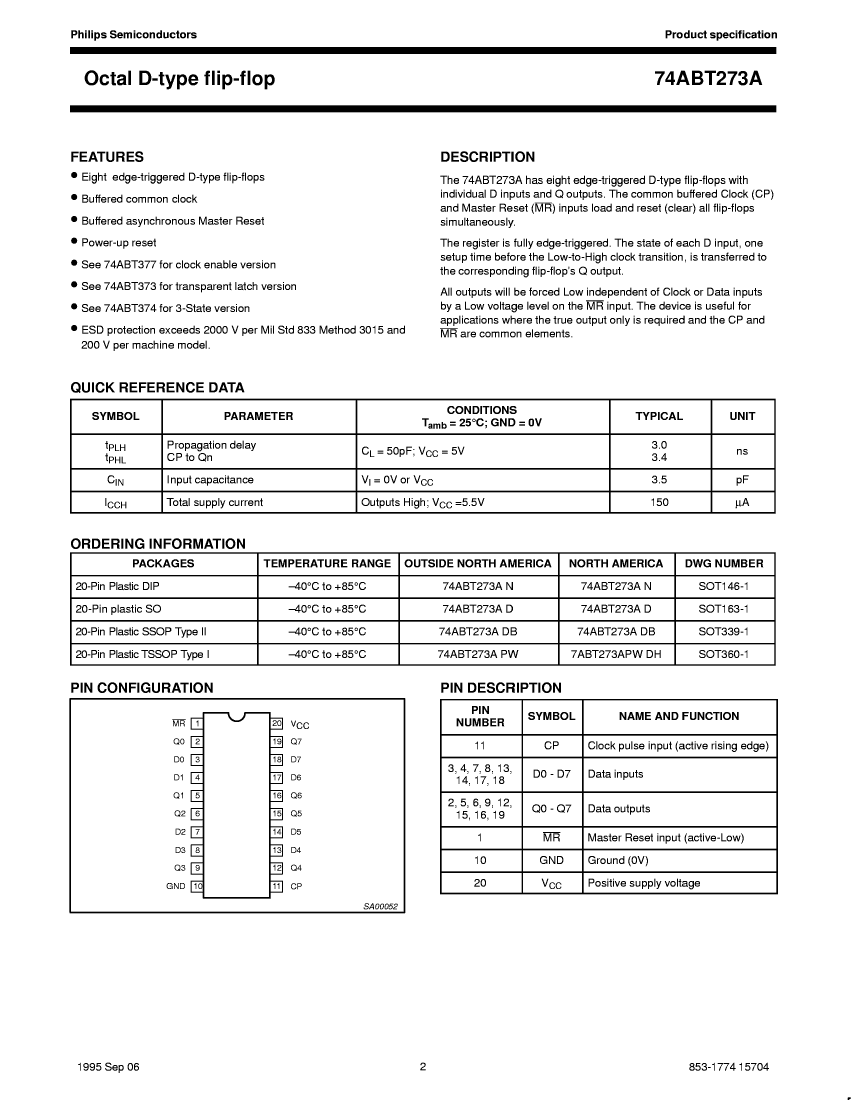

54ABT273/B2A Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	150000000 Hz
MaximumI(ol)	0.048 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	30 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1

	54ABT273/B2A	74ABT273D-T
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20,	D Flip-Flop, 8-Func, Positive Edge Triggered, PDSO20,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown
JESD-30 code	S-XQCC-N20	R-PDSO-G20
JESD-609 code	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	150000000 Hz	150000000 Hz
MaximumI(ol)	0.048 A	0.064 A
Number of functions	8	8
Number of terminals	20	20
Maximum operating temperature	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C
Package body material	CERAMIC	PLASTIC/EPOXY
encapsulated code	QCCN	SOP
Encapsulate equivalent code	LCC20,.35SQ	SOP20,.4
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE
power supply	5 V	5 V
Maximum supply current (ICC)	30 mA	30 mA
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
