85854-147 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85854-147

85854-147: DescriptionBoard Connector, 36 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size2MB，20 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85854-147 Overview

Board Connector, 36 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle

85854-147 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.701 inch
subject depth	0.669 inch
body length	1.887 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	85854
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	4 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

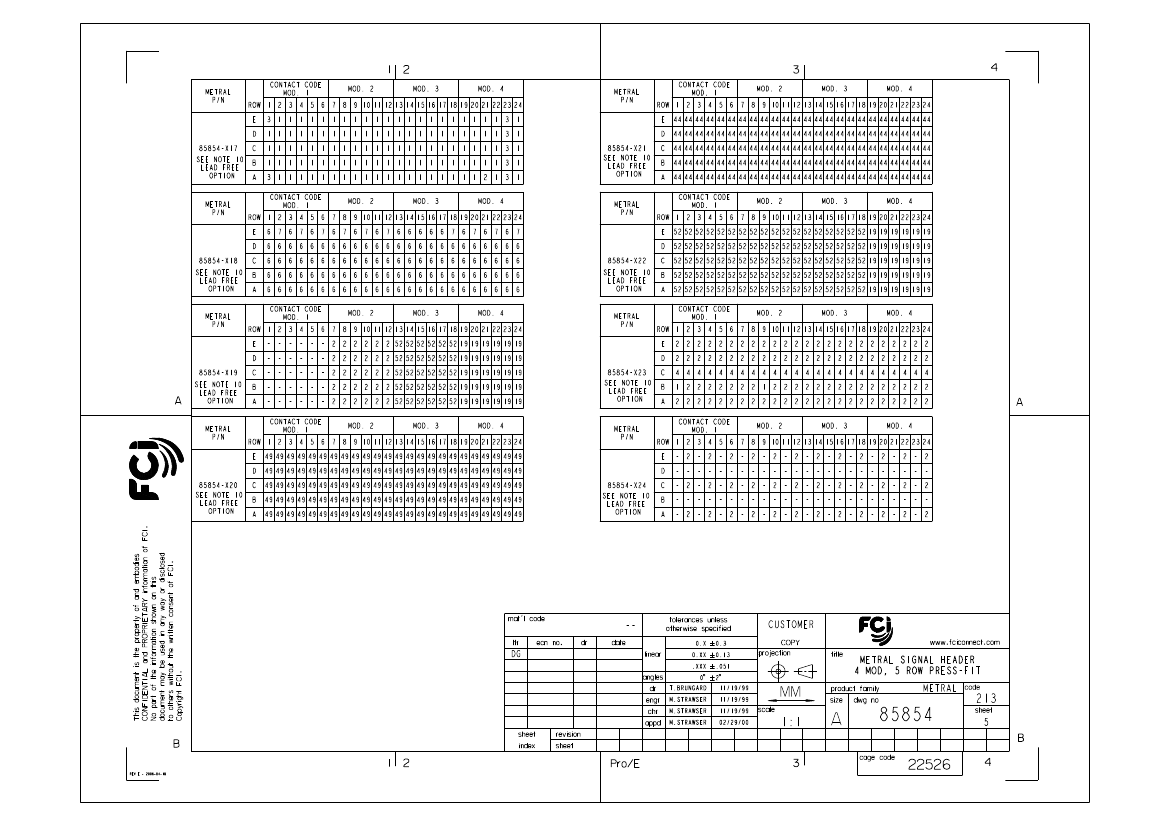

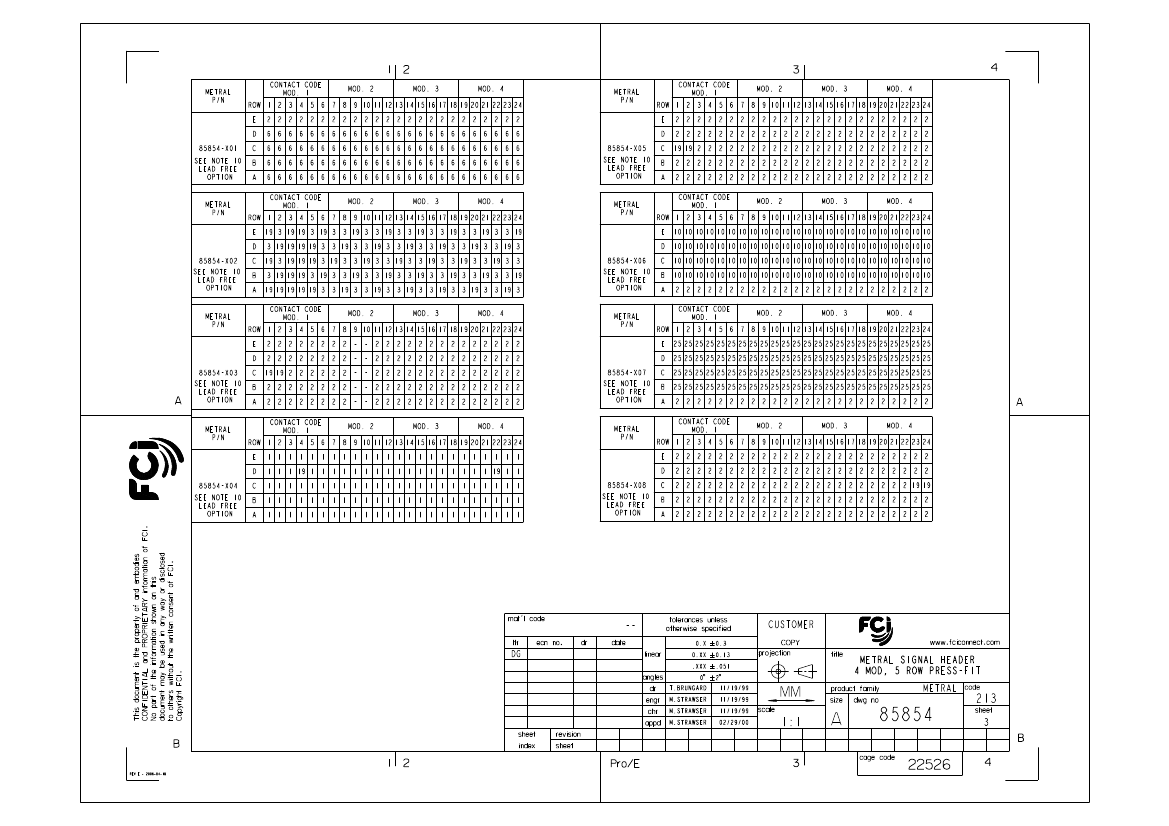

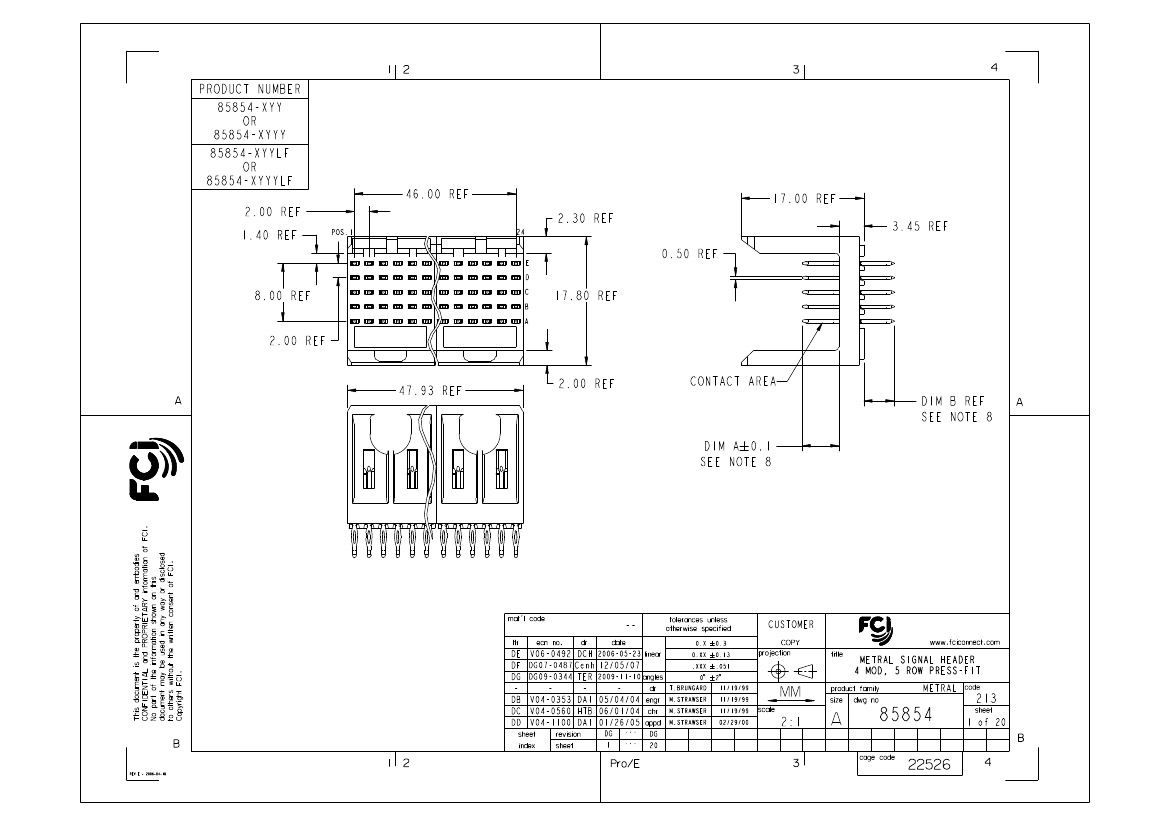

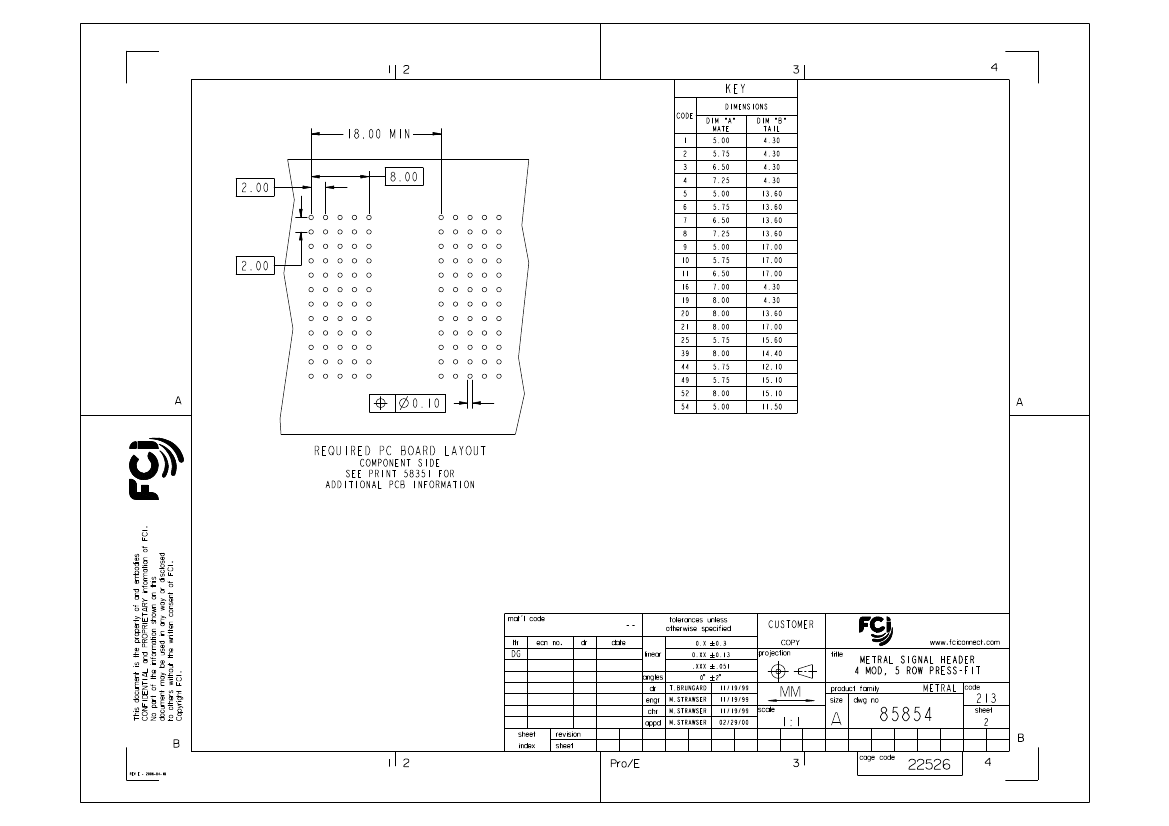

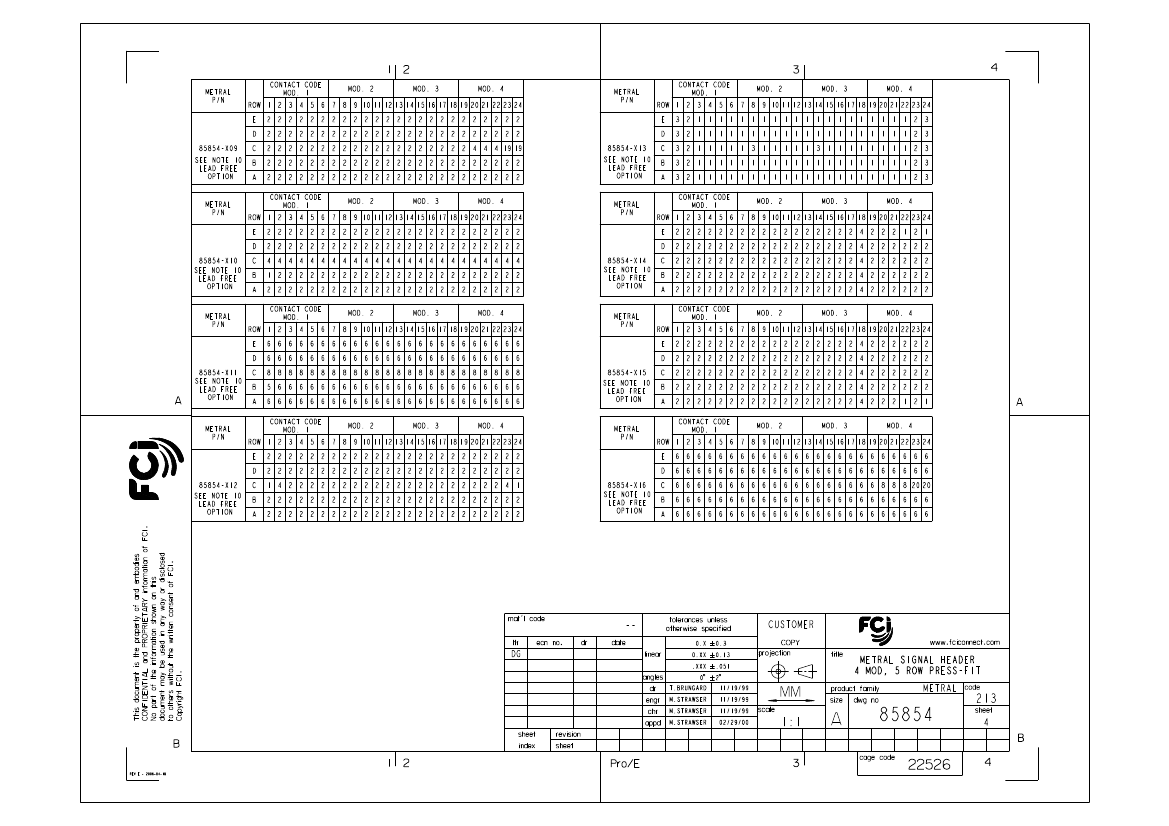

Preview

Download Datasheet

View All

PDM: Rev:DG

STATUS:

Released

Printed: Nov 11, 2009

85854-147 Related Products

	85854-147	85854-1136LF	85854-183LF	85854-183	85854-153	85854-1135LF	85854-184LF	85854-184
Description	Board Connector, 36 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle	Board Connector, 120 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug	Board Connector, 105 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE	Board Connector, 105 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle
Is it Rohs certified?	incompatible	conform to	conform to	incompatible	incompatible	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	1.887 inch	1.887 inch	1.887 inch	1.887 inch	1.887 inch	1.887 inch	1.887 inch	1.887 inch
Body/casing type	RECEPTACLE	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin (Sn)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
maximum insertion force	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N	.3614 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0	e3	e3	e0	e0	e3	e3	e0
Manufacturer's serial number	85854	85854	85854	85854	85854	85854	85854	85854
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5	5	5	5	5
Number of rows loaded	3	5	5	5	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	4 mm	2.0066 mm	2 mm	2 mm	2 mm	2.0066 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	36	120	120	120	120	120	105	105
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N	.139 N
Base Number Matches	1	1	1	1	1	1	1	1
Is it lead-free?	Contains lead	-	Lead free	Contains lead	Contains lead	-	Lead free	Contains lead
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	-	NO	NO	NO	-	NO	NO
Filter function	NO	-	NO	NO	NO	-	NO	NO
IEC compliance	NO	-	NO	NO	NO	-	NO	NO
MIL compliance	NO	-	NO	NO	NO	-	NO	NO
Mixed contacts	NO	-	NO	NO	NO	-	NO	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	-	94V-0	94V-0
