N74109F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N74109F

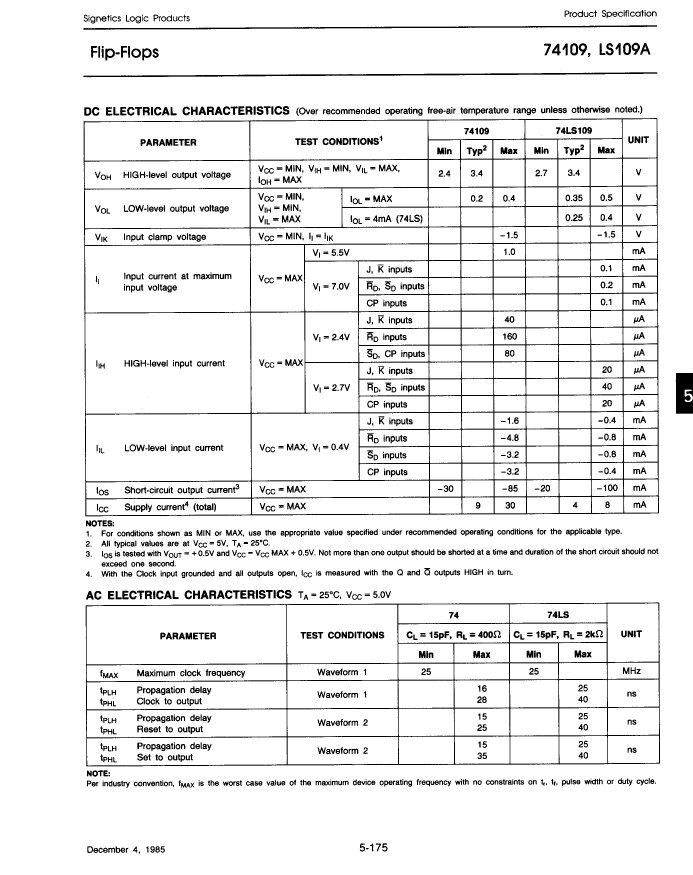

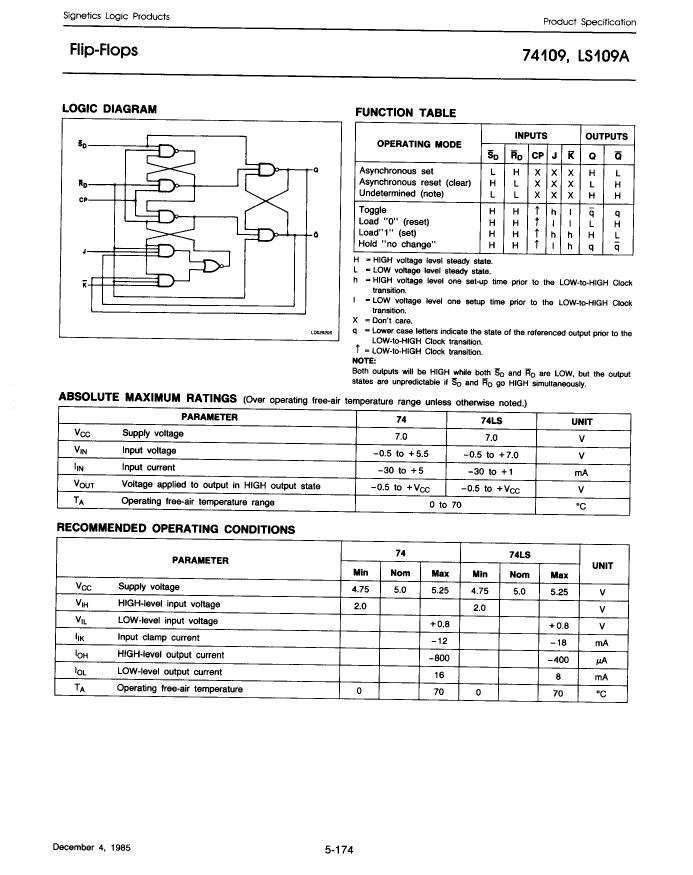

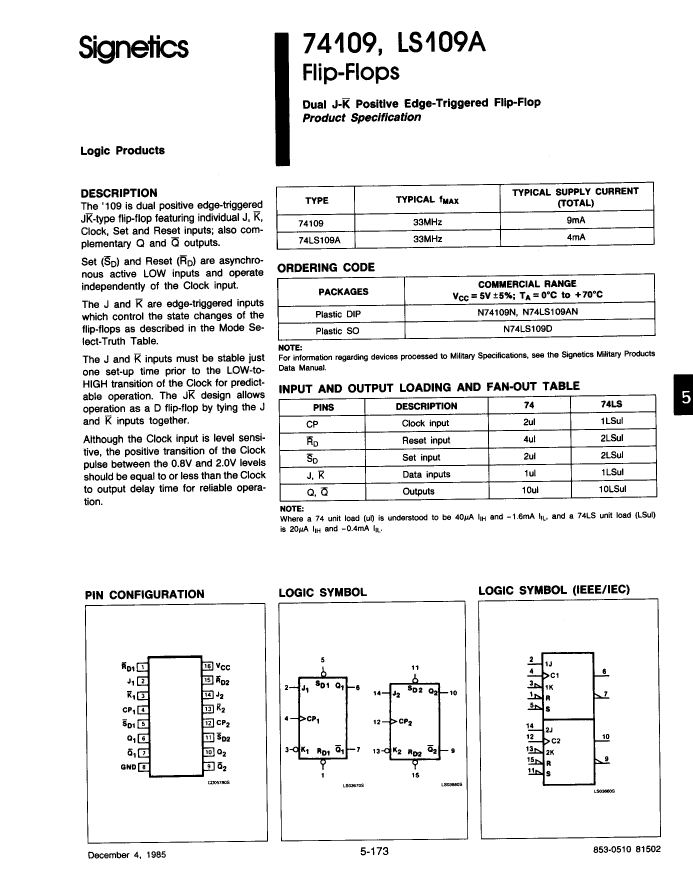

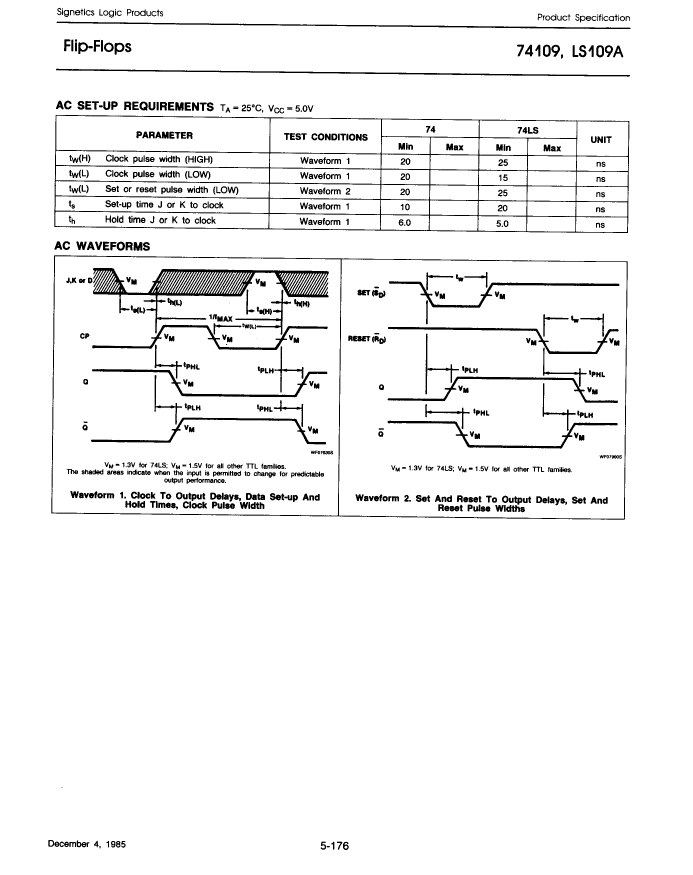

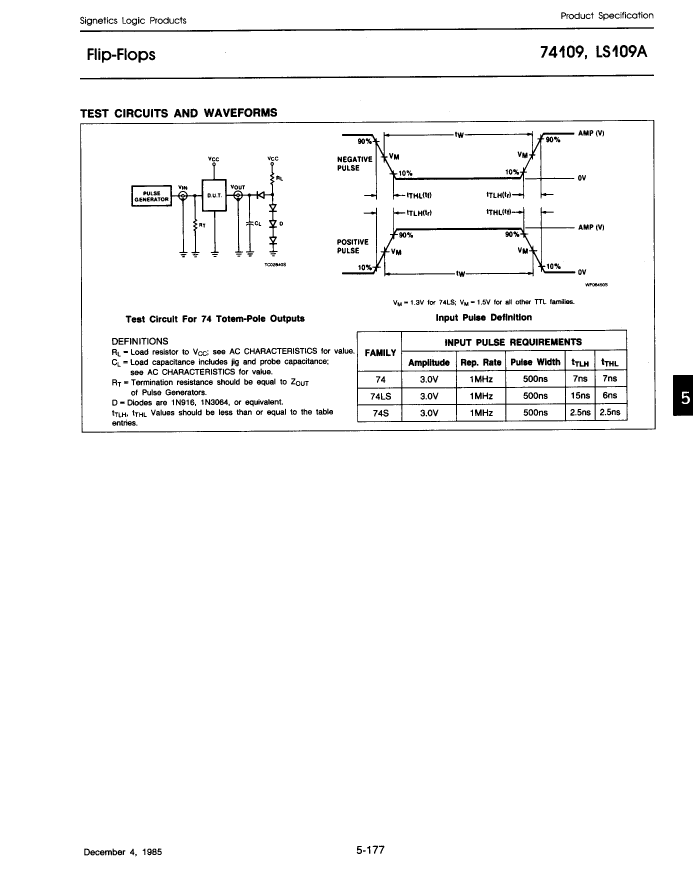

N74109F: DescriptionJ-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16; Categorylogic logic; File Size251KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

N74109F Overview

J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16

N74109F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	25000000 Hz
MaximumI(ol)	0.016 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	28 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

N74109F Related Products

	N74109F	N74109FB	N74109B	S54109F	S54109F/883C	S54109F/883B	S54109W	S54109W/883B
Description	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, PDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDIP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16	J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Maximum Frequency@Nom-Sup	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	-	25000000 Hz	25000000 Hz	25000000 Hz
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A	-	0.016 A	0.016 A	0.016 A
Maximum supply current (ICC)	28 mA	28 mA	28 mA	30 mA	-	30 mA	30 mA	30 mA
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
