8609.396.18.15.765.000.E1 datasheet, PDF

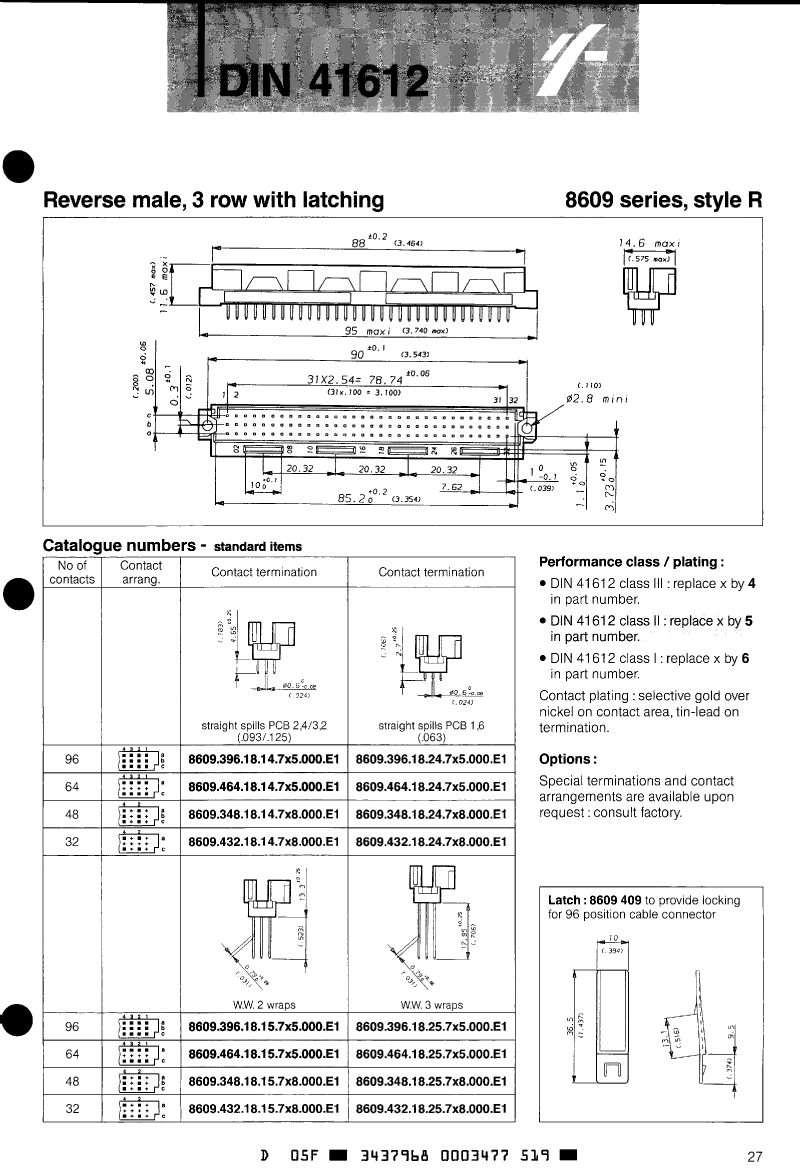

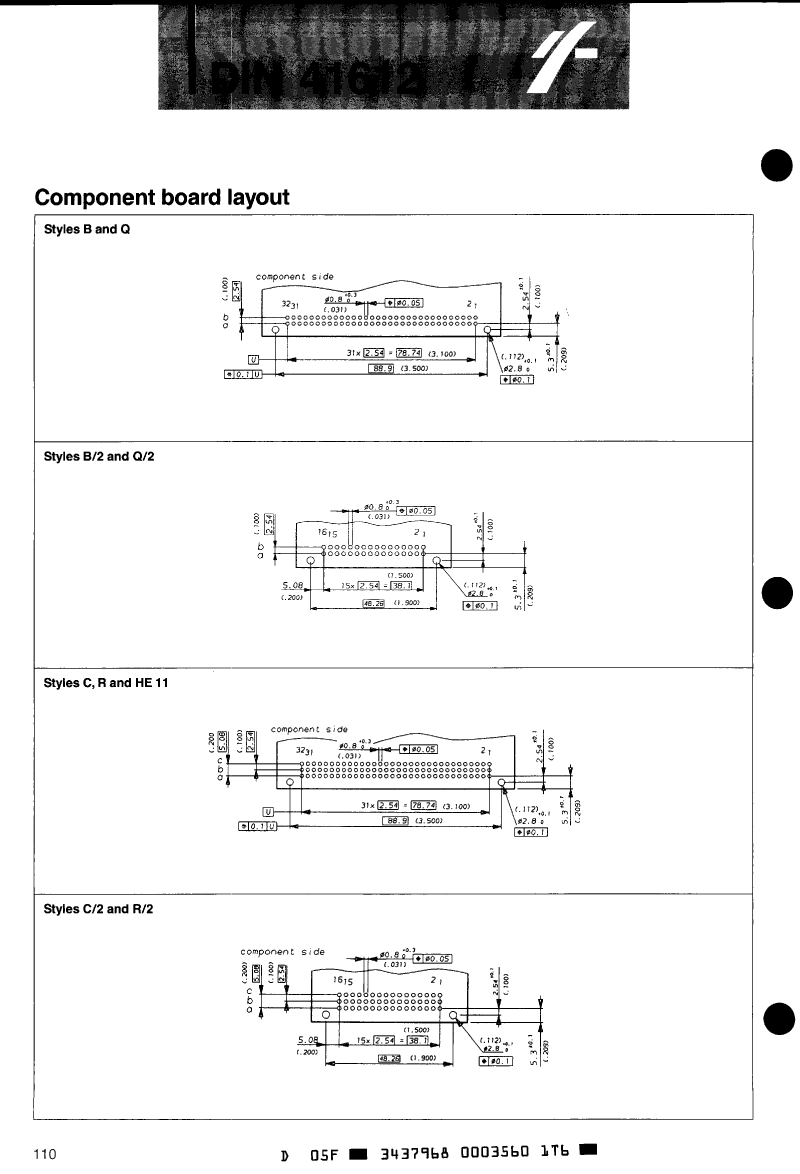

8609.396.18.15.765.000.E1: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size560KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609.396.18.15.765.000.E1 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.575 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.523 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	96
Evacuation force-minimum value	.139 N
Base Number Matches	1
