8609360C113765E1LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8609360C113765E1LF

8609360C113765E1LF: DescriptionBoard Euro Connector, 60 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size193KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609360C113765E1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8609360C113765E1LF	-	-	View	Buy Now

8609360C113765E1LF Overview

Board Euro Connector, 60 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

8609360C113765E1LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	STANDARD: DIN 41612, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1

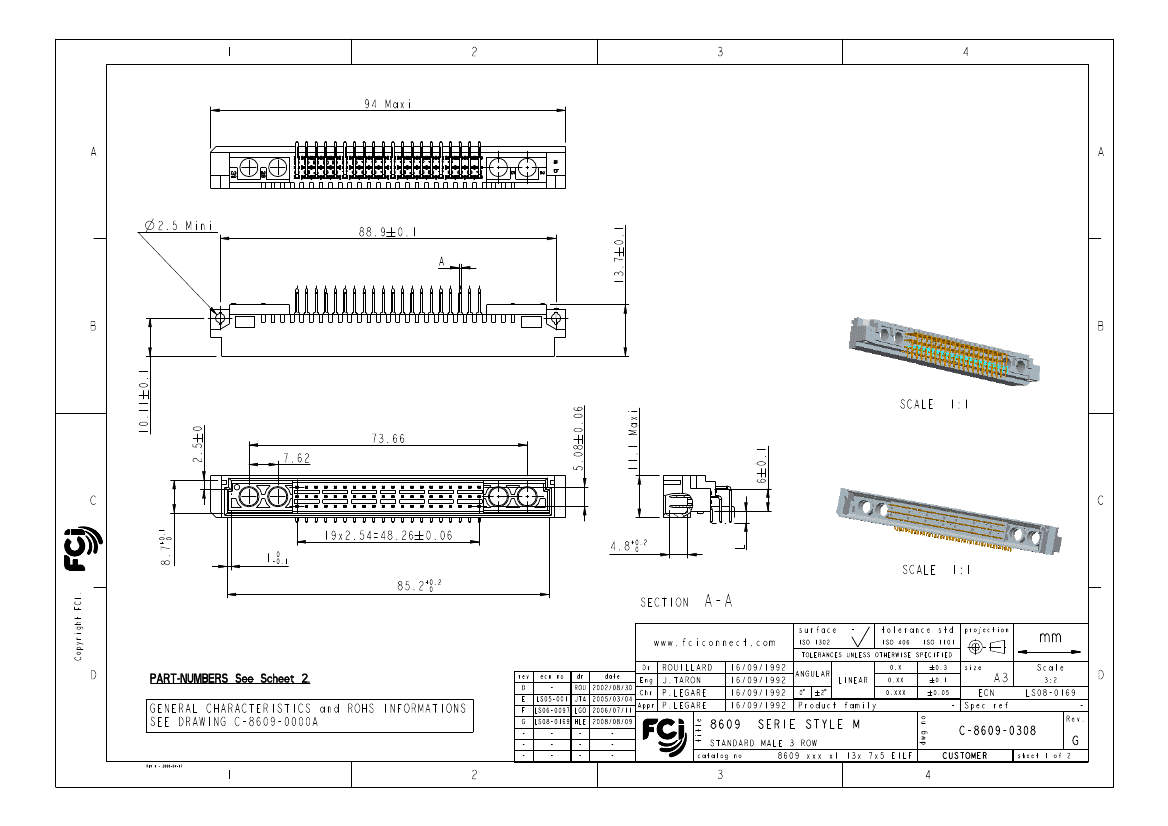

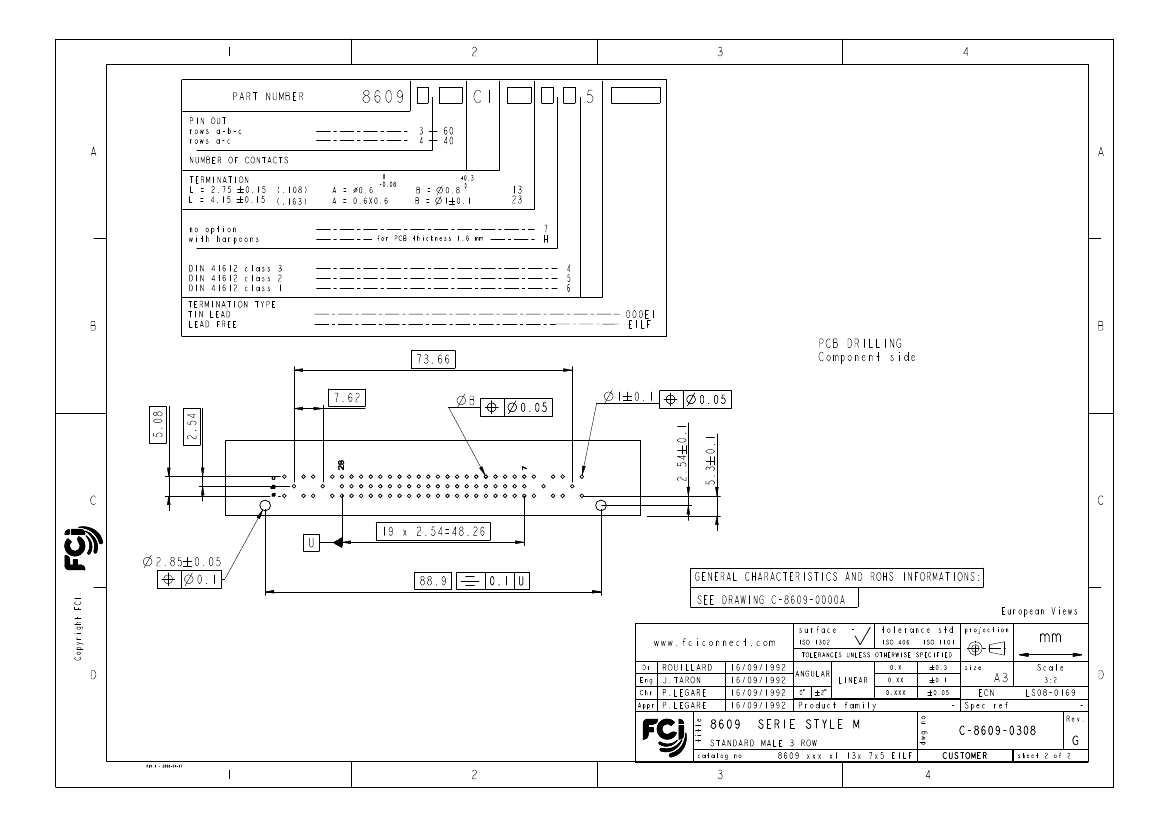

Preview

Download Datasheet

View All

PDM: Rev:G

STATUS:

Released

Printed: Aug 20, 2008

8609360C113765E1LF Related Products

	8609360C113765E1LF	8609360C113745E1LF	8609440C113755E1LF	8609440C113765E1LF
Description	Board Euro Connector, 60 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 60 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Euro Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM	STANDARD: DIN 41612, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM	STANDARD: DIN 41612, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM	STANDARD: DIN 41612, TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609
Mixed contacts	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	60	40	40
Base Number Matches	1	1	1	1
