8609-396-89-13-755-000-E2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8609-396-89-13-755-000-E2

Preview

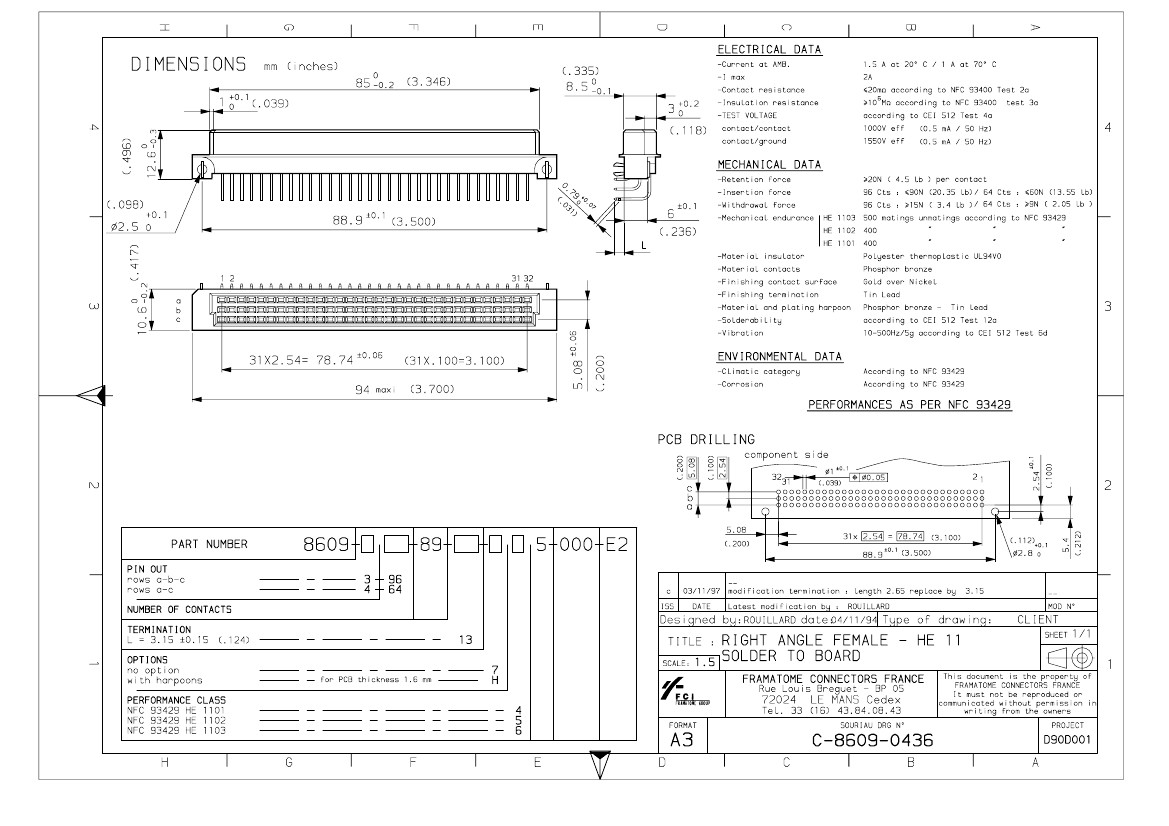

8609-396-89-13-755-000-E2: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-396-89-13-755-000-E2 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal,

8609-396-89-13-755-000-E2 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Sep 29, 2005

.

8609-396-89-13-755-000-E2 Related Products

	8609-396-89-13-755-000-E2	8609-396-89-13-745-000-E2	8609-396-89-13-765-000-E2	8609-396-89-13-H45-000-E2	8609-396-89-13-H55-000-E2	8609-396-89-13-H65-000-E2
Description	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal,	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal	Board Euro Connector, 96 Contact(s), 3 Row(s), Female, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96	96	96	96
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	-	8609	8609	8609	8609	8609
